THINKCAR Thinktool Max Advanced Vehicle Diagnostic Scan Tool

Original price $6,899.95 - Original price $6,899.95
Original price
$6,899.95 - $6,899.95
Current price $6,899.95
Long term payment plans available with logo-NZD Learn more

Delivery Time

With a target delivery time of 1-3 days, our nationwide shipping service ensures that all in-stock items are dispatched within 24 hours.

THINKCAR Thinktool Max Advanced Vehicle Diagnostic Scan Tool

Thinktool Max is the latest diagnostic tester from THINKCAR, equipped with an advanced diagnostic system for professional diagnostics.

Thinktool Max has extensive diagnostic coverage of all systems that a given vehicle is equipped with for over 119+ makes and models around the world in both passenger cars, small commercial vehicles and hybrid vehicles.

The device is constantly updated and expanded with new capabilities through ongoing online updates, which increases the potential and possibilities of using the diagnostics device.

Professional diagnostic tool for vehicle diagnostics and monitoring its condition.

Example Possibilities:

Viewing current parameters, can code control units, read, clear faults after repair, supports executive tests, module replacement, modification, personalization, anti-theft adaptation and key programming, online functions increasingly needed in today's diagnostics, and others...

Thinktool Max has the ability to program online coding drivers in selected brands such as; Audi, BMW, LAND ROVER, Mercedes-Benz, Nissan, Porsche, Seat, Skoda, Subaru, VW,Renault…

New models coming soon.

The J2534 (Pass Thru) Protocol  enables online programming, driver updates or adding modules via software from the authorized dealer after registering an account with a given vehicle brand manufacturer.

The Following Options Are Also Available:

  • functions carried out
  • online coding
  • online programming
  • personalizations
  • online parameterization
  • online calibration
  • has a long and short coding helper in the VAG group
  • and many others …

THINKTOOL MAX Uses The Latest Protocols:

DoIP and CAN FD, as well as J2534(PASS THRU), D-PDU, DoIP, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO- 11898-2, ISO-11898-3, SAE-J2819 (TP2.0), ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE -J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with clock, BMW DS2, BMW DS1, kwp128, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2).

Additionally, the tester has 35 service functions available with one click, which allows you to quickly access a given service.

35 Service Functions:

  • Adaptation of the fuel-air mixture
  • Brake reset
  • Service and oil inspection
  • Steering angle sensor
  • Battery change
  • Bleeding the brakes
  • Throttle valve
  • Tire pressure monitoring system
  • Particulate filter
  • ADBlue reset
  • Adaptive high beam system
  • Airbag
  • Ventilation cooling system
  • Exhaust gas recirculation
  • Crankshaft sensor
  • Gear adaptation
  • Immobiliser
  • Injector coding
  • Language setting
  • Adaptive NOX sensor
  • Odometer
  • Sunroof
  • Suspension calibration
  • Electronic seat adjustment
  • Start/stop deactivation
  • Changing the circumference of a wheel
  • Activation of the means of transport
  • Initialization of the window controller
  • motor angle calibration
  • intelligent cruise control system
  • high voltage system diagnostics
  • engine balance calibration
  • installation and calibration of the air conditioning system
  • TPMS database

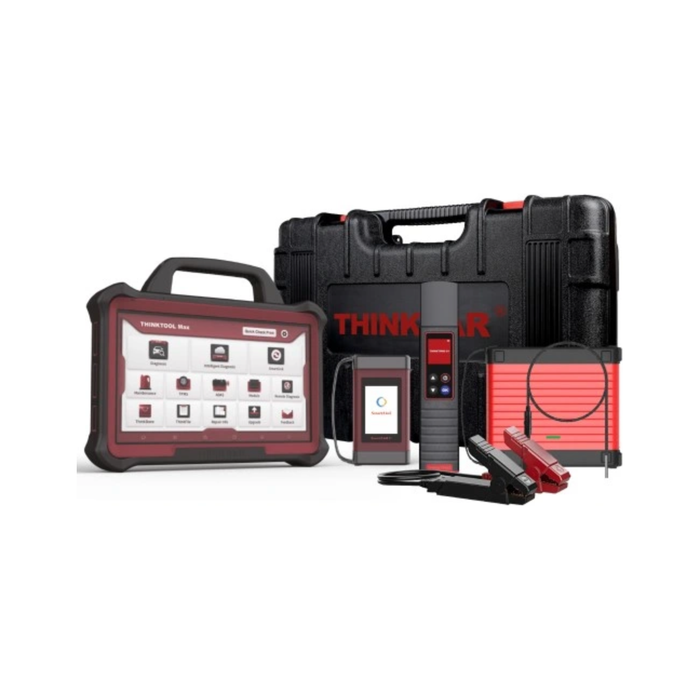

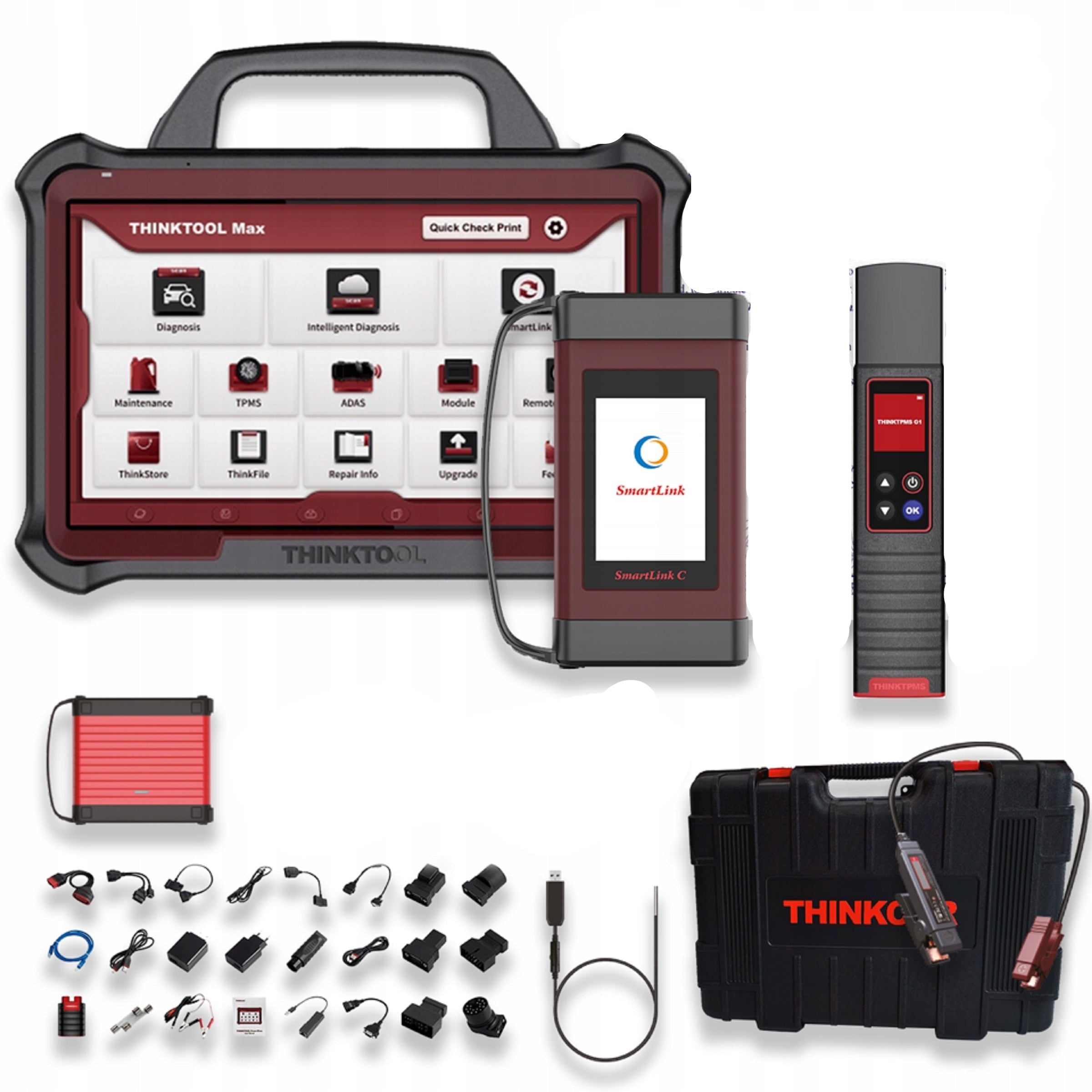

Standard Equipment:

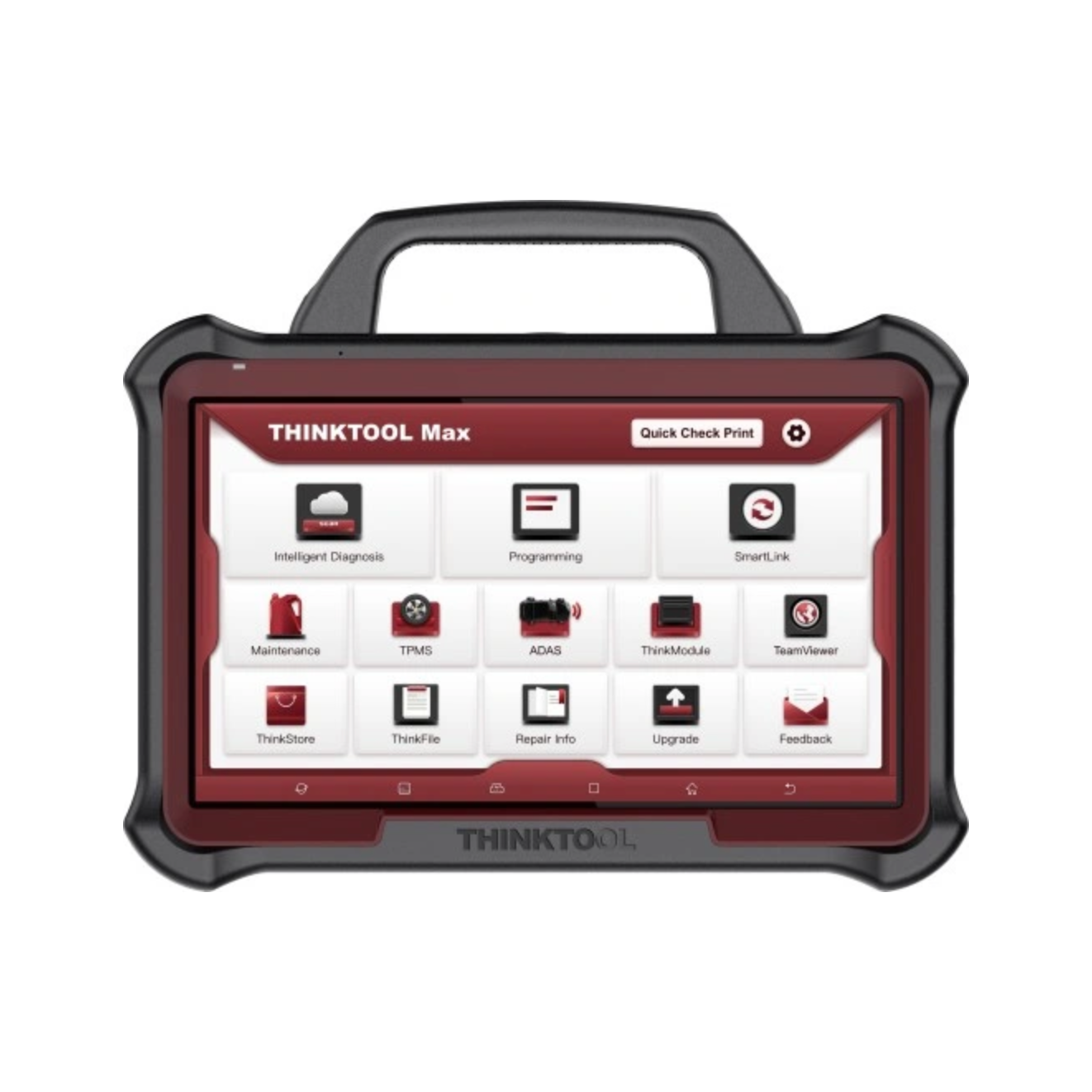

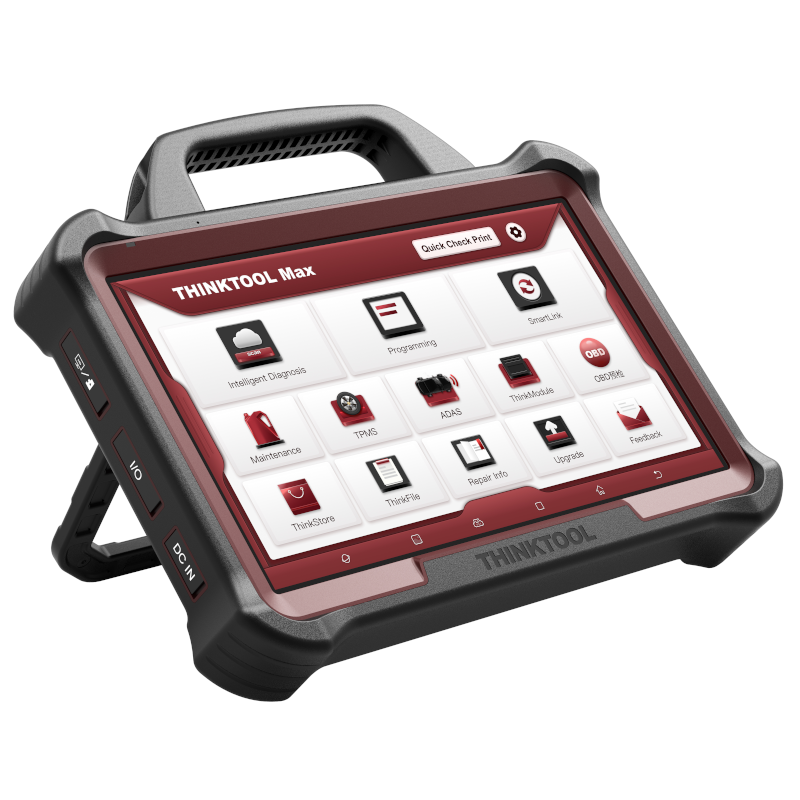

THINKTOOL MAX 13- inch diagnostic tablet in an armoured housing, set of adapter connectors.

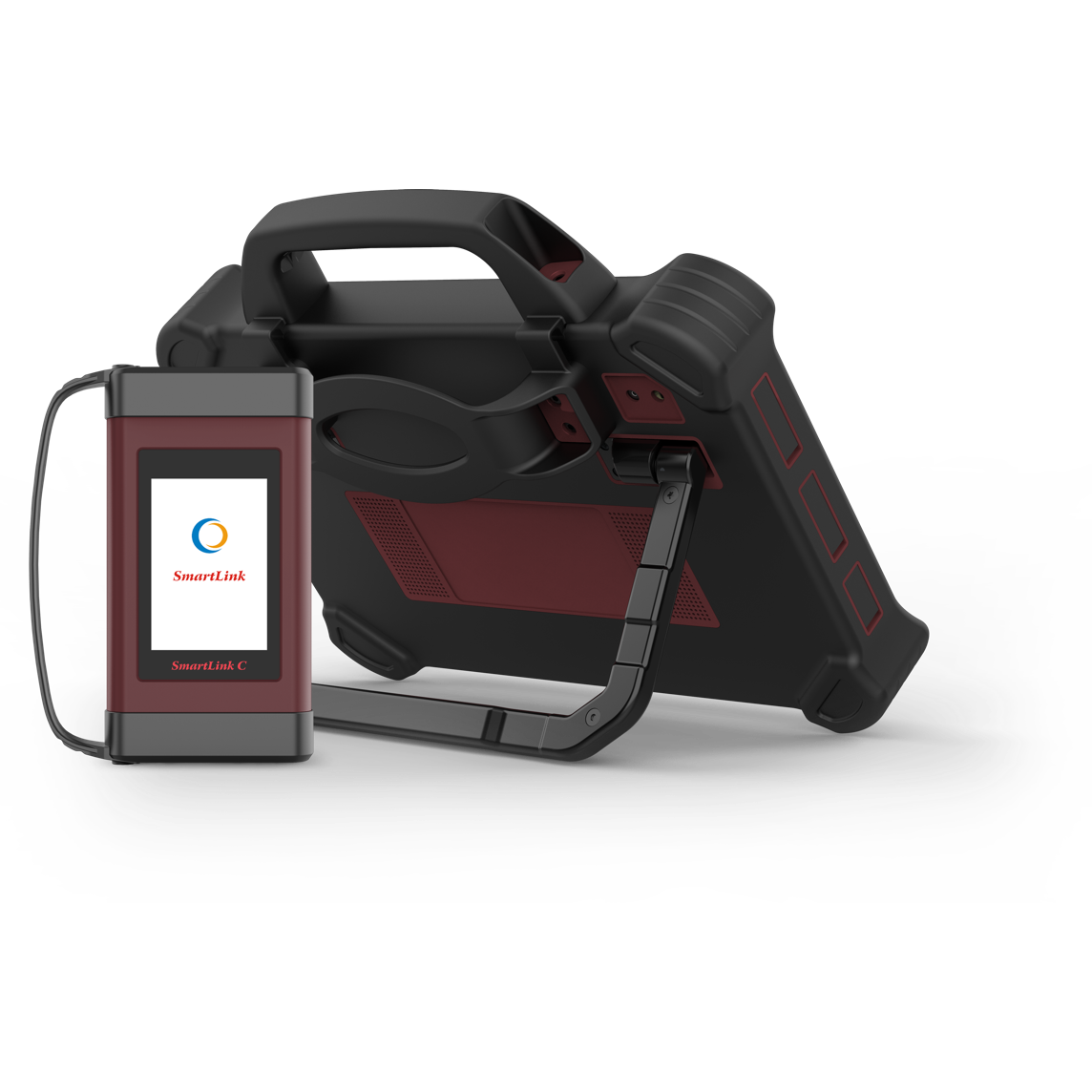

  • SmartLINk head (PassThru J2435)

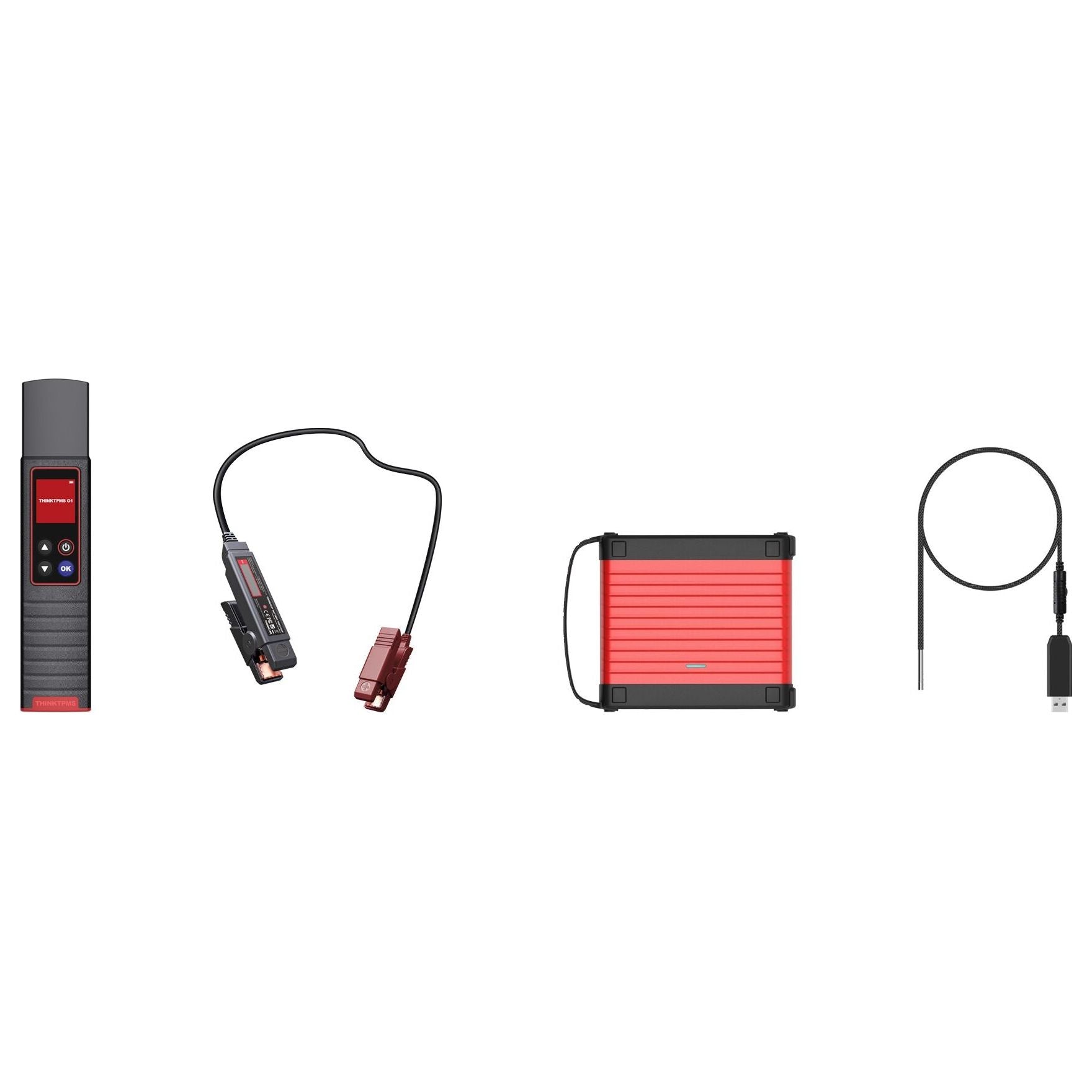

  • Endoscope camera

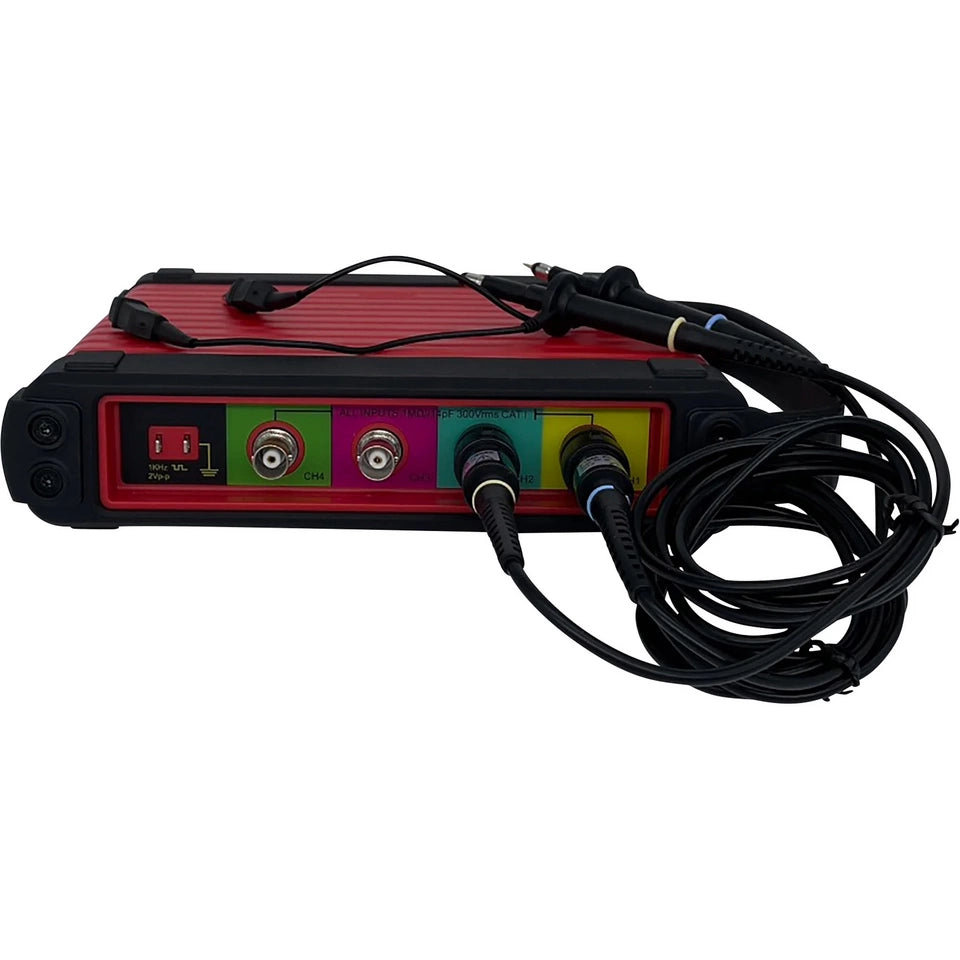

  • 4-channel oscilloscope
  • AGM, GEL, EFB, SPIRAL battery tester TRADITIONAL
  • THINKTPMS G1 TPMS sensor programmer teaches and activates , programming.
  • Set of OBD1 adapter connectors.

Supported Languages:

Polish, English, French, German, Italian, Spanish, Portuguese, Russian, Turkish, Dutch, Hungarian.


2 years of free software update from the date of activation.
1 year warranty.

Technical Data:

  • Operating system: Android 10
  • Processor: 2.0 GHz 8-core processor
  • Storage: 8 GB RAM
  • Hard drive: built-in memory 256 GB
  • Display: 13.3″ touch screen, 1280 × 800
  • Camera: Rear: 13.0 megapixels
  • Battery: 9300 mAH / 7.6 V
  • Network: Wi-Fi, WLAN 802.11 b/g/n
  • Bluetooth: Bluetooth 5.0
