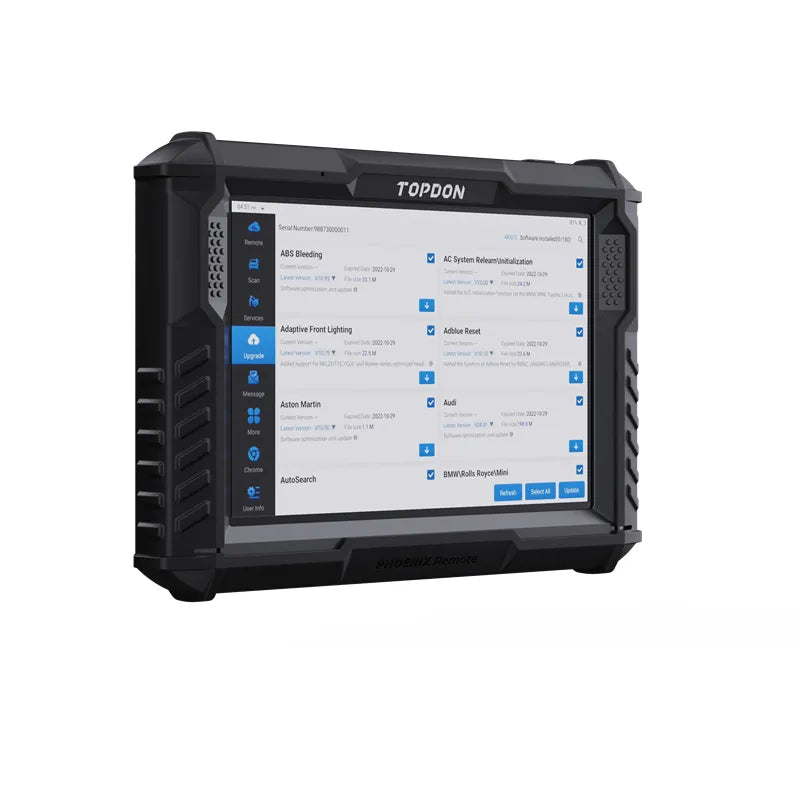

Topdon Phoenix Remote Diagnostic Scan Tool Featuring Remote Diagnosis

TOPDON®’s Phoenix Remote™ is an automotive diagnostic scanner with extensive coverage of over 200 passenger car and new energy vehicle models. Featuring Remote Diagnosis, this tool offers unprecedented insight and convenience. This functionality enables real-time communication between smart tools without space constraints and leverages OE-level functions - making it a game-changing device for repair shops.
The Phoenix Remote provides unprecedented coverage with its MDCI, an expanded VCI equipped with the latest protocols: CAN2.0, CAN FD, DoIP, J2534, D-PDU, and RP1210. It also offers a variety of advanced functions and crucial features, such as Cloud-based Programming, Coding, and FCA Secure Gateway Access.

*Remote Diagnostics Releasing At A Later Date.

FEATURES

Dual Diagnosis for Limitless Capabilities

• With Remote and Local/Intelligent Diagnosis this cutting-edge car scanner gives you diagnostics capabilities with no boundaries.

Get the Job Done at Any Time and from Anywhere

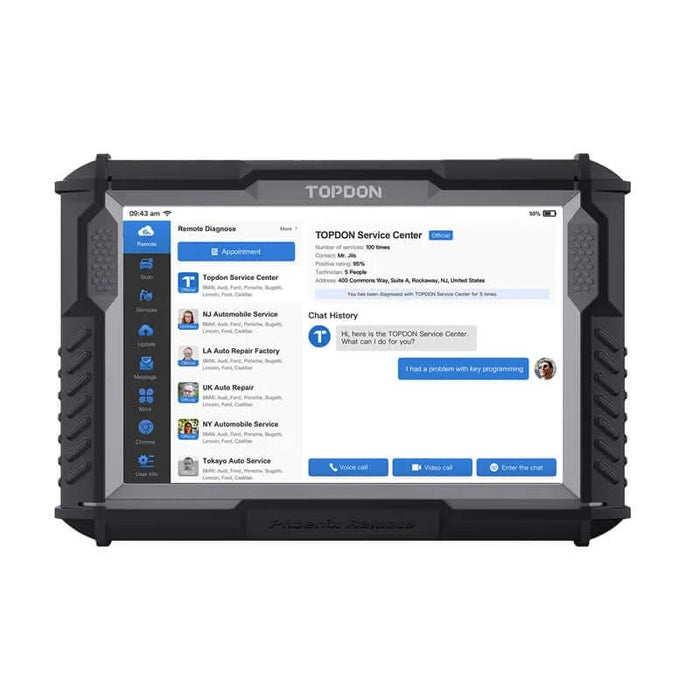

• The Phoenix Remote supports voice & video calls to ensure real-time communication between customers and technicians.

Get Instant Support From TOPDON Professionals

• This tool's technical support includes a remote service staff composed of TOPDON's professional technicians, available to offer instant assistance throughout remote diagnosis procedures.

Access the Latest Protocols with the Remote

• This diagnostic scanner includes all the mainstream protocol access you need to perform complex work on the newest vehicle models. Its MDCI includes CAN2.0, CAN FD, DoIP, J2534, D-PDU, and RP1210 protocols, covering passenger and commercial cars, as well as semi-trucks.

Cloud-Based Programming for 9+ Brands!

• Offering intelligent, fast, and convenient program file identification the Phoenix Remote allows you to perform online ECU programming for Audi, BMW, Jaguar, Land Rover, Mercedes-Benz, Nissan, SEAT, Skoda, Subaru, and Volkswagen vehicle models.

Access to Advanced Functions

• Perform other vehicle modifications by accessing advanced functions with the Phoenix Remote. This core scanner lets you unlock special vehicle features. Applicable to Audi, BMW, Ford, Mercedes-Benz, Toyota, Volkswagen, and more brands.

New Energy Cars

• This tool supports New Energy Cars allowing you to expand your revenue and work on even more models.

200 Vehicle Models

• It includes a comprehensive database with over 200 vehicle models, offering unmatched coverage unlike any other diagnostic tool.

Topology Mapping

• Topology Mapping gives users the best layout of a vehicle's structural components to easily identify faults and network communication issues.

FCA Secure Gateway Access

• It supports FCA Secure Gateway Access, letting you adjust protected functions on the most modern makes.

VAG (Volkswagen Audi Group) Coverage

• The VAG Guided Procedures include intuitive step-by-step directions for Volkswagen, Audi, Skoda and SEAT vehicles.

PHOENIX REMOTE TECHNICAL SPECIFICATIONS

• Screen Dimensions: LCD 10.1”, 1280 x 800
• CPU: 4-Core Processor, 2.0 GHz
• Operating System: Android 10.0
• RAM Memory: 4G
• ROM Memory: 128G
• Rear Camera: 13MP
• Battery Capacity: 12,000mAh
• Operating Voltage: 9-36V
• Storage Temperature: -20℃~60℃ (-4℉~140℉)
• Working Temperature: 0℃~50℃ (32℉~122℉)
• Dimension: 291 x 199 x 50mm (11.46 x 7.83 x 1.97”)
• Package Size: 563 x 412 x 184mm (22.16 x 16.22 x 7.24”)
• Net Weight: 1760.0g (3.88 lb)
• Multilingual Menu (13): English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Chinese(traditional), Hungarian, Dutch, Turkish, Polish

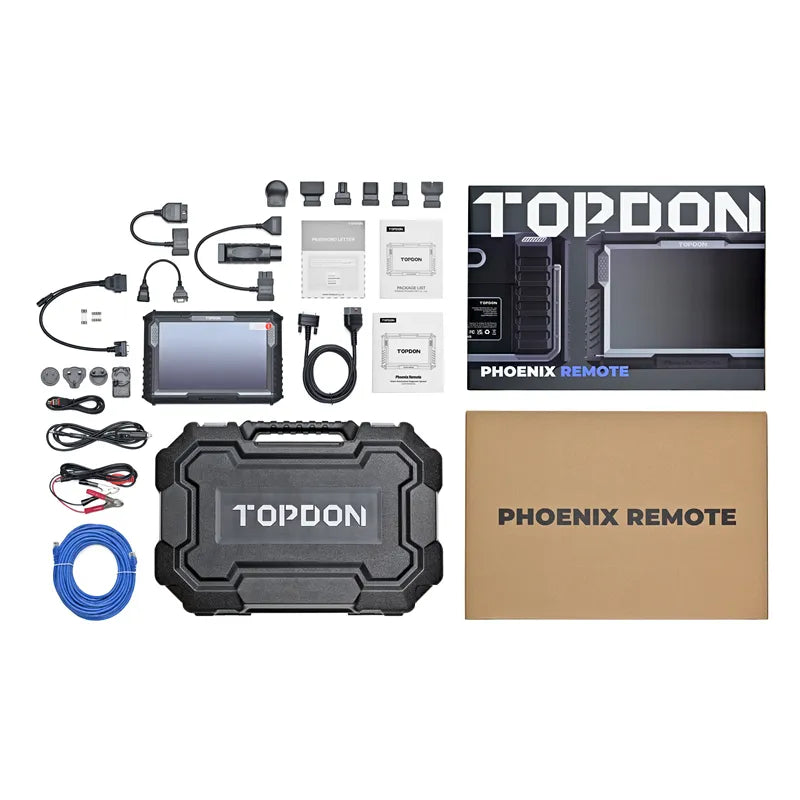

PACKING LIST

• 1* Phoenix Remote
• 1* User Manual
• 1* Power Adaptor
• 1* Battery Clamps
• 1* Cigarette Lighter Cable
• 1* OBDⅡ Extension Cable
• 1* OBDⅠ Adapter BOX Transfer Line
• 1* Type-C to USB Cable
• 1* Ethernet Cable
• 4* Fuse (φ5*20mm)
• 2* Fuse (φ6*30mm)
• 1* B-20 BMW

• 1* CR-6 Chrysler
• 1* FT-3 Fiat
• 1* G/V-12 GM/VAZ
• 1* HA-3 Honda
• 1* BZ-38 Mercedes-Benz
• 1* M/H-12+16 Mitsubishi/Hyundai
• 1* NN-14+16 Nissan
• 1* TA-17 Toyota
• 1* TA-22 Toyota
• 1* Packing List
• 1* Password Letter

WARRANTY

• Warranty Continues with Customer's Subscription
• 2 Years of Free Software Upgrades
