THINKCAR Lite 2 Thinktool 7" Diagnostic Scan Tool, Bi-Directional Control

Original price $1,079.95 - Original price $1,079.95
Original price
$1,079.95
$1,079.95 - $1,079.95
Current price $1,079.95
Long term payment plans available with logo-NZD Learn more

Delivery Time

With a target delivery time of 1-3 days, our nationwide shipping service ensures that all in-stock items are dispatched within 24 hours.

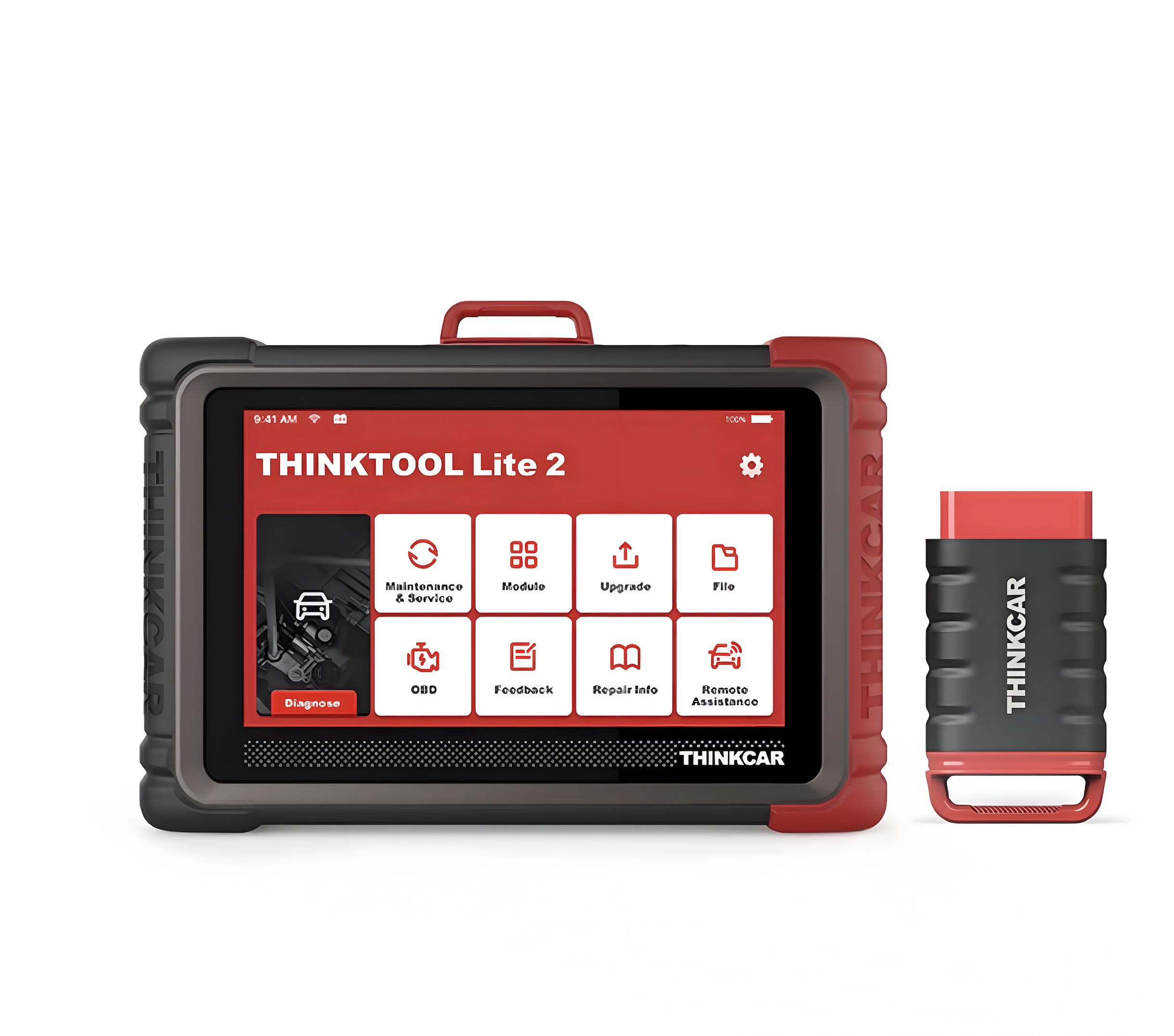

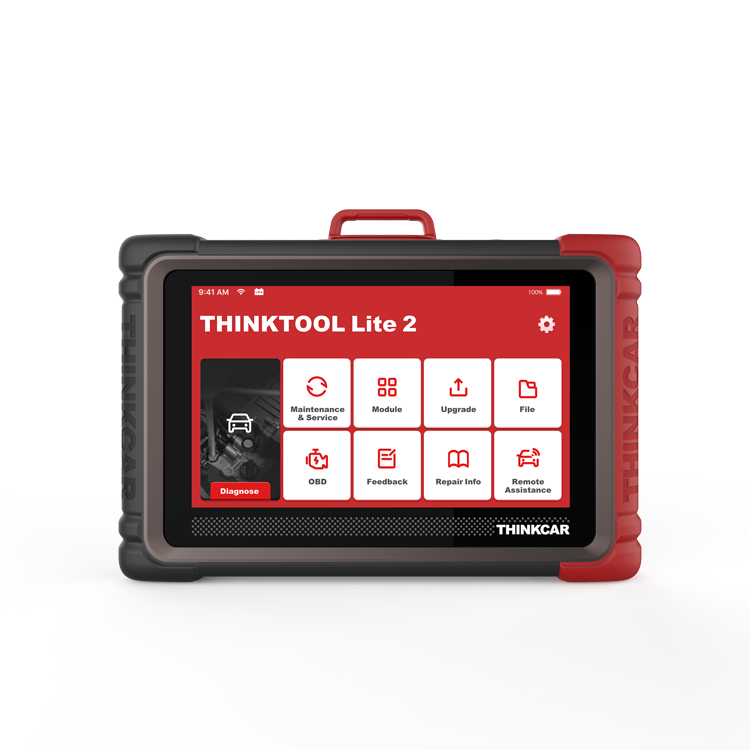

Thinktool Lite 2 Diagnostic Scan Tool

The THINKTOOL Lite 2 is an updated version with more expansive vehicle coverage of the THINKTOOL Lite. The lite 2 supports DoIP, CAN FD and the standard OBDII/ EOBDII protocols after 1996. It provides the full system full diagnostic features from read and clear DTCs, read live data stream to advanced features such as maintenance reset, special function, coding and more.

Features:

  • 2 Years free software updates
  • Active test ( Bi-Directional control )
  • Integrated the most commonly used 34 maintenance reset functions.
  • OE-Level full system diagnostics, including read and clear DTCs, read/compare/save data stream, read version information, special function,
    advanced coding and more
  • Support CAN FD protocols with more newly released vehicle coverage.
  • Support DOIP diagnosis.
  • Support THINKCAR extensive modules with USB or Bluetooth connection, such as T-wand 200, THINKEASY, USB Pinter,
    Scope Box-USB Version.

Full System Diagnosis:

Read and erase codes for all available systems using the supported protocols. The tablet type Lite 2 diagnostic tool is the best way to display live data in text, graph & analog for easy data review. Thinktool Lite 2 can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission. It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

The most commonly used 34 maintenance reset functions.

Lite 2 integrated the most commonly used special function including

Service Reset, Injector Coding, Battery Matching, DPF Regen, Air Bag Reset, Brake Bleeding, SAS reset, TPMS reset, IMMO, EGR reset, Stop Start with & Many more ....



Support THINKCAR extensive modules

Support THINKCAR extensive modules with USB or Bluetooth connection, such as T-wand 200, THINKEASY, USB Pinter, Scope Box-USB Version.



Specifications & Packing List

Thinktool Lite 2

  • Display: 7", 1024 x 600 Pixel
  • 1 x USB Port
  • VCI Slot
  • Working Voltage: 5V
  • Working Current: 2.5a

Thinktool VC1

  • Working Voltage: 9-18v
  • Working Current: 130ma

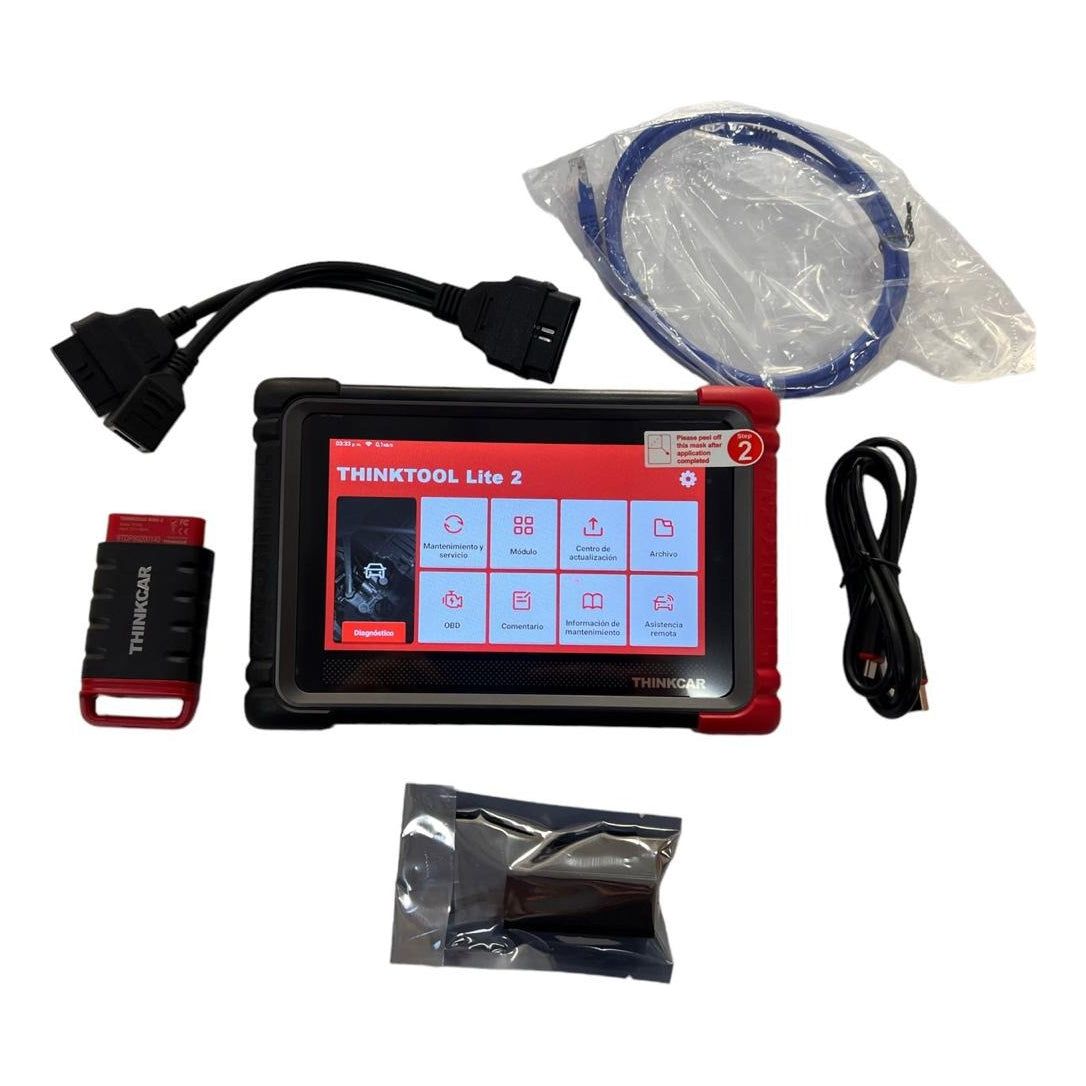

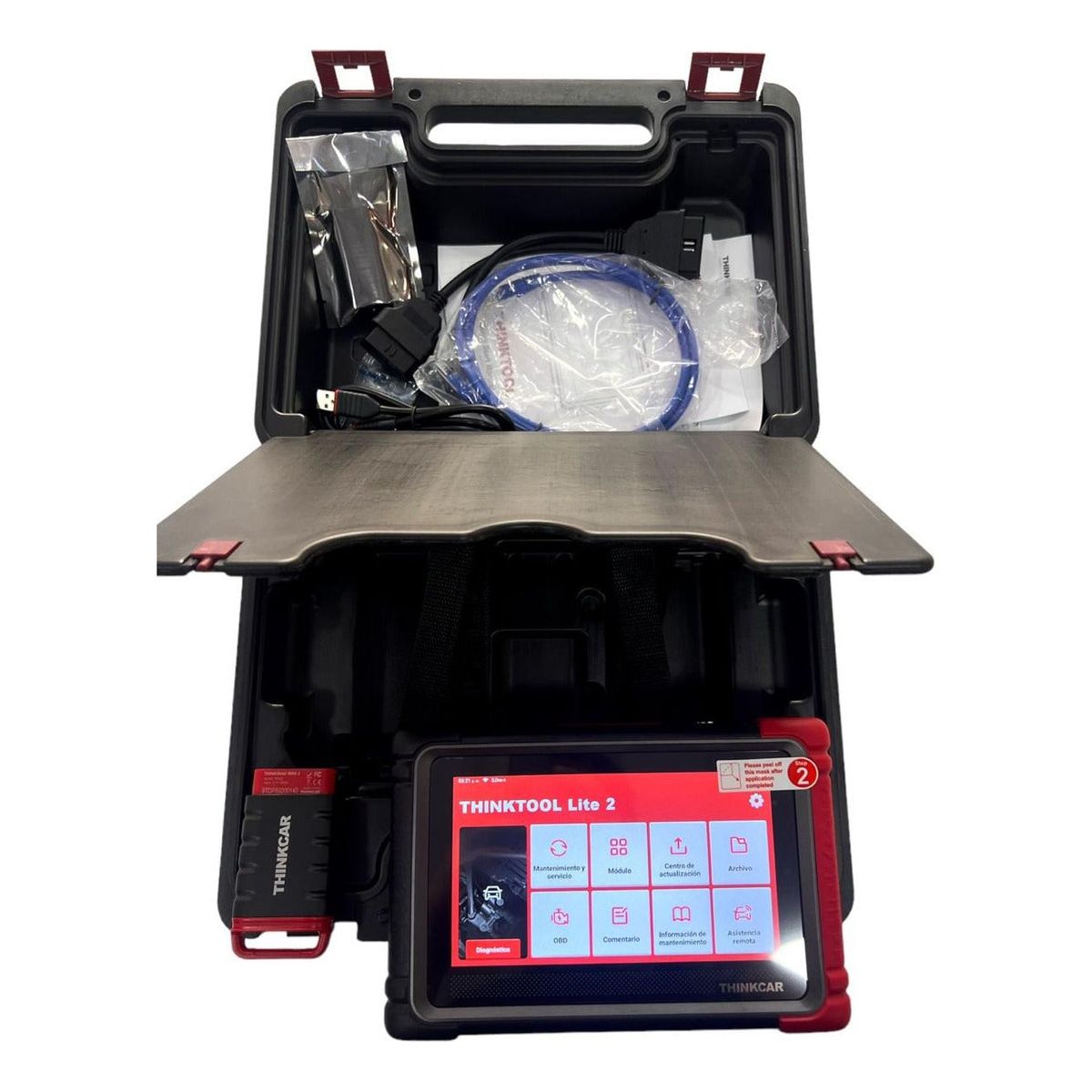

Packing List

  • 1 x Thinktool Lite 2
  • 1 x ThinkDiag Mini 2 Connector
  • 1 x RJ45 Network Cable
  • 1 x USB 2.0 to 10/100m Network Cable
  • 1 x F Chassis Cable
  • 1 x Type C Cable
  • 1 x User Manual
