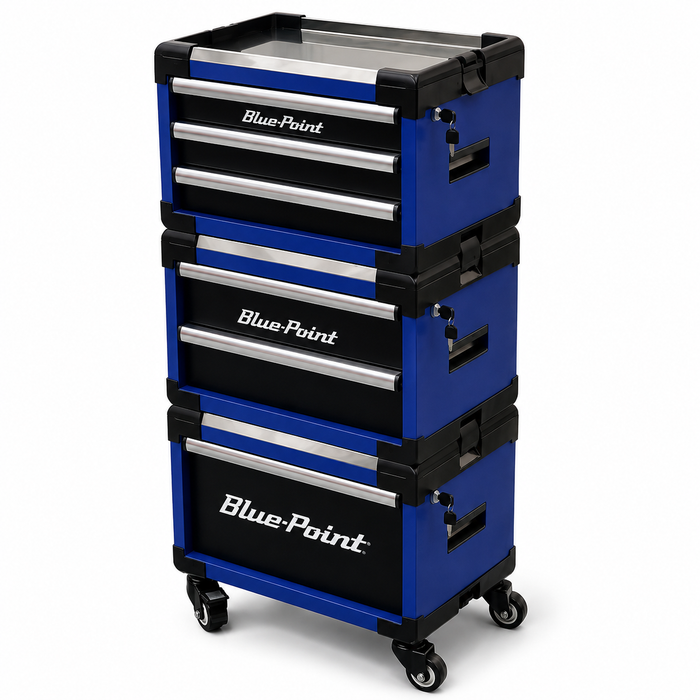

The Blue-Point BLPSTACKBOX Modular Tool Box System is a heavy-duty, flexible workshop storage solution designed for professional automotive technicians, mechanics and mobile service applications.
The system consists of 1-drawer, 2-drawer and 3-drawer modules that can be stacked in virtually any combination to create a storage setup that suits your workshop and tools. Heavy-duty removable side latches securely lock the individual modules together while still allowing the system to be quickly reconfigured when required.
Add the optional BLPSTACKBOXC4 caster kit to turn the stacked system into a mobile workshop trolley.

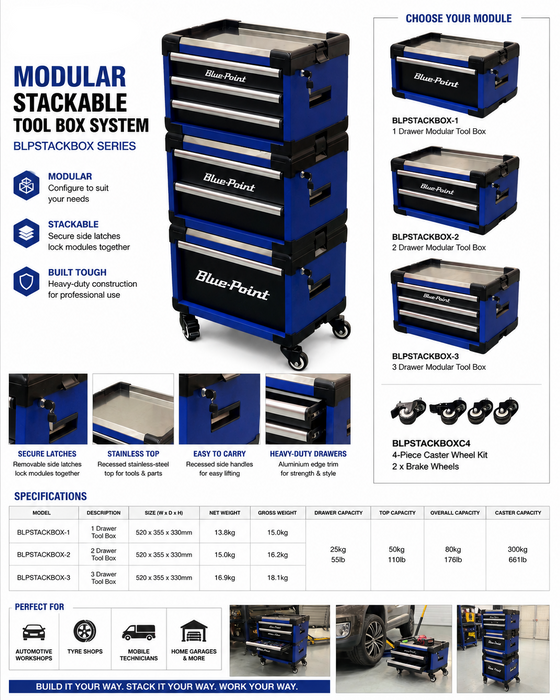

Modular & Stackable Design
Configure the system to suit the job. Choose from:
-
BLPSTACKBOX-1 – 1 Drawer Modular Tool Box
-
BLPSTACKBOX-2 – 2 Drawer Modular Tool Box
-
BLPSTACKBOX-3 – 3 Drawer Modular Tool Box
-
BLPSTACKBOXC4 – 4-Piece Caster Wheel Kit
Each toolbox measures 520 × 355 × 330mm, making the modules interchangeable and easy to stack.
Key Features
-
Fully modular system – stack the 1, 2 and 3-drawer boxes in the combination you need
- Heavy-duty removable side locking latches securely connect stacked modules
-
Recessed stainless-steel top provides a durable area for storing tools and components
- Protective black plastic edging on the top and bottom helps protect the toolbox, vehicles and users from accidental impacts
- Heavy-duty drawers with attractive aluminium edge trim
-
Recessed carrying handles on both sides make individual modules easier to transport
- Side-mounted lock location prevents the key interfering with drawer operation
- Drawer dimensions are designed to accommodate Blue-Point EVA tool trays and removable tool sets
- Suitable as a compact workshop trolley, mobile tool station or modular storage system
Heavy-Duty Load Capacity
Each drawer is rated to 25kg / 55lb, with the top rated to 50kg / 110lb and each toolbox module rated to 80kg / 176lb overall.
When fitted with the caster kit, the system uses four 2.5" swivel casters, including two with brakes. The caster system is rated to an impressive 300kg / 661lb.
Specifications
| Model |
Configuration |
Size |
Net Weight |
Gross Weight |
| BLPSTACKBOX-1 |
1 Drawer |
520 × 355 × 330mm |
13.8kg |
15.0kg |
| BLPSTACKBOX-2 |
2 Drawer |
520 × 355 × 330mm |
15.0kg |
16.2kg |
| BLPSTACKBOX-3 |
3 Drawer |
520 × 355 × 330mm |
16.9kg |
18.1kg |
Drawer Capacity: 25kg / 55lb
Top Capacity: 50kg / 110lb
Overall Module Capacity: 80kg / 176lb
Caster Capacity: 300kg / 661lb
Optional Caster Kit – BLPSTACKBOXC4
The BLPSTACKBOXC4 caster kit adds four 2.5" heavy-duty swivel casters, with brakes fitted to two wheels, transforming your stacked boxes into an easily manoeuvrable workshop trolley.
Perfect for Blue-Point EVA Tool Sets
The drawer sizing has been specifically designed to work with Blue-Point EVA tool tray sets, allowing you to build a professional organised tool storage system around the tools you actually use.
Ideal For
Automotive workshops, tyre shops, mobile technicians, mechanical workshops, home garages and anyone wanting a professional modular tool storage system that can grow or change as required.
Brand: Blue-Point
Series: BLPSTACKBOX
Construction: Heavy-Duty Modular Tool Storage
Available Modules: 1, 2 & 3 Drawer
Caster Kit: BLPSTACKBOXC4
