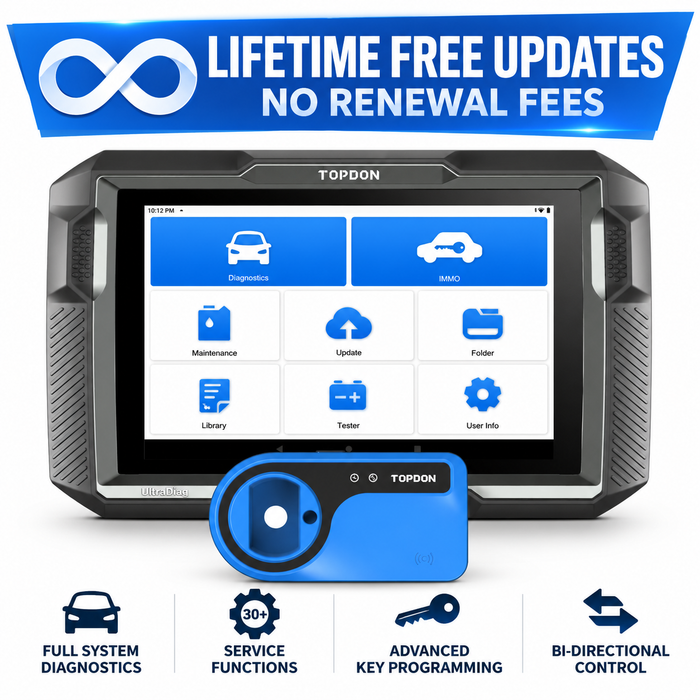

TOPDON UltraDiag – Professional Diagnostic Scanner & Key Programmer
NOW WITH LIFETIME FREE SOFTWARE UPDATES – NO RENEWAL FEES
The TOPDON UltraDiag is a powerful 2-in-1 professional diagnostic scanner and key programming tool designed for workshops, automotive technicians and locksmiths. It combines full-system vehicle diagnostics, bi-directional active tests, 30 maintenance functions and advanced key programming capabilities in one versatile 8-inch wireless diagnostic platform.
With support for full-system diagnostics across 100+ vehicle brands, the UltraDiag provides comprehensive access to systems including Engine, Transmission, ABS, SRS/Airbag, TPMS, Immobiliser, Gateway, Steering, Air Conditioning and more.
Lifetime FREE Software Updates
Buy once and keep it updated. The TOPDON UltraDiag now includes Lifetime FREE Software Updates, with no ongoing software renewal fees.
Key Features
-
Full-System Diagnostics for 100+ Brands – Scan and diagnose major vehicle systems including Engine, Transmission, ABS, SRS, TPMS, Immobiliser, Gateway, Steering, Radio and Air Conditioning.
-
Bi-Directional Control / Active Tests – Command supported vehicle components including injectors, coolant pumps, windows, wipers and more to help accurately locate faults.
-
30 Maintenance & Service Functions – Includes Oil Reset, EPB Reset, BMS Reset, Throttle Adaptation, ABS Bleeding, DPF Regeneration, Injector Coding, AdBlue Reset, Start/Stop Reset and more.
-
Advanced Key Programming – Supports key-related functions on 40+ vehicle brands including PIN Reading, Key Learning, Remote Control Learning, Delete Keys and All Keys Lost. Vehicle coverage varies.
-
Repair Data Library – Access useful diagnostic and repair information including service bulletins, DLC location information and warning-light guidance.
-
DTC Repair Guide – Provides fault-code information and repair guidance to assist technicians with diagnosis.
-
AutoVIN & AutoScan – Automatically identify supported vehicles and quickly scan vehicle systems for diagnostic trouble codes.
-
Wireless Bluetooth VCI – Magnetic Bluetooth VCI stores neatly on the rear of the tablet and provides wireless freedom around the vehicle.
-
Professional OBD2 Diagnostics – Supports comprehensive OBD2 functions including DTC lookup, live data, freeze-frame data and emissions-related diagnostics.
-
Optional Battery Testing – Compatible with the TOPDON BTMobile ProS battery analyser for wireless battery testing.
Powerful Workshop Hardware
The UltraDiag runs Android 11 and features an 8-inch 1280 × 800 display, Bluetooth 5.0, Wi-Fi, 2GB RAM, 32GB internal storage and a large 10,000mAh battery for extended workshop use.
USB Type-A, USB Type-C, RJ45, HDMI and DC charging connections provide excellent versatility, while TF card expansion supports up to 128GB of additional storage.
UltraDiag Specifications
- Operating System: Android 11
- Display: 8-inch, 1280 × 800
- Memory: 2GB RAM / 32GB ROM
- Battery: 10,000mAh
- Camera: 5MP
- Connectivity: Bluetooth 5.0, Wi-Fi, USB
- Ports: USB Type-A, USB Type-C, RJ45, HDMI, DC Charging
- Input Voltage: 12V DC
- Dimensions: 255 × 155 × 50mm
- Operating Temperature: 0°C to 50°C
What's Included
- 1 × TOPDON UltraDiag Tablet
- 1 × UltraDiag VCI
- 1 × Power Adapter
- 1 × OBD-II Extension Cable
- 1 × USB Type-A to Type-C Cable
- 1 × Quick User Guide
- 1 × User Manual
- 1 × Carrying Case
- 1 × Package Box
Warranty & Updates
Software Updates: Lifetime FREE Software Updates – No Renewal Fees
Warranty: 12 Months
Diagnostic, service, bi-directional and key programming functions vary by vehicle make, model, year and control system. Please contact TOPDON NZ if you would like compatibility confirmed for a specific vehicle or function before purchasing.
