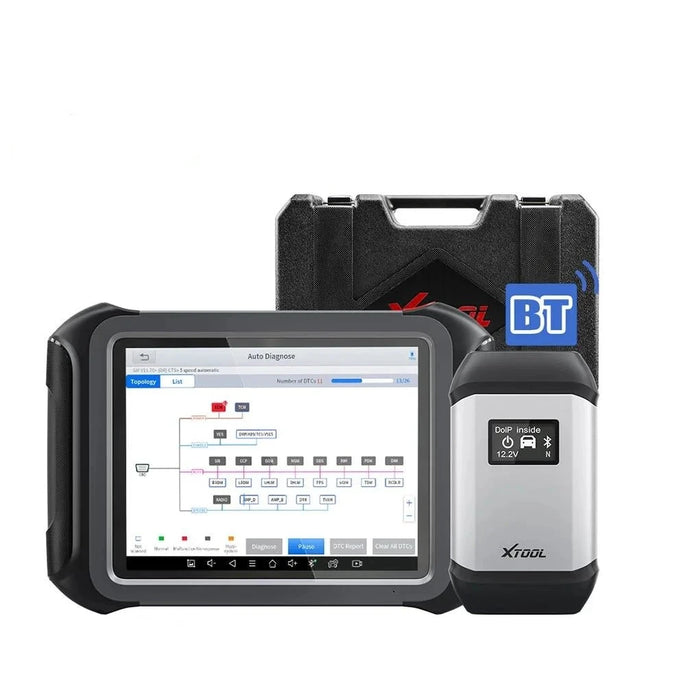

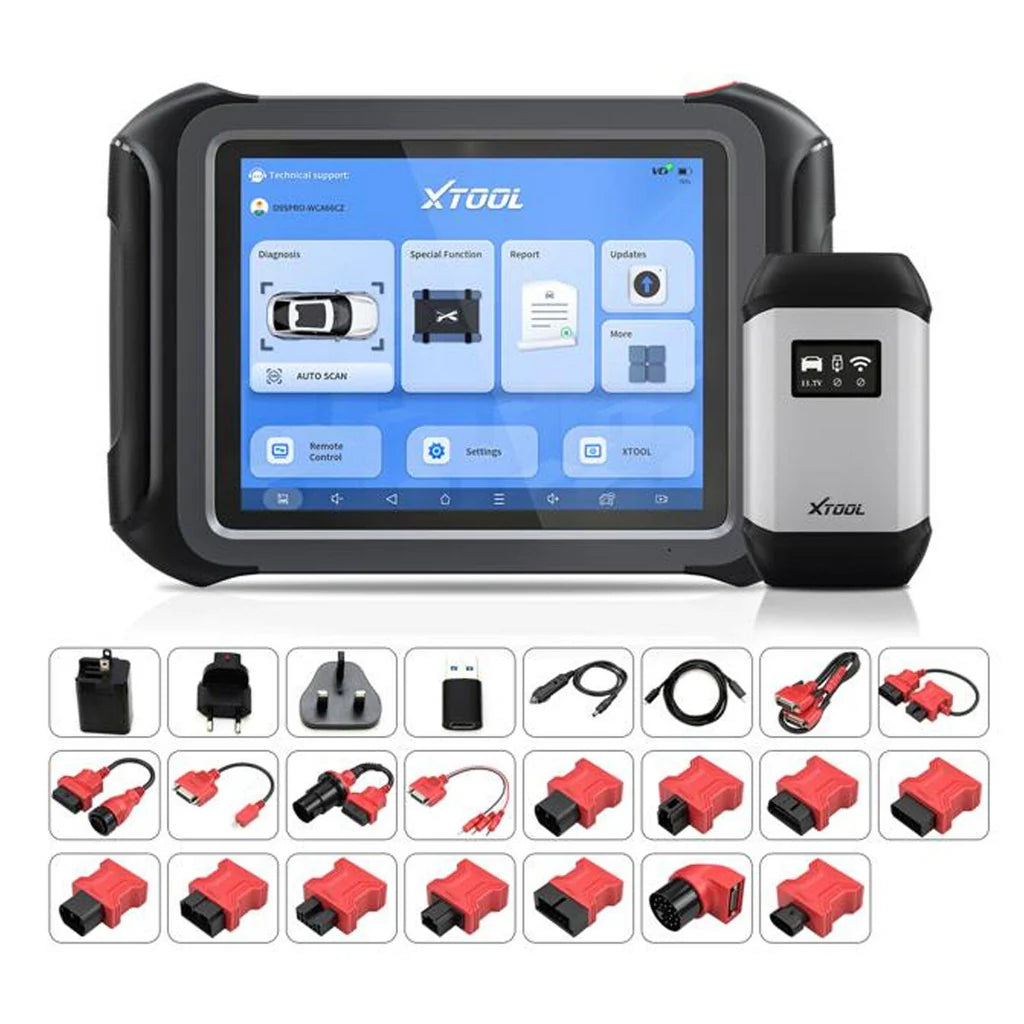

XTOOL XT90 Diagnostic Scan Tool Topology Map, ECU Coding, Key Programming

XTOOL XT90 Diagnostic Scan Tool Topology Map, ECU Coding, Key Programming

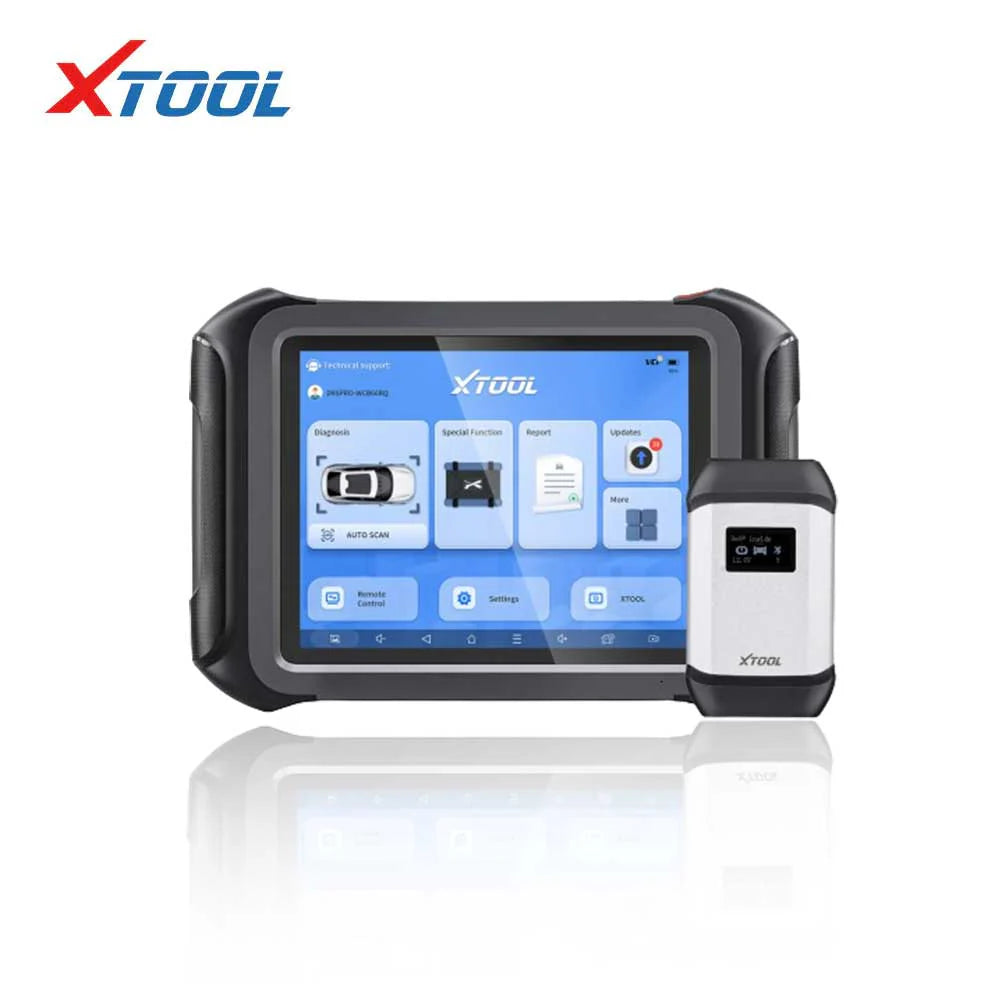

XT90 is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual WIFI modules for stable data transfer between the tablet and VCI. It is designed for mechanics, electricians, and automotive repair stores, it provides full-system automotive diagnostics, live data, Bi-directional control tests, ECU coding and programming. XT90 also supports 42 standard special functions such as throttle adaptation, ABS bleeding, service light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage and compatibility with over 100 brands and 10,000 car models, the XT90 is a versatile and reliable tool for any automotive professional.

Description

• Full System Diagnostics: Perform OE-Level diagnostics on all available systems. Support ECU information, read & clear DTC, live data, & freeze frame, Special functions under systems

• 9.7-inch high-resolution, responsive touchscreen display, 4-core processor with 128 GB storage.

• High-performance CPU with Android 10 OS, and dual WIFI modules, bring you a smooth and hassle-free diagnostic experience.

• Extensive vehicle coverage for U.S., European, Asian and Chinese vehicle makes；take the lead in vehicle model and function coverage.

• Exceptional OE-Level system coverage for all electronic systems.

• Read/Erase DTC, live data, ECU information, bi-directional control, and special function capabilities

• Topology Mapping provides a visual representation of the communication status of each system in the vehicle during automatic scanning.

• Advanced 42 relearn and reset services. That includes SAS, Seat Matching, BMS Reset, EPB, Odometer correction, A/F Reset, ECU Configurations, Oil Reset, DPF regen, Key Coding, Gearbox Match, Injector Coding, Throttle Reset, Gear learning, Air Bag Reset, ABS Bleeding, ADAS Calibration & Many More.....

• Provides fault code guidance for VAG and BMW. Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz.

• Supports the latest communication protocols, including DoIP for Benz, Jaguar, Land Rover and BMW and CAN FD for GM.

• Online & Offline Programming: Supports online programming for VW, Audi, BMW, Mercedes-Benz & Programmable module installation for Ford & Mazda.

• Included as a bonus XV100 Video Scope

Parameters

• Operating System：Android 10

• Processor：4 Core 1.50GHz

• Memory：4G RAM, 128G ROM

• Display：9.7-inch, 1024×768P

• Communication：Wi-Fi, Wired

• Connectivity：Type-C, USB 3.0

• Camera：8.0 Megapixel, AF with Flashlight

• Battery：6400 mAh, 7.2V

• Auto Input/Output：Microphone/ Speaker

• Working Voltage：9 to 36V

• Working Temperature：0 to 40℃

• Storage Temperature：-10 to 50℃

• Humidity：<90%

• Dimension (L×W×H)：313X218X30 mm

• Compatible Protocol：CANFD, DoIP
