PRODUCT DESCRIPTION

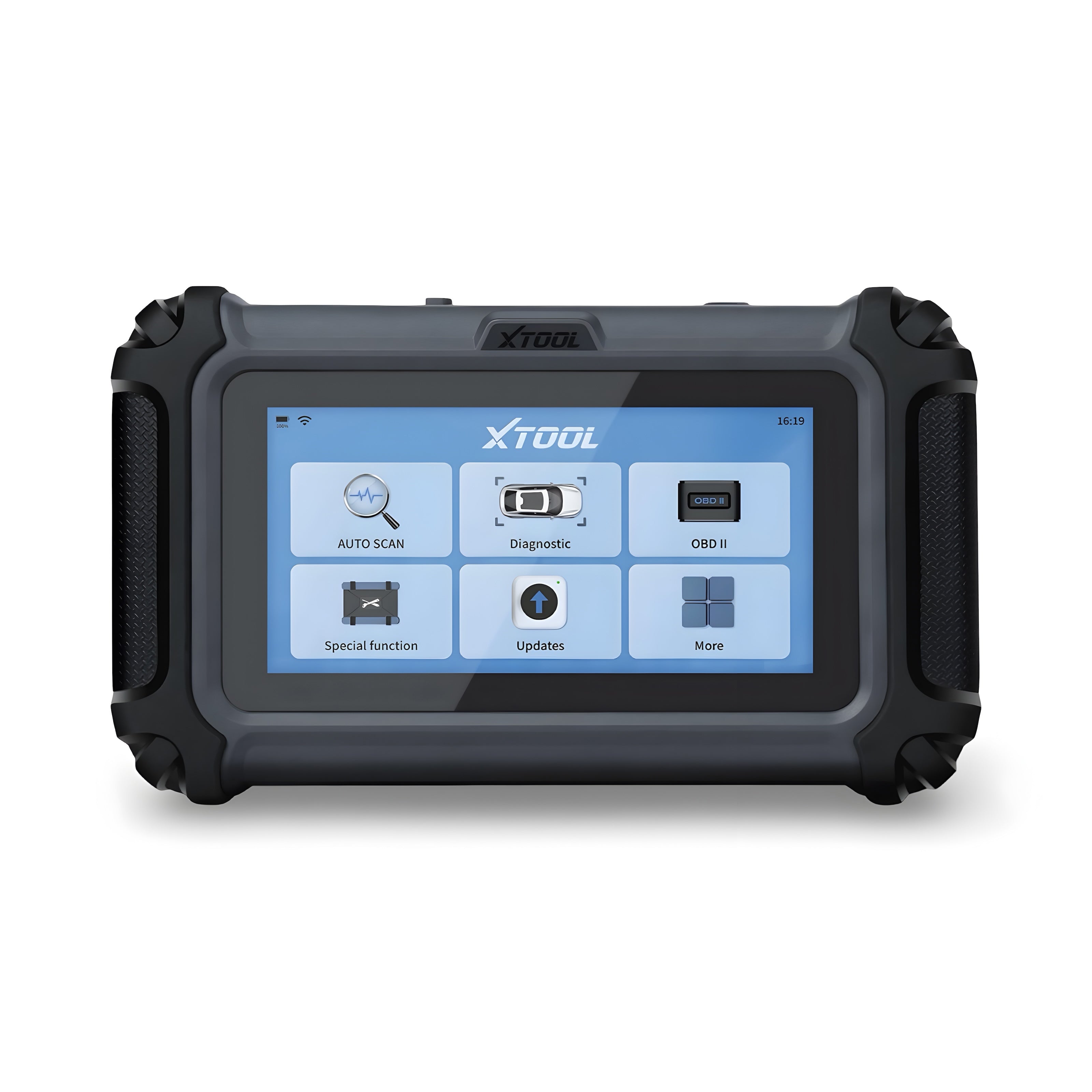

XTOOL XT50 – Professional Full-System Diagnostics with Lifetime Free Updates
The XTOOL XT50 is a compact full-system automotive diagnostic scan tool designed for home mechanics, automotive enthusiasts and workshops wanting significantly more capability than a basic code reader.
The latest-generation XT50 features a fast Linux operating system, 5.45-inch HD touchscreen, full-system diagnostics, 29 service and maintenance functions, CAN FD support and lifetime free software updates.
Full-System Vehicle Diagnostics
Access and diagnose available electronic control systems throughout the vehicle, including:
- Engine
- Transmission
- ABS
- SRS / Airbag
- Body Control Module
- Electronic Parking Brake
- Steering
- HVAC / Air Conditioning
- Instrument Cluster
- TPMS
- Immobiliser systems
- Other available vehicle control modules
Diagnostic functions include:
- Read and clear fault codes
- Live data
- Freeze-frame data
- ECU information
- Full vehicle health scans
- Diagnostic reports
29 Service & Maintenance Functions
The XT50 provides 29 commonly used workshop service, reset and relearn functions on supported vehicles, including:
- Oil service reset
- Electronic parking brake reset
- Steering angle calibration
- Battery management reset
- ABS brake bleeding
- Injector coding
- DPF regeneration
- TPMS reset
- Throttle relearn
- Gearbox functions
- Instrument functions
- Odometer reading
- Additional vehicle-specific reset and relearn functions
Available functions vary depending on vehicle make, model and year.
CAN FD Support
Built-in CAN FD protocol support allows the XT50 to communicate with many newer-generation vehicles using the faster CAN FD communication network.
Extensive Vehicle Coverage
The XT50 supports:
- 85+ vehicle brands
- 10,000+ vehicle models
- European vehicles
- Asian vehicles
- American vehicles
- Petrol vehicles
- Hybrid vehicles
FCA Secure Gateway Support
Supports diagnostic access to compatible 2018 and newer FCA vehicles, subject to applicable FCA Secure Gateway access requirements.
Fast & Easy to Use
The latest XT50 uses a dedicated Linux operating system designed to provide fast startup, stable operation and straightforward navigation.
The compact 5.45-inch touchscreen makes it easy to carry around the workshop while still providing a clear high-resolution diagnostic display.
XTOOL XT50 Specifications
- Operating System: Linux
- Processor: Dual-Core Cortex-A7 1.2GHz
- Memory: 128MB
- Expandable Storage: Up to 64GB TF card
- Display: 5.45-inch HD touchscreen
- Resolution: 1440 × 720
- Battery: 3150mAh
- Wi-Fi: 2.4GHz
- Vehicle Connection: Wired
- USB: Type-C
- Vehicle Voltage: 9–36V
- CAN FD: Yes
- Working Temperature: 0°C to 40°C
- Storage Temperature: -10°C to 50°C
Lifetime Free Software Updates
One of the biggest advantages of the XT50 is lifetime free software updates, allowing you to keep the tool's vehicle software and diagnostic coverage updated without ongoing annual subscription fees.
2 Year Warranty
Backed by a 2 year warranty and local support from Discount Tools NZ.
Vehicle Compatibility
Diagnostic and service-function coverage varies depending on vehicle make, model and year.
If you need the XT50 for a particular vehicle or function, contact Discount Tools NZ with the make, model, year and required function and we'll check compatibility before purchase.
