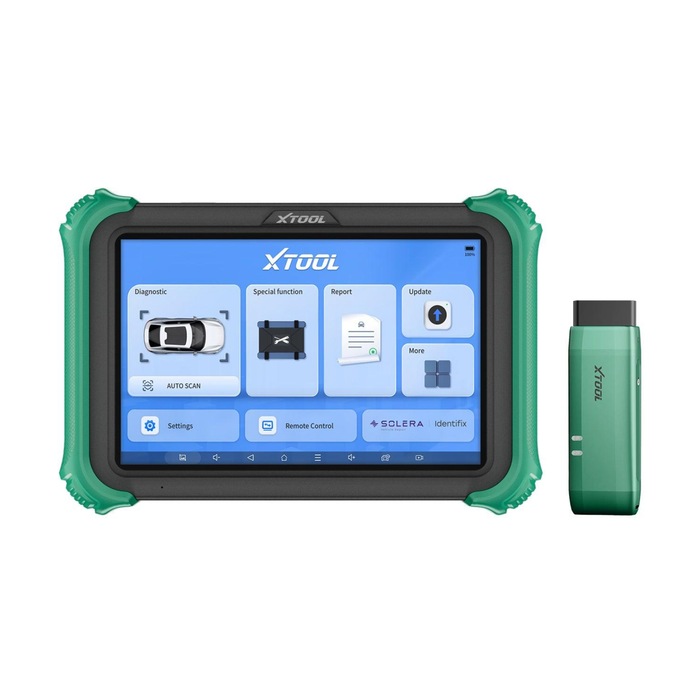

XTOOL Compass – Professional Automotive Diagnostic Scan Tool
The XTOOL Compass is a professional-grade automotive diagnostic tablet designed for workshops and technicians requiring advanced vehicle diagnostics, bi-directional controls, ECU coding, topology mapping and comprehensive service functions.
Featuring a high-resolution 10.1-inch display, powerful octa-core processor, 8GB RAM and 128GB storage, the Compass combines professional diagnostic capabilities with a compact, workshop-friendly design.
With support for modern CAN FD and DoIP communication protocols, wireless VCI connectivity and three years of software updates included, the XTOOL Compass is built to handle a wide range of modern diagnostic requirements.
Key Features
-
Full-System Diagnostics: Access supported vehicle electronic systems, including engine, transmission, ABS, SRS and body control modules.
-
Bi-Directional Active Testing: Command compatible vehicle components to assist with fault diagnosis.
-
Topology Mapping: View vehicle electronic control modules and network relationships with colour-coded system status.
-
ECU Coding and Adaptations: Perform supported coding, configuration and adaptation functions.
-
CAN FD and DoIP: Support for advanced communication protocols used in modern vehicles.
-
53 Service Functions: Access a wide range of maintenance, calibration and reset procedures.
-
ADAS Calibration Support: Supports compatible camera and radar calibration procedures when used with the required equipment.
-
Dual Wi-Fi: Maintain internet and VCI connectivity for an efficient diagnostic workflow.
-
Pre-Scan and Post-Scan Reports: Generate diagnostic reports for workshop records and customer documentation.
-
Three Years of Software Updates: Software updates included for the first three years.
Advanced Vehicle Diagnostics
The Compass provides a comprehensive range of diagnostic functions on supported vehicles, including:
- Automatic VIN identification
- Read and clear diagnostic trouble codes
- View live sensor data and freeze-frame information
- Read ECU identification and system information
- Perform active tests and actuator controls
- Access ECU coding and configuration functions
- View vehicle topology and system status
- Generate pre-repair and post-repair diagnostic reports
Professional Service and Maintenance Functions
Supported functions include:
- Oil service reset and maintenance light reset
- Electronic parking brake service
- Steering angle sensor calibration
- ABS bleeding
- Battery management system reset
- DPF regeneration
- Injector coding
- Throttle adaptation
- Transmission and gearbox adaptations
- Suspension calibration
- TPMS reset functions
- Crankshaft sensor relearn
- Window initialisation
- Headlight adjustment
- Radar calibration support
Functions vary depending on vehicle make, model, year and installed control modules.
Modern Vehicle Communication
The XTOOL Compass supports both CAN FD and DoIP, allowing communication with compatible newer-generation vehicles. It also supports FCA Security Gateway access where applicable and authorised.
Technical Specifications
-
Display: 10.1-inch, 1920 × 1200 resolution
-
Operating System: Android 10
-
Processor: Octa-core, 4 × 2.2GHz + 4 × 1.8GHz
-
Memory: 8GB RAM
-
Storage: 128GB
-
Rear Camera: 8MP
-
Battery: 6400mAh, 7.2V
-
Wi-Fi: 2.4GHz / 5GHz
-
Bluetooth: BLE 5.0
-
VCI Communication: Wi-Fi / USB
-
Vehicle Voltage Range: 9–36V
-
Protocols: CAN FD, DoIP
-
Software Updates: 3 years included
-
Manufacturer Warranty: 2 years
Compass vs Compass Master – What's the Difference?
The XTOOL Compass and Compass Master share the same tablet hardware and core diagnostic functionality.
The primary difference is SAE J2534 Pass-Thru programming support. The Compass Master includes J2534 functionality, while the standard Compass does not include it as standard.
The standard Compass remains a highly capable professional diagnostic tool for workshops that do not require J2534 Pass-Thru programming. XTOOL lists J2534 as an optional upgrade for the Compass.
Software Updates
The XTOOL Compass includes three years of software updates. After the included period expires, an optional annual software subscription is available to maintain access to new software releases and expanded vehicle coverage.
The tool continues to operate with its existing installed software if the subscription is not renewed.
Vehicle Compatibility
Designed for a wide range of supported American, European and Asian vehicles. Diagnostic functions, coding, programming and service coverage vary by vehicle.
Not sure whether the Compass supports your vehicle? Contact Discount Tools NZ with the vehicle make, model, year and the functions you require. We can help check compatibility before purchase.
