PRODUCT DESCRIPTION

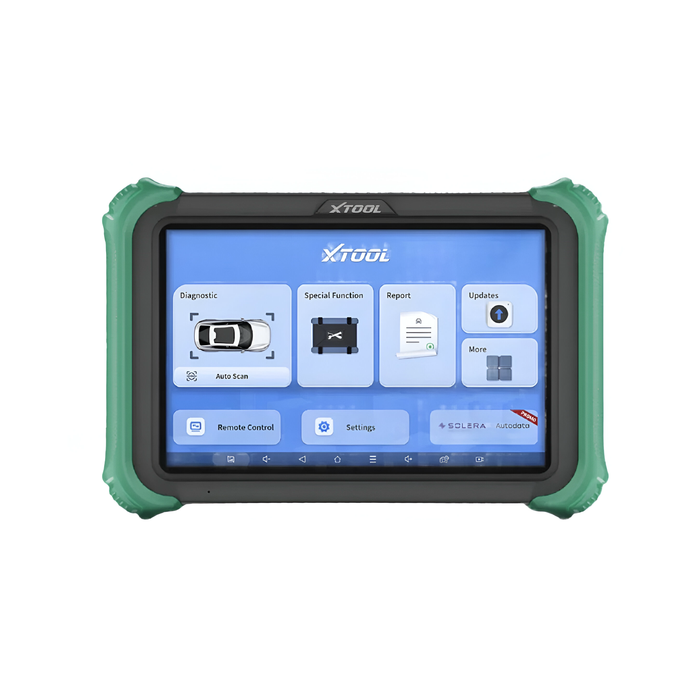

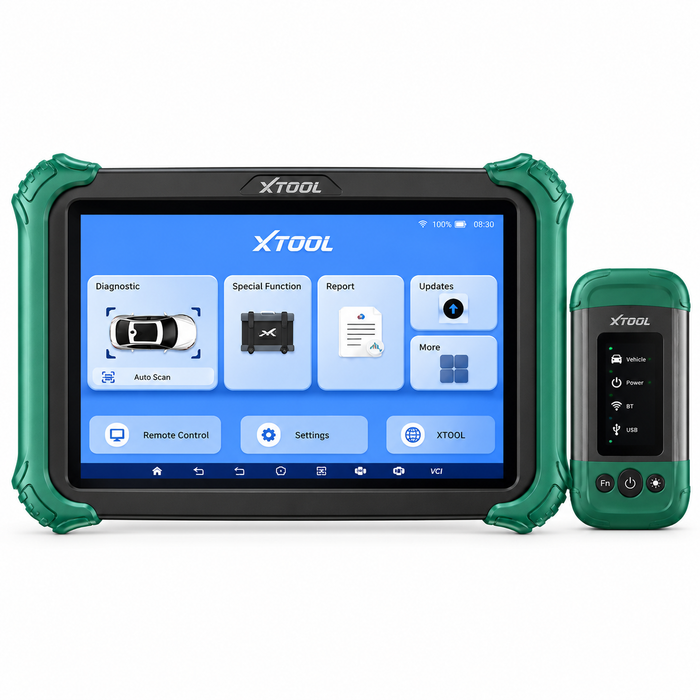

XTOOL Compass Master – Flagship Professional Diagnostic System
The XTOOL Compass Master is a flagship professional diagnostic platform designed for workshops requiring advanced full-system diagnostics, bi-directional testing, ECU coding, topology mapping and J2534 Pass-Thru capability.
Featuring a 10.1-inch HD touchscreen, powerful octa-core processor, 8GB RAM and 128GB storage, the Compass Master combines high-performance hardware with advanced diagnostic capabilities for modern European, Asian and American vehicles.
Professional Full-System Diagnostics
- OE-level full-system diagnostics
- Read and clear diagnostic trouble codes
- Live data and ECU information
- AutoVIN vehicle identification
- Bi-directional active tests
- Advanced adaptations and relearns
- PreSCAN and PostSCAN diagnostic reports
- Extensive European, Asian and American vehicle coverage
- FCA Secure Gateway access via AutoAuth on supported vehicles
Topology Mapping
Topology mapping provides a visual overview of supported vehicle control modules and their communication status, helping technicians quickly identify faults and understand the relationship between vehicle systems.
ECU Coding & Programming
- Online coding and programming for supported VAG vehicles
- Online coding/programming functions for supported BMW and Mercedes-Benz vehicles
- Offline programming for supported Ford, Lincoln and Mazda vehicles
- Advanced ECU coding and configuration functions
- SAE J2534 Pass-Thru support for OEM software connectivity
Programming, coding and online functions vary depending on vehicle make, model and year.
CAN FD & DoIP Support
The Compass Master supports modern CAN FD and DoIP communication protocols, providing compatibility with an increasing number of newer-generation vehicles.
50+ Service & Special Functions
The Compass Master supports an extensive range of workshop functions including:
- Oil service reset
- EPB reset
- BMS reset
- DPF functions
- ABS brake bleeding
- Injector coding
- Throttle matching
- Steering angle reset
- TPMS reset
- Gearbox matching
- EGR relearn
- Airbag repair/reset
- Suspension functions
- Clutch adaptation
- Start/Stop reset
- Window initialisation
- Headlight functions
- Tyre size reset
- VGT relearn
- NOx reset
- AdBlue reset
- High-voltage battery functions
- Immobiliser functions
- ADAS calibration
Available functions vary by vehicle.
ADAS Calibration Support
The Compass Master supports camera and radar-based ADAS calibration when used with compatible XTOOL ADAS calibration equipment.
XTOOL Compass Master Specifications
- Operating System: Android 10
- Processor: 2.2GHz + 1.8GHz Octa-Core
- Memory: 8GB RAM
- Storage: 128GB
- Display: 10.1-inch touchscreen
- Resolution: 1920 × 1200
- Battery: 6400mAh, 7.2V
- Camera: 8MP rear
- Wi-Fi: 2.4GHz / 5GHz
- Bluetooth: BLE 5.0
- Communication: Dual Wi-Fi / USB
- Vehicle Voltage: 9–36V
- CAN FD: Yes
- DoIP: Yes
- SAE J2534: Yes – Compass Master
- FCA Secure Gateway: Supported
- Working Temperature: 0°C to 40°C
Software Updates & Warranty
- 3 Years Free Software Updates
- 2 Year Warranty
Vehicle Compatibility
Diagnostic, bi-directional, coding, programming and special functions vary depending on vehicle make, model and year.
If you have a particular vehicle or function you need the Compass Master to perform, contact Discount Tools NZ with the make, model, year and required function and we'll check compatibility before purchase.
