TOPDON TC004 Mini Handheld Thermal Imaging Camera

TOPDON TC004 Mini Handheld Thermal Imaging Camera

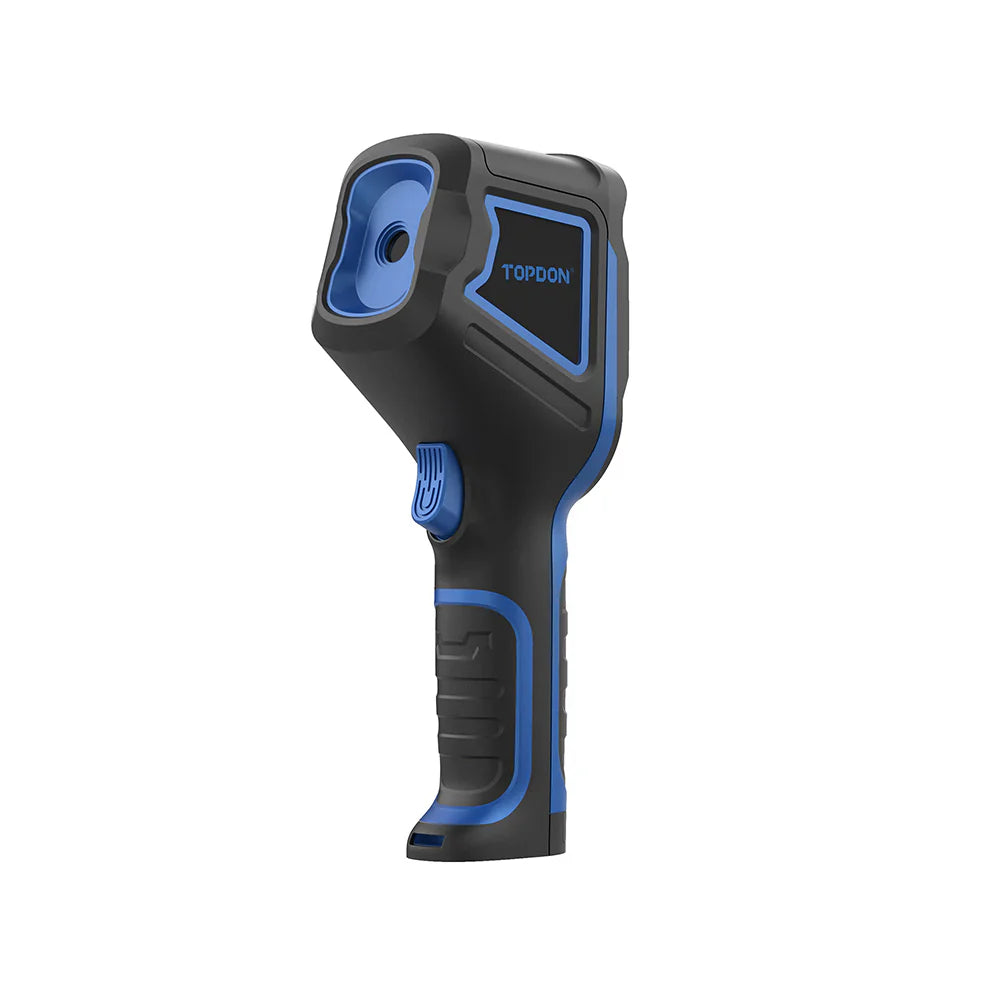

The TOPDON TC004 Mini is a lightweight handheld thermal camera with an ergonomic grip. Its 128 x 128 sensor is enhanced to 240 x 240 with TISR, and a 2,900 mAh battery gives up to 15 hours of runtime.

Key Features

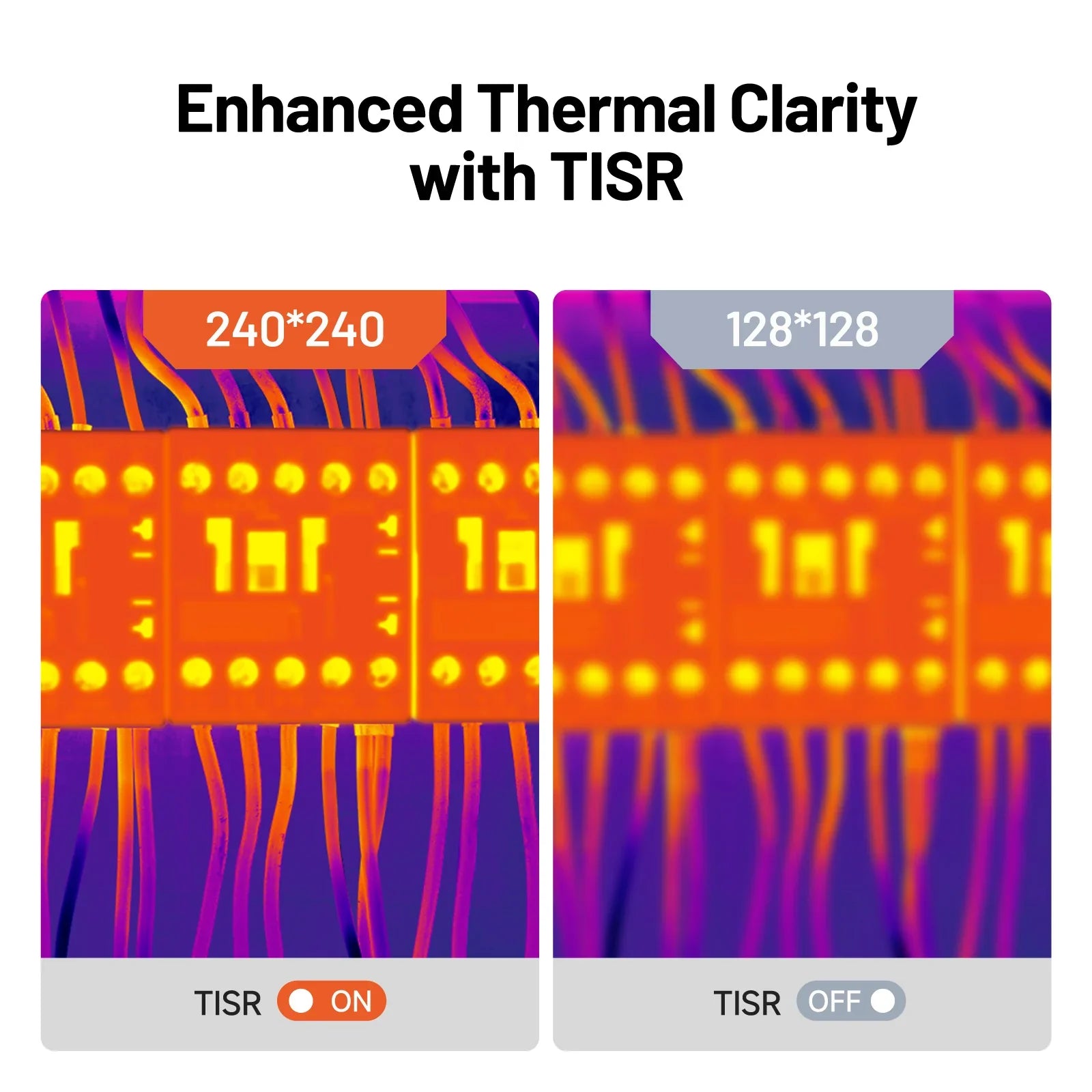

• TISR resolution: 128 x 128 infrared sensor enhanced to 240 x 240, at a 25 Hz refresh rate
• Temperature range of -20°C to 450°C with accuracy to ±2°C and sensitivity under 40 mK

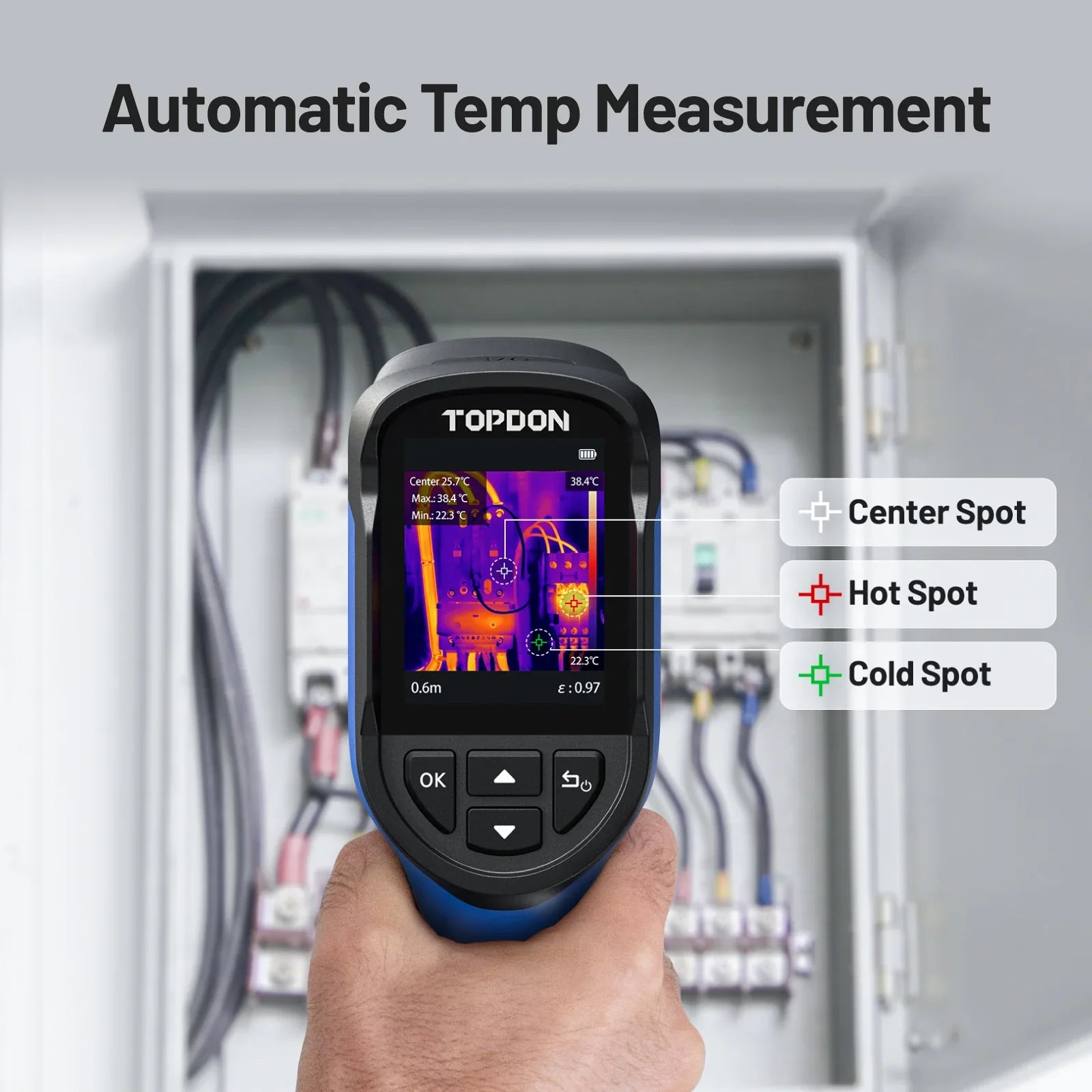

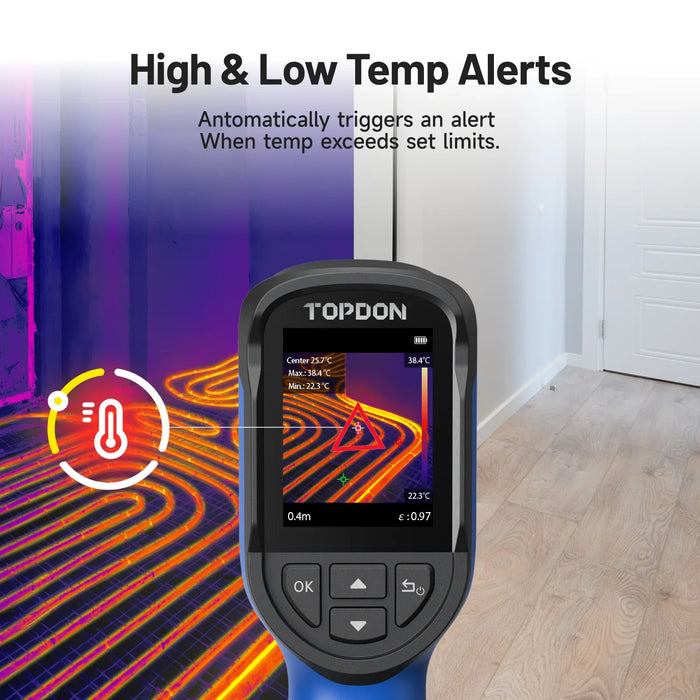

• Auto detection of the maximum, minimum and centre temperature spots. If preset limits are exceeded, it shows a visual warning and captures a photo

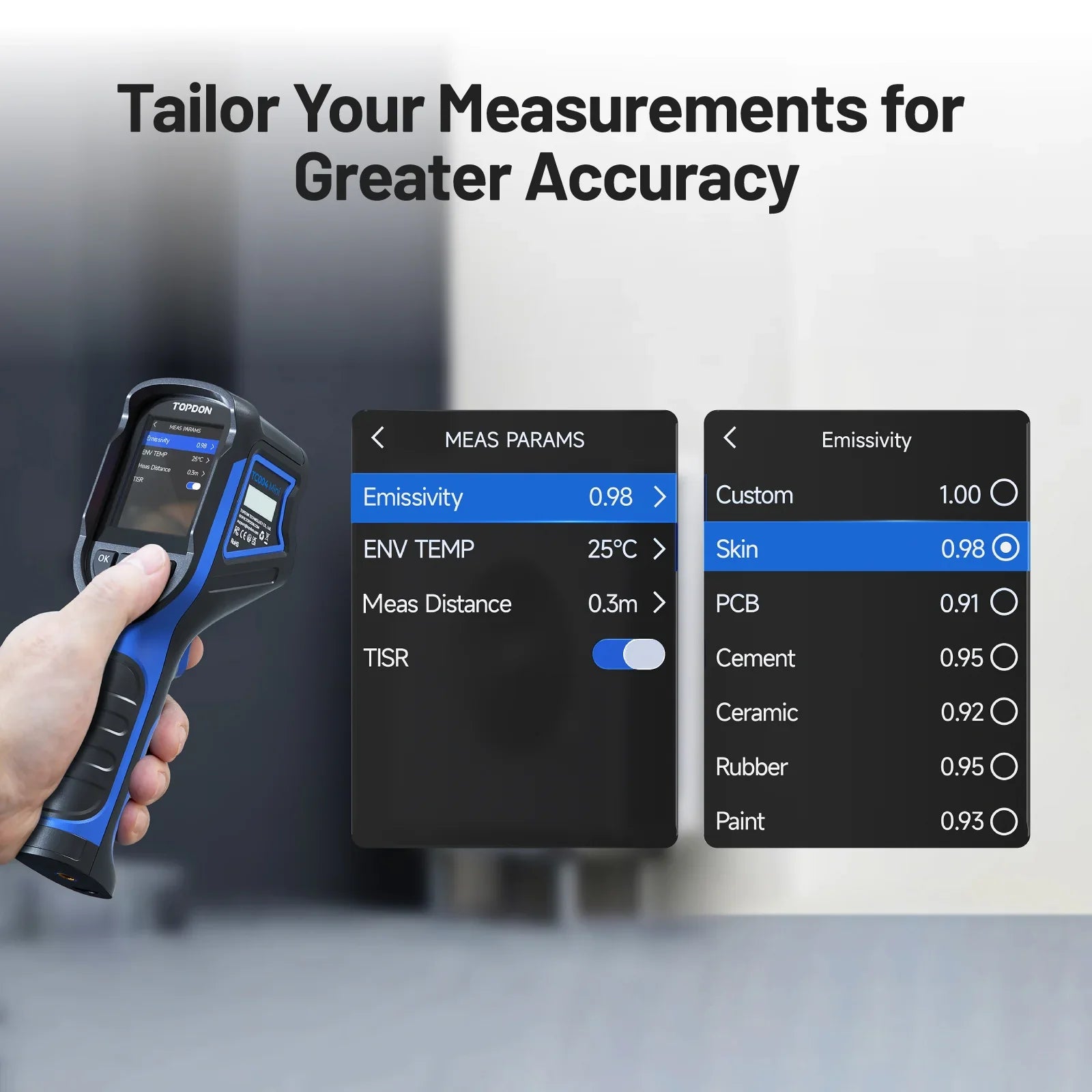

• Adjustable measurement: set object emissivity, measurement distance and ambient temperature

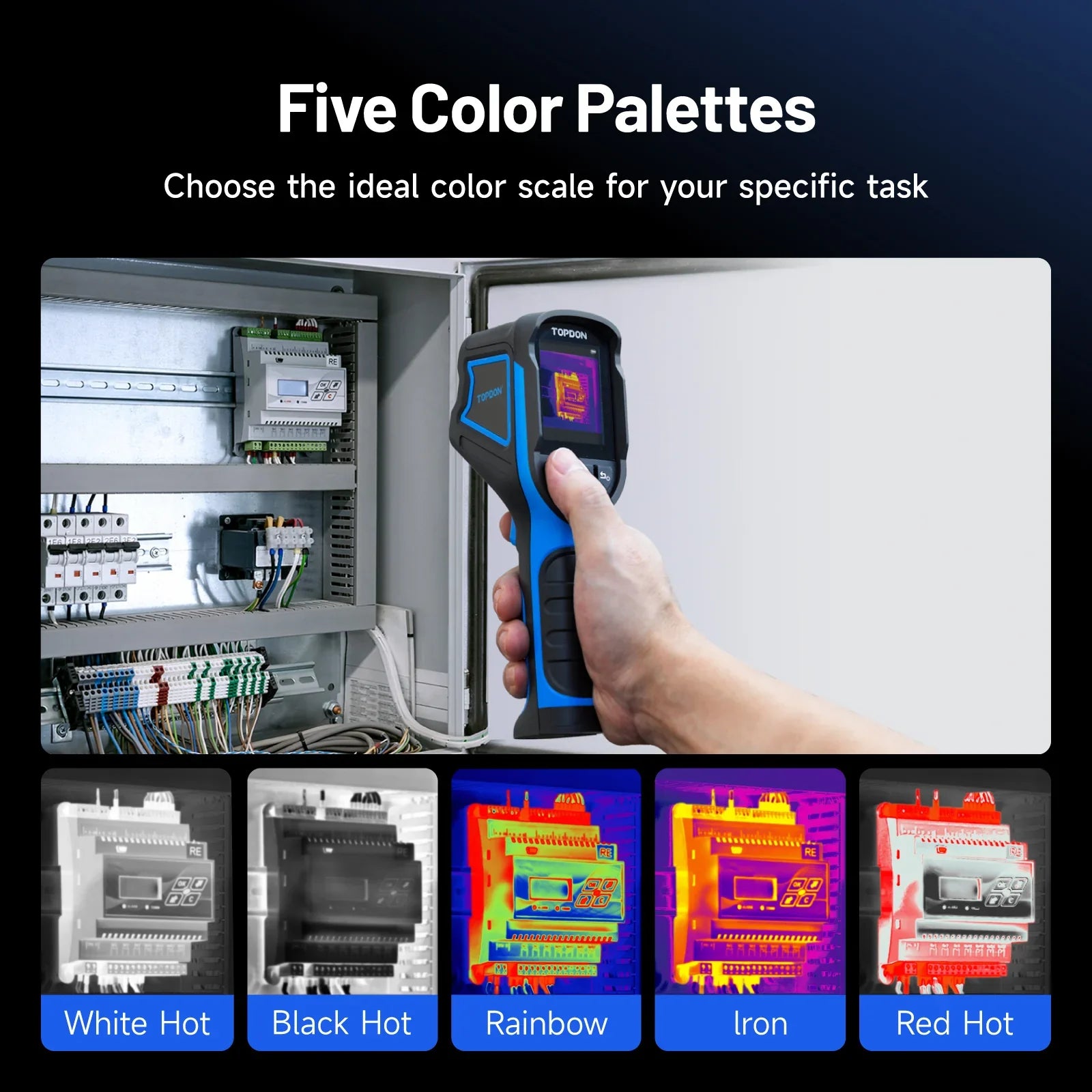

• Five colour palettes: White Hot, Black Hot, Iron, Rainbow and Red Hot

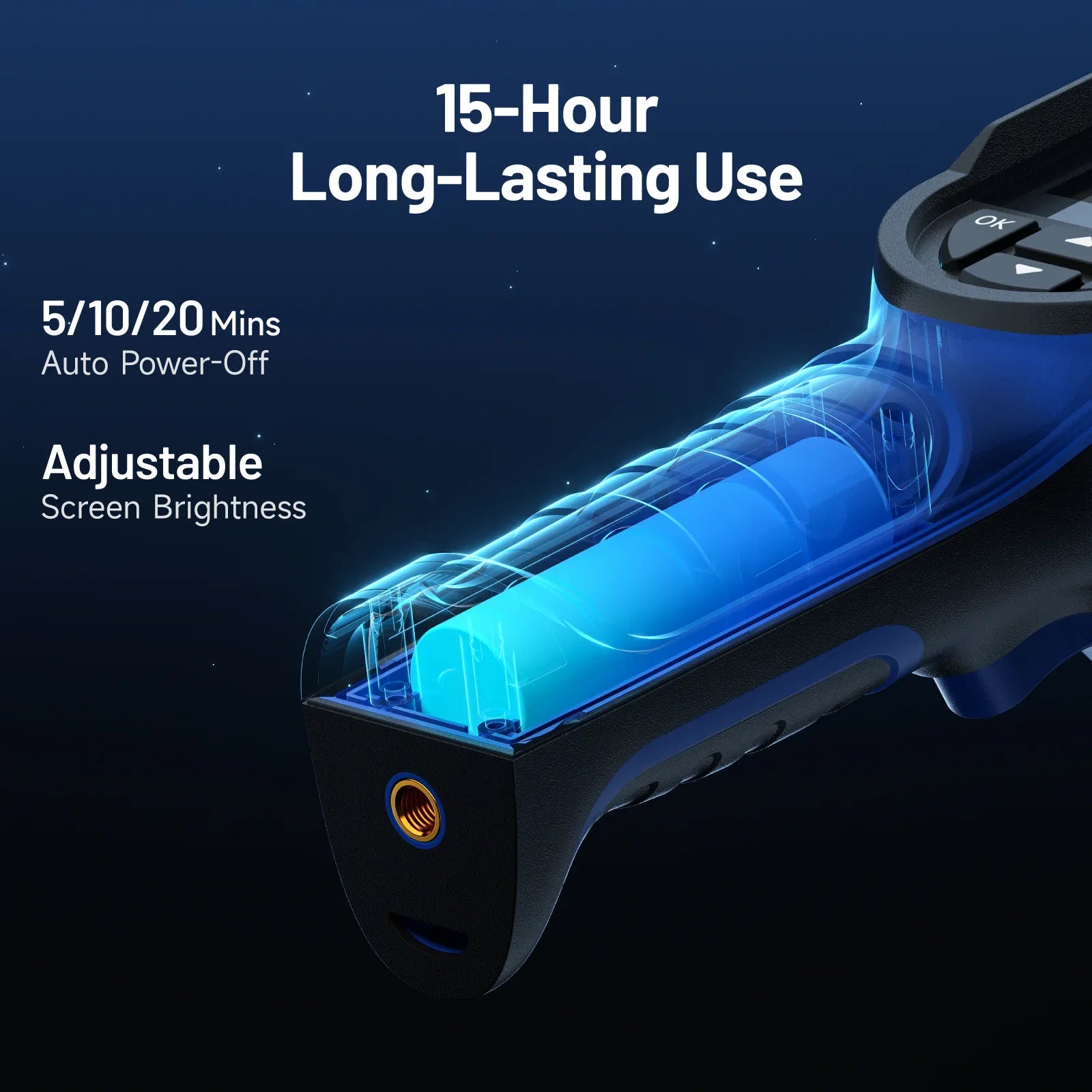

• Battery: 2,900 mAh built in, up to 15 hours of runtime, with selectable auto-off at 5, 10 or 20 minutes

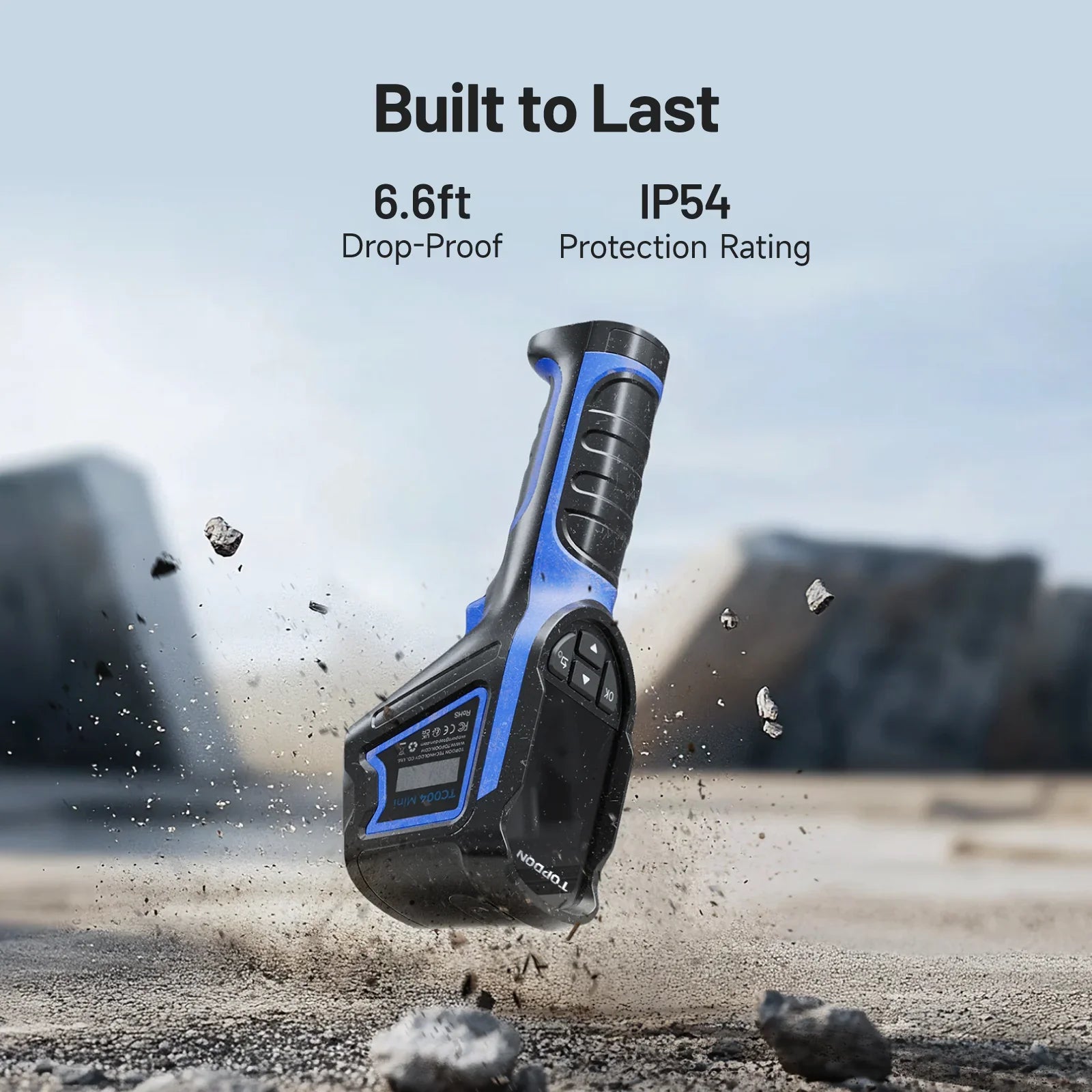

• Rugged: IP54 rating and 2 m (6.6 ft) drop resistance
• Free software updates for life

Uses

Home energy inspection, HVAC maintenance, water leak inspection, industrial inspection, electrical inspection and automotive maintenance.

Specifications

• Infrared resolution: 128 x 128, enhanced to 240 x 240 by TISR
• Measurement range: -20°C to 450°C
• Refresh rate: 25 Hz
• Spectral range: 8-14 µm
• Field of view: 40° x 30°
• Focal length: 3.2 mm
• NETD: under 40 mK
• Memory: 512 MB
• Battery: 2,900 mAh built in
• Protection: IP54

What's in the Box

• TC004 Mini thermal camera
• Hanging strap
• USB-A to USB-C cable
• Quick user guide
