TOPDON RLink Lite All In One OEM Diagnostic Interface

TOPDON RLink Lite All-In-One OEM Diagnostic Interface

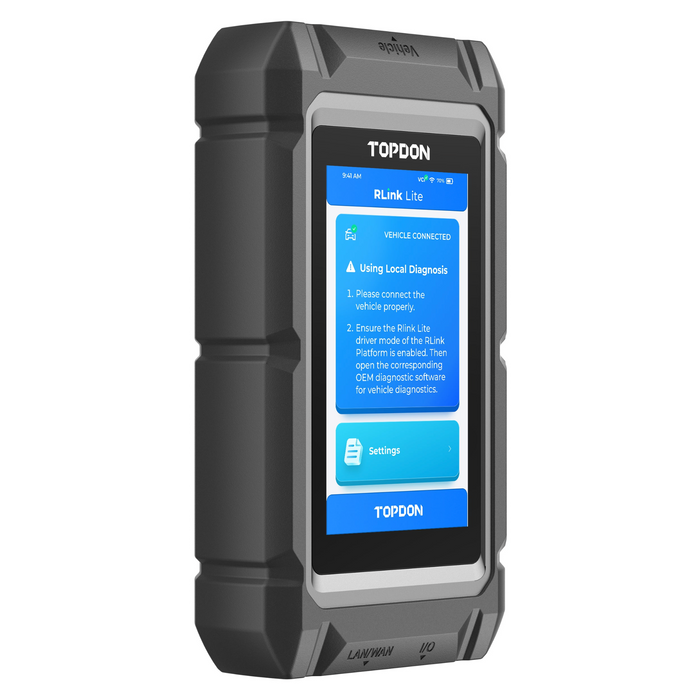

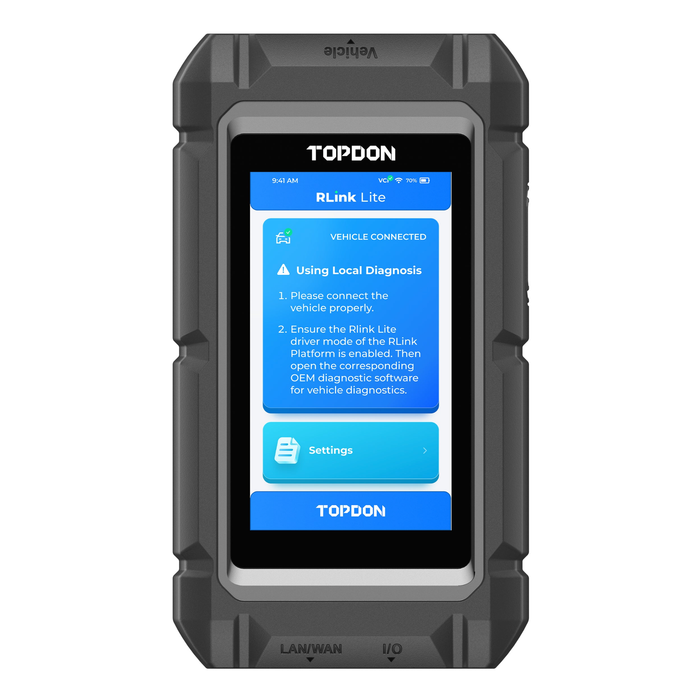

The TOPDON RLink Lite is a handheld OE software interface box with a 5 inch touchscreen for diagnostics, programming and coding. It is a lower-cost alternative to dedicated OEM diagnostic devices.

OE-Level Functions

Supports OE-level diagnostics, programming and coding for brands including Mercedes-Benz, BMW, VAG and Porsche.

Standards and Protocols

• D-PDU, J2534 and RP1210 compatible

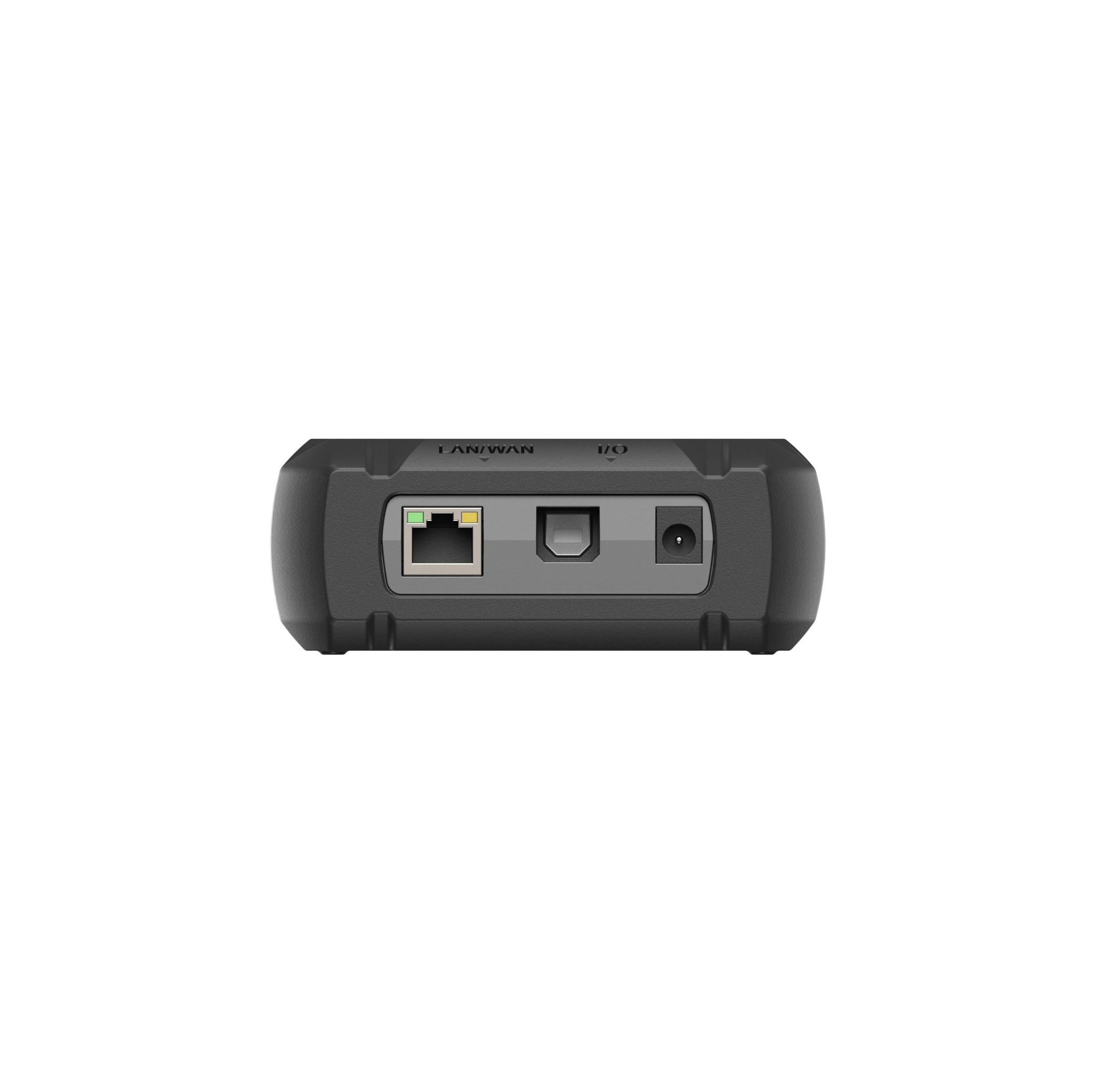

• High-speed DoIP diagnostics over an Ethernet connection
• Also covers CAN, CAN FD, J1850 and K-line

Driver Management and Guides

A built-in driver management system (DMS) installs and updates OE drivers with one click, and built-in OEM operation guides help you through the job.

Who It Suits

Workshops that use OEM diagnostic software and need a Pass-Thru interface.

Specifications

• Display: 5 inch LCD, 854 x 480
• Processor: 4-core, 1.8 GHz
• Operating system: Android 11.0
• Memory: 2 GB RAM, 32 GB storage
• Battery: 5000 mAh, 3.7 V
• Operating voltage: 6-36 V
• Working temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Dimensions: 198 x 108 x 42 mm
• Protocols: SAE J2534-1 and J2534-2 Pass-Thru, ISO 22900 (MVCI and D-PDU), ISO 14229 (UDS), ISO 22901 (ODX), ISO 13400 (DoIP), ISO 15765 (CAN), ISO 11898, ISO 14230 (KWP2000), ISO 9141, J1850, CAN FD and more

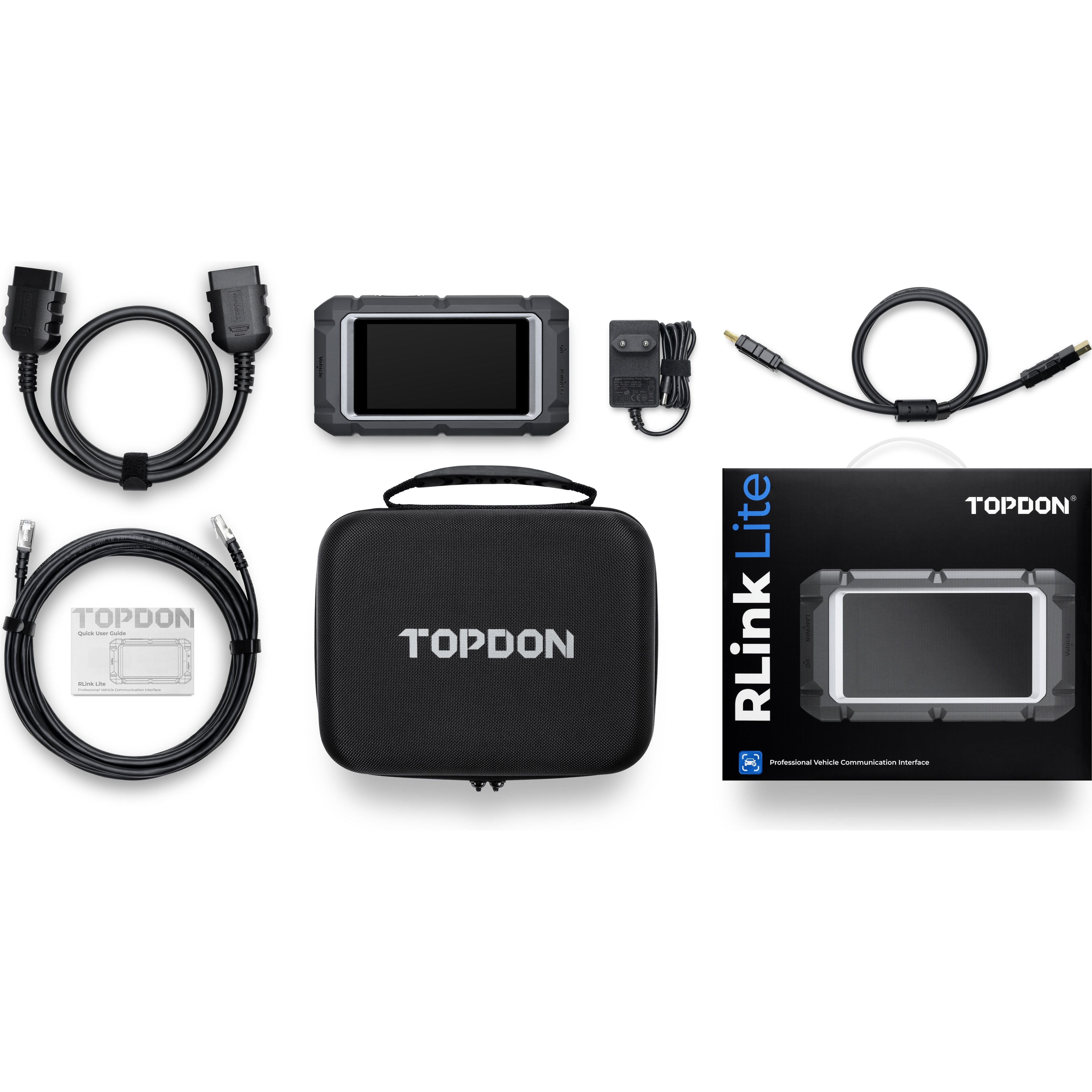

What's in the Box

• RLink Lite unit
• 2 m OBD2 diagnostic cable
• 5 m network cable
• 1.5 m USB 2.0 cable
• 12V DC power adapter
• Quick user guide
• Carrying case
• Package box
