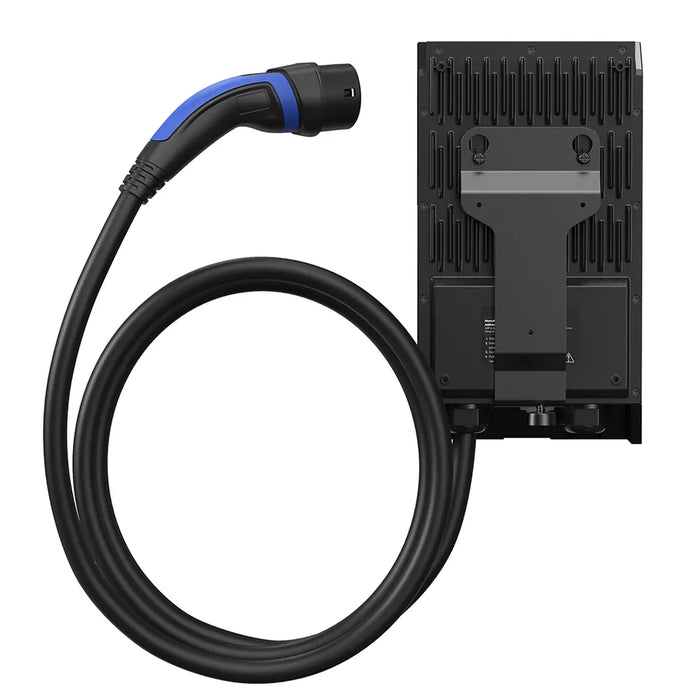

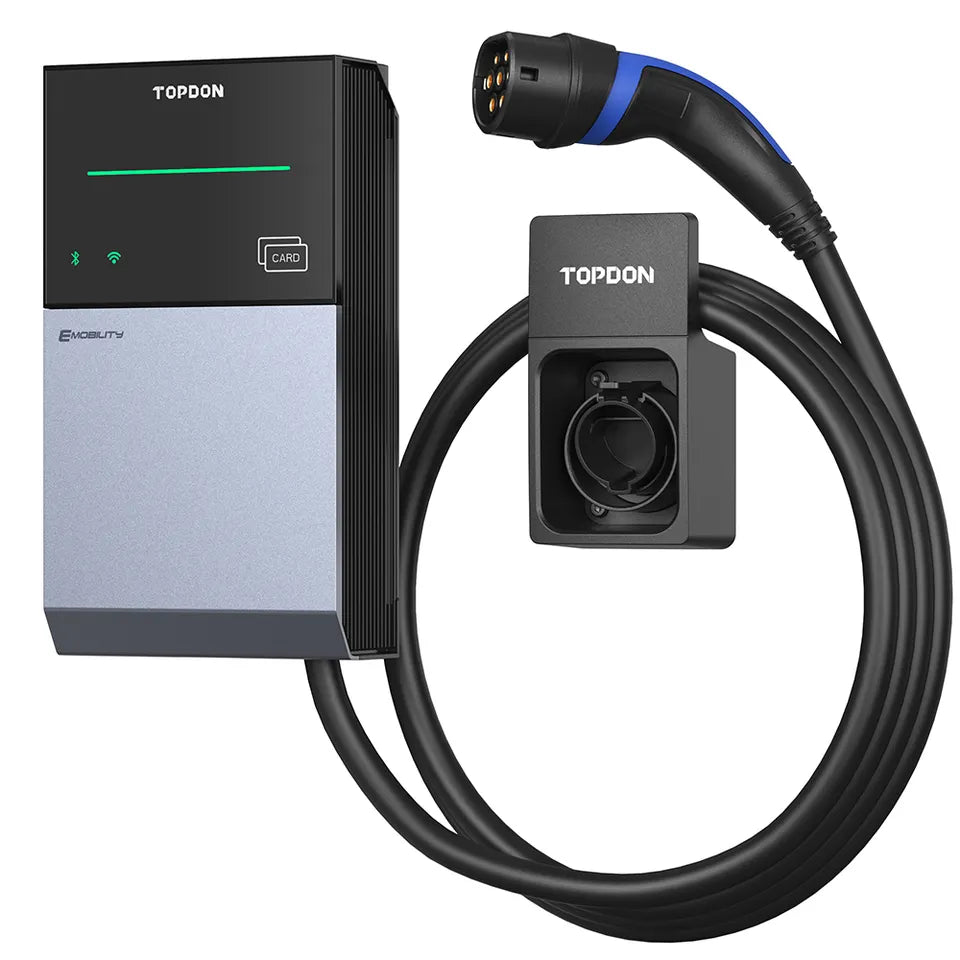

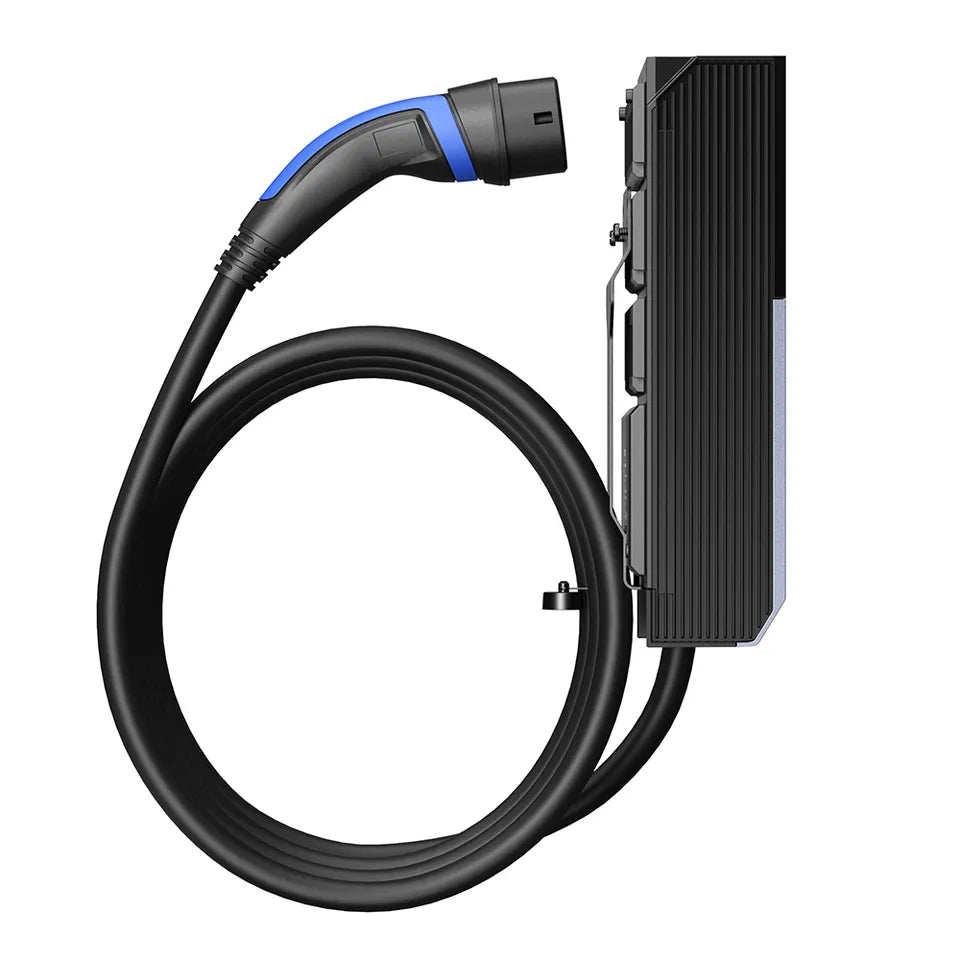

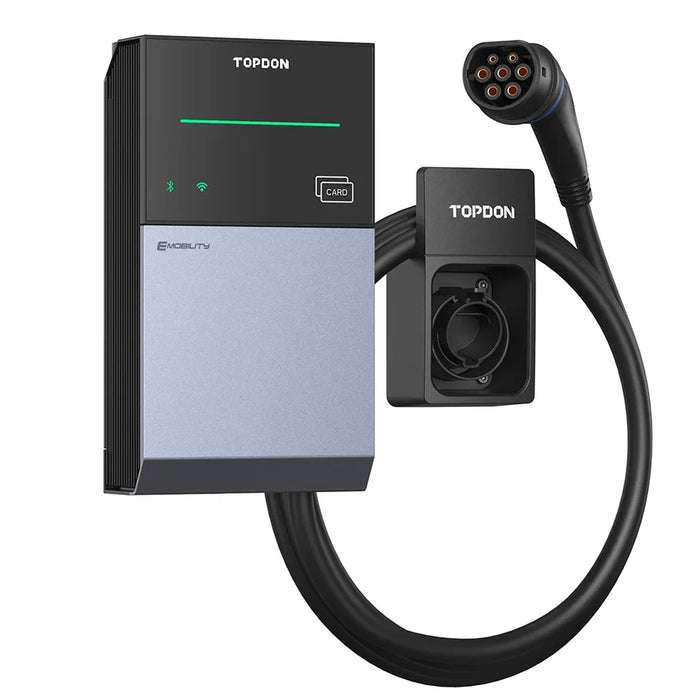

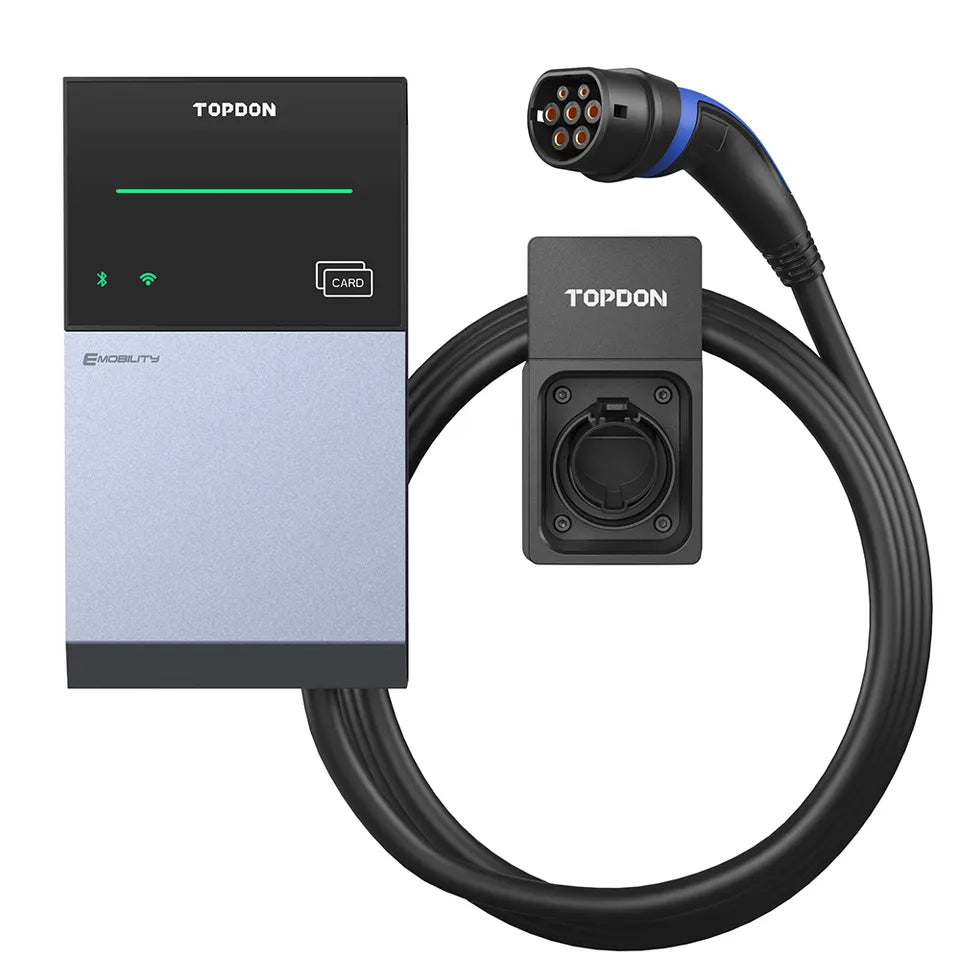

TOPDON PulseQ AC Lite Level 2 EV Charger 11kw, 22kw Charging, With App & Voice Control

by Topdon
Original price $1,189.00 - Original price $1,299.00
Original price
$1,189.00 - $1,299.00
Current price $1,189.00
Long term payment plans available with logo-NZD Learn more

Delivery Time

With a target delivery time of 1-3 days, our nationwide shipping service ensures that all in-stock items are dispatched within 24 hours.

EV Charging Master For Type 2 Connector

TOPDON PulseQ AC Lite, the EV Charging Master for Type 2 Connector, is specifically designed to cater to European standard electric vehicles with IEC 62196-2 (Type 2) interface. With the flexibility of choosing between single-phase (7kW) or three-phase (11kW/22kW) options, this advanced AC charging solution meets a wide range of charging requirements.

Smarter EV Charging With The Smart App

Pair the PulseQ with your smartphone to start or pause the charging progress whenever and wherever. Using the intuitive app, you can schedule charging times during off-peak session, check estimated distance and cost, view charging history, and get notifications when fully charged.

Plug-And-Play & App Control & RFID

The PulseQ AC Lite supports 3 charging modes: Plug and Play, App Control, and RFID. Say goodbye to cumbersome procedures with the plug-and-play mode. With the RFID card mode, you have full control over your charging station, eliminating any concerns about unauthorised usage. The app-controlled charging mode offers the advantages of convenience, real-time monitoring, customised planning, and data analysis. Easily switch between modes to find the perfect charging solution for your electric vehicle.

Voice-Activated Charging

TOPDON PulseQ AC Lite features voice-activated charging, seamlessly integrating the PulseQ AC Lite into your smart home via Amazon Alexa. Remotely initiate or halt charging session and effortlessly monitor charging time and capacity. Elevate your EV charging setup with the PulseQ AC Lite and enjoy a new level of convenience and control.

Tailored Charging Schedules For Your Convenience

With the mobile app, users can create personalised charging schedules based on their specific needs and preferences: Set a fixed daily charging routine or set various charging times for each day. You can set specific charging periods to take advantage of off-peak electricity rates, optimising energy consumption and reducing charging costs.

Safety You Can Count On

Encased in robust and durable housing with IP65 and IK10 protection ratings, this charger is designed to withstand dust, water, and tough outdoor conditions, providing peace of mind for both indoor and outdoor use. With the built-in Type A + DC6mA leakage protection, your charging process is safeguarded against potential current hazards.

Durable And Reliable Design

The charging station body is crafted with a robust combination of PC and aluminum alloy, ensuring long-lasting durability. The charging cable is constructed with a sturdy blend of PC and TPU materials. With an operational temperature range of -30°C to 50°C, our charging infrastructure is built to withstand extreme conditions while delivering consistent performance.

Easy Installation And Operation

No need to dismantle the entire charging station for wiring. The innovative design of PulseQ AC Lite allows for easy and efficient connectivity, disconnection, and internal access.


Specifications & Packaging


  • Plug-and-Play/App-Controlled/RFID
  • Charging status indicator
  • RAMU, Type A IΔn=30mA + IΔdc=6mA
  • 230V, 50/60Hz, 400V, 50/60Hz
  • 32A 1-Phase/16A 3-Phase/32A 3-Phase
  • 7kW/11kW/22kW
  • IEC 62196-2, Type 2 plug with 5m cable / IEC 62196-2, Type 2 plug with 7.5m cable
  • 5.9kg (5m cable) 7.1kg (7.5m cable)
  • 340mm × 189mm × 90mm
  • IP65
  • IK10
  • Surge protection, over temperature, over / under voltage, over current, LN reverse polarity, leakage, ground protection
