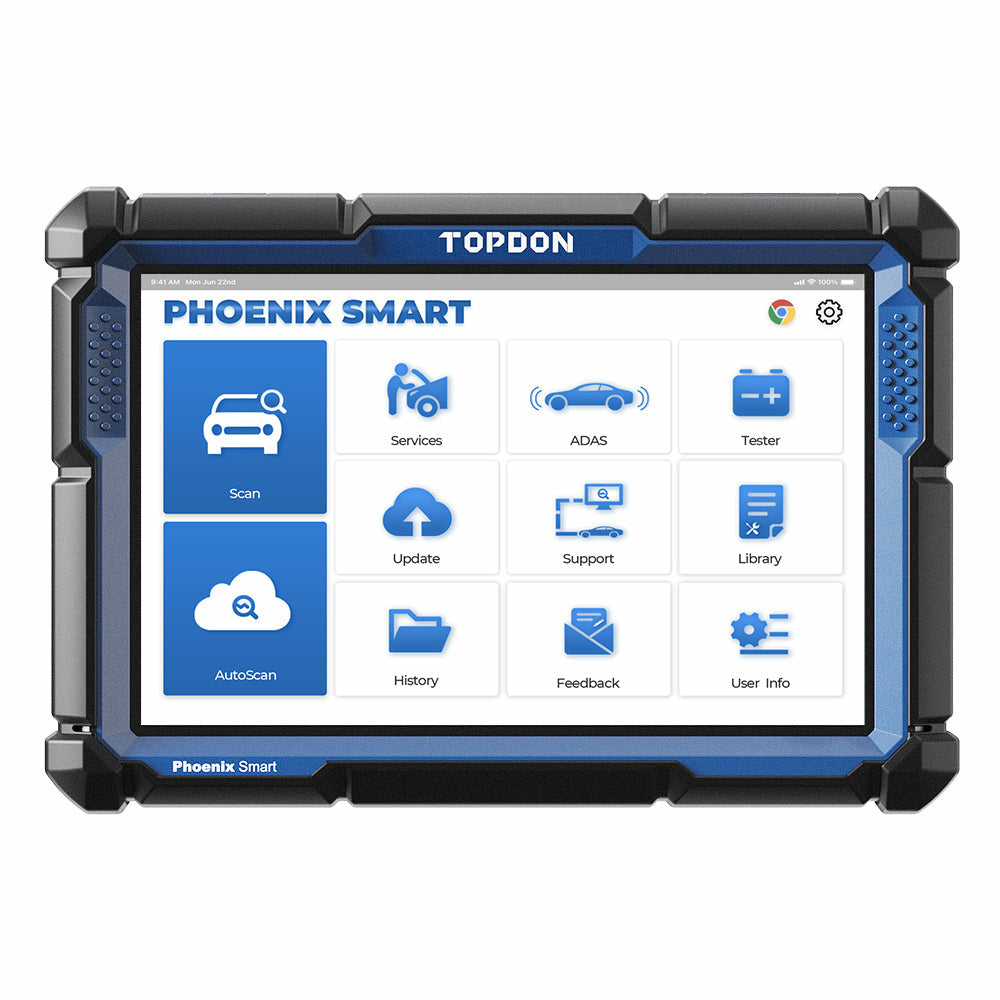

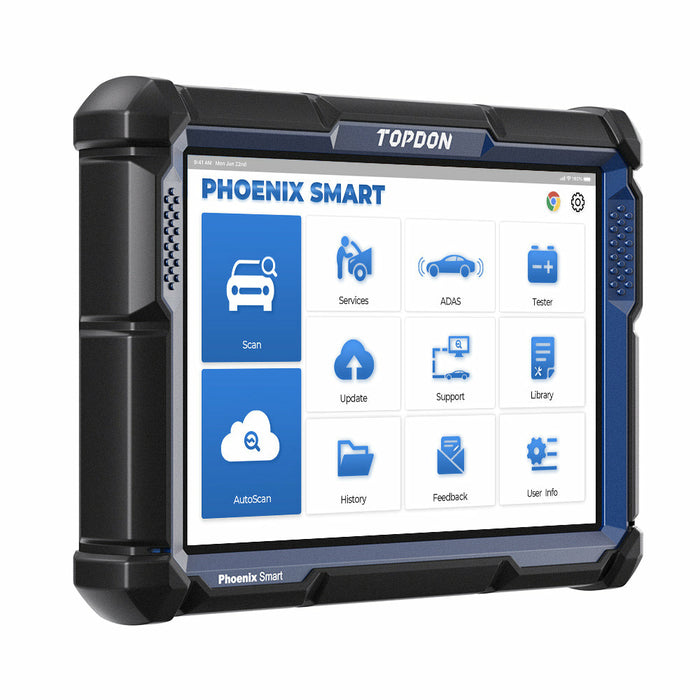

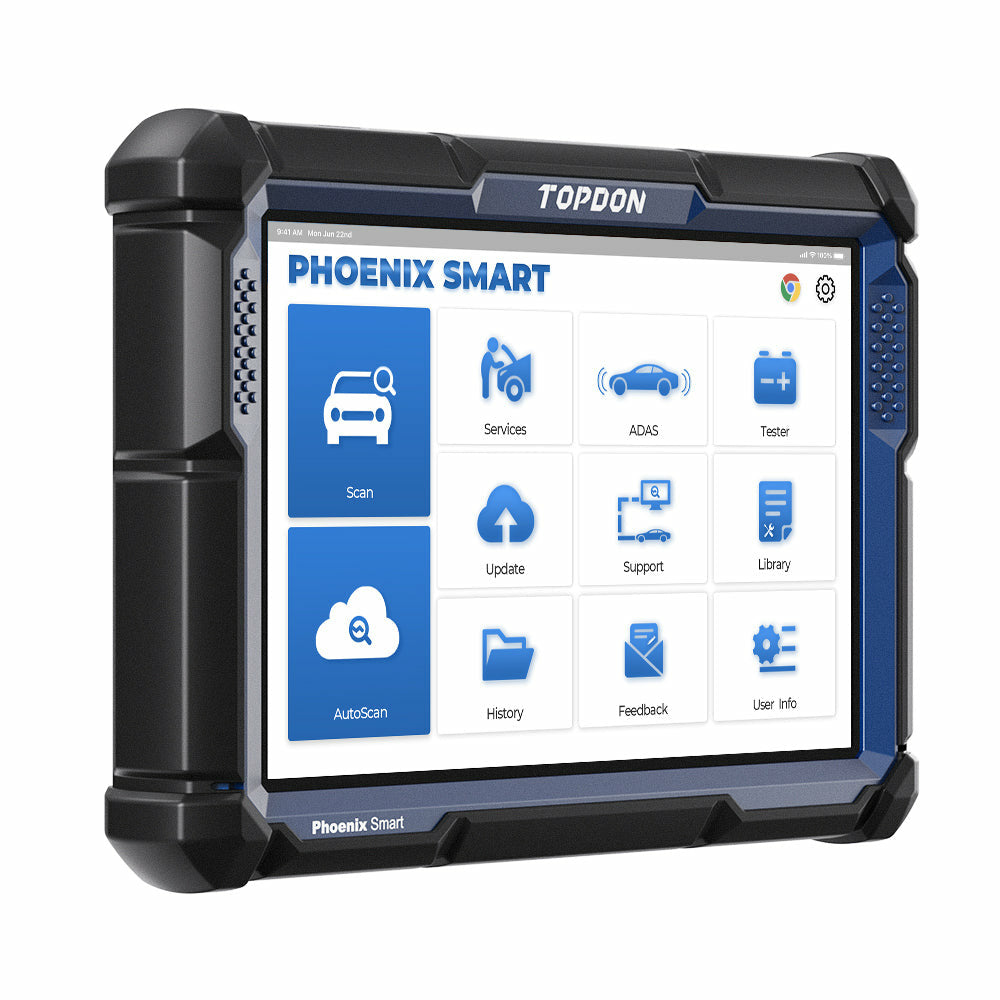

TOPDON Phoenix Smart 12V/24V Advanced Intelligent Diagnostic Tool

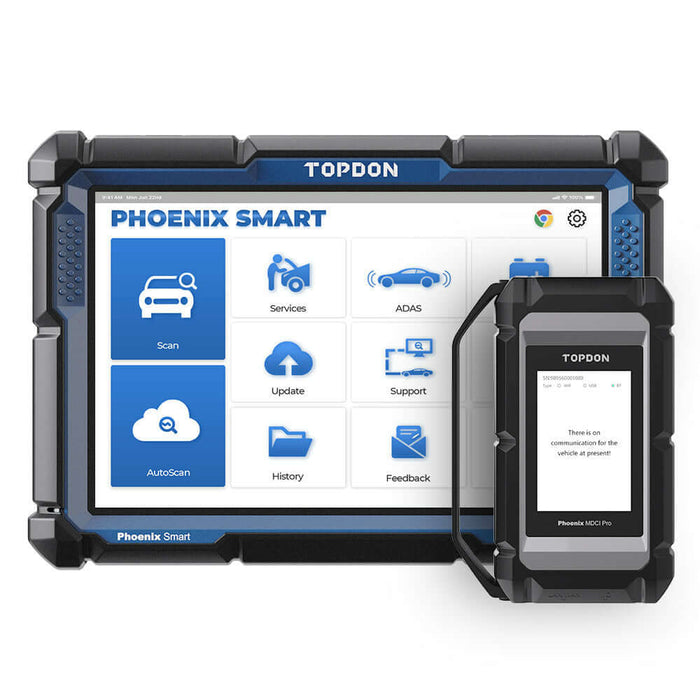

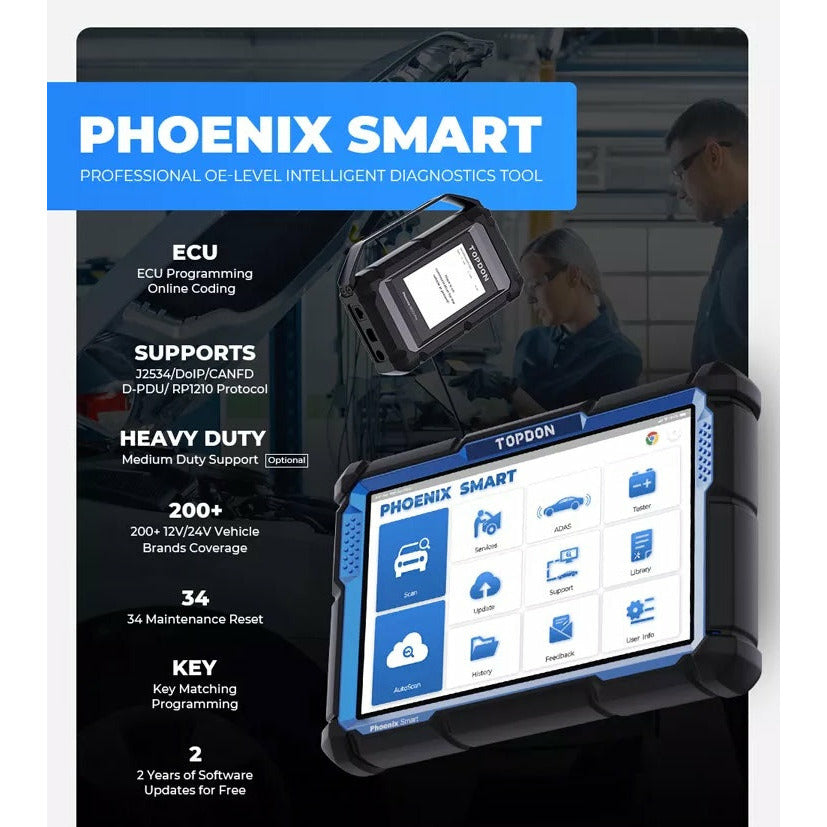

The TOPDON Phoenix Smart is a newer-generation intelligent diagnostic tool with a quad-core processor, a 10.1 inch touchscreen and a 12,600 mAh battery that lasts a full working day. Paired with the MDCI Pro, it gives broad coverage, intelligent diagnosis and a range of maintenance functions, with cloud programming for over 13 car brands.
Broad Coverage, Comprehensive Database

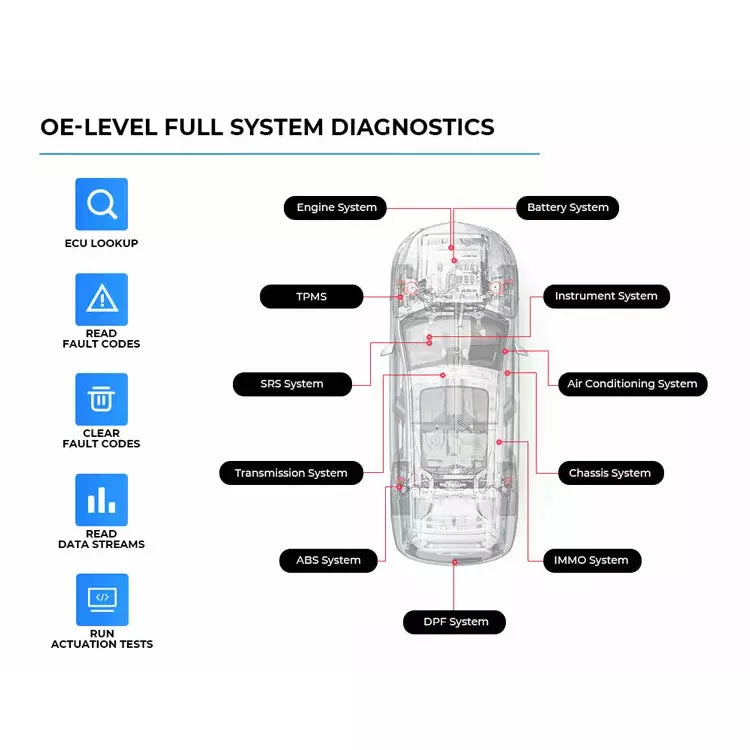

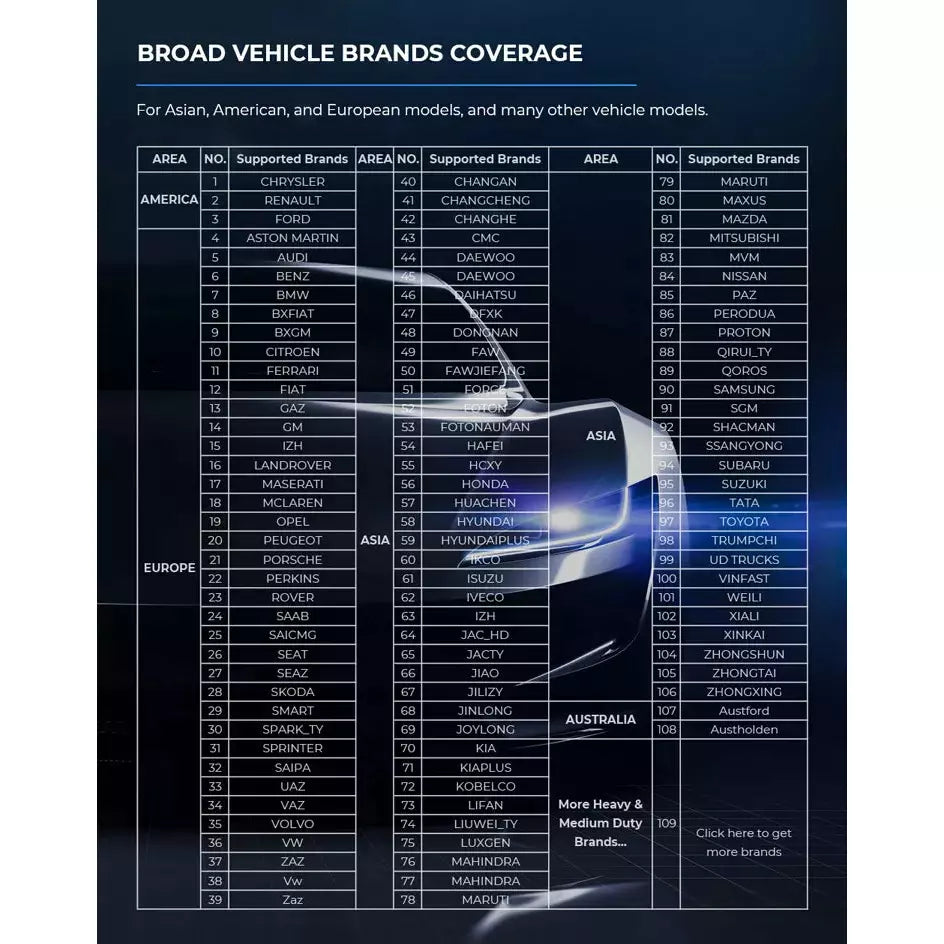

Full-system fault diagnosis covers more than 200 vehicle brands, with OE-level diagnostics for common Asian, American and European models.

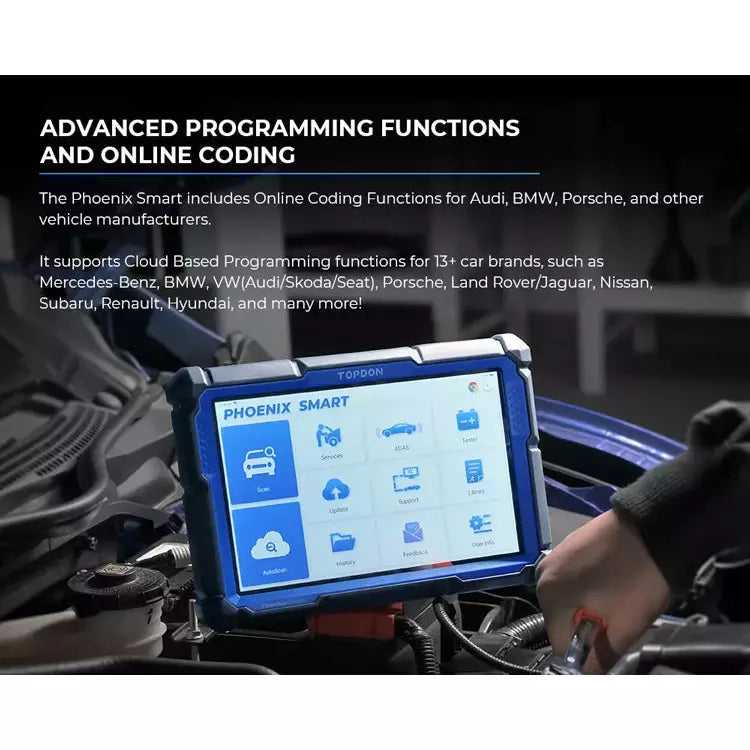

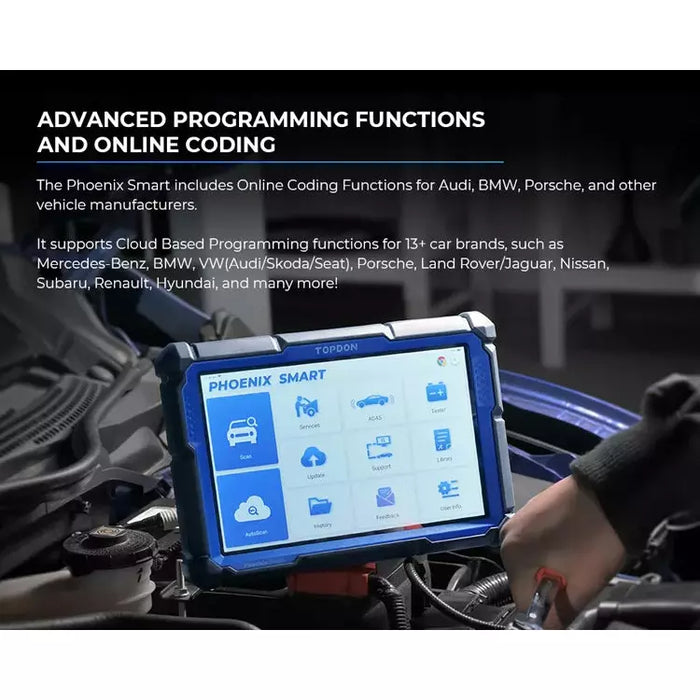

Programming and Online Coding
-
Online coding for Audi, BMW, Porsche and other manufacturers
-
Cloud-based programming for 13+ brands, including Mercedes-Benz, BMW, VW (Audi, Skoda, SEAT), Porsche, Land Rover and Jaguar, Nissan, Subaru, Renault and Hyundai

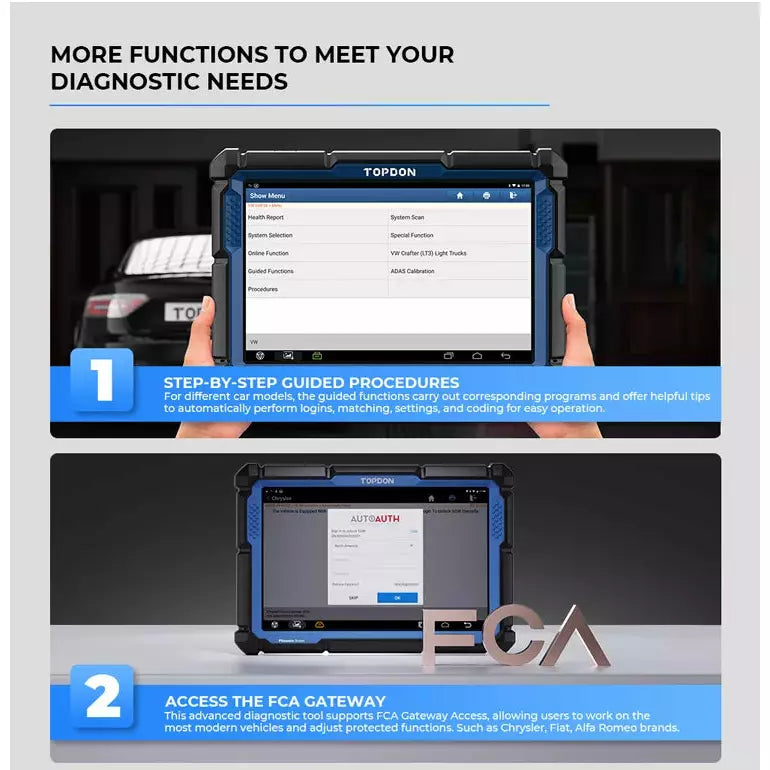

Step-by-Step Guided Procedures
Prompt-driven guided procedures streamline repairs on VW, Audi, Skoda and SEAT vehicles, so you are led through each step.

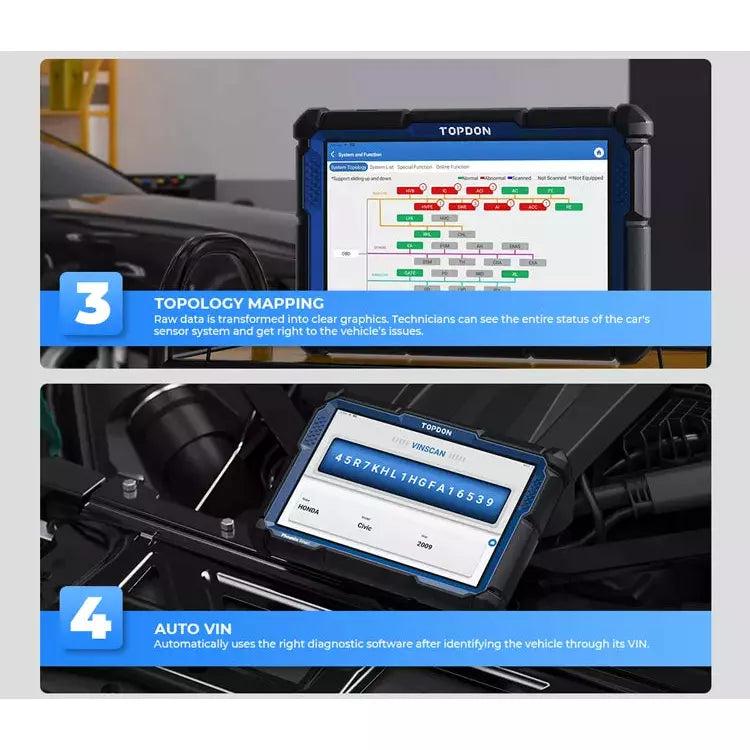

View All Fault Codes on One Screen
Topology mapping displays the whole vehicle system at once. Raw data is converted into graphics that show the overall system status and the specific issues to address.
FCA Gateway Access
FCA Secure Gateway support lets you work on modern vehicles and adjust protected functions that are otherwise locked.
Do More with Special Settings
Unlock hidden vehicle features and settings, such as enabling video-in-motion (via DVD or USB) and disabling the seatbelt warning light. These special settings apply to Audi, VW, BMW, Porsche, Toyota and more.
ADAS Compatibility
Pair the Phoenix Smart with the TOPDON Phoenix ADAS Mobile Package to calibrate driver-assistance functions, and offer ADAS recalibration as a growing service for your customers.
Heavy-Duty Option
HD software can be added at additional cost.
Updates
Two years of free software updates are included.
Who It Suits
Workshops that want wide brand coverage, coding and cloud programming in a portable tablet with all-day battery life.
Specifications
- Display: 10.1 inch LCD touchscreen, 1280 x 800
- Processor: 4-core, 2.0 GHz, Android 10.0
- Memory: 4 GB RAM, 128 GB storage
- Battery: 12,600 mAh, 3.8 V
- Operating voltage: 9-18 V
- Working temperature: 0°C to 50°C

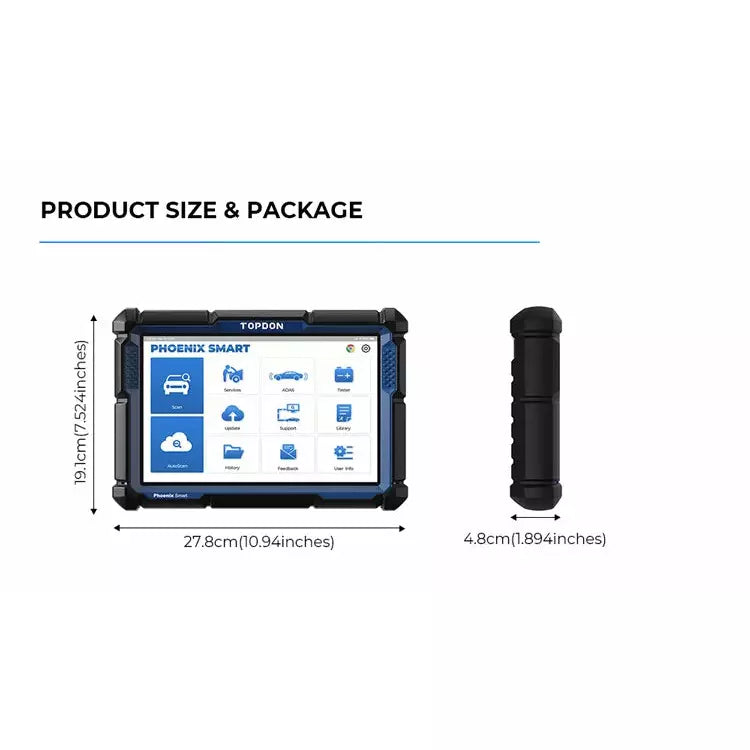

- Dimensions: 278 x 191 x 48 mm
- Languages: 24, including English, German, Spanish, French, Italian, Japanese and Portuguese

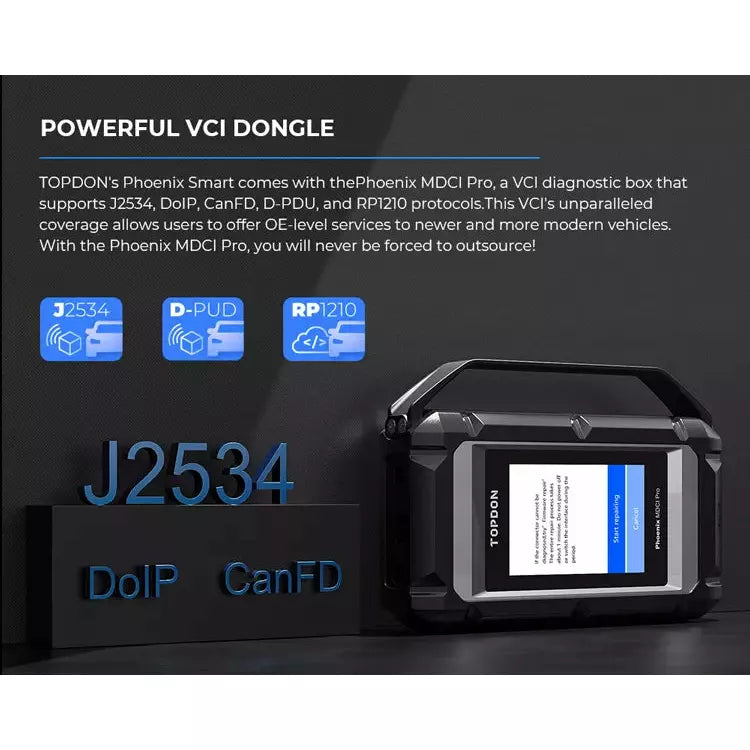

- MDCI Pro: dual processor, Linux, 256 MB RAM, 8 GB storage, 3.97 inch screen, dual-band Wi-Fi, DC 9-36 V, 196 x 135 x 42.8 mm, CAN FD, DoIP, D-PDU and RP1210
Please Note
- Heavy-duty software is available at additional cost.
- The Phoenix ADAS Mobile Package is not included.

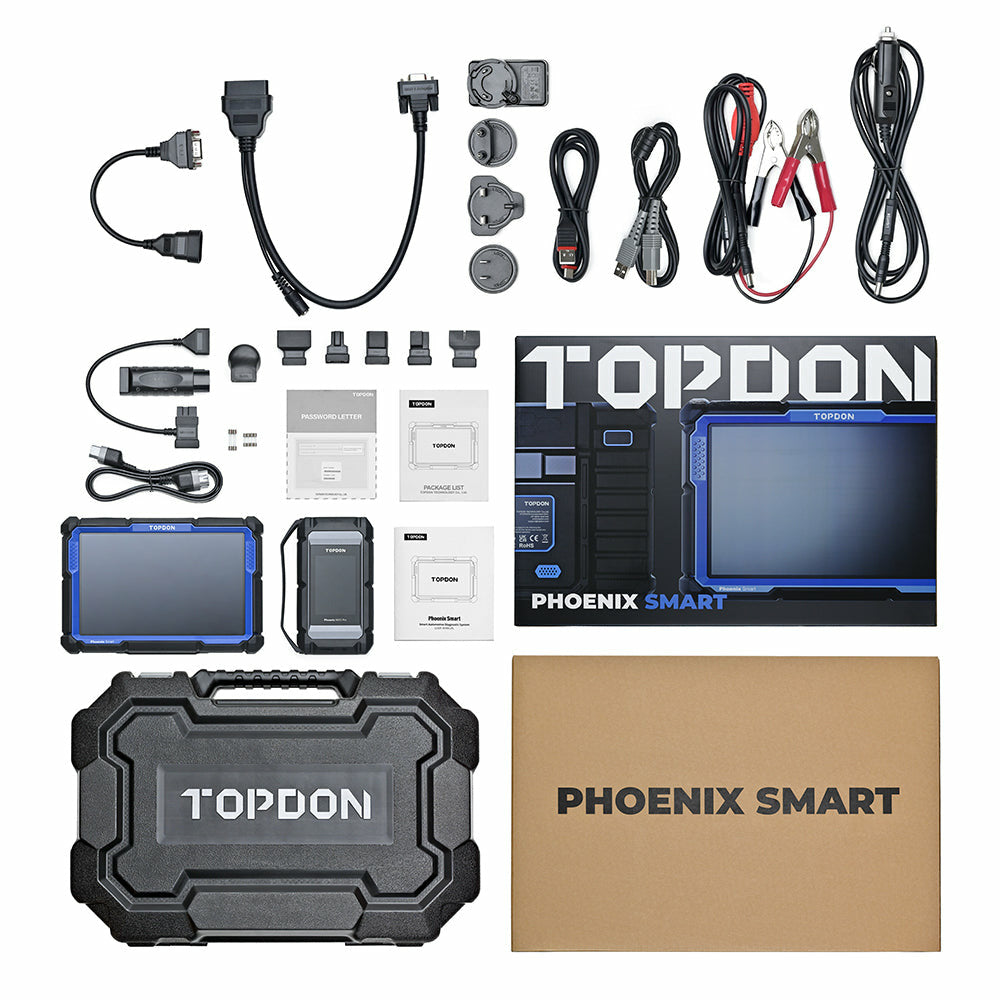

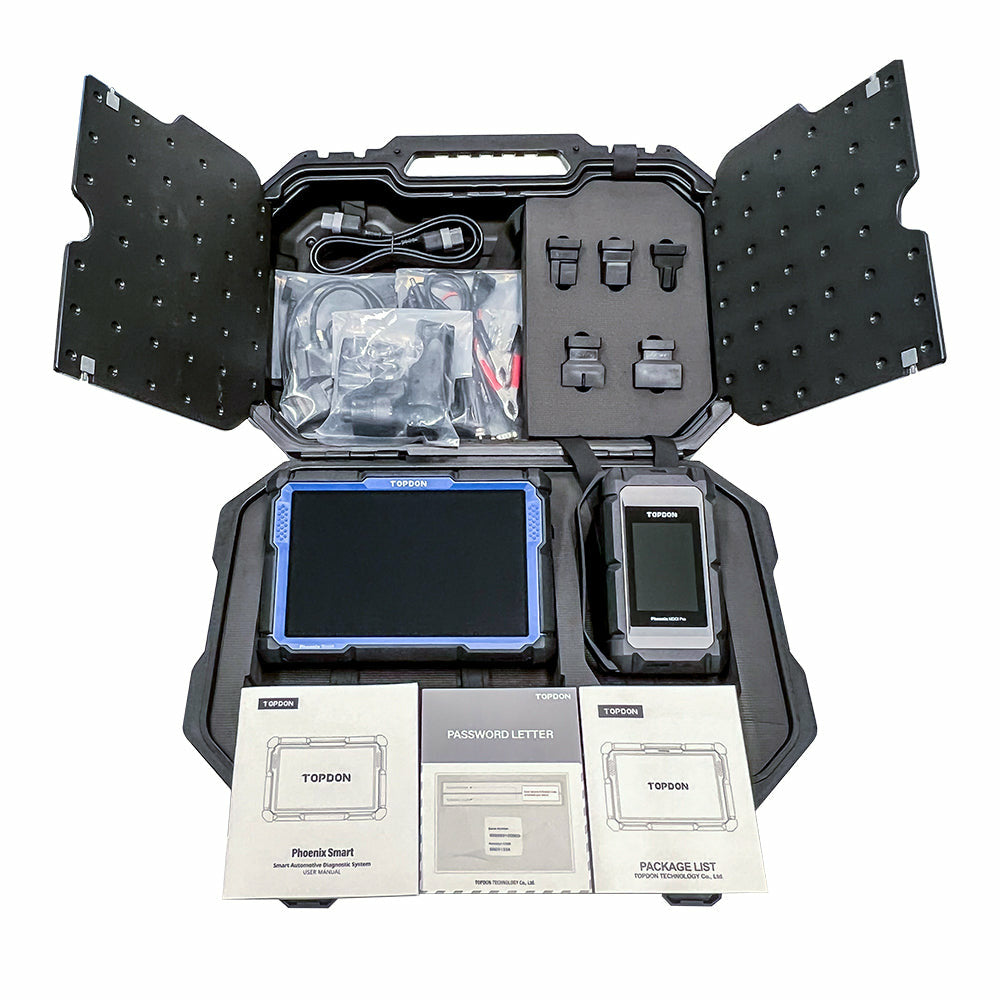

What's in the Box
- Phoenix Smart tablet
- Phoenix MDCI Pro (VCI dongle)
- OBDI adapter box transfer line
- OBDII extension cable
- Cigarette lighter cable
- Type-C to USB cable
- Battery clamps and cable set
- Non-16-pin adaptor cable kit (10 cables): NN-14+16, BZ-38, TA-17, TA-22, G/V-12, B-20, CR-6, HA-3, M/H-12+16, FT-3
- Type A to B cable
- Fuses: 4 x 5 x 20 mm and 2 x 6 x 30 mm
- User manual
