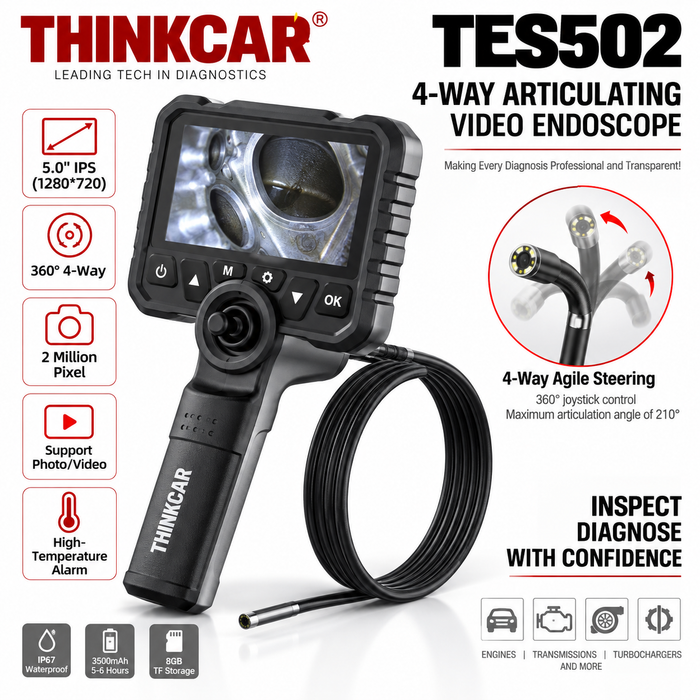

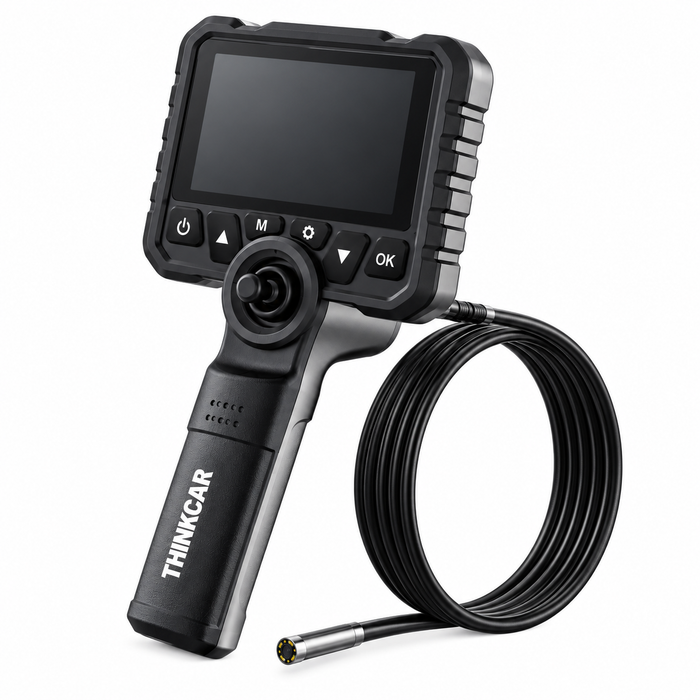

THINKCAR TES502 4-Way Articulating Video Endoscope

Product description

Professional 4-Way Articulating Inspection Camera for Automotive Diagnostics

The THINKCAR TES502 is a professional portable video endoscope designed for detailed automotive inspection and diagnostics. Its 360° adjustable probe allows technicians to inspect difficult-to-access areas inside engines, transmissions, turbochargers and other components without unnecessary disassembly.

The 2-megapixel HD camera, 5-inch IPS display and six adjustable LED lights provide a clear view of internal components, making it easier to identify carbon buildup, internal damage, foreign objects and other hard-to-see faults.

Key Features

• 4-Way Articulating Probe – 360° joystick control with up to 210° articulation
• 6.2mm Camera Lens – Ideal for accessing tight automotive components
• 2MP HD Camera – 1920 × 1080 HD image output
• 5" IPS Display – 1280 × 720 resolution
• 6 High-Brightness LEDs – Three adjustable brightness levels
• 15–100mm Depth of Field – Clear inspection across a useful working range
• 80° Wide-Angle View
• IP67 Waterproof Lens – Resistant to water, oil and corrosion
• High-Temperature Protection – Alarm at 80°C with automatic lens shutdown to protect the camera
• Photo & Video Recording – Capture and save inspection evidence
• 8GB TF Storage
• 1.5m Wear-Resistant Metal Hose
• 3500mAh Battery – Approximately 5–6 hours continuous operation
• 14 Languages Supported

Ideal For

Automotive workshops, technicians and diagnostic specialists inspecting:

Engines • Cylinders • Intake systems • Turbochargers • Transmissions • Pipework • Internal components • Difficult-to-access areas
