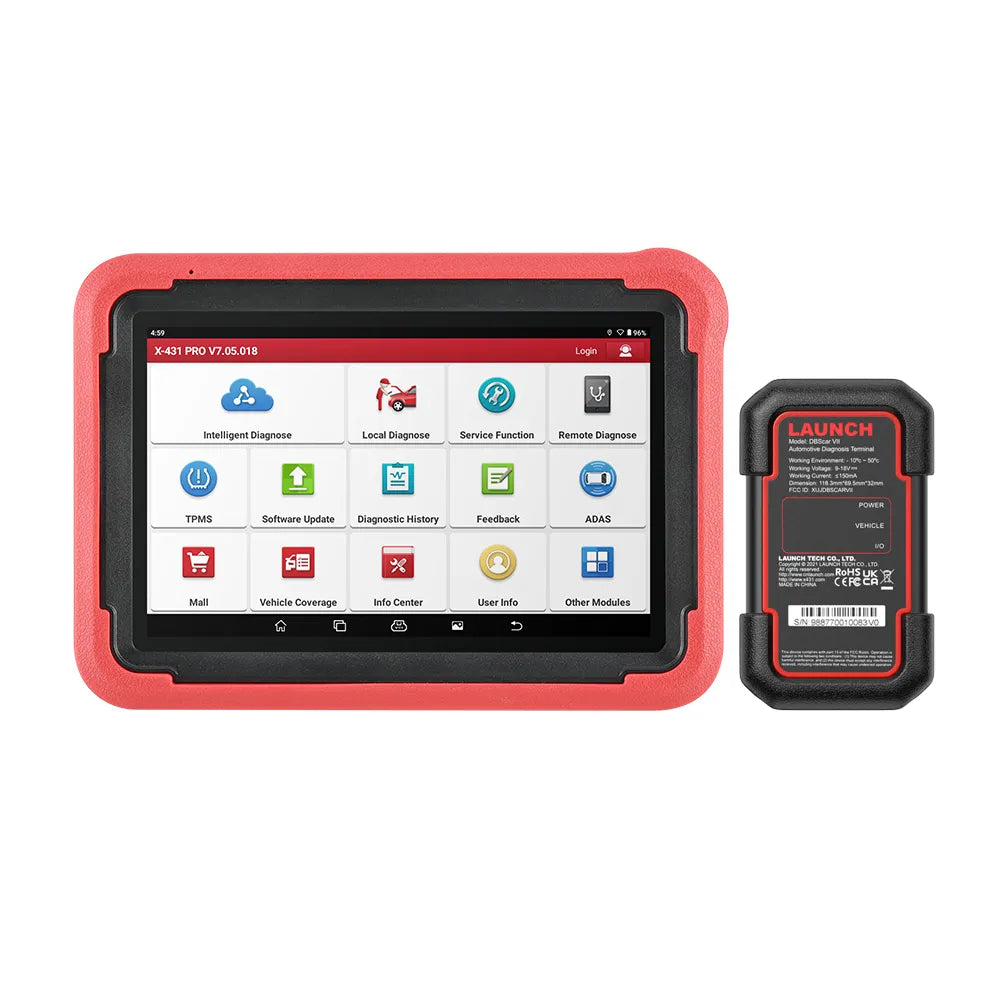

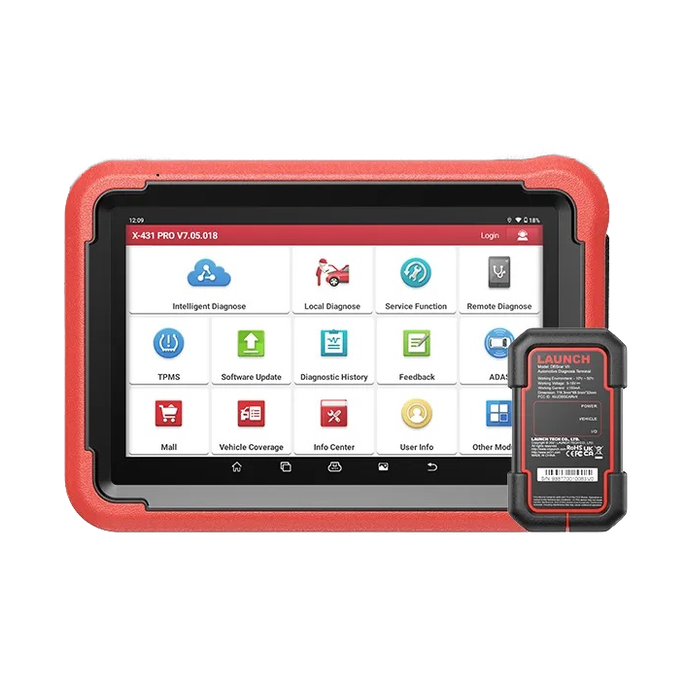

LAUNCH X-431 PROS V5.0 – Professional Bi-Directional Diagnostic Scan Tool
The LAUNCH X-431 PROS V5.0 is a professional 8-inch diagnostic scanner for workshops needing full-system fault diagnosis, bi-directional testing, ECU coding and extensive service functions. Its DBScar VII wireless interface supports CAN FD and DoIP on compatible vehicles.
Who It Suits
General repair workshops and technicians who want a dependable 8-inch full-system scanner with active tests, coding and a broad set of service functions, and room to add key programming, TPMS and other equipment later.
Professional Diagnostic Features
-
Full-system diagnostics: read and clear fault codes, retrieve ECU information and view live data from supported engine, transmission, ABS, SRS, steering, body control, climate control and other modules
-
Bi-directional active tests: command compatible components such as cooling fans, pumps, valves, solenoids and electronic actuators for fault finding
-
Live data and reports: view sensor readings and operating parameters, and record diagnostic information and fault findings
-
ECU coding and matching: supported coding, adaptations and component relearning after repairs or replacement
-
AutoVIN: identify supported vehicles automatically
-
CAN FD and DoIP: supported through DBScar VII; additional adapters or cables may be required for some applications
-
FCA AutoAuth: secure gateway access on compatible vehicles, subject to registration
-
Guided functions: supported Volkswagen and Audi guided diagnostics
37 Service Functions
Includes oil service and maintenance light reset, electronic parking brake service, steering angle calibration, ABS bleeding, battery registration and matching, DPF regeneration, injector coding and matching, throttle adaptation, transmission and gearbox relearning, TPMS reset, EGR adaptation, AdBlue reset, electronic suspension calibration, and window, seat and sunroof calibration. Availability varies by vehicle, model, year and software version.
Vehicle Coverage
Supports compatible European, American, Japanese, Korean, Chinese and Australian vehicles, including selected Toyota, Lexus, Nissan, Mitsubishi, Mazda, Subaru, Suzuki, Honda, Hyundai, Kia, Holden, Ford, Volkswagen, Audi, BMW, Mercedes-Benz, Volvo, Peugeot, Citroën, Renault, Land Rover, Jaguar, Jeep, Chevrolet, Isuzu, Great Wall, Haval and LDV models. Individual functions vary by make, model, year and ECU.
Technical Specifications
- Operating system: Android 10.0
- Processor: 2.0GHz quad-core
- Display: 8-inch touchscreen, 1280 × 800
- Memory: 4GB RAM, 64GB storage
- Battery: 6300mAh, 7.6V
- Rear camera: 8MP
- Wi-Fi: dual-band 2.4GHz / 5GHz; USB Type-A and Type-C ports
- Interface: DBScar VII wireless diagnostic connector
- Operating temperature: 0°C to 55°C
- Dimensions: 234 × 166 × 39.55mm

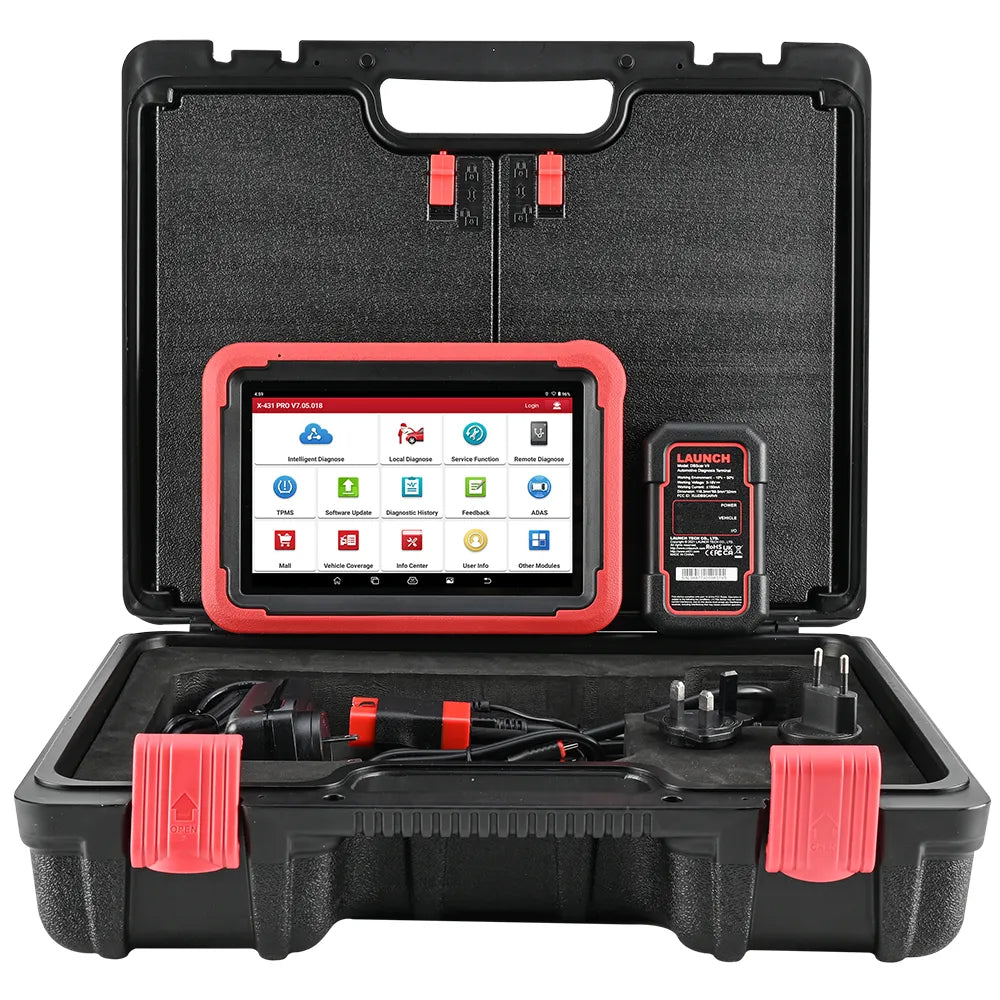

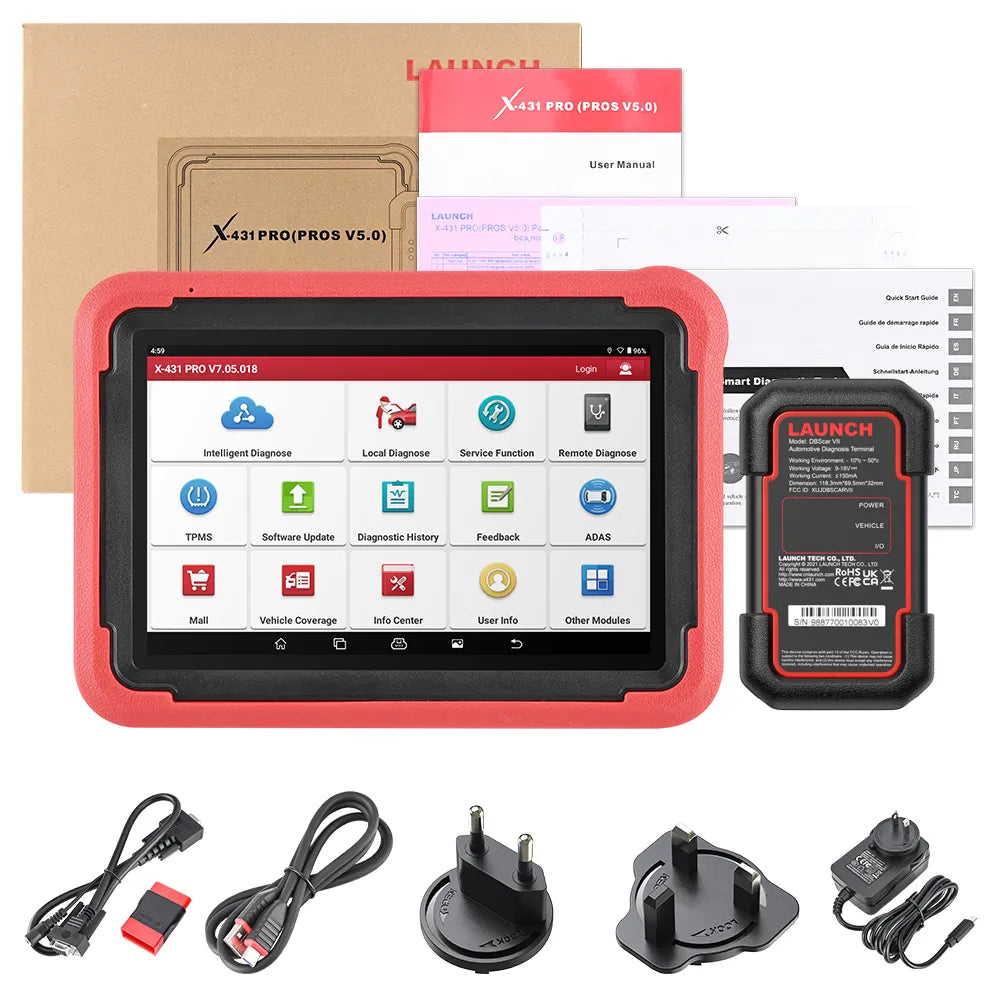

Package Contents
- LAUNCH X-431 PROS V5.0 diagnostic tablet
- DBScar VII diagnostic interface

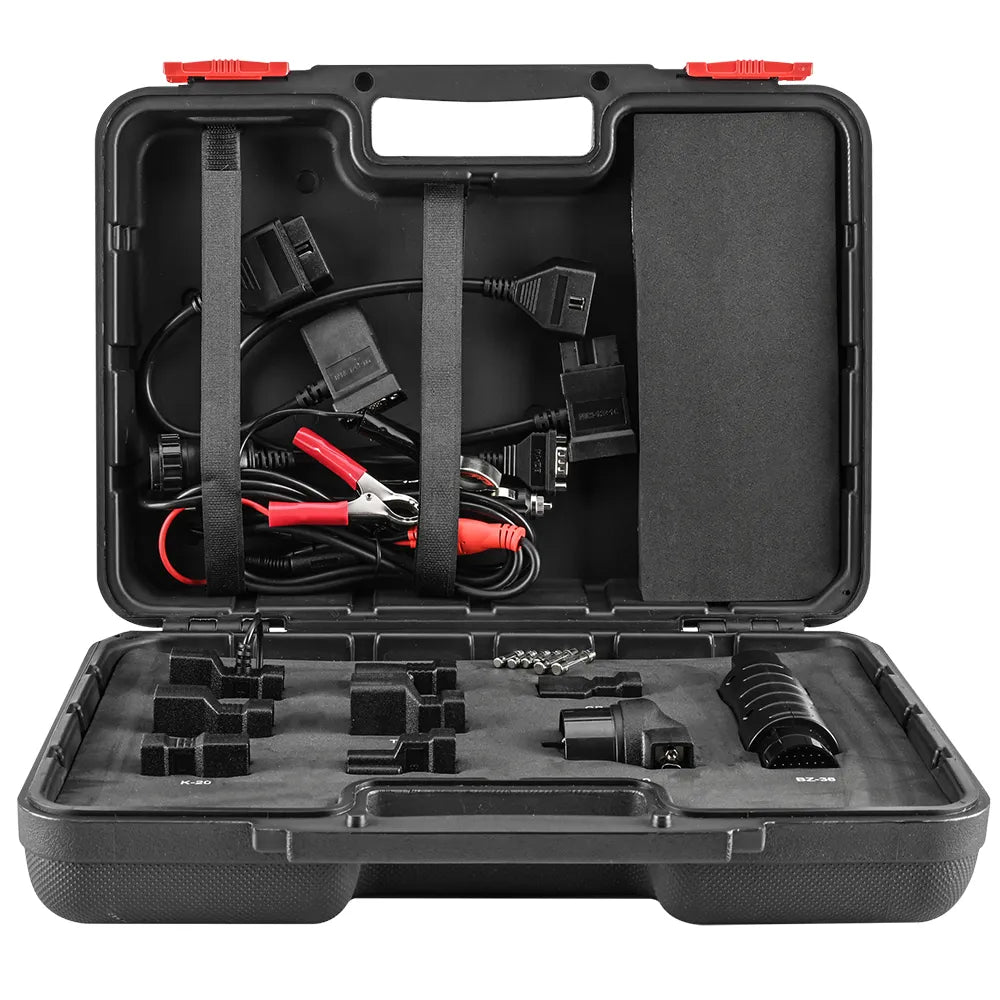

- Storage case and diagnostic cable
- USB Type-A to Type-C cable and power plug
- Non-16-pin adapter box with legacy diagnostic connectors, battery clamp cable, cigarette lighter cable and fuse
- PIN envelope, packing list, quick start guide and user manual
Optional Expansion & NZ Support
Optional equipment, sold separately, includes X-PROG 3 key programming, TPMS tool, BST360 battery tester, videoscope, oscilloscope and ADAS equipment. Includes two years of software updates. Supplied by Discount Tools NZ with local New Zealand warranty assistance, technical support and help with registration and software updates. Contact us to confirm specific vehicle functions before purchase.
