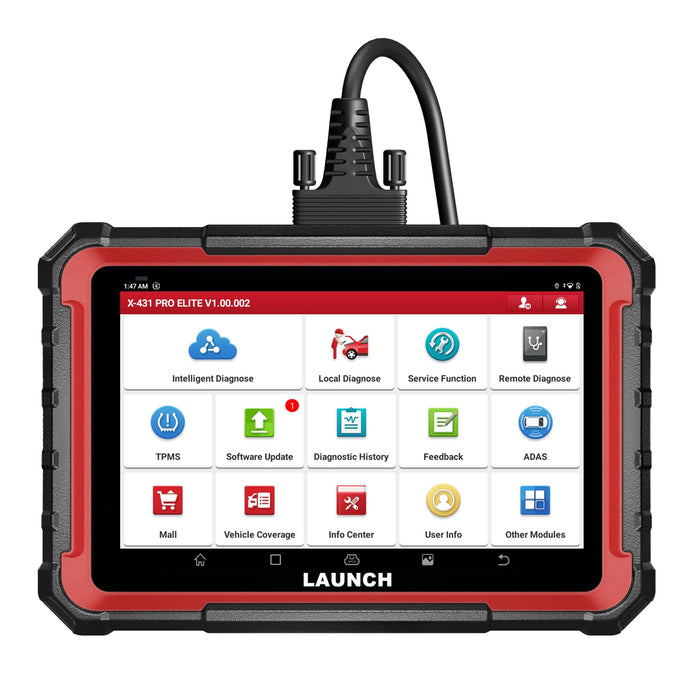

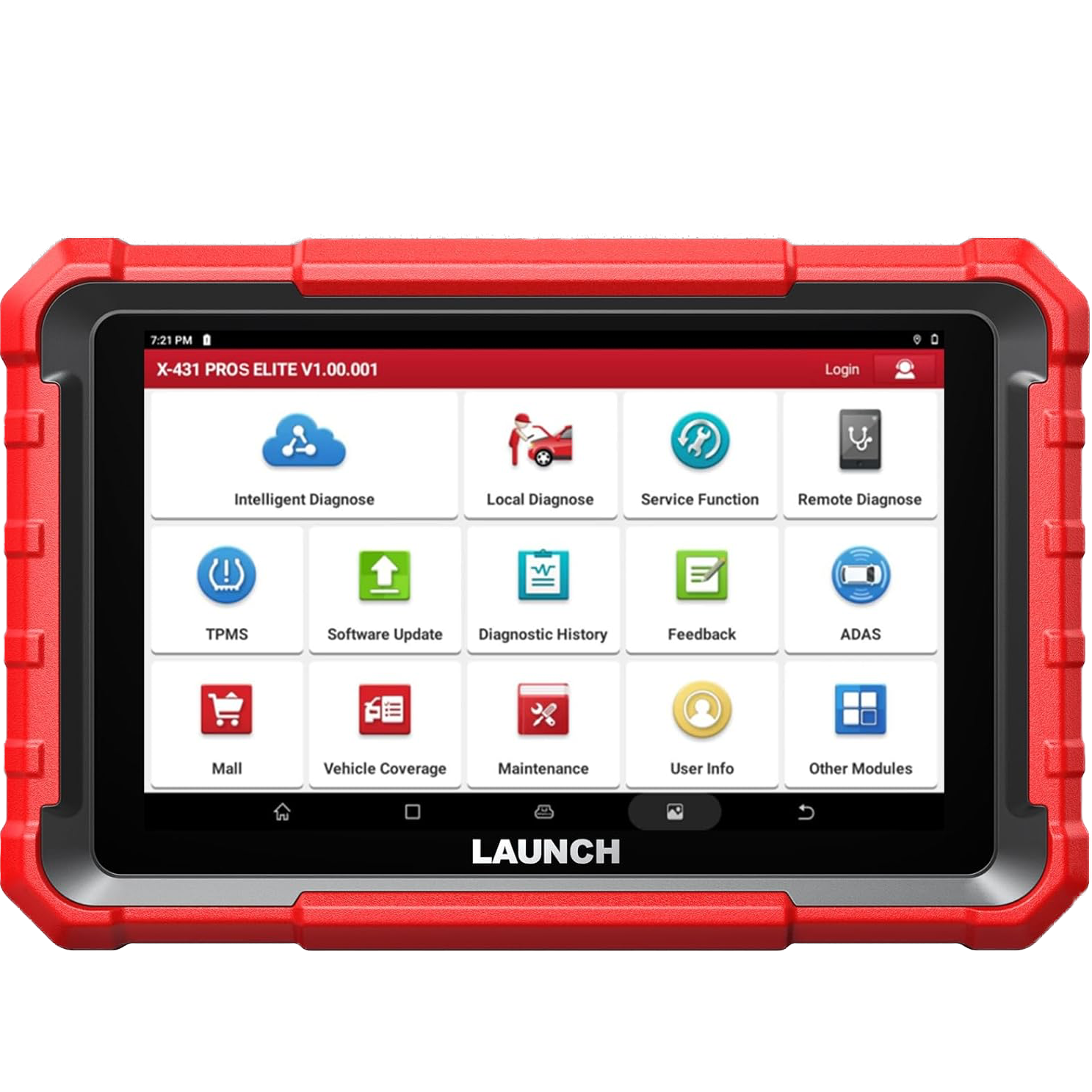

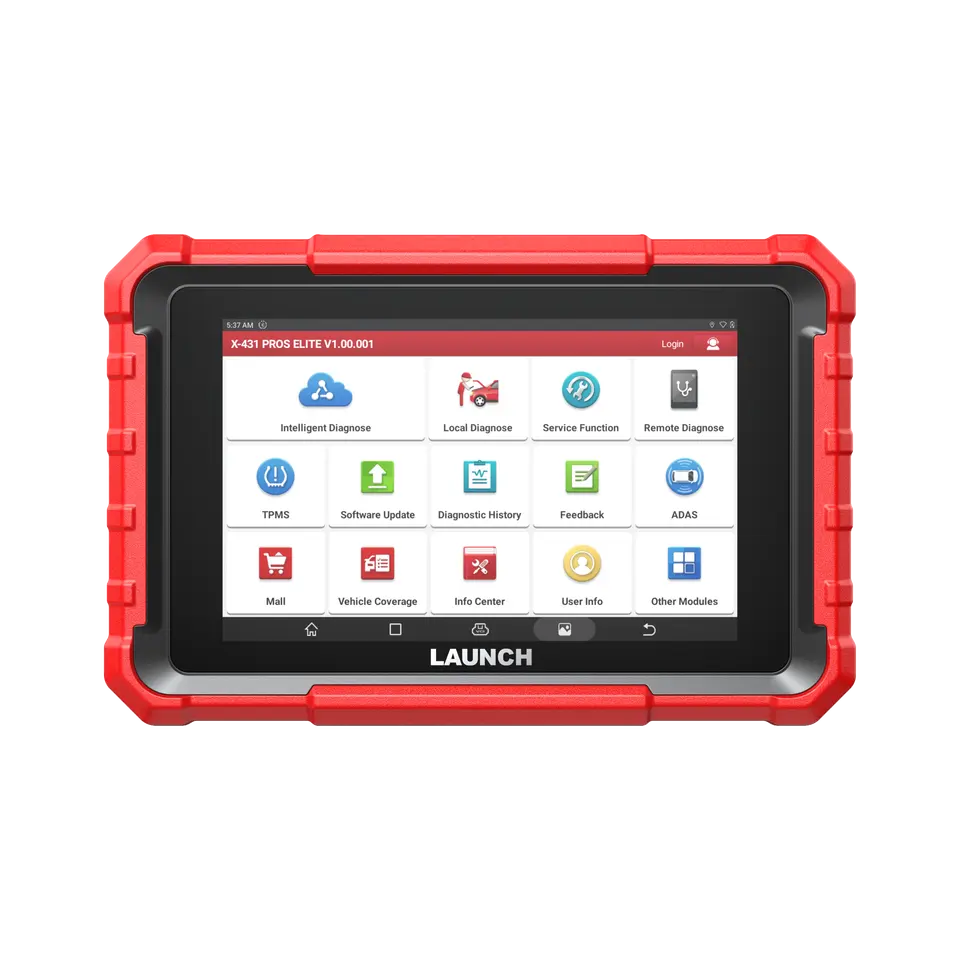

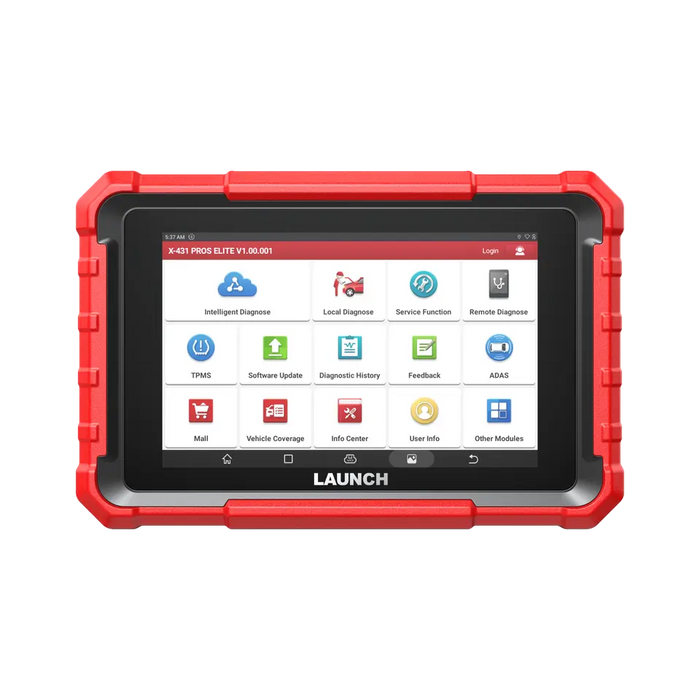

LAUNCH X-431 PROS Elite – Professional Full-System Diagnostic Scanner
The LAUNCH X-431 PROS Elite is an 8-inch professional diagnostic tool for automotive workshops. It combines full-system fault diagnosis, bi-directional active testing, supported ECU coding and 31 service functions with modern CAN FD and DoIP communication support.
Who It Suits
Workshops and technicians who want full-system scanning, active testing and coding in a portable 8-inch tablet, with accessories available to expand into key programming, TPMS, ADAS and other specialist work.
Professional Diagnostic Features
-
Full-system diagnostics: read and clear fault codes, retrieve ECU information and view live data from compatible modules, including engine, transmission, ABS, SRS airbag, body control, steering, TPMS, instrument cluster, climate control and immobiliser
-
Bi-directional testing: command supported components to help isolate faults; depending on the vehicle, tests may include fuel pumps, injectors, cooling fans, windows, lights, relays and other actuators
-
ECU coding and matching: compatible coding, configuration, module matching, adaptations and relearning, with programmable module installation and selected vehicle customisation functions on supported vehicles
-
CAN FD and DoIP: support for newer vehicle protocols; additional adapters may be required for some applications
-
AutoVIN: identify supported vehicles automatically
-
Guided functions: supported guided procedures on selected Volkswagen, Audi, Skoda and SEAT vehicles
-
Live data and reports: graph sensor readings and generate automatic vehicle health reports
31 Service Functions
Includes supported oil service reset, electronic parking brake servicing, ABS bleeding, steering angle calibration, battery registration, DPF regeneration, injector coding, throttle adaptation, TPMS reset, gear learning and gearbox reset, IMMO functions, adaptive headlight reset, suspension calibration, sunroof initialisation, power balance and other manufacturer-specific procedures. Availability varies by vehicle.
Optional Expansion (Sold Separately)
X-PROG 3 immobiliser programmer, TSGUN TPMS tool, VSP600 videoscope, BST360 battery tester, Wi-Fi printer, oscilloscope and selected ADAS equipment.
Technical Specifications
- Operating system: Android 10
- Processor: 2.0GHz quad-core
- Display: 8-inch touchscreen, 1280 × 800
- Memory: 4GB RAM, 64GB storage
- Battery: 6300mAh
- Rear camera: 8MP
- Wi-Fi: 2.4GHz / 5GHz
- Operating temperature: 0°C to 50°C
- Storage temperature: -20°C to 70°C
- Dimensions: 256 × 171 × 40.5mm

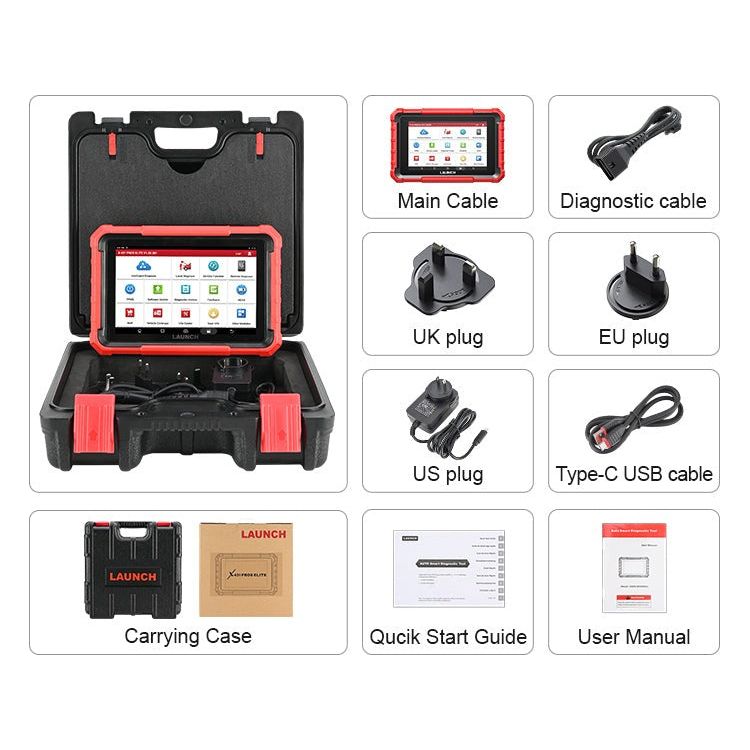

Package Contents
- LAUNCH X-431 PROS Elite diagnostic tablet
- Diagnostic cable
- USB Type-C cable
- Power plug
- Carrying case
- Quick-start guide and user manual
Software Updates & Compatibility
Includes two years of free diagnostic software updates. Supports compatible European, Asian, American, Australian and Chinese vehicle makes. Coverage, coding, active tests and service functions depend on make, model, year and ECU. Supplied by Discount Tools NZ with New Zealand support. Contact us to confirm specific functions before purchasing.
