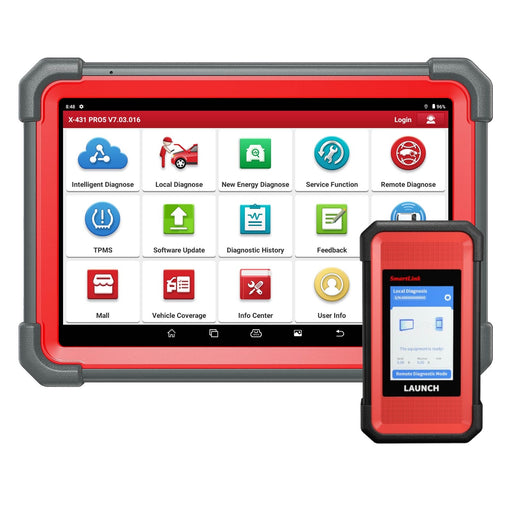

LAUNCH X-431 PRO5 – Professional Diagnostic Scanner with J2534
The LAUNCH X-431 PRO5 is a premium professional diagnostic system for workshops needing advanced vehicle diagnostics, ECU coding, programming and comprehensive service functions. It combines a 10.1-inch Android touchscreen with a vehicle communication interface supporting CAN FD, DoIP and J2534 for European, Asian and American vehicles.
Who It Suits
Independent and multi-brand workshops moving into higher-end vehicles that need J2534 pass-through programming, ECU coding and full-system diagnostics on a 10.1-inch tablet.
Advanced Diagnostic Capabilities
-
Full-system diagnostics: 100+ vehicle brands, including supported engine, transmission, ABS, SRS and body systems, across European, Asian, American and Australian makes such as BMW, Mercedes-Benz, VW, Audi, Toyota, Lexus, Nissan, Honda, Hyundai, Kia, Ford, GM and Holden, depending on model and year
-
Bi-directional active testing: command compatible actuators and components to identify faults efficiently
-
ECU coding and programming: supported coding, adaptations and J2534 pass-through programming, which lets the tool act as an ECU reprogramming interface when used with the manufacturer's own software, for ECU replacement or reflashing on supported vehicles
-
CAN FD, DoIP and J2534: advanced vehicle communication through the supplied interface
-
AutoVIN: automatically identify supported vehicles
-
Guided diagnostics: Volkswagen and Audi guided functions
-
Live data analysis: monitor real-time vehicle parameters
-
Pre-scan and post-scan reports: record fault codes before repair and after, so copies can be given to customers or insurers for repair approval
-
Wireless updates: update diagnostic software over Wi-Fi
31 Service Functions
Includes compatible oil service resets, electronic parking brake servicing, ABS bleeding, steering angle calibration, battery registration, DPF regeneration, injector coding and throttle adaptation. Other supported functions can include seat and window or roof calibration, tyre size change, suspension, headlamp and language change. Availability varies by vehicle.
Optional Expansion (Sold Separately)
X-PROG 3 immobiliser programmer, BST360 battery tester, video inspection equipment, ADAS calibration systems and TPMS service equipment. Some accessories and software may need separate purchase.
Technical Specifications
- Operating system: Android 10.0
- Processor: 2.0GHz quad-core
- Display: 10.1-inch touchscreen, 1280 × 800
- Memory: 4GB RAM, 64GB storage
- Cameras: 5MP front, 8MP rear
- Wi-Fi: dual-band 2.4GHz / 5GHz
- Dimensions: 274 × 190.5 × 39.5mm
- Protocol support: CAN FD, DoIP, J2534
Package Contents
- LAUNCH X-431 PRO5 diagnostic tablet
- Vehicle communication interface
- Storage box / carrying case
- OBD diagnostic adapter
- Network cable
- USB Type-C cable and USB Type-B cable
- UK, EU and US power plugs
- PIN envelope
- Quick start guide and user manual
Software Updates & Compatibility
Includes two years of software updates. Programming and advanced functions depend on vehicle compatibility and may need manufacturer authorisation or additional subscriptions. Supplied by Discount Tools NZ with New Zealand warranty assistance and support. Contact us to confirm specific vehicles or functions before purchase.
