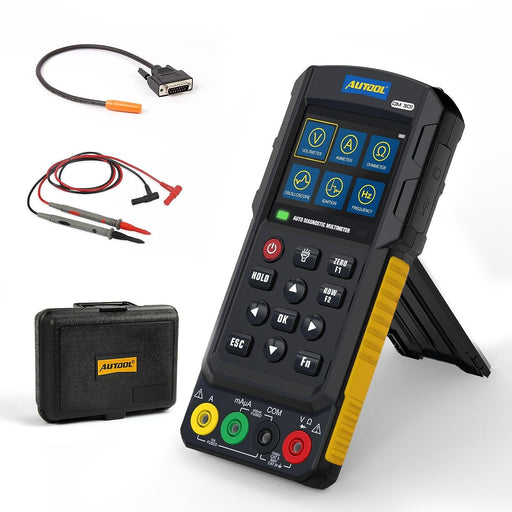

AUTOOL DM301 Oscilloscope Automotive Digital Auto-Ranging Multimeter

AUTOOL DM301 Oscilloscope Automotive Digital Auto-Ranging Multimeter

AUTOOL DM301 The automobile diagnostic multimeter is a hand-held new diagnostic multimeter integrating digital oscilloscope, digital multimeter, which is designed with the embedded digital control technology.

Oscilloscope mode

is a complete itelligent measurement system，which includes signal input, data sampling, data processing and automatic search, with the waveform test bandwidth of 500KHZ. With a variable sampling frequency, the slowly varying signal amount can be measured. It is applicable to measuring and observing various signals on the automobile circuit during the car overhaul, including the motor drive signal and motor power voltage of new energy vehicle, fuel car engine ignition pulse signal, camshaft signal, crankshaft signal, wheel speed sensor signal, oxygen sensor signal and so on.

EIGHT TEST FUNCTIONS

DC/AC Voltage Measurement, DC/AC Current Measurement, Resistance Measurement, Frequency Measurement, Diode Test, Oscilloscope Test, Ignition Signal Test, Data Retenion.

2.8 INCH COLOUR DISPLAY

Adjustable screen brightness, clear and intuitive data, suitable for various working environments.

PORTABLE TOOLBOX

The main unit and accessories can be well stored, easy to carry, and the box is resistant to flling and crashing, effectively protects the instrument.

SOFTWARE UPGRADING

The instrument can update the application software with SD card and copy the updated file to SD card.

Parameter

• Input impedance for the voltage measurement:
• it is 2~3MΩ when the voltage is lower than 160V;
• it is 10MΩ when the voltage is higher than 160V.
• The maximum input voltage is 1000Vpp;
• The analog bandwidth is 500KHz; The voltage range is converted automatically;
• The 10A terminal fuse for current measurement is 15A self-re covery fuse, and the maximum measurable current is 20A; The current measurement mA/uA terminal fuse is 0.5A self-recov ery fuse, and the maximum measurable current is 200mA;
• Working temperature: 0~40°C(32~104°F) Humidity: ≤75%;
• Storage temperature: 10~50°C(14~122°F) Humidity: ≤70%;
• Altitude: 2000m.
