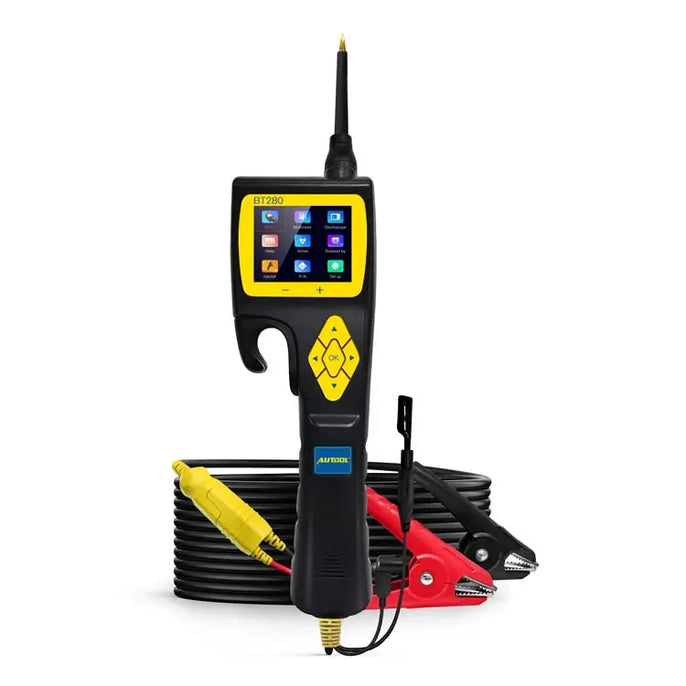

AUTOOL BT280 Automotive Electrical System Circuit Tester

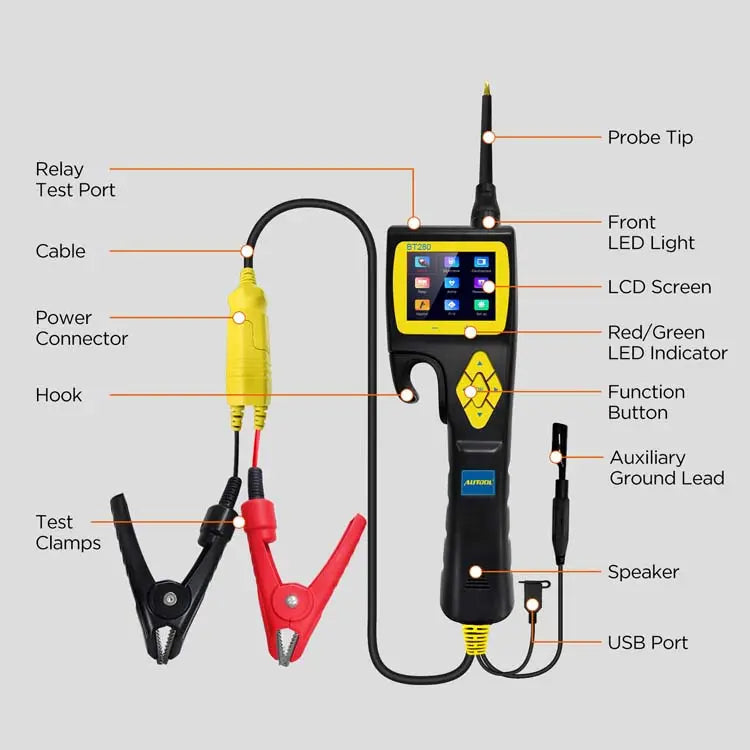

The AUTOOL BT280 is a multifunction powered probe for advanced vehicle electrical diagnosis. It combines multimeter measurements, oscilloscope viewing and component activation in one handheld tester, so technicians can investigate circuits and operate selected electrical components without switching tools.

Who It Suits

Automotive technicians and auto electricians who trace wiring faults, test components and want a powered probe that does more than basic voltage checks.

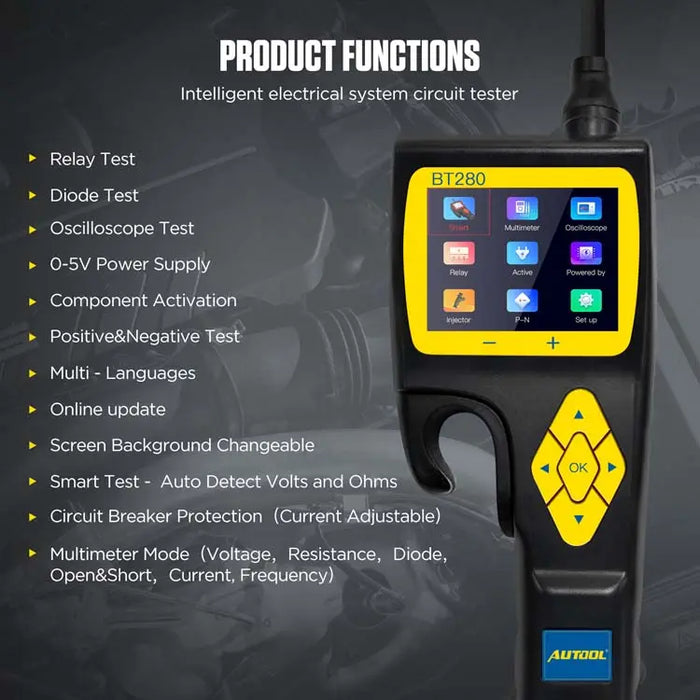

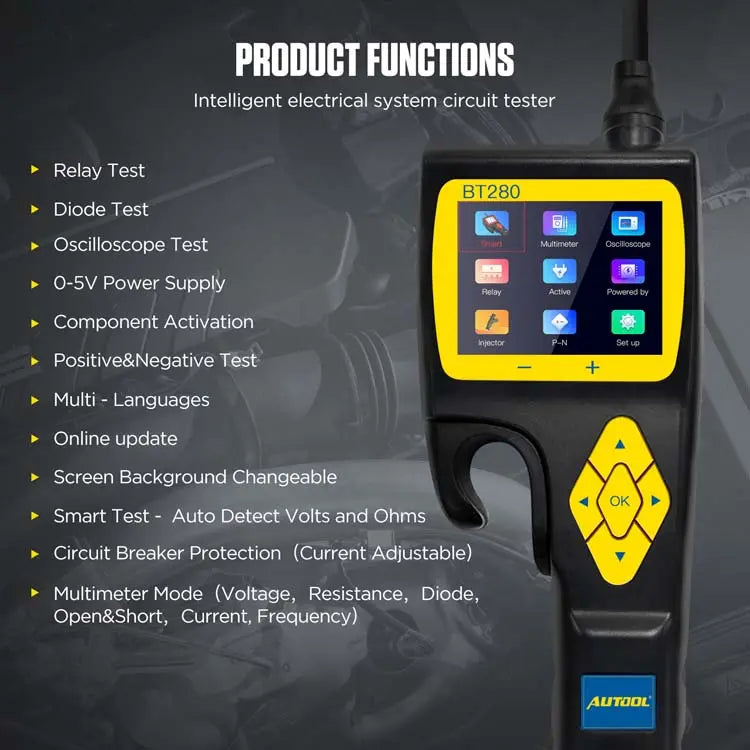

Key Features

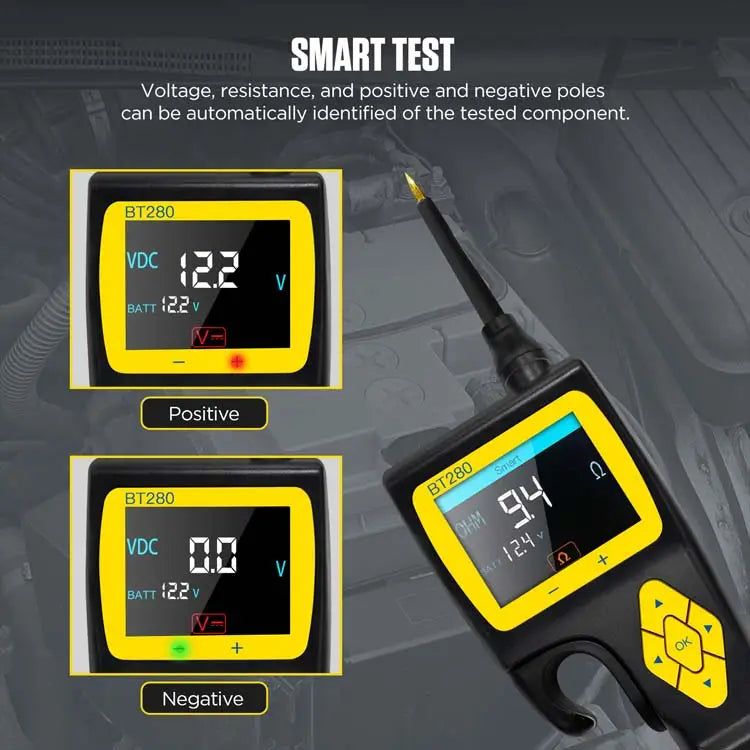

  • Integrated digital multimeter for continuous testing of circuits and components
  • Oscilloscope mode displays waveform graphs for the parameter being tested
  • Component activation generates activation signals for lights, motors and other electrical components
  • Adjustable 0–5V output to verify wiring and component response
  • Fuel injector output with four pulse modes for injector-related testing
  • Dual circuit protection – automatic short-circuit protection plus fuse protection
  • 2.4-inch colour screen
  • 8-metre power cable for reach around the vehicle

Technical Specifications

  • Operating voltage: 9–30V
  • Voltage measurement: 0.1–150V
  • Resistance measurement: 1–200kΩ
  • Current measurement: 0–18A
  • Maximum continuous current: 18A
  • Adjustable output voltage: 0–5V
  • Display: 2.4-inch colour screen
  • Power cable length: 8m
  • 5 stars: 1 (50%)
  • 4 stars: 1 (50%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
Jim O'Reilly

Very handy bit of kit and affordable, arrived very quickly, very happy with the service

P
Phil Murray
Autool BT280

I am still coming to grips with all of the functions available on this tool. I love the latching and pulsing voltage supply. The scope is very impressive for such a small tool. I highly recommend the BT280 and discount tools.
