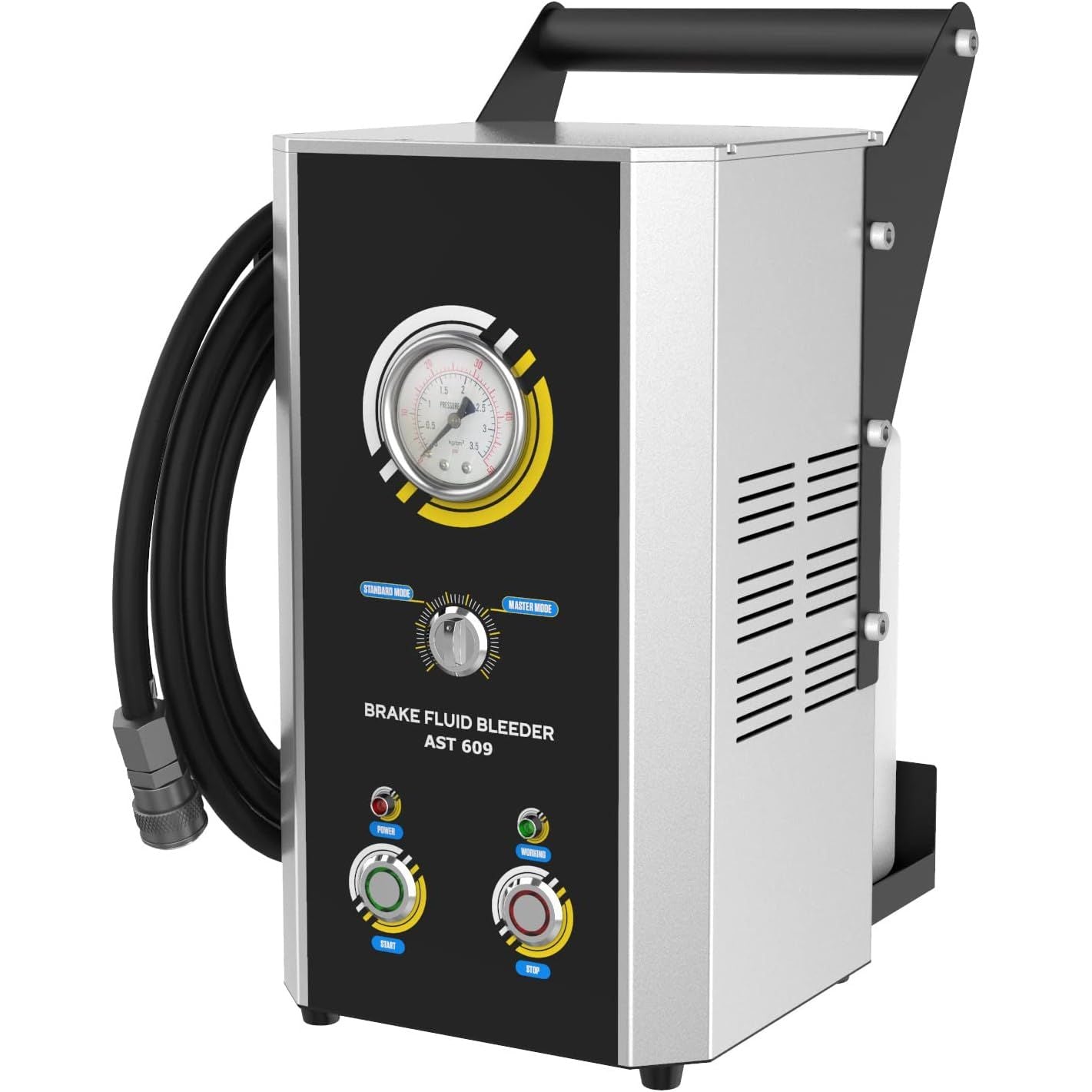

AUTOOL AST609 Pulsating Brake Fluid Exchanger

AUTOOL AST609 Pulsating Brake Fluid Exchanger

AST609 adopts the brand new pulse exchange technology, which continuously sends out pulse signals at certain time intervals to constantly deliver high-frequency pressure output to the brake fluid pipeline. The application of pulse in the brake fluid exchange machine solves the problem of air bleeding from the pipe, while the powerful impact also takes away the dirt and impurities adhering to the inner wall of the pipe, which both saves working time and improves efficiency.

Standard & Master Modes

• AST609 brake fluid exchanger is available in standard and master modes. Please select either mode before starting the fluid exchange. (Standard Mode Pressure:0-2.5 bar; Master Mode Pressure:0-3 bar)

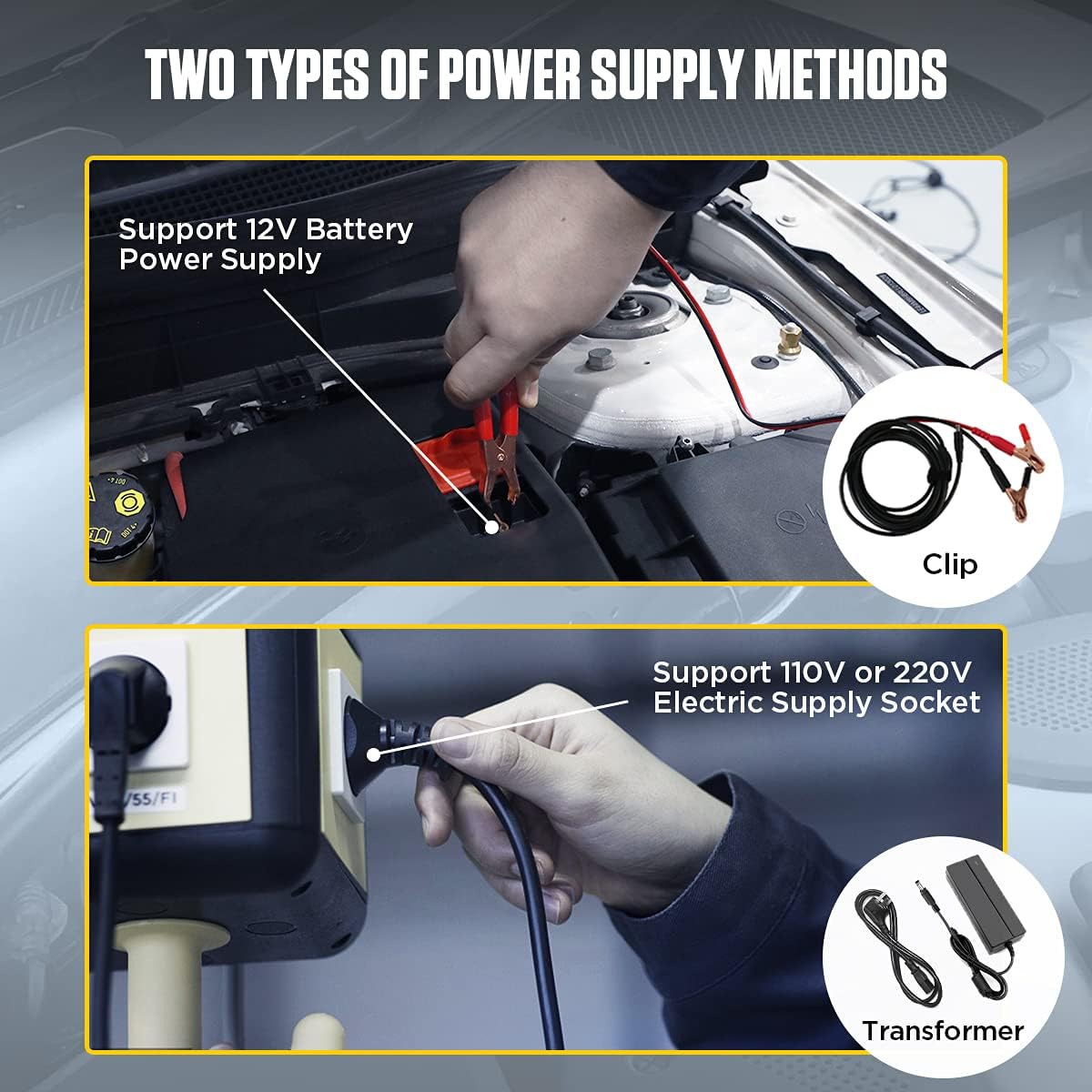

Two Ways of Power Supply

• AST609 brake fluid bleeder exchanger can both support 12V battery and 110V or 220V socket supply.

Optimised Advantages

• Compared with the traditional compression brake fluid bleeding device, the pulsating electric brake oil exchanger brake bleeder can effectively avoid the formation of bubbles in the process of adding brake fluid, so as to optimize and avoid the artificial exhaust process. AST609 brake bleeder kit has a powerful recovery function, which can quickly recover the used brake fluid at the same time.

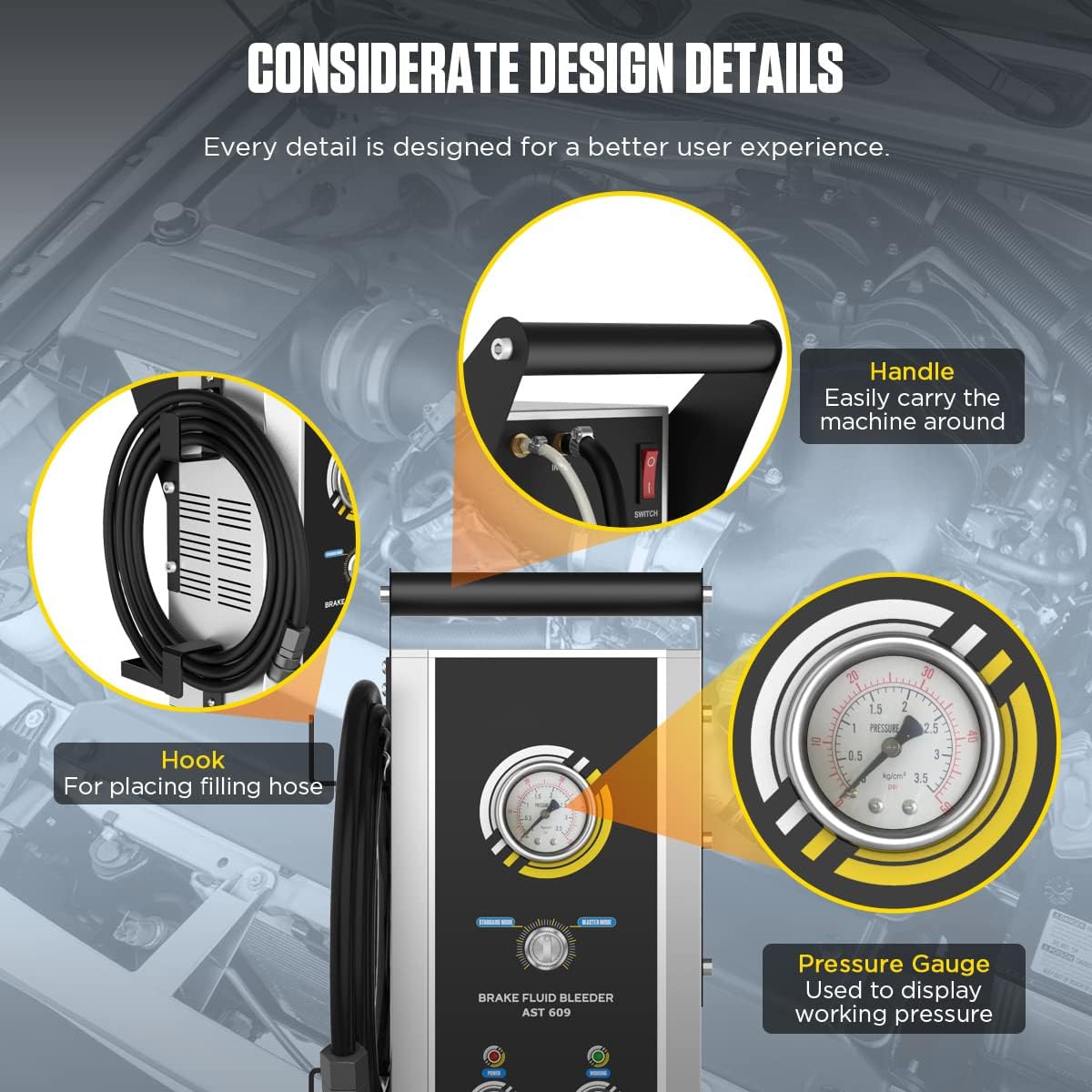

Built in Pressure Monitor

• The pump for filling the brake fluid reservoir is equipped with a pressure monitoring device. You can adjust the pressure through the adjustable knob, the pressure range is 0.6-3.0 BAR. If the pressure cannot be established or the pump sucks in air, the pump of this brake bleeder kit will shut down automatically. Besides, The recycling bottle can be placed in the machine body, which is easy to carry.

High Efficiency

• AST609 brake bleeder kit requires only one person to operate and allows you to easily to use and change the brake oil. AST609 brake bleeder can change one sub-pumps oil at once, after setting the working environment, the whole exchange process is automatic, so don't worry about being too busy.

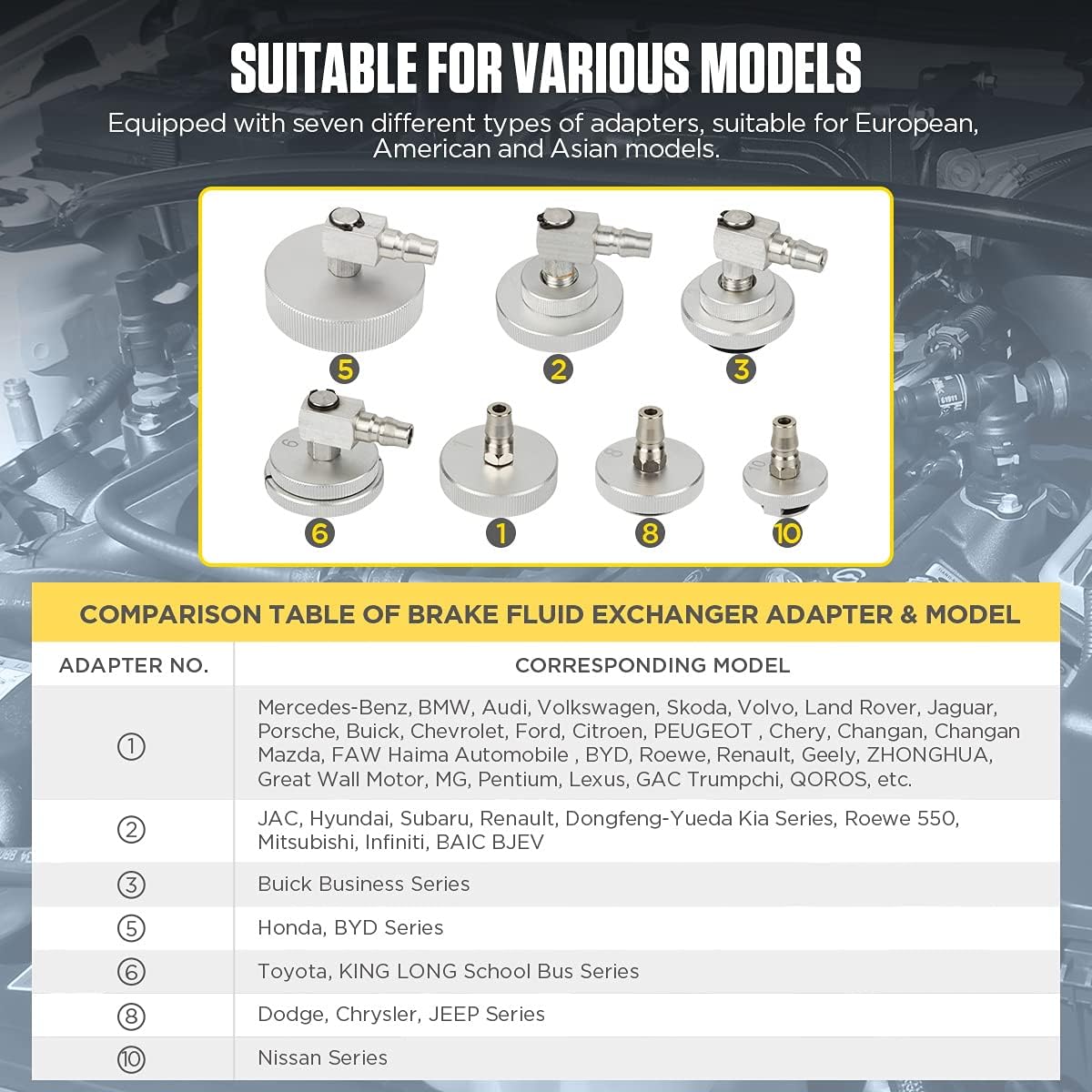

Wide Application

• Automotive Brake System Bleeding Tool with 7 different types of adapters and toolboxes, suitable for various car models of Europe, America, Asia, etc. AST 609 Brake Fluid Bleeder almost can apply for all vehicles. This pulsating brake bleeder oil exchange device is applicable for Dot3, Dot4, Dot5.1 brake oil standard.

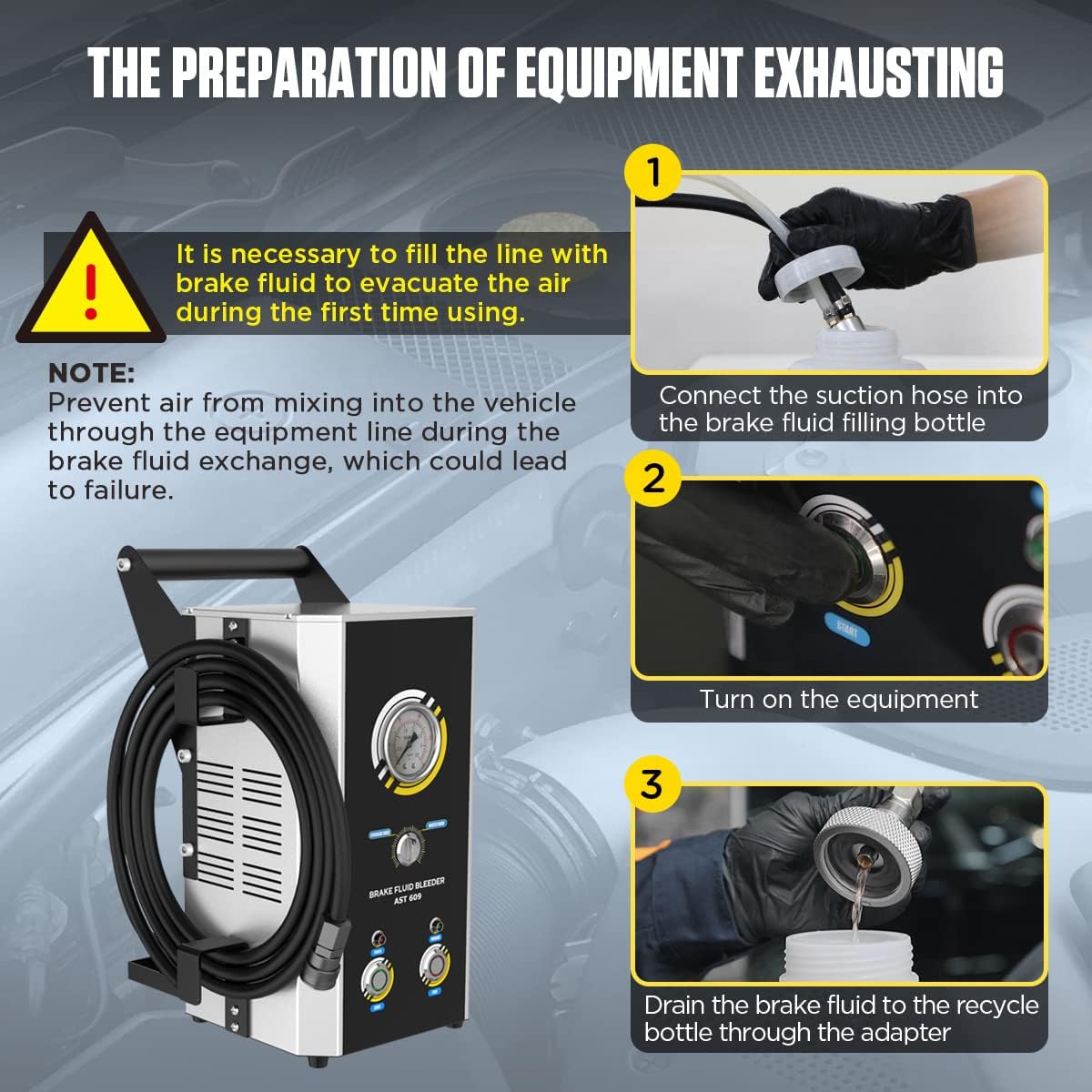

Instruction of AUTOOL AST 609 Brake Fluid Exchanger

1. Add the new brake fluid into the new brake fluid bottle.
2. Connect the input hose and pressure-balanced hose to the brake fluid bottle.
3. Connect the output hose to the car brake fluid reservoir through the adapter.
4. Connect the fluid recycling bottles to the vehicle brake fluid four sub- cylinders.
5. Select Standard Mode or Expert Mode.
6. One button starts, and then observe and wait until the brake fluid exchange is completed.

Precautions

• Do not mix DOT5 with DOT3 and DOT4 because the base oil composition differs. The bleeding sequence during fluid exchange needs to follow the principle of "far to near from the master cylinder or brake pedal". For left-hand drive vehicles, the order is "right rear wheel → left rear wheel → right front wheel → left front wheel", bleeding, in turn, to ensure that the discharge of clean fluid and no air bubbles.
• Please do not start driving immediately after the brake fluid exchange is completed, it needs to be checked to make sure there are no leaks in the pipeline. Start the vehicle, keep it idling in place and press the brake pedal to ensure that the pedal resistance gradually increases and that the brake fluid pressure is maintained. Then perform an internal road test to confirm that the braking performance is normal before driving on the road.

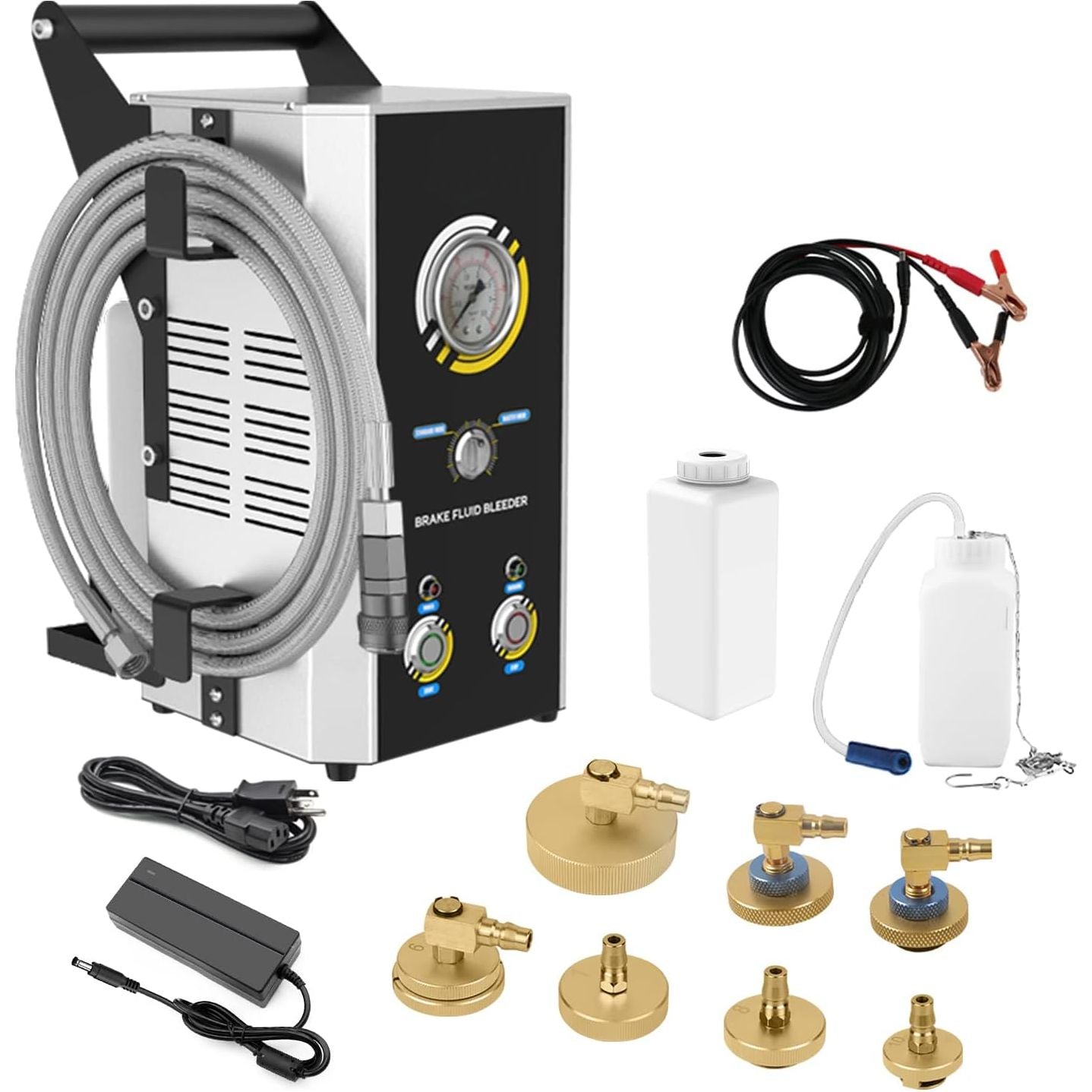

Packing List

• 1pcs * AUTOOL AST609 brake fluid bleeder exchanger main unit
• 1pcs * User Manual
• 1pcs * Certificate
• 1pcs * Fluid recycling bottle(1.5 L)

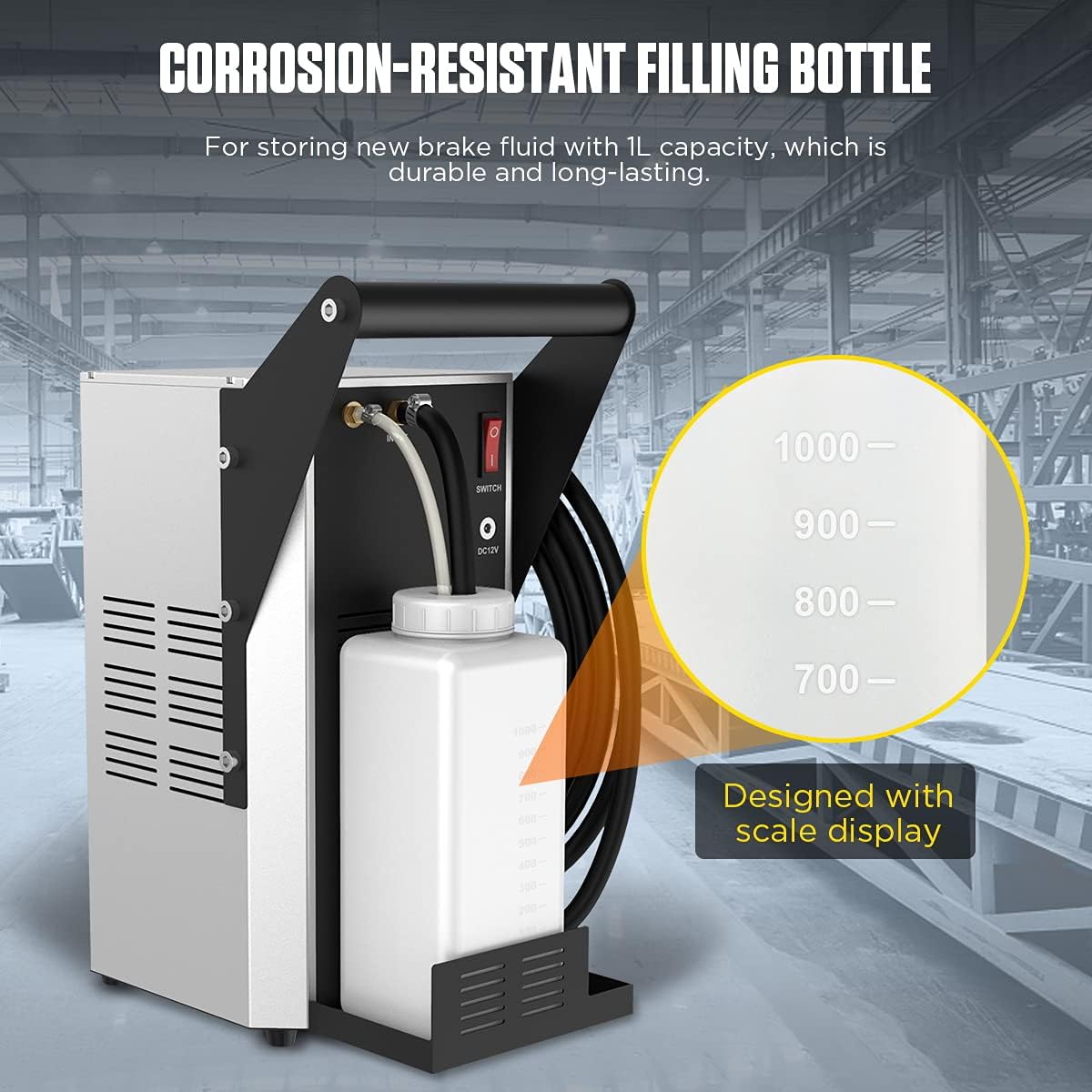

• 1pcs * New brake fluid bottle (1 L)
• 7pcs * Adapters
• 2pcs * Power cables 110V/220V
• 1pcs * Power Adapter
• 1pcs * Power clip cable
