AUTEL Universal MX Sensor 2 in 1 315MHz 433MHz TPMS Sensor

by Autel
Original price $53.95 - Original price $53.95
Original price
$53.95 - $53.95
Current price $53.95
Long term payment plans available with logo-NZD Learn more

Delivery Time

With a target delivery time of 1-3 days, our nationwide shipping service ensures that all in-stock items are dispatched within 24 hours.

Autel MX Sensor 2 in 1 315MHz 433MHz TPMS Tire Pressure Monitoring System

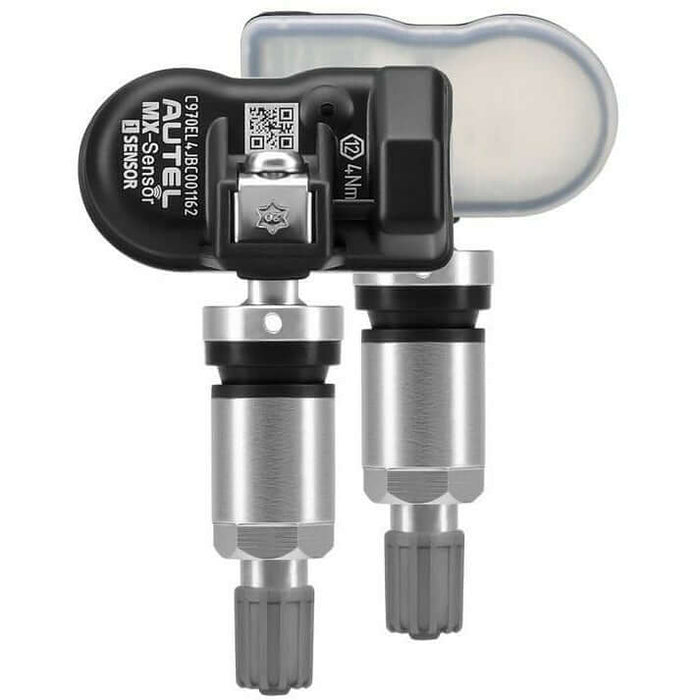

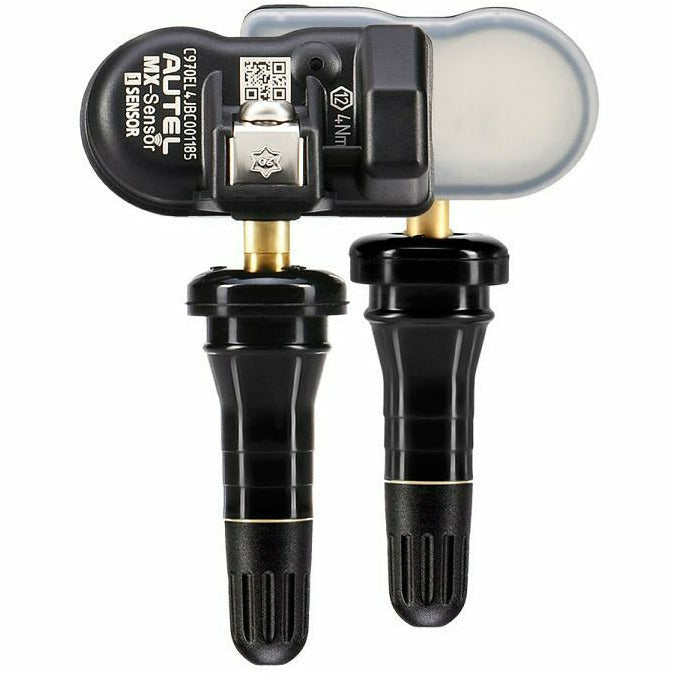

Both Screw Type & Rubber Type Available

Autel MX-Sensor 2 In 1 (315MHz + 433MHz)

Clamp-In OE-Level Programmable Sensor for tyre Pressure Monitoring System (TPMS) 100% Cloneable + Fits 98% Mainstream Vehicles

Please note these are universal sensors & are blank from new you will require a Autel activation tool to active this to a particular vehicle. Once activated it can be coded to your vehicle & learnt to your vehicle using a capable scan tool.


Autel MX-Sensor 2 In 1 (315 + 433MHz), as a programmable universal sensor featuring in Clamp-in and Snap-in options which are both smart and efficient specially built for sensor replacement with maximum application coverage, ease of use, OE- level fit, performance and reliability, will help users economise the cost of diagnostic work and raise the repair efficiency greatly.

Key Points

2 IN 1 Feature Only 1 Sensor to service nearly every TPMS equipped vehicle to lower repair cost and to have higher install efficiency with no relearn required. The MX-Sensor is 100% cloneable with the original sensor ID and put in the same position.

98% COVERAGEFeaturing the latest and most comprehensive coverage of 98% OE sensors on the market, and up to 90% of North American, European and Asian vehicles, it nearly fits all types of wheels on the road.

EASY TO USE:The maximum sensor signal strength allows sensors to be easily programmed wirelessly even when they have already been mounted to the wheel. Moreover, the unique PRESS release valve design makes the manual sensor replacement much easier.

SOLID & DURABLEEquipped with an automotive grade battery, a replaceable aluminum / rubber valve stem to withstand cold, hot and resistance corrosion, and a high-precision air valve to prevent air leakage, this sensor ensures superior stability and performance.

WARRANTYAutel guarantees that the sensor is free from material and manufacturing defects for a period of 24 months or for 24,000 miles. Each sensor is marked with a series number to track the sensor quality from the factory to ensure that only the highest quality parts are installed.

Comprehensive Vehicle Coverage

Cover Over 98% of All OE Sensors on the Market

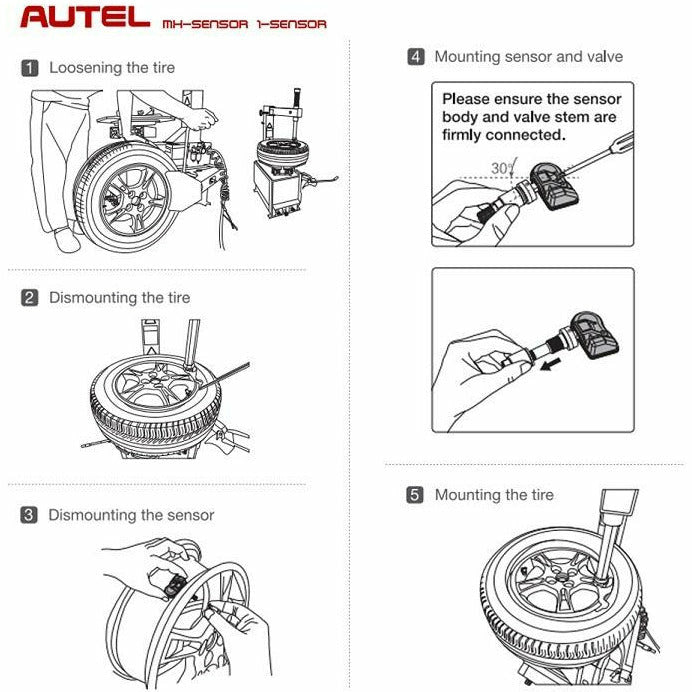

Installation Process

  • Loose the tire:Remove the valve cap and core and deflate the tire.
  • Dismount the tire:Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.
  • Dismount the sensor:With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.
  • Mount sensor and valve:Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.
  • Mount the tire:Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.



  • Battery Life:  ≥5 years
  • Operating Temperature: -40°C to +125°C
  • Storage Temperature: -40°C to +150°C
  • Operating Humidity: 90%
  • Operating Frequency:  433 MHz/315MHz
  • Pressure Monitoring Range: 100 to 900 kPa
  • Pressure Reading Accuracy:  ±10 kPa
  • Temperature Reading Range:  -40°C to +125°C
  • Temperature Reading Accuracy:  ±5°C
  • G Sensor Reading Accuracy:  ±15%
  • Transmission Power:  5-8 dBm
  • Battery:  3.0 V
  • Dimensions:  (W x H x D) 55.1 mm x 29.4 mm x 21.8 mm (Clamp-in Sensor)
  • Weight: (Without Valve) 18.5 g (Clamp-in Sensor)
