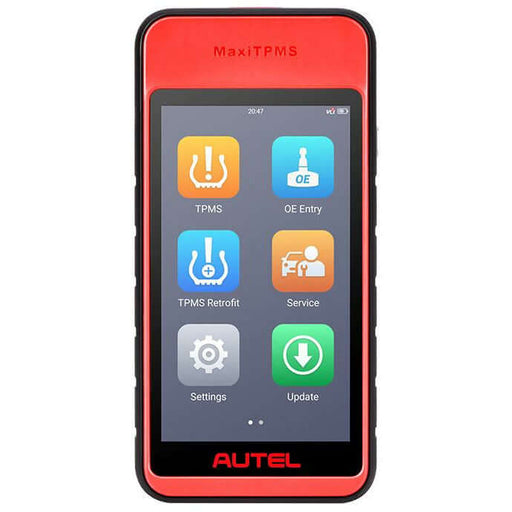

The MaxiTPMS ITS600E is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch colour display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VIN scan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup. The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600E is your ideal choice to complete TPMS and tire health work.
EVERYTHING TPMS SOLUTIONS
- Activates, reads and relearns all known sensors
- Enhanced, at-a-glance diagnostics status screen
- Fast OBDII relearn for most vehicles
- Program MX-Sensors to replace 99% of OE sensors
- Copy By OBD sensor programming for faster service
- Four MX-Sensor program modes; batch program up to 20 MX-Sensors
- Includes wireless Bluetooth vehicle communication interface (VCI)
- Tire pressure placard value reset
- Read/Clear TPMS system codes & view live data
- Free Wi-Fi software updates for the life of the tool
QUICK VEHICLE ID TECHNOLOGY
- Rapid VIN acquisition via optical VINScan
- QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input
- Identify MMY and sensor OE part number via VIN decoding
DIAGNOSTICS & SERVICE
- Oil light reset
- Electronic brake service
- Battery registration
- Steering angle reset
- Included service function updates are free for the life of the tool
- All systems diagnostics and maintenance services software available with Pro Upgrade purchase
EXPANDED TIRE SERVICE
- DOT number scan
- Quick & Easy Tire DOT Number Scan
- Tire Expiration Notice
- Tire Recall Lookup
- Tread Depth & Brake Disc Wear
- Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200
- Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips
Specifications
| Recommended Use |
Indoor |
| Operating System |
Android™ 9.0
|
| Processor |
Quad-core processor (1.5 GHz) |
| Memory |
2GB RAM DDR4 & 64GB ROM |
| Display |
5.5-inch LCD capacitive touchscreen with 1280x720 resolution |
| Connectivity |
• Wi-Fi
• USB 2.0, Type C
• BT |
| Sensors |
Light sensor for brightness auto adjust |
| Audio input/output |
Input: N/A
Output: Beep
|
| Power and Battery |
• 3.8 V/5000 mAh lithium-polymer battery
• Charges via 5 V AC/DC power supply |
| Battery Charging Input |
5 V/2 A |
| Power Consumption |
5V/1.5A |
| Power Consumption |
600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temp |
-10 to 45°C(14 to 113°F) |
| Storage Temp |
-20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) |
183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”) |
| Net Weight |
368 g (0.8 lb.) |
| Protocols |
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |
