AUTEL KM100E Key Programming Tool Universal Key Programming

by Autel
Original price $1,099.00 - Original price $1,099.00
Original price
$1,099.00 - $1,099.00
Current price $1,099.00
Long term payment plans available with logo-NZD Learn more

Delivery Time

With a target delivery time of 1-3 days, our nationwide shipping service ensures that all in-stock items are dispatched within 24 hours.

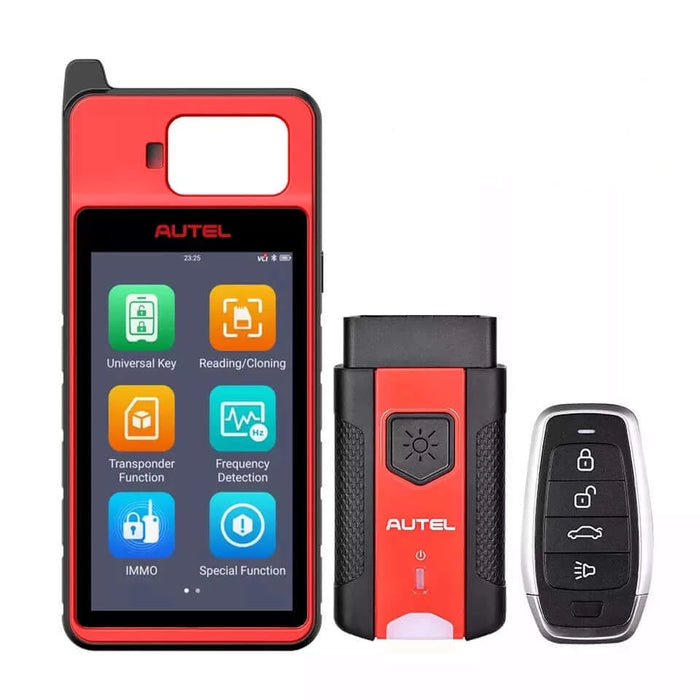

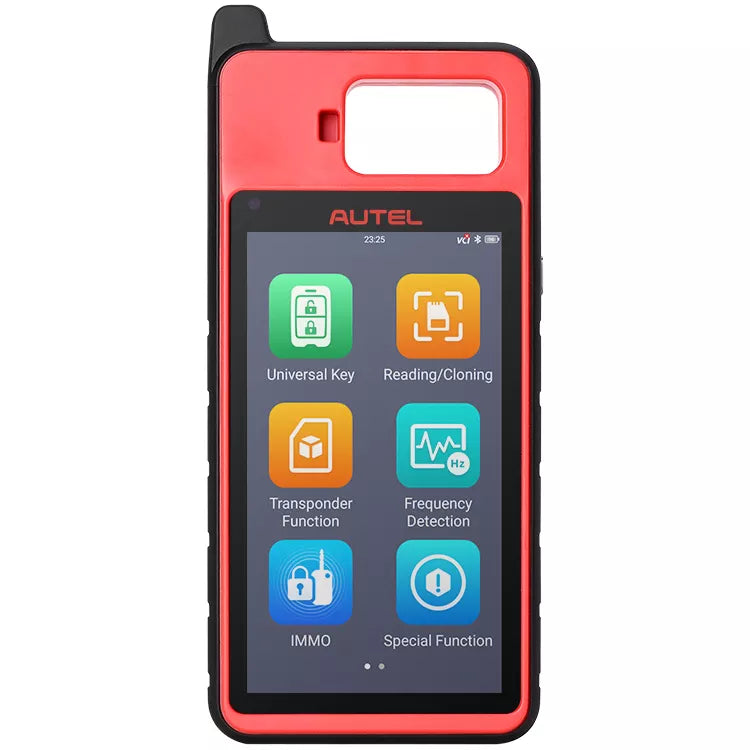

Autel KM100E Key Programming Tool

MaxiIM KM100E is an advanced key and immobiliser touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.


  • Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles
  • Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors
  • One-Minute Key Generation
  • Chip Read & Write, Cloning and Frequency Detection
  • AutoVin vehicle identification to ensure accuracy
  • Simple User Interface with Concise Instructions
  • Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery
  • Global version no IP blocking issues
  • Lifetime Free Updates online
  • Supports PLC V200 dongle
  • 60-Second Key Generation (Autel Universal Only)
  • Transponder Reading/ Writing/ Cloning
  • Frequency Detection and ignition Coil Detection
  • Compatible With Autel Blank Universal Smart Keys
  • Key Renewal: Supporting 36 Vehicle Makes
  • Transponder Editing: Supporting 20 Categories
  • Supports Wi-Fi and Bluetooth
  • Supporting Certification Requirements of Various Regions
  • Dual-Band, High-Frequency Transmitter 315 mhz/ 434 mhz or868 mhz/ 915 mhz
  • Multi-language: English, Chinese, German, Spanish, French, Traditional Chinese, Japanese, Polish, Portuguese, Russian, Italian, Korean, Dutch, Swedish, Turkish, Hebrew, Arabic, Thai, Vietnamese

Other Features:

Android-based touch screen device

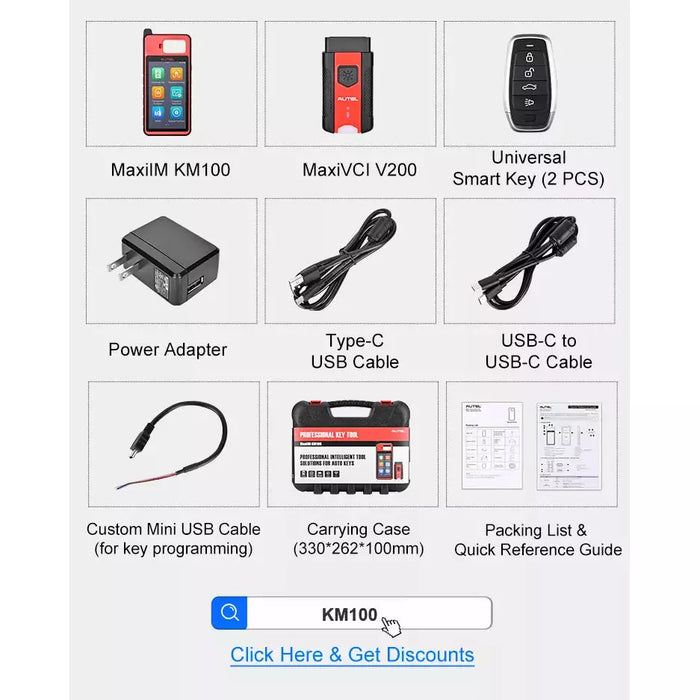

Contains MaxiVCI VCI200 so you can perform key simulation and key learning after generating a key. You can generate the key and go directly into programming with two button presses.

The immo programming is very powerful. You can use it instead of im508 im608 on many vehicles to program keys as it’s simple and easy to pack/unpack and compact for it’s convenience.

Use the USB cable to transfer data from another device, such as IM608, to a laptop and from the laptop to the key tool.

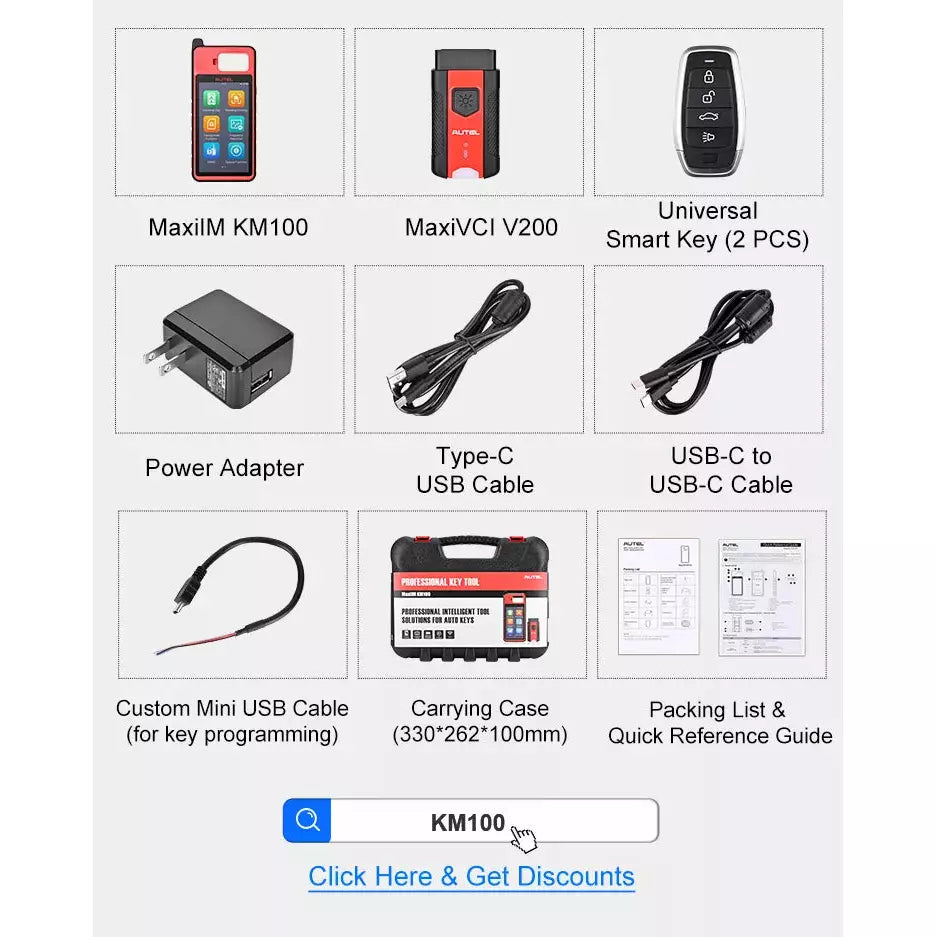

The key tool comes with 2 blank keys for you to use at your convenience. One has the Autel logo on the back and the other does not.
Supports generation of aftermarket chips, i.e xhorse super chip. But can generate xt27 only once, need to reset chip with xhorse tool if you want a second generation

Support Toyota 8A all keys lost and all smart keys lost without APB112 emulator

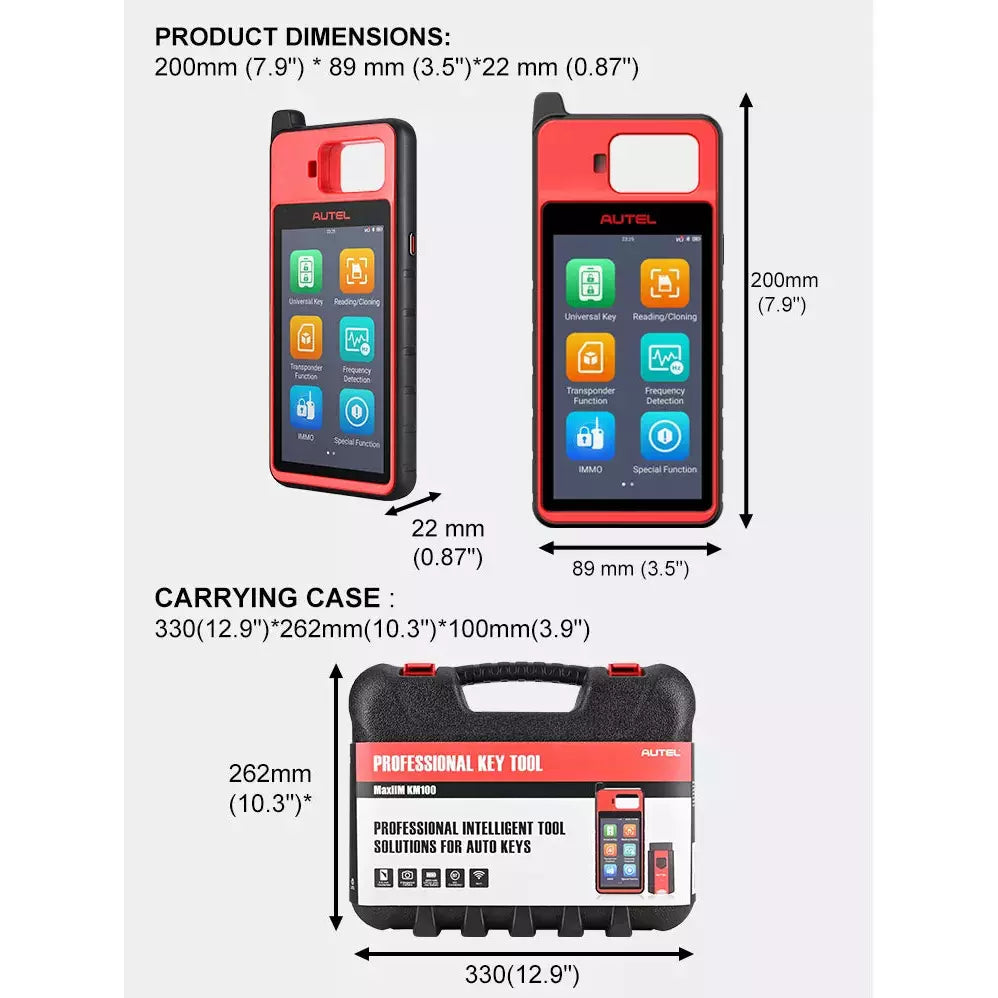

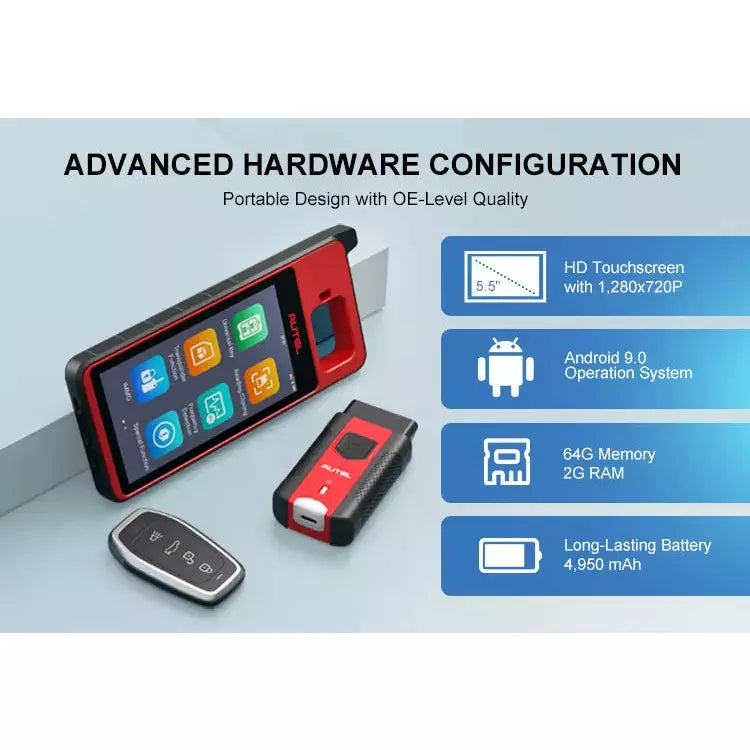

  • Dimensions: (WxHxD)200mm(7.9”) x 89 mm (3.5”) x 22 mm (0.87”)
  • Weight: 352.7g (0.8 lb)
  • Screen: 5.5-inch screen with 1280 x 720 resolution
  • Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
  • Operating System: Android 9.0
  • Memory: 2GB RAM/64GB on-board memory
  • Camera: 8 megapixels
  • Connection: Wi-Fi、 Bluetooth 5.0、SB 2.0 type C
  • Battery: 4950mAh lithium-polymer battery
  • VCI: V200
  • Input: 5V/2A
  • Sensor: Ambient light sensor
  • Audio Input/Output: MIC: supported、Speaker: supported
  • Operating Temp: -10 to 45°C (14 to 113°F)
  • Storage Temp: -20 to 60°C (-4 to 140°F)

Customer Reviews

Based on 2 reviews
MT De Thierry
Great tool but was not able to use for what I needed.

Was trying to program all keys lost on a Toyota mark x 2005 slot type smart key, push to start. Does not work.

tommy ho
nissan elgrand

the tool can't not erase the key program from system I have to use launch tool to do erase key memory and have to trick it it got new key with launch scanner
