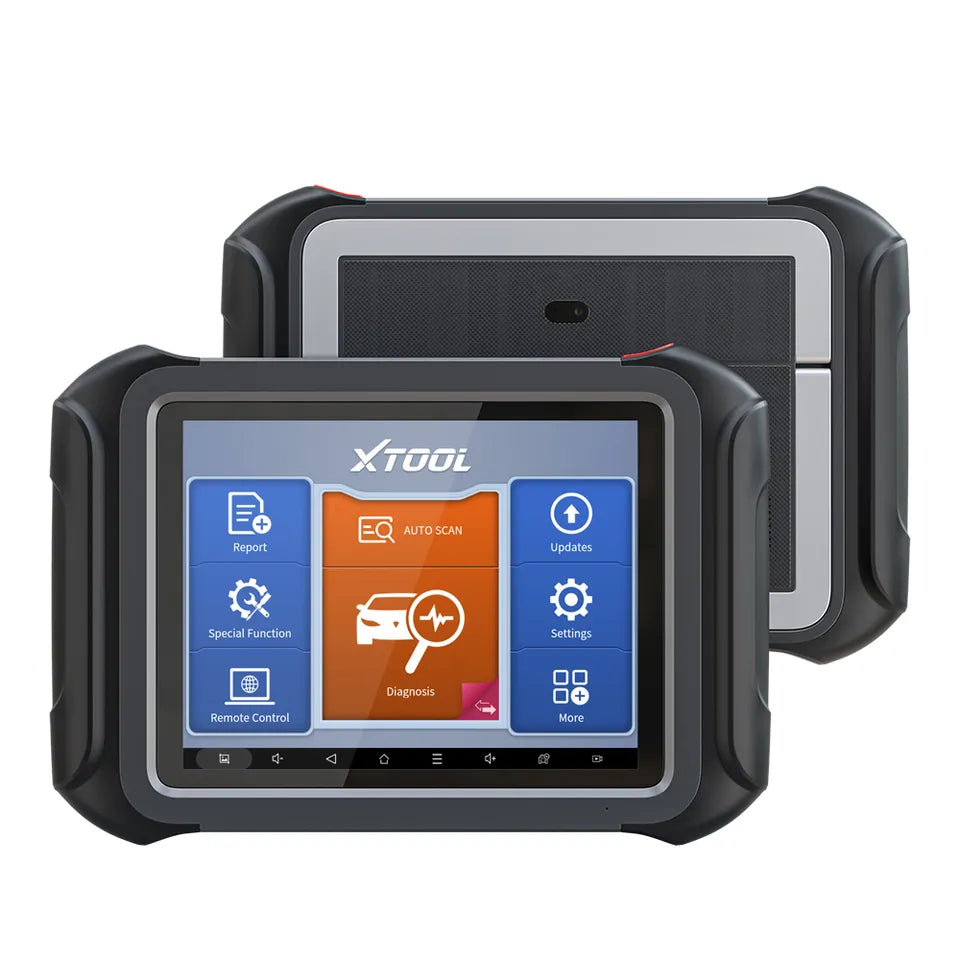

XTOOL D9HD – Professional 12V & 24V Heavy-Duty Diagnostic Tool
The XTOOL D9HD is a professional dual-purpose diagnostic platform designed for workshops working on both 12V passenger vehicles and 24V heavy-duty trucks and commercial vehicles.
Instead of requiring separate car and truck diagnostic tools, the D9HD combines full-system diagnostics, bi-directional testing, ECU coding, topology mapping and 40+ service functions in one powerful workshop package. Its heavy-duty VCI automatically switches between 12V and 24V systems.
12V Car & 24V Heavy-Duty Truck Diagnostics
- Passenger cars and SUVs
- Light commercial vehicles
- 24V heavy-duty trucks
- Commercial vehicles
- Full-system diagnostics
- Read and clear diagnostic trouble codes
- Live data
- Freeze-frame data
- ECU information
- AutoVIN
- PreSCAN and PostSCAN reports
- Coverage for 10,000+ vehicle models

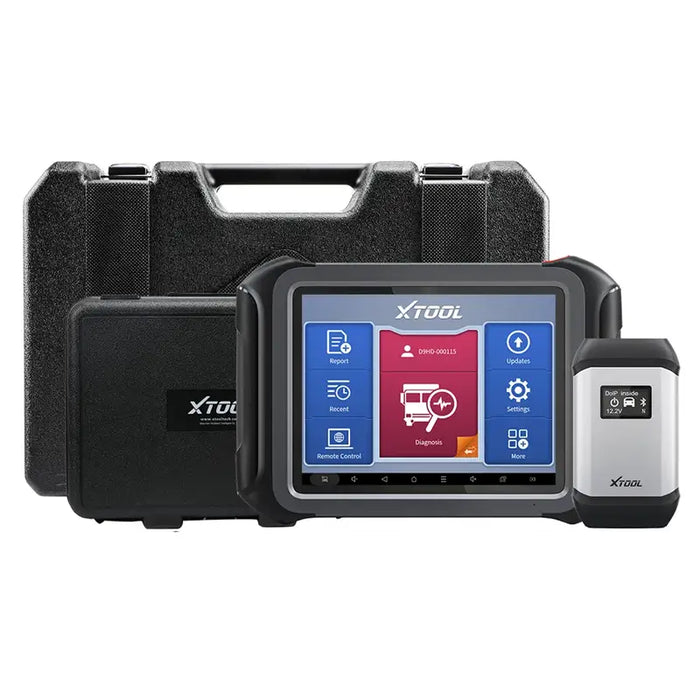

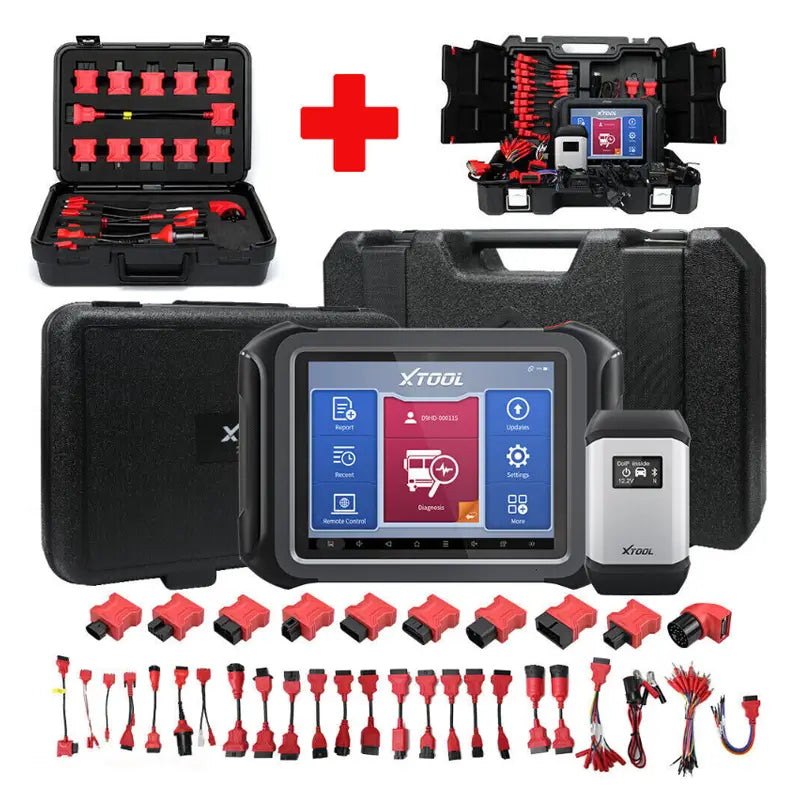

Heavy-Duty Connector Kit
The D9HD includes an extensive connector package for heavy-duty and commercial applications, including connectors for supported CAT, Cummins, Isuzu, Volvo, Denso, Hitachi, Woodward, Yuchai and other systems, alongside passenger vehicle connectors.
Bi-Directional Active Tests
The D9HD can command supported vehicle systems and components directly from the diagnostic tool, allowing technicians to test pumps, motors, valves, solenoids, relays and other actuators during fault diagnosis.
ECU Coding & Programming
- Online and offline ECU coding on supported vehicles
- PMI module installation on supported vehicles
- VAG coding and advanced functions
- Component matching and adaptations
- ECU configuration functions
- Guided functions for supported VW, Audi, Skoda and SEAT vehicles
Coding and programming capabilities vary by vehicle.
Topology Mapping
Topology mapping visually displays supported vehicle control modules and their communication status, allowing technicians to identify system faults and communication problems more quickly.
40+ Service & Special Functions
Functions include:
- Oil reset
- EPB reset
- DPF regeneration
- ABS bleeding
- Injector coding
- BMS reset
- SAS calibration
- Throttle adaptation
- TPMS reset
- Gearbox adaptation
- Immobiliser functions
- Suspension calibration
- EGR relearn
- AdBlue reset
- NOx reset
- VGT relearn
- Clutch adaptation
- High-voltage battery functions
- Air-conditioning relearn
- Start/Stop reset
- VIN writing
- ADAS functions
- Instrument cluster functions
- Odometer reading
Available functions vary by vehicle.
CAN FD & DoIP Support
The D9HD supports modern CAN FD and DoIP communication protocols, helping provide compatibility with newer-generation vehicles.

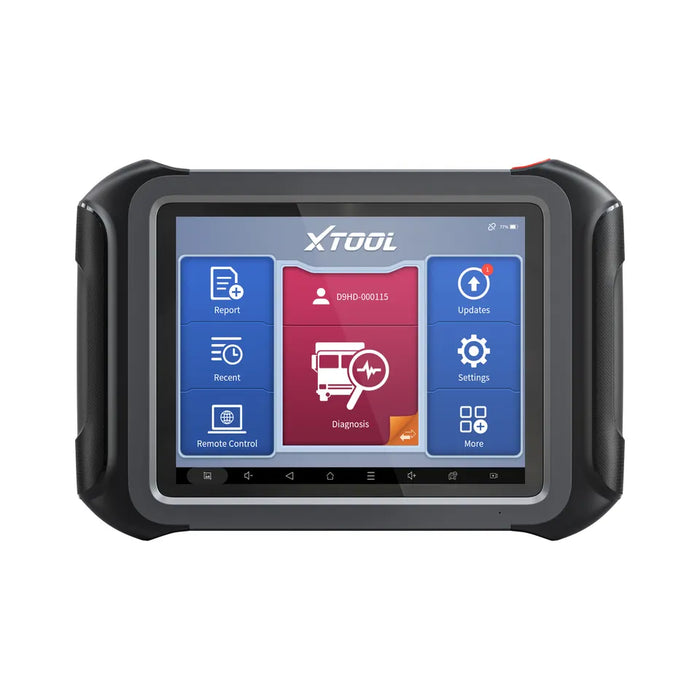

XTOOL D9HD Specifications
- Operating System: Android 10
- Processor: Quad-Core 1.5GHz
- Memory: 4GB RAM
- Storage: 128GB
- Display: 9.7-inch touchscreen
- Resolution: 1024 × 768
- Camera: 8MP rear camera
- Battery: 6400mAh, 7.2V
- Wi-Fi: 2.4GHz / 5GHz
- Communication: Wi-Fi / Wired
- Working Voltage: 9–36V
- CAN FD: Yes
- DoIP: Yes
- FCA Secure Gateway: Supported
- Working Temperature: 0°C to 40°C
Software Updates & Warranty
- 3 Years Free Software Updates
- 2 Year Warranty
Vehicle Compatibility
Passenger vehicle, truck, diagnostic, coding and special-function coverage varies by make, model and year.
If you need the D9HD for a particular truck, commercial vehicle or passenger vehicle, contact Discount Tools NZ with the make, model, year and required function and we'll check compatibility before purchase.
