DTNZ 4pc Diesel Engine Timing Setting and Locking Tool Kit

4pc Diesel Engine Timing Setting and Locking Tool Kit

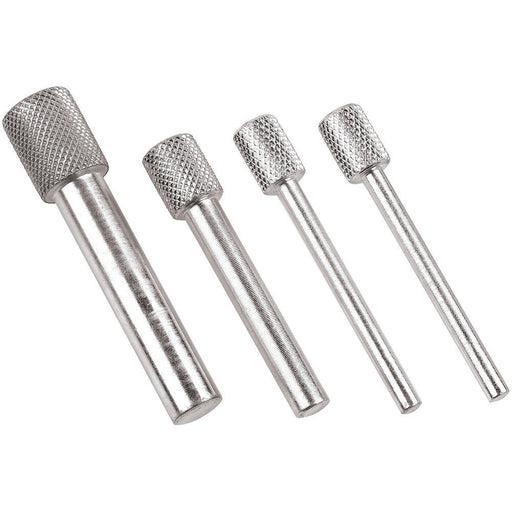

The DTNZ 4 Piece Diesel Engine Timing Setting and Locking Tool Kit is a set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines. The pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.

Who It Suits

Workshops carrying out timing belt service on PSA and Ford diesel engines.

Key Features

• Four locking pins for camshaft, crankshaft, flywheel and HP pump
• Suits Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines
• Fitted to Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models

Please Note

• Citroen: Berlingo I/II (05-11), Berlingo III (08-12), C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-12), C3 Picasso (09-12), C3 Pluriel (04-10), DS3 (09-12), C4 (04-11), C4 II (11-12), C4 Picasso/Grand Picasso (06-12), C5 II (04-08), C5 III (07-12), DS4 (11-12), Nemo (08-10), Xsara II (04-08), Xsara Picasso (04-10).
• Peugeot: 107 (05-10), 1007 (05-10), 206 (01-12), 206CC (05-07), 207 (06-12), 207CC (07-12), 307 (01-08), 308 (07-12), 308CC (09-12), 3008 (09-12), 407 (04-11), 508 (11-12), 5008 (09-12), Bipper (08-10), Partner I/II (05-11), Partner III (08-12).
• Ford: C-MAX (07-12), Fiesta (02-11), Focus (04-12), Focus C-MAX (03-07), Fusion (04-11), Grand C-MAX (10-12).
• Volvo: C30 (06-12), S40 (04-10), S80 (09-12), V50 (04-10).
• Mazda: 2 (02-10), 3 (04-12), 5 (10-12).
• Suzuki: Liana (04-08), SX4 (07-11).
• Toyota: Aygo (05-10).
• OEM tool references: Citroen/Peugeot 0194-A, 0194-B, 0194-C; Ford 303-732 (21-260), 303-734 (21-262), 303-735 (21-263); Mazda 49 JE02 018, 49 JE02 020, 49 JE 021; Suzuki 09910-5410; Volvo 999 7121, 999 7122, 999 7169.
