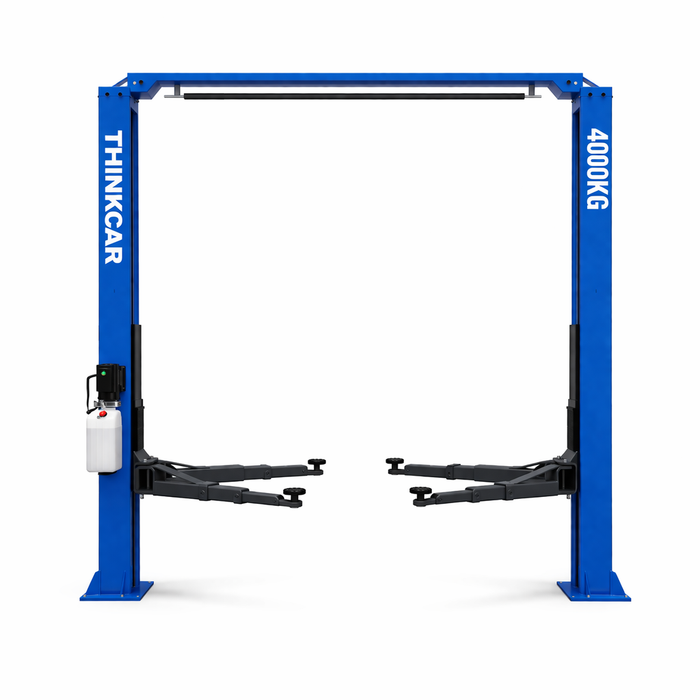

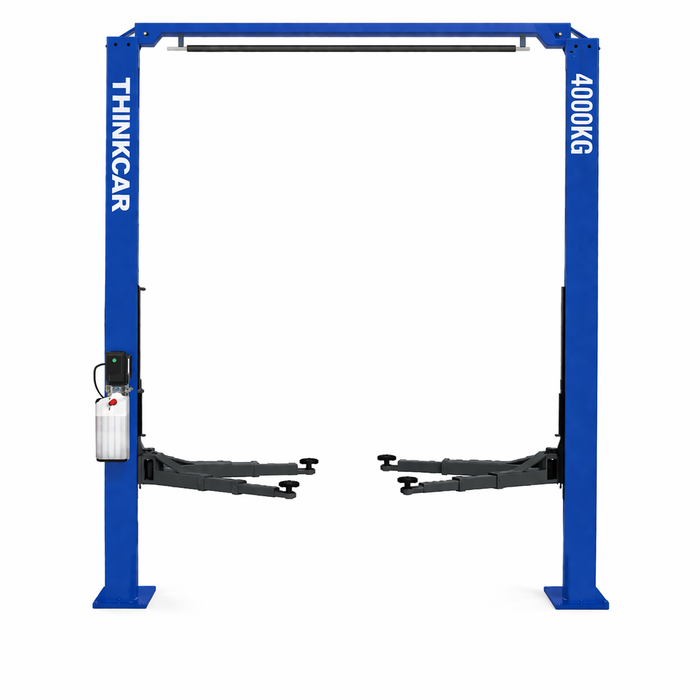

THINKCAR TVL340S – 4 Tonne Clear Floor Two Post Lift
The THINKCAR TVL340S is a 4 tonne (4000kg) clear floor two post vehicle lift for professional workshops. The overhead clear floor design leaves the floor area unobstructed, and a steel wire rope balancing system keeps both sides lifting evenly. The S model adds one-side manual unlocking for faster operation in busy workshops.
Freight: free freight does not apply to this item. Please contact us for a freight quote.
Who It Suits
Professional workshops servicing passenger and light commercial vehicles that want a reliable, easy-access two post lift.
Key Features
- 4000kg capacity
-
Clear floor design: the overhead structure keeps the floor clear
-
One-side manual unlock (S model)
-
Synchronised lifting: steel wire rope balancing system keeps both carriages level
-
Heavy-duty hydraulics: dual hydraulic cylinders and a chain drive system for smooth lifting and lowering
-
Protected components: fully covered cables and oil pipes
-
Detachable slider for easy maintenance
-
Tested: 120% dynamic load and 150% static load tested; CE compliant
Built to Professional Standards
THINKCAR two post lifts are made from Q235 hot-rolled steel plate, with 5mm+ plate used on 4 tonne models. Supporting arms are 2+3 section as standard, giving a longer range of movement and suiting a wider range of vehicles. An anti-falling chain wheel, 8 chains with 115 sections and a steel-core wire rope of 9mm+ are used, with a 40mm oil cylinder, double-channel welded seals and polyurethane piston seals.
Tested for Safety
Cylinders are pressure tested, and the lift series is rated through 120% dynamic and 150% static load testing. Cables and oil pipes are fully covered, and the CE-compliant design uses a high-quality power unit for reliable everyday operation.
Technical Specifications
- Rated load: 4000kg
- Lifting height: 1800mm
- Initial (lowest) height: 100mm
- Lifting time: 50 seconds or less
- Lowering time: 20 seconds or more
- Drive: electro-hydraulic, 2.2kW
- Voltage: 230V / 380V
- Hydraulic oil: 9L (winter N32, summer N46)
- Working temperature: -5°C to 40°C
- Overall height: 3800mm
- Overall width: 2880mm inner, 3484mm outer
- Net weight: 665kg
Warranty & Support
3-year warranty. Installation requires a suitable concrete floor and power supply, so contact us to confirm site requirements before ordering.
