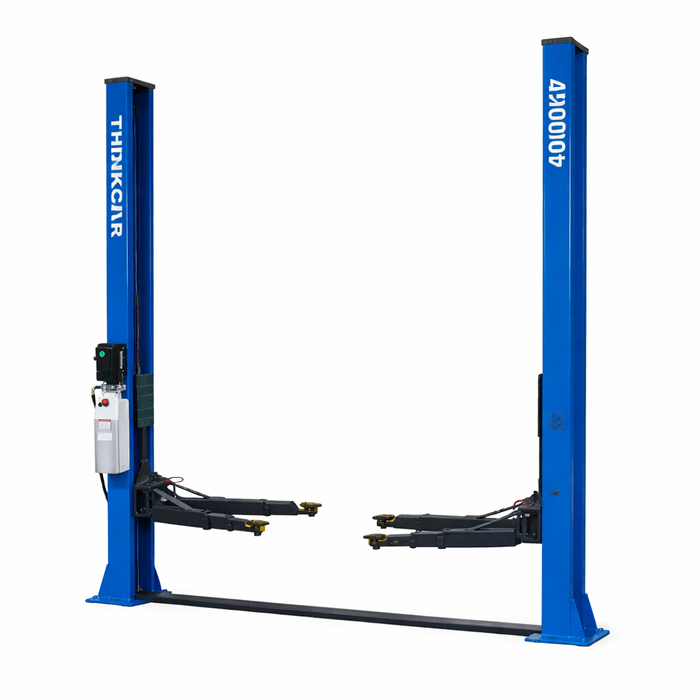

THINKCAR TVL240 – 4 Tonne Two Post Lift
The THINKCAR TVL240 is a professional 4 tonne (4000kg) two post vehicle lift with an electro-hydraulic drive for smooth lifting and stable everyday workshop use. A steel wire rope balancing system keeps both sides level, and two-side manual unlocking allows release from either side.
Freight: free freight does not apply to this item. Please contact us for a freight quote.
Who It Suits
Workshops servicing passenger and light commercial vehicles that want a dependable two post lift.
Key Features
- 4000kg capacity
- Two-side manual unlocking
-
Synchronised lifting: steel wire rope balancing prevents the vehicle tilting
-
Hydraulics: cylinder pressure tested to 100%, chain-driven system for smooth lifting and lowering
- Covered cables and oil pipes
-
Detachable slider for simple servicing
-
Tested: 120% dynamic load and 150% static load; CE certified
Built to Professional Standards
THINKCAR two post lifts are made from Q235 hot-rolled steel plate, with 5mm+ plate used on 4 tonne models. Supporting arms are 2+3 section as standard, giving a longer range of movement and suiting a wider range of vehicles. An anti-falling chain wheel, 8 chains with 115 sections and a steel-core wire rope of 9mm+ are used, with a 40mm oil cylinder, double-channel welded seals and polyurethane piston seals.
Tested for Safety
Cylinders are pressure tested, and the lift series is rated through 120% dynamic and 150% static load testing. Cables and oil pipes are fully covered, and the CE-compliant design uses a high-quality power unit for reliable everyday operation.
Technical Specifications
- Rated load: 4000kg
- Lifting height: 1800mm
- Initial height: 100mm
- Lifting time: 50 seconds or less
- Lowering time: 20 seconds or more
- Drive: electro-hydraulic, 2.2kW
- Voltage: 230V / 380V
- Hydraulic oil: 9L (winter N32, summer N46)
- Working temperature: -5°C to 40°C
- Overall height: 2779mm
- Overall width: 2880mm inner, 3484mm outer
- Net weight: 600kg
Warranty & Support
3-year warranty. Installation requires a suitable concrete floor and power supply, so contact us to confirm site requirements before ordering.
