THINKCAR TVL-440 4 tonne four post vehicle lift with drive-on platforms

Thinkcar TVL-440 Four Post Lift 4 Ton

Name: Thinkcar TVL-440 Four Post Lift 4 Ton
Brand: THINKCAR
SKU: TVL-440
Price: 8999.95 NZD
Availability: InStock

by THINKCAR

$8,999.95 - $8,999.95

$8,999.95 Incl. GST

$8,999.95 - $8,999.95

$8,999.95 Incl. GST

Free Shipping

On Orders Over $129 NZ Wide & $249 Australia Wide T&C'S Apply. Free Shipping does not apply to bulk items & items over 15kg.

Delivery Time

With a target delivery time of 1-3 days, our nationwide shipping service ensures that all in-stock items are dispatched within 24 hours.

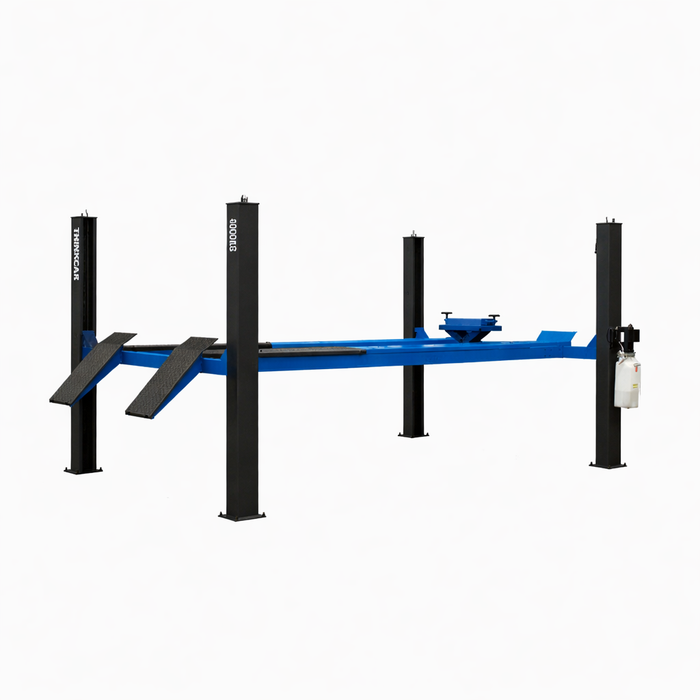

THINKCAR TVL-440 – 4 Tonne Four Post Lift

The THINKCAR TVL-440 is a heavy-duty four post lift with a 4 tonne (4000kg) rated load, suited to servicing, inspection and longer-term vehicle parking. Its electro-hydraulic system gives smooth operation, and pneumatic synchronous unlocking makes releasing the lift quick and easy.

Freight: free freight does not apply to this item. Please contact us for a freight quote.

Who It Suits

Workshops that want stable, versatile lifting for passenger and light commercial vehicles, wheel alignment, servicing or storage.

Key Features

4000kg rated load, with a 2000kg secondary lift
Four post design for stability and balance
Pneumatic synchronous unlocking
Heavy-duty platforms: bent steel plate platforms with square tube beams
Adjustable platform spacing to suit different vehicle sizes and wheelbases
Safe hydraulic design: front-fixed cylinder to reduce the risk of cylinder failure
Tested: cylinder 100% pressure tested; CE certified

Stable, Versatile Lifting

A four post lift supports the vehicle on drive-on platforms, which makes it a good fit for servicing, inspections and longer-term parking. The platforms are made of bent steel plate with square tube beams, the cylinder is front-fixed to reduce the risk of breakage, and the platform spacing can be adjusted to suit different tyre spacings. Pneumatic synchronous unlocking releases the lift quickly, and the pillar design is straightforward to install.

Technical Specifications

Rated load / secondary lift: 4000kg / 2000kg
Lifting height: 1700mm + 400mm
Initial height: 180mm
Lifting time: 50 seconds or less
Lowering time: 20 seconds or more
Platform length: 4500mm; platform width: 488mm
Drive: electro-hydraulic, 2.2kW
Voltage: 230V / 380V
Hydraulic oil: 10L (winter N32, summer N46)
Air pressure: 0.6–0.8MPa
Working temperature: -5°C to 40°C
Net weight: 1200kg

Warranty & Support

3-year warranty. Installation requires a suitable floor, power supply and compressed air, so contact us to confirm site requirements before ordering.
