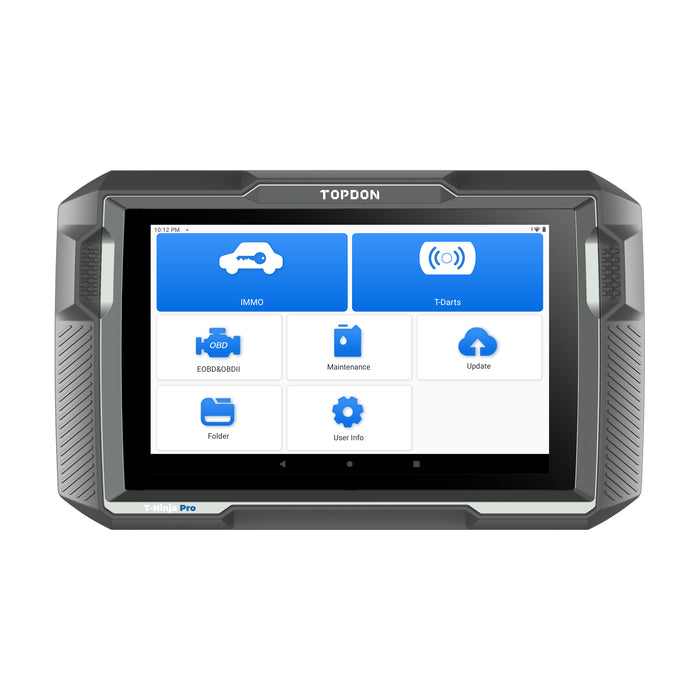

TOPDON T-Ninja Pro OBD Automotive Key Programmer
The TOPDON T-Ninja Pro is an 8 inch Android key programmer that also works as a full OBD2 scanner. It handles key learning, PIN reading and all-keys-lost situations, with step-by-step guidance that suits both DIY users and workshops.
Key Programming
- Number of keys, PIN reading, key learning, remote control learning, delete keys and all keys lost
- Reads and writes chip data and generates transponders (for example HITAG 2, MEGAMOS 48 and T5)
- Key programming for Chrysler, Dodge and Jeep, including 12+8 gateway systems
- Key programming for Buick, Chevrolet and Cadillac without an adapter
- Vehicle database covering over 50 mainstream brands, with key programming for over 40 brands that expands with updates
Diagnostics and Maintenance
- Full OBD2 functions: read and clear fault codes, I/M readiness status and advanced diagnostics
-
8 maintenance services: oil reset, EPB reset, steering angle reset, BMS reset, airbag reset, throttle adaptation, ABS bleeding and DPF regeneration
Chip and Frequency Detection (needs the optional T-Darts)
With the optional T-Darts, insert a key into the card slot to read the key type, key ID and lock status. It supports over 100 transponder chip types, including NXP, Megamos, Temic and TI, and detects radio frequencies in the 220-230 MHz, 300-320 MHz, 430-434 MHz, 868 MHz and 902-915 MHz bands, with a graphical waveform. It can be controlled from a mobile app, which turns a phone into a chip reader.
Tablet and Connectivity
- Android 11.0, quad-core A17 processor
- 2 GB RAM and 32 GB storage, expandable to 128 GB
- 8 inch 1280 x 800 display and 10,000 mAh battery
- 5 MP camera
- Ports: USB Type-A, USB Type-C, RJ45, HDMI and DC charging. HDMI output shows the diagnostic process on a larger screen
- Bluetooth 5.0, USB and Wi-Fi
- A USB Type-A connection to the VCI is recommended for more reliable data transfer on immobiliser systems
Specifications
- Input: 12 V DC
- Dimensions: 255 x 155 x 50 mm
- Operating temperature: 0°C to 50°C
- VCI working voltage: 9-18 V, working current 100 mA or less
- VCI dimensions: 84 x 50 x 27 mm
- Includes 1 year of free software updates

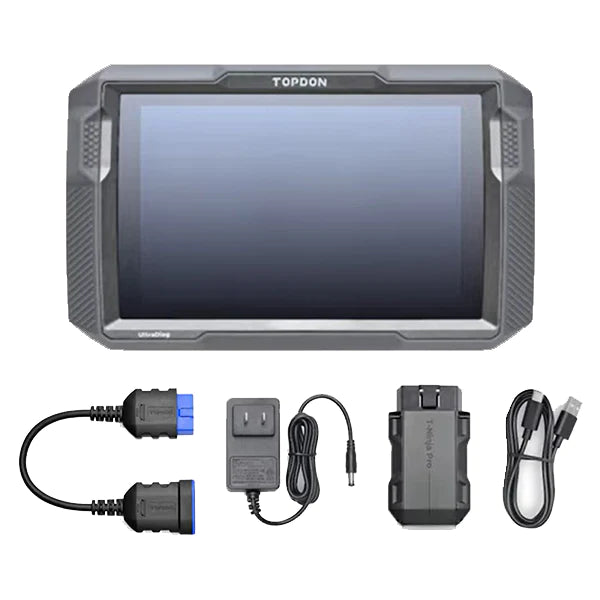

What's in the Box
- T-Ninja Pro tablet
- VCI
- OBD-II extension cable
- USB cable (Type-A to Type-C)
- Power adapter
- User manual and quick user guide
- Carrying case
The T-Darts key reader is sold separately and is not included.
