TOPDON T Ninja Box Advanced Immobilizer & Key Programmer

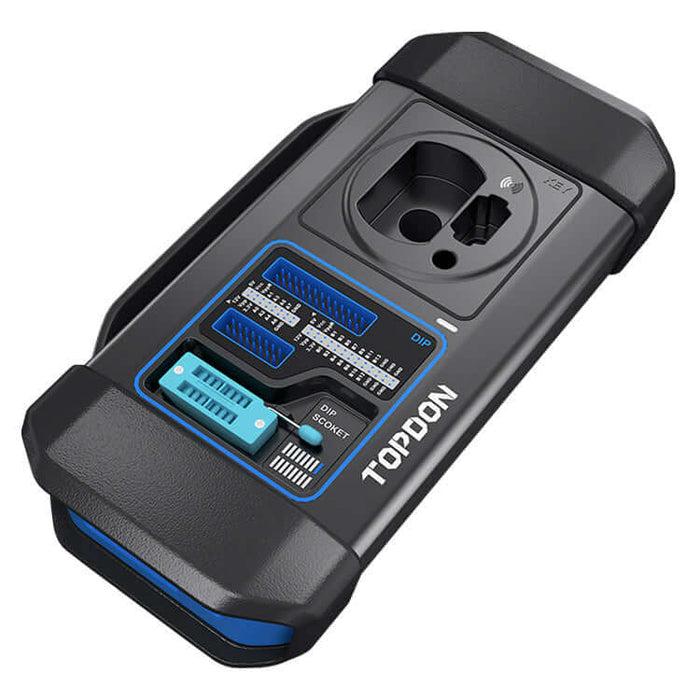

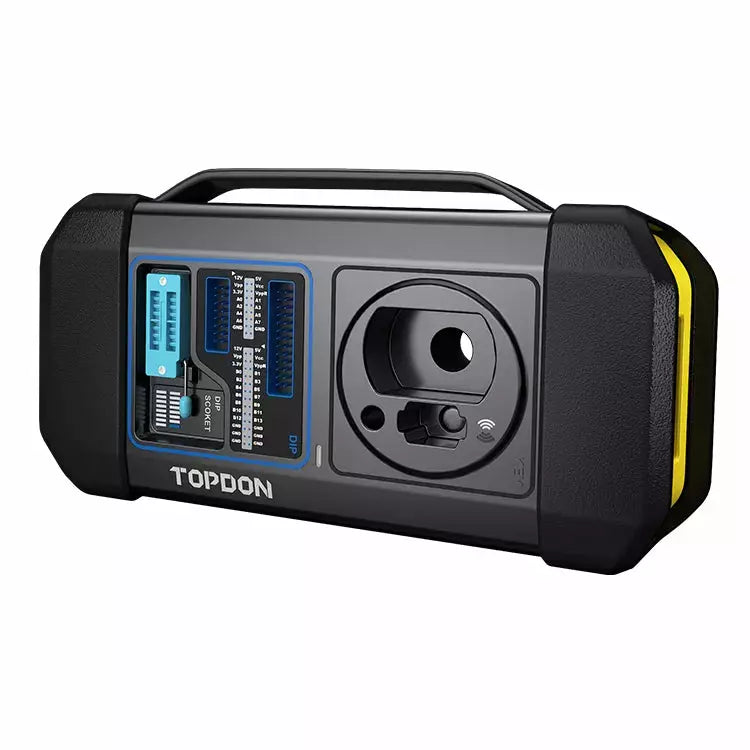

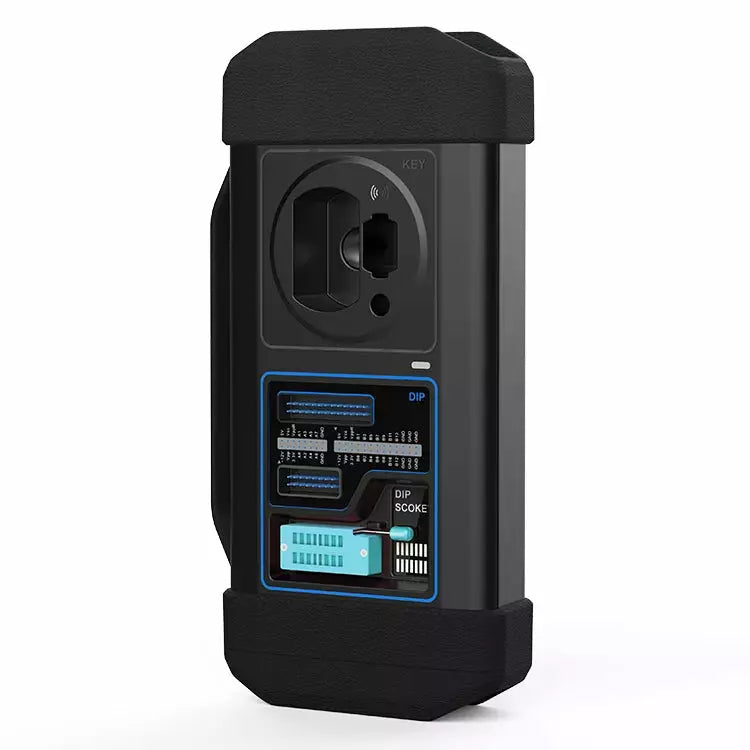

TOPDON T-Ninja Box Advanced Immobiliser and Key Programmer

The TOPDON T-Ninja Box is an advanced immobiliser and key programmer that reads and writes key chip data and generates special keys. It reads and writes ECU, MCU and EEPROM data on US, European and Asian vehicles, and also works as a Phoenix series add-on.

Key Features

• Reads and writes car key chip data and generates special keys
• Covers US, European and Asian brands, including VW, Audi, Skoda, SEAT, BMW, Mercedes-Benz, Toyota and others
• Supports ECU, MCU and EEPROM chips including Atmel, ST, MicroChip, Renesas R32C and NEC

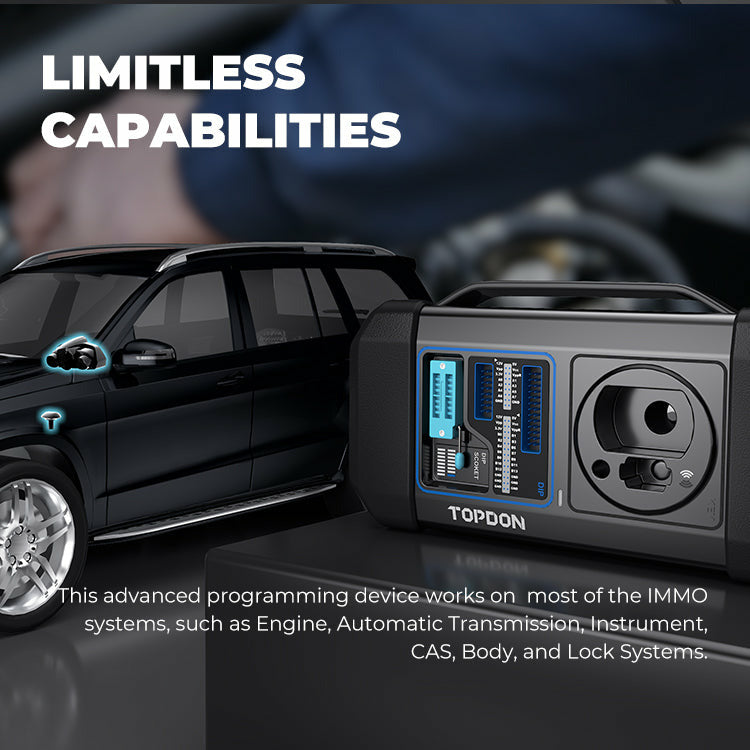

• Works with Engine, Automatic Transmission, Instrument, CAS, Body and Lock immobiliser systems
• Database and feature updates, with technical support

Functions

• Reads and writes VW 4th-gen UDS engine chips
• VW and Audi MQB engine replacement
• Instrument and steering column replacement, reading data from the key rather than the original engine data
• Audi 4th-gen EZS, comfort control module and KESSY chip replacement, including when all keys are lost
• Audi 5th-gen gearbox replacement
• Bench-mode copying of 170+ Bosch engine ECUs, 20+ Siemens engine ECUs and 20 transmission ECU types
• Mercedes-Benz infrared key matching
• Lock read and write
• Clearing of 3rd-gen engine and gearbox computers
• Cloning of 4th-gen engine computers
• Copying of 4th-gen FDCT and 9-speed gearbox computers

Phoenix Series Add-On

Adds BMW engine replacement and copy, immobiliser replacement matching, key matching and transmission computer wiping.

Specifications

• Input: DC 12V, 500 mA
• Working temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Dimensions: 216 x 117 x 41 mm
• Net weight: 0.55 kg

What's in the Box

• T-Ninja Box
• Main cable
• XTA001
• MCU 1 and MCU 2
• EEPROM
• MB key
• INS Cable V1
• MCU Cable V1
• Bench Mode Cable
• Matching adapters: A (5), B (6), C (7), D (8), E (6)
• Switching power supply
• User manual
• Carrying case
