TOPDON Phoenix Elite Professional Diagnostic Scan Tool

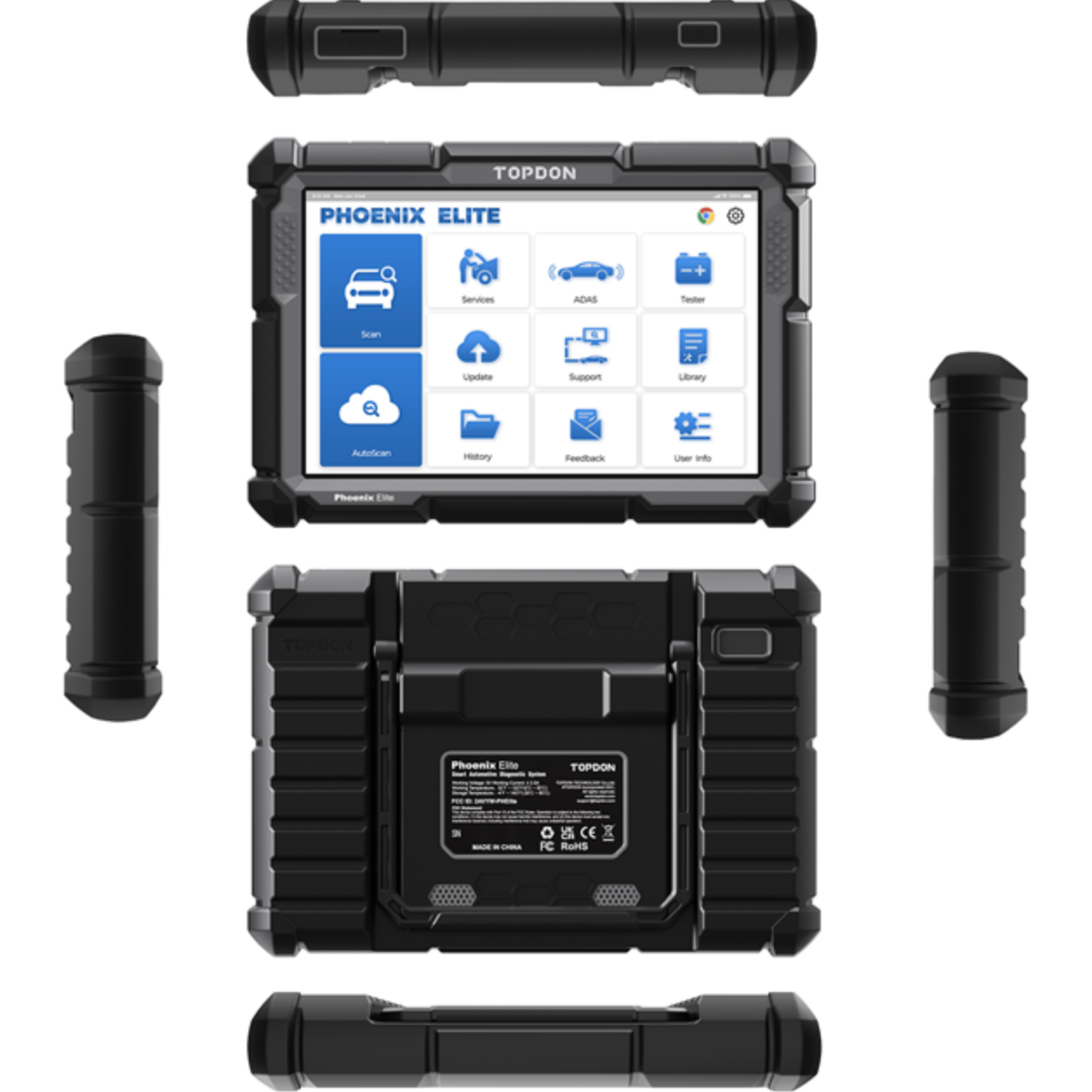

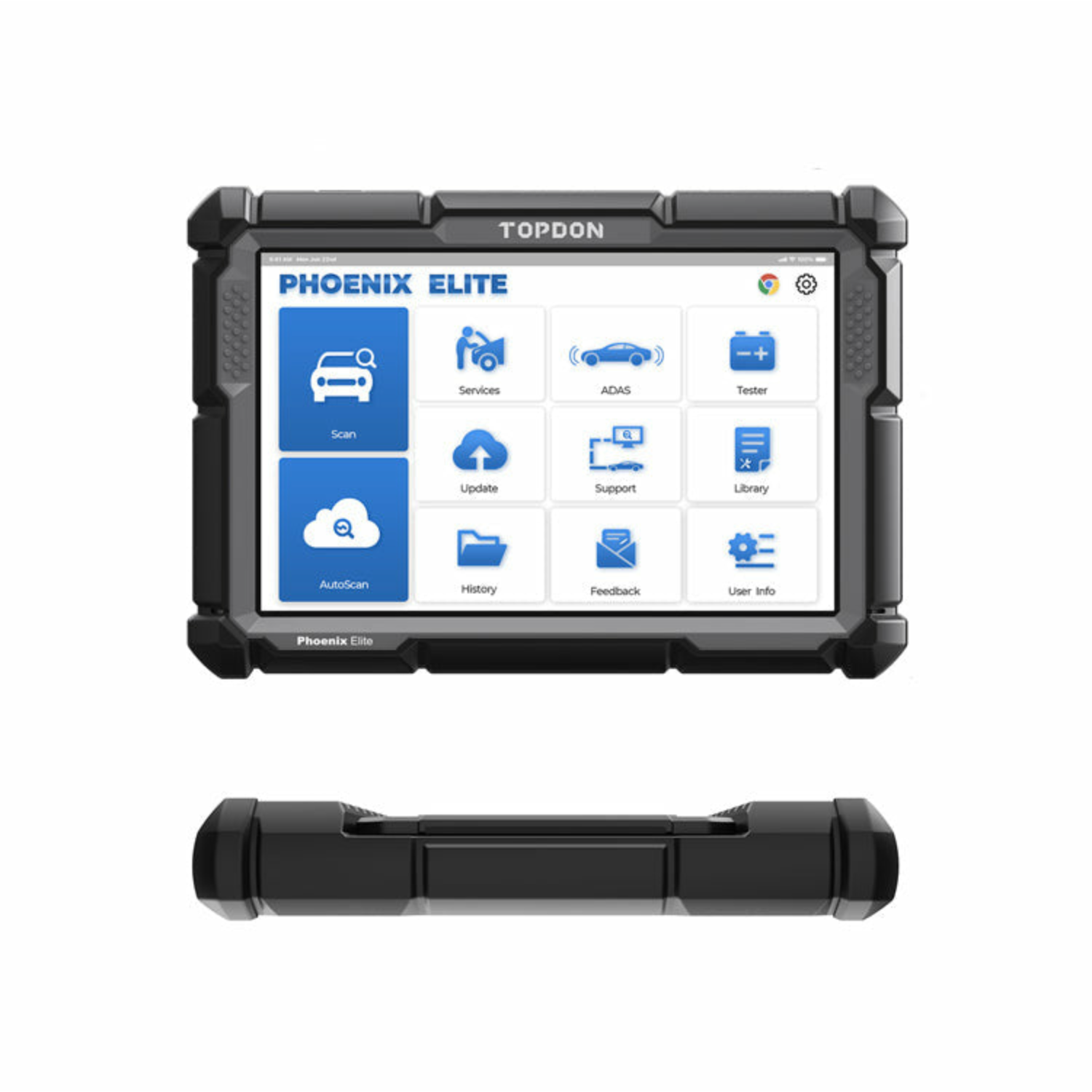

The TOPDON Phoenix Elite is a professional-grade diagnostic scanner with OE-level capability. It pairs a 10.1 inch touchscreen with a Phoenix MDCI VCI dongle, and it handles active tests, coding, initialisations and memory resets across a wide range of vehicles.
Connect to the Newest Vehicles
The Phoenix Elite supports the latest communication protocols, including CAN-FD, so it can communicate with newer vehicles that older scanners can't. The MDCI dongle is built around CAN-FD support.
All Data on One Screen
-

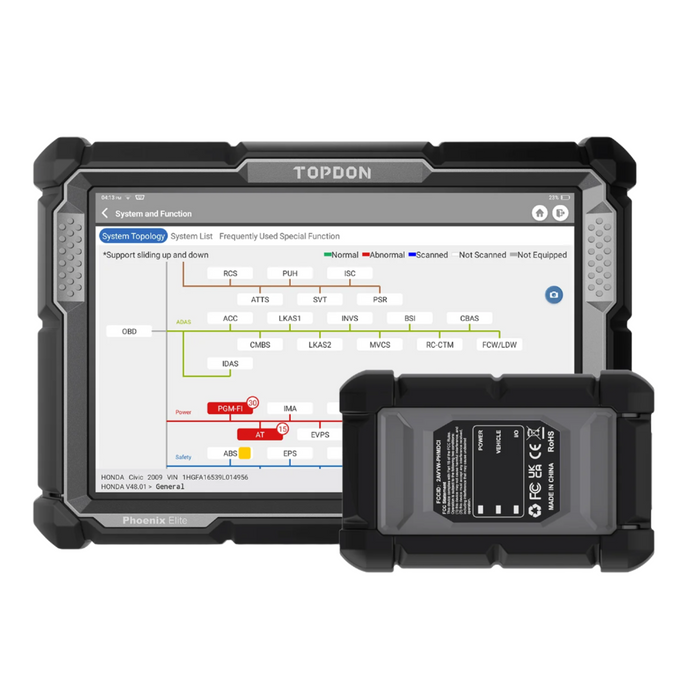

Topology mapping shows the related systems and the CAN network in one view, so you can diagnose communication issues immediately
-
Colour-coded module status shows at a glance which modules are communicating normally and which have faults
-
Active tests, special functions, coding, initialisation and memory resets are all available from the same tool
Guided Functions for VAG Vehicles
For VW and Audi vehicles, the Phoenix Elite gives step-by-step diagnostic procedures based on the trouble codes found, so you are guided through the repair instead of working it out from scratch.
Auto VIN and Autodetect
The tool reads the VIN automatically and pulls up the matching vehicle information. This saves time and reduces the chance of selecting the wrong vehicle.

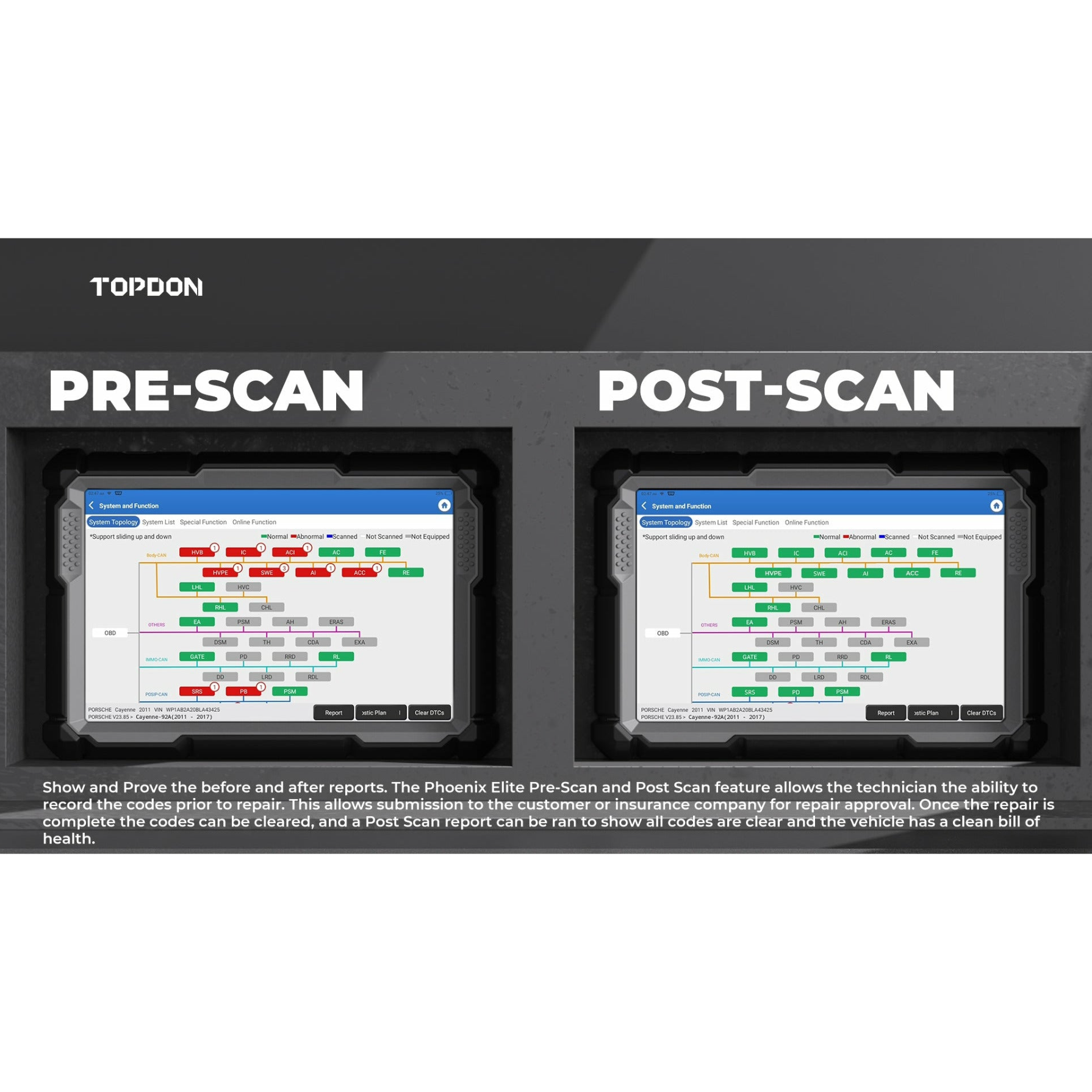

Pre-Scan and Post-Scan Reporting
-
Pre-scan records the codes before the repair, and a copy can go to the customer or an insurer to support repair approval
-
Post-scan records the vehicle after the repair and shows all codes cleared, as proof of a clean bill of health
Expand with ADAS Calibration
Download the ADAS upgrades and pair the Phoenix Elite with a Phoenix ADAS system to turn it into a calibration station, adding a new service for your workshop.
Who It Suits
Professional workshops that want OE-level diagnostics, coding and reporting on a large screen, with room to add ADAS calibration.
Specifications
- Display: 10.1 inch LCD touchscreen, 1280 x 800
- Processor: 4-core, 2.0 GHz
- Operating system: Android 10.0
- Memory: 4 GB RAM, 64 GB storage
- Battery: 12,000 mAh, 3.8 V
- Operating voltage: 9-18 V
- Working temperature: 0°C to 50°C
- Dimensions: 278 x 191 x 48 mm
- Languages: 24, including English, German, Spanish, French, Italian, Japanese, Portuguese, Russian and Polish
- Phoenix VCI: CAN-FD, 9-18 V, 127 x 82 x 36 mm, working current 150 mA or less
Please Note
- The Phoenix ADAS system and ADAS upgrades are sold separately.

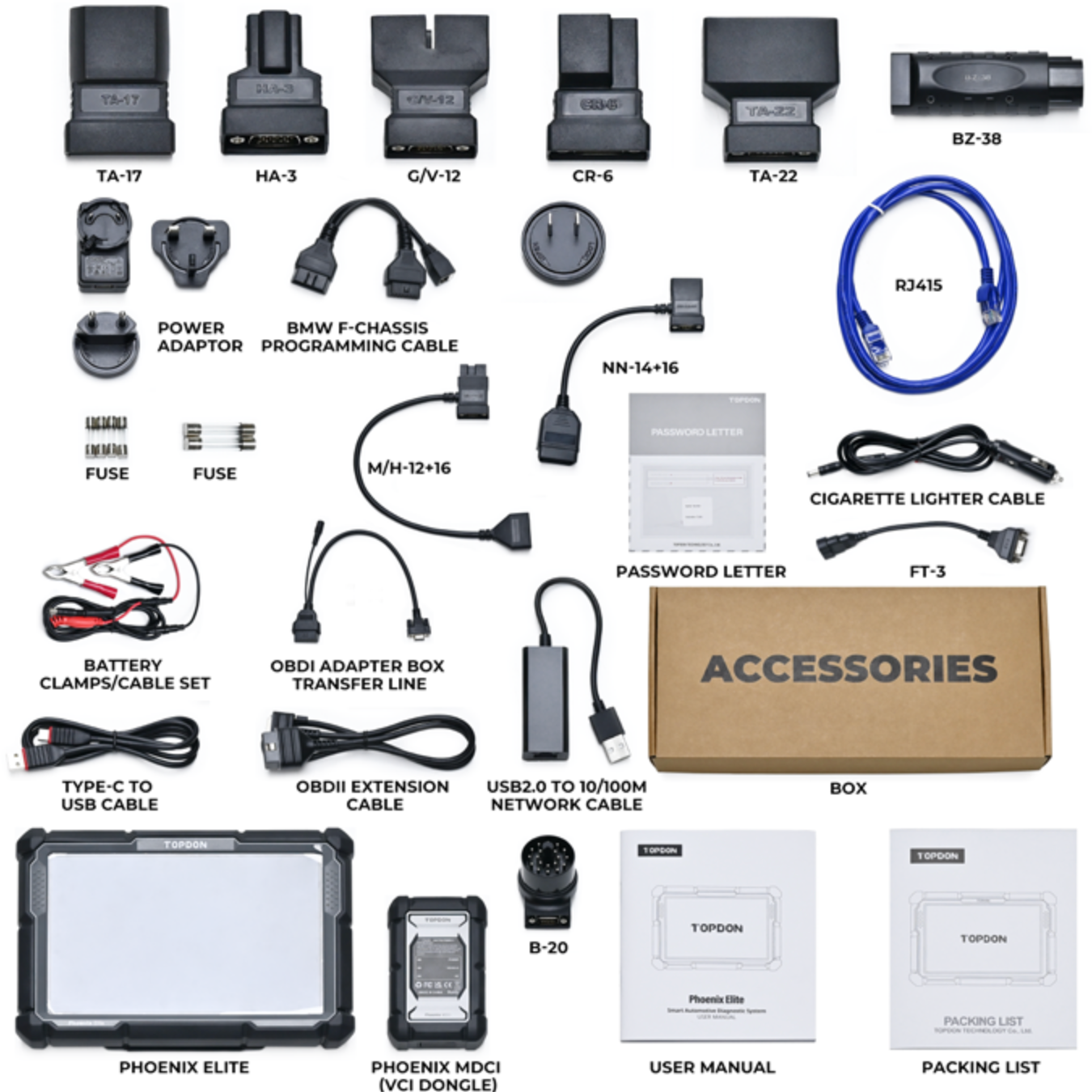

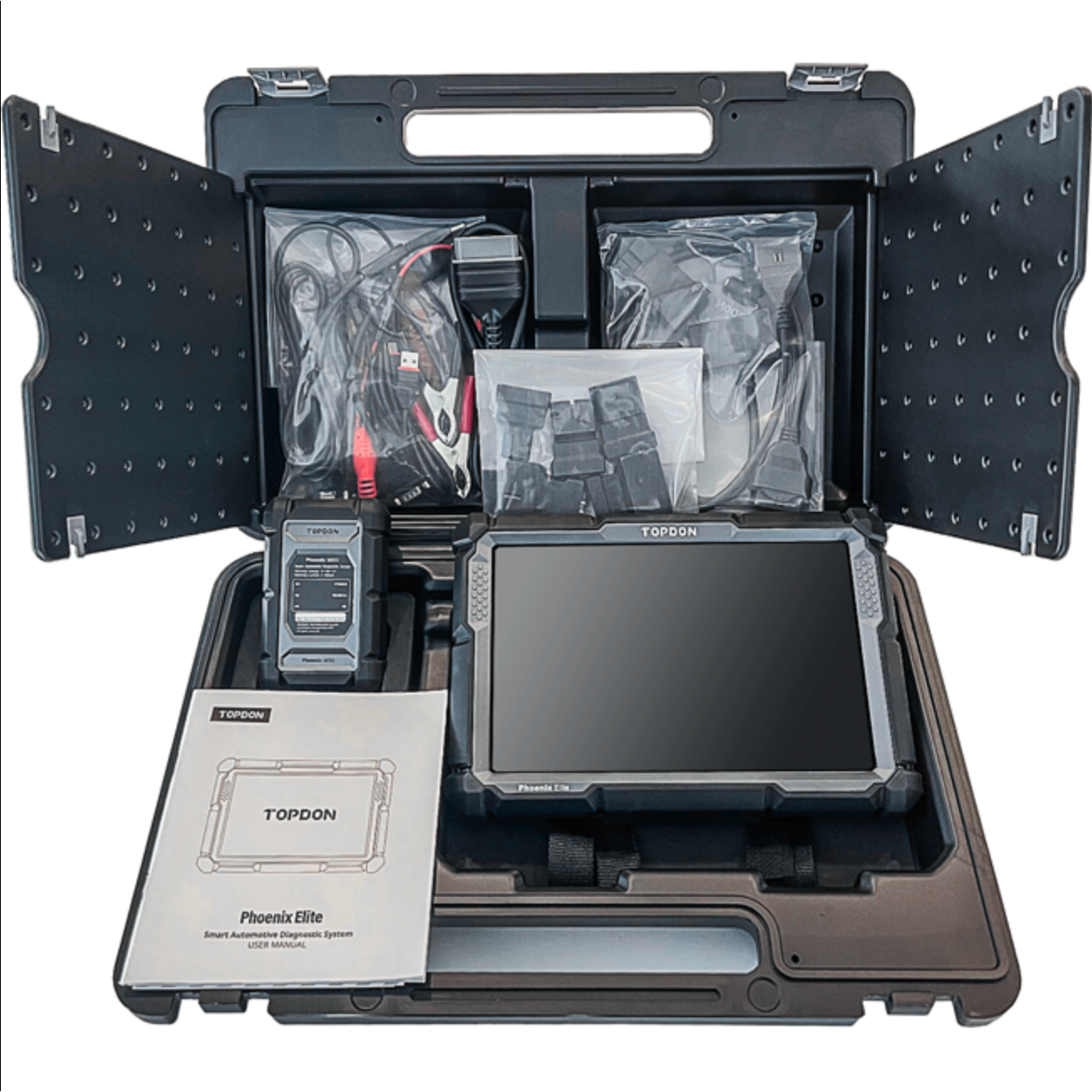

What's in the Box
- Phoenix Elite tablet
- Phoenix MDCI VCI dongle
- OBDI adapter box transfer line
- OBDII extension cable
- Cigarette lighter cable
- Type-C to USB cable
- Battery clamps and cable set
- Power adaptor
- Non-16-pin adaptor cable kit (10 cables)
- BMW F-chassis programming cable
- Fuses: 4 x 5 x 20 mm and 2 x 6 x 30 mm
- User manual
