TOPDON Phoenix PX1000 ADAS Mobile Calibration Frame & Phoenix Elite

TOPDON Phoenix PX1000 ADAS Mobile Calibration Frame & Phoenix Elite

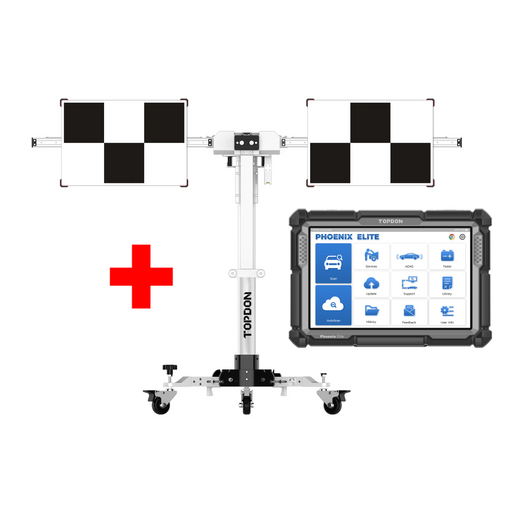

This TOPDON package pairs the Phoenix PX1000 ADAS Mobile calibration frame with the Phoenix Elite professional scan tool. The foldable frame checks and aligns advanced driver assistance systems after collision repairs, sensor replacements and routine service.

Key Features

• Foldable frame that detaches into three parts (arm, column and base) with a storage bag for transport
• Low base with 360° rotating wheels for positioning under the vehicle and moving in tight spaces
• Laser alignment using a 5-line laser for centreline location and a cross-line laser for frame placement
• Fine-tuning control with ±50 mm lateral adjustment and angle adjustment, without moving the whole frame
• Guided calibration with illustrations and real-time prompts when used with Phoenix scanners
• Calibrates lane departure warning, adaptive cruise control, blind spot detection, around view monitor, night vision and rear collision warning, for over 40 vehicle brands
• Phoenix Elite scan tool: 10.1 inch touchscreen, wireless VCI, CAN-FD, topology mapping, active tests, coding and guided VW and Audi diagnostics, with two years of free software updates

Who It Suits

Collision shops, glass and body shops and workshops that offer ADAS calibration.

Specifications

• Frame packaging: wooden case, 1415 x 1075 x 540 mm
• Frame weight: 136 kg
• Phoenix Elite display: 10.1 inch LCD, 1280 x 800
• Phoenix Elite processor: 4-core, 2.0 GHz, Android 10.0
• Phoenix Elite memory: 4 GB RAM, 64 GB storage
• Phoenix Elite battery: 12000 mAh, 3.8 V

What's in the Box

• ADAS Mobile main case
• Arm, base and accessories case
• Medium/small target and five-line laser devices case
• 4-in-1 large targets case
• Phoenix Elite tablet and Phoenix MDCI VCI with cables and adapters
