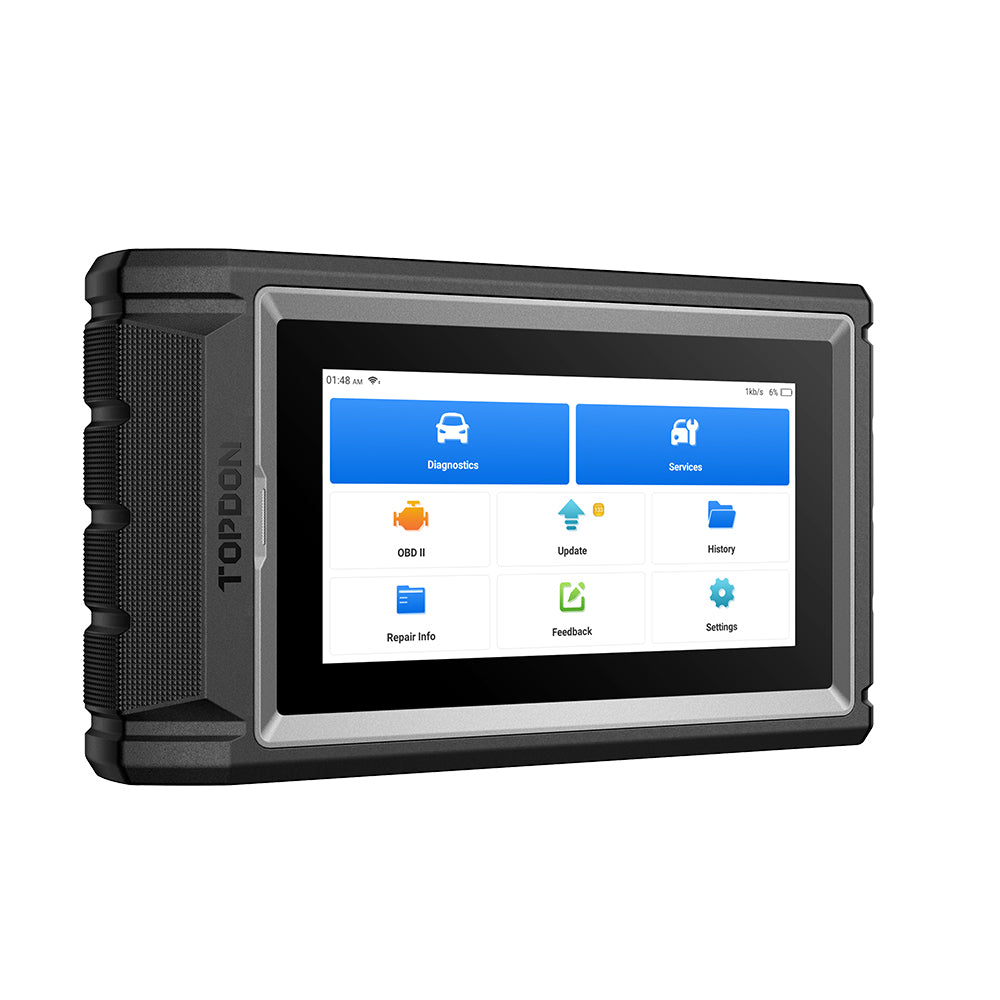

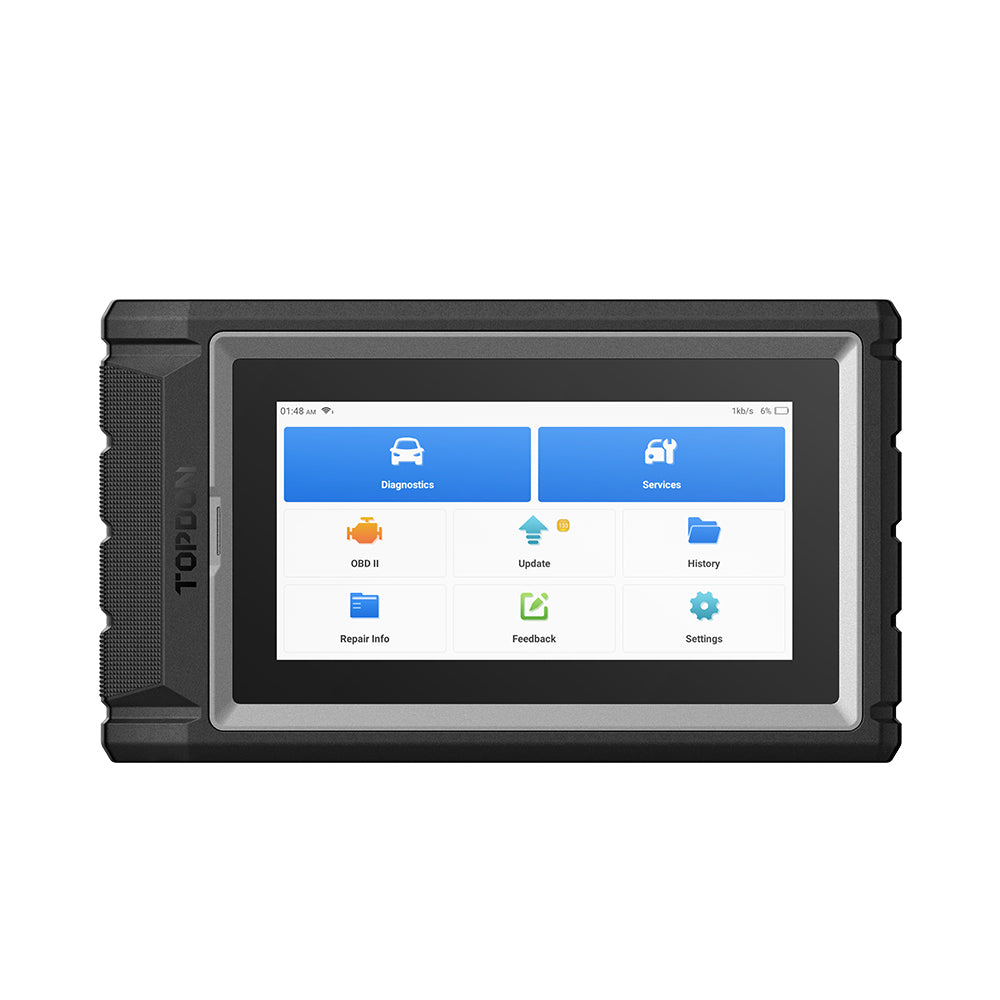

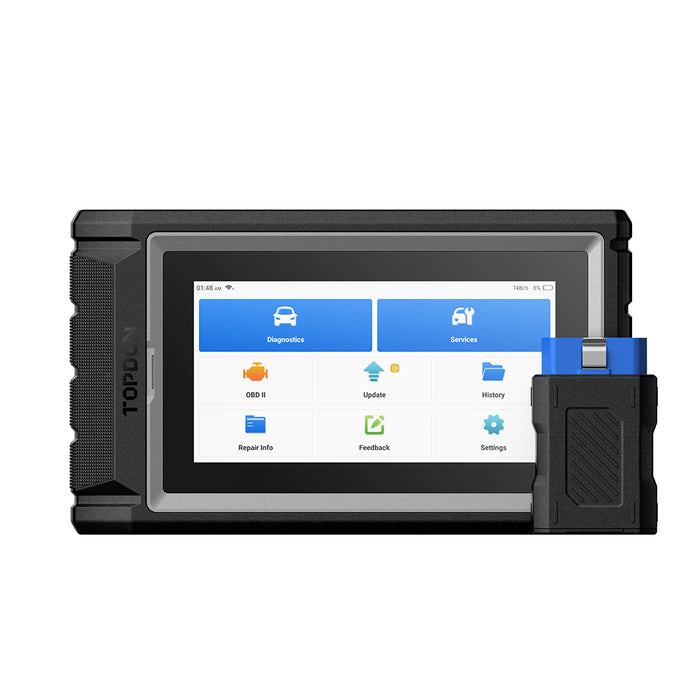

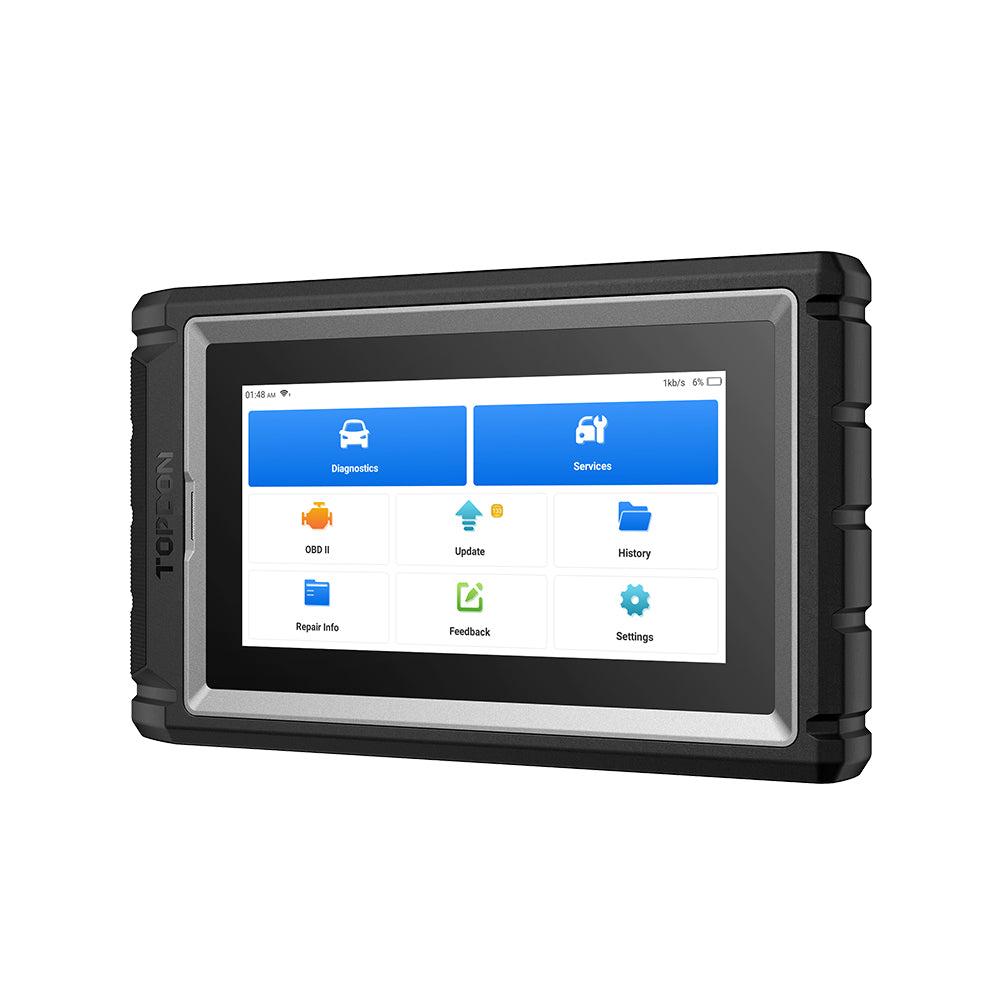

TOPDON ArtiDiag800 BT 2 Bluetooth Diagnostic Scan Tool
The TOPDON ArtiDiag800 BT 2 is a mid-level diagnostic tool with Bluetooth, an upgrade that adds CAN-FD protocol support and FCA Gateway access, with expanded coverage for Chrysler, Fiat and GM models.
Unlock the Secure Gateway
Many manufacturers use secure gateways that restrict unauthorised tools. The ArtiDiag800 BT 2 supports gateway access, including FCA SGW and the Renault Gateway, which unlocks active tests, service functions and fault code clearing on newer vehicles.
Speed Up Troubleshooting
Bi-directional control sends active commands to components such as fans, injectors and fuel pumps, so you can locate faults through real-time response without disassembling the vehicle.
28+ Special Services
Over 28 maintenance functions, including service light resets and battery registrations, help keep vehicles in good condition and support their performance and longevity.
Wider Coverage with CAN-FD
CAN-FD handles larger volumes of data more efficiently, and covers GM and Chrysler models from 2020 onward, with more manufacturers adopting it.
Cut the Cord
Bluetooth 5.0 lets you communicate with the vehicle wirelessly, for free movement and fast data transfer.
All Systems Covered
Full-system diagnostics for over 80 vehicle makes give access to the engine, transmission, airbags and gateway, to read ECU information, read and clear DTCs and monitor live data.
Real-Time Live Data
View live data as numbers, graphs or combined views, and merge up to four data streams into one view to compare waveforms.
Built for the Workshop
A built-in VCI storage compartment and an anti-slip grip keep the tool organised and secure in the hand.
Identify, Record and Share
AutoVIN identifies vehicles instantly, data streams can be recorded for later analysis, and reports are generated automatically for sharing.
Feedback
A feedback feature connects you to the support team, and your input informs future updates.
Updates
Software updates are free for life.
Who It Suits
Technicians and shops that want gateway access, bi-directional control and CAN-FD coverage in a compact tablet.
Specifications
- Display: 6 inch LCD, 1400 x 720
- Processor: MT6761 quad-core Cortex-A53, 1.8 GHz
- Operating system: Android 10.0
- Memory: 2 GB RAM, 64 GB storage
- Battery: 5,050 mAh, 3.7 V
- Working temperature: 0°C to 50°C
- Dimensions: 215 x 126 x 46 mm
- Weight: 660 g
- Languages: 18, including English, French, German, Spanish, Portuguese, Russian, Japanese and Italian

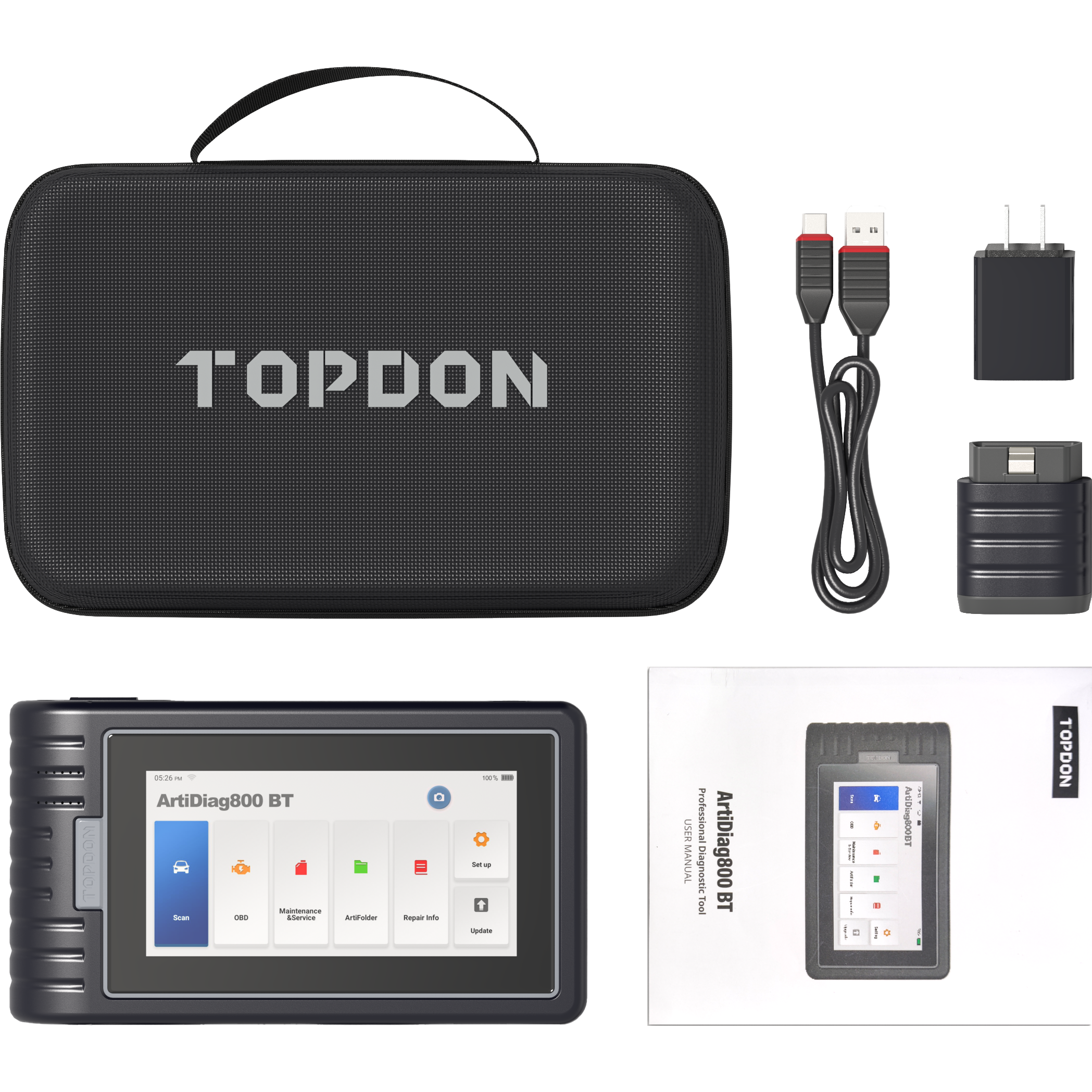

What's in the Box
- ArtiDiag800 BT 2 tablet
- Type-C to USB cable
- Power adapter
- Quick user guide and user manual
- Carry case
