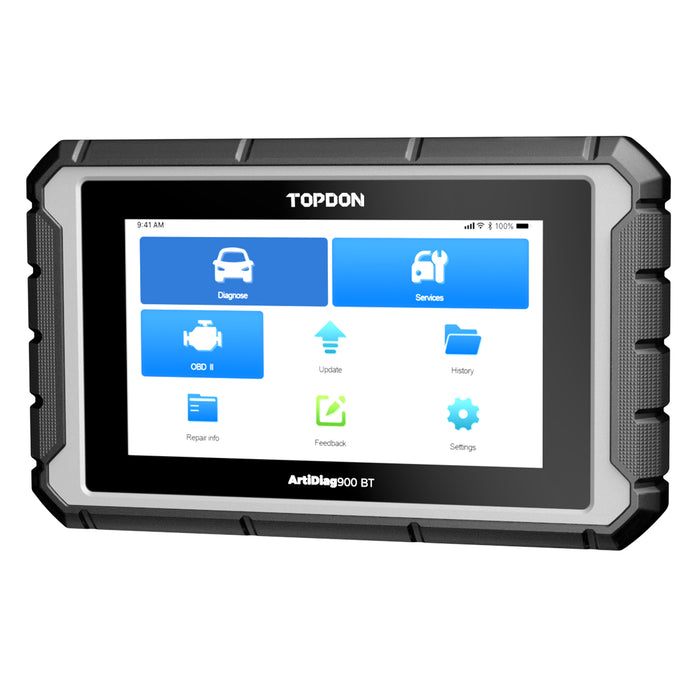

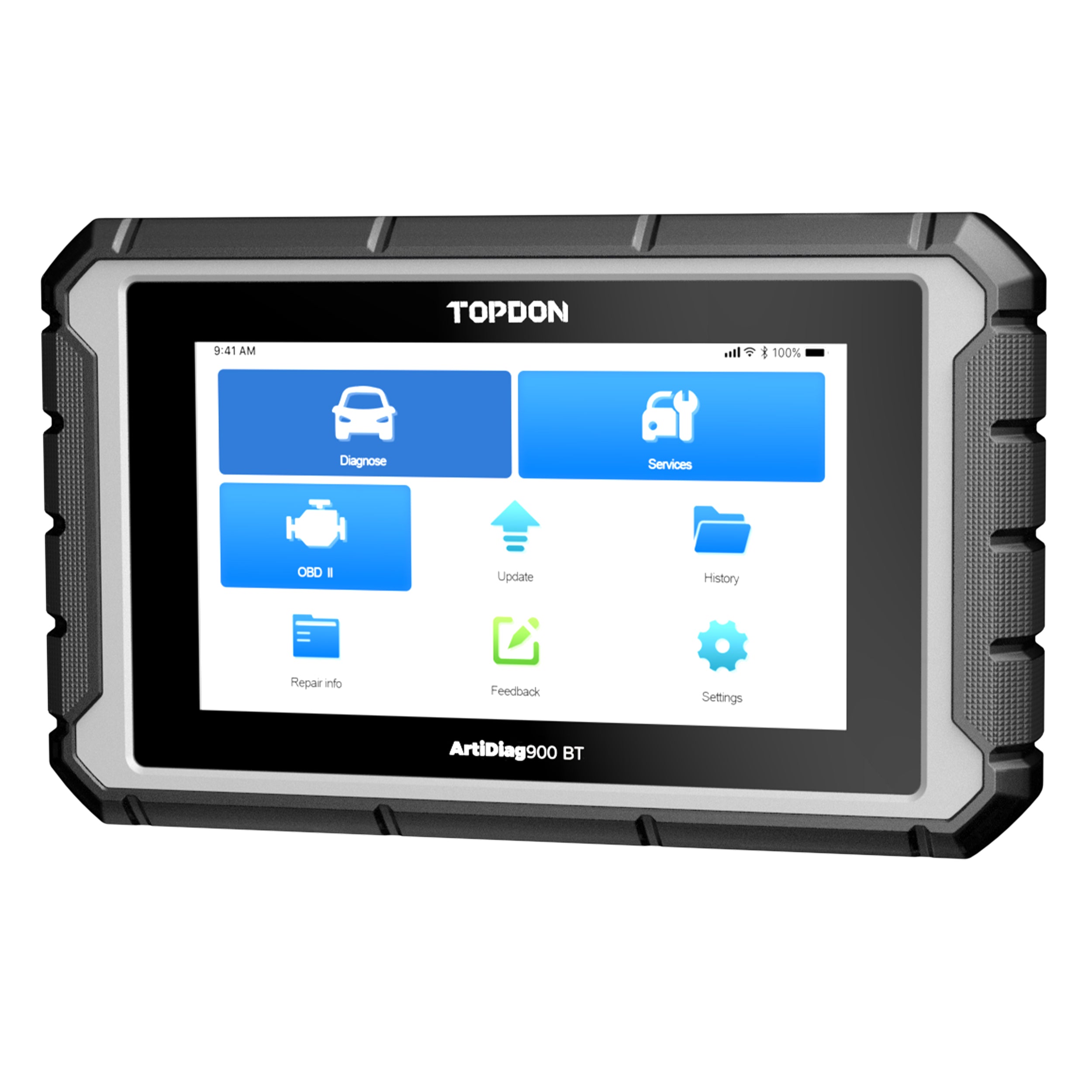

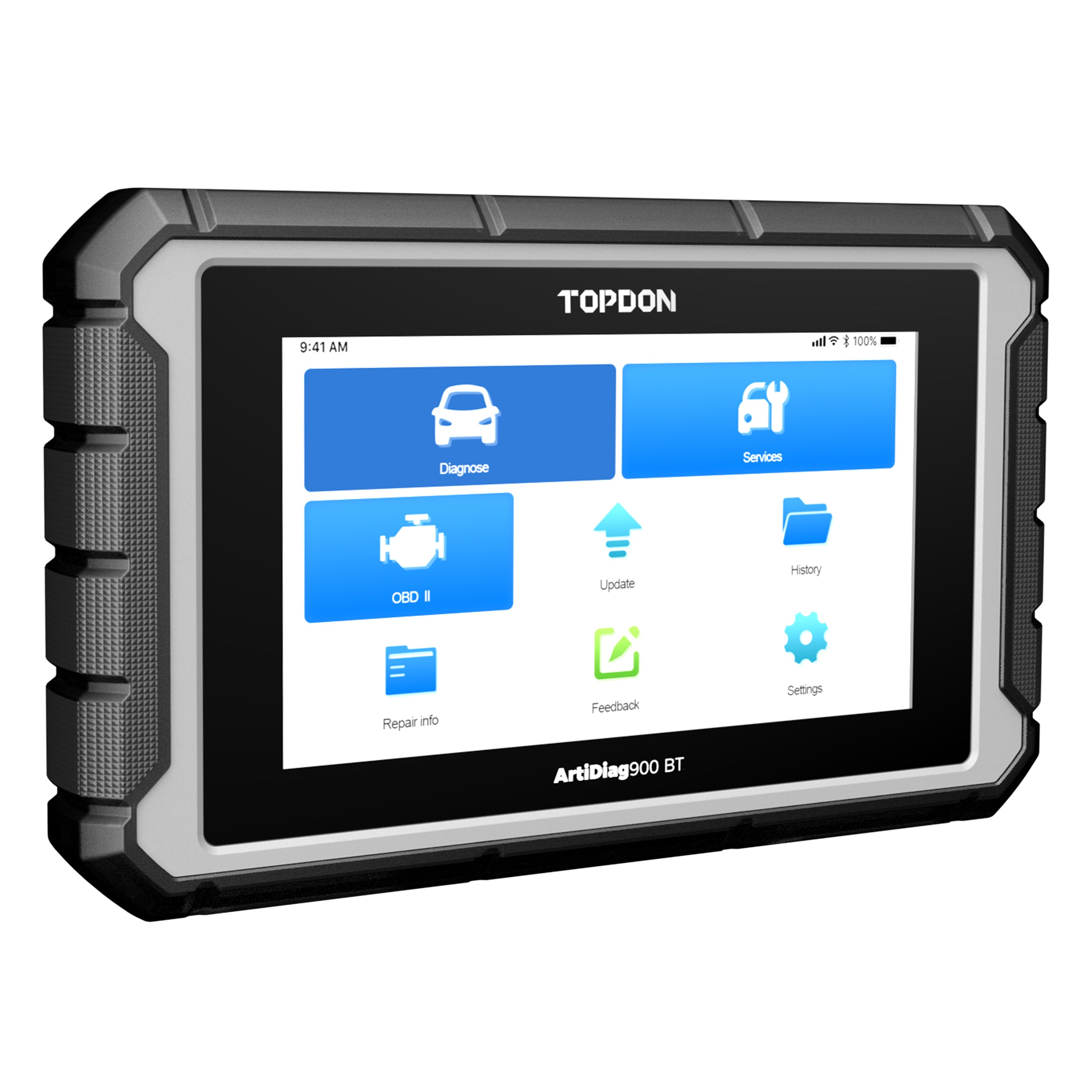

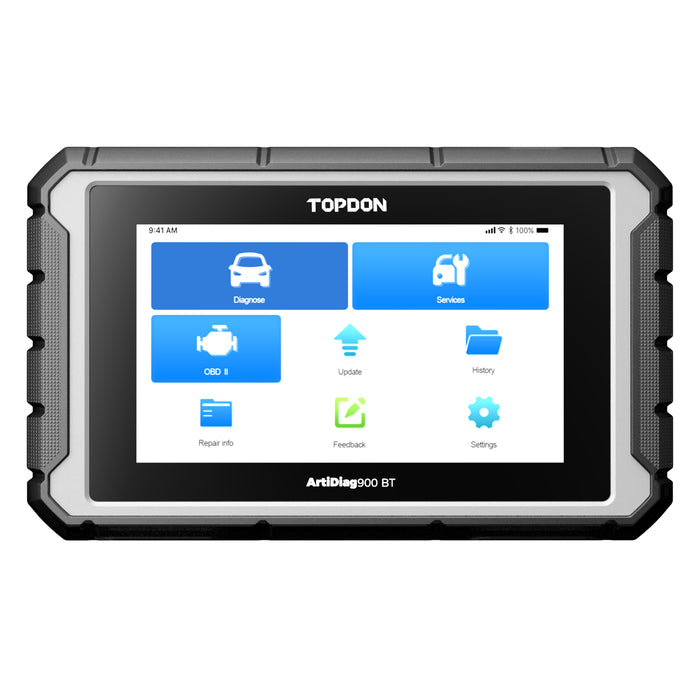

TOPDON ArtiDiag900 BT Diagnostic Scan Tool

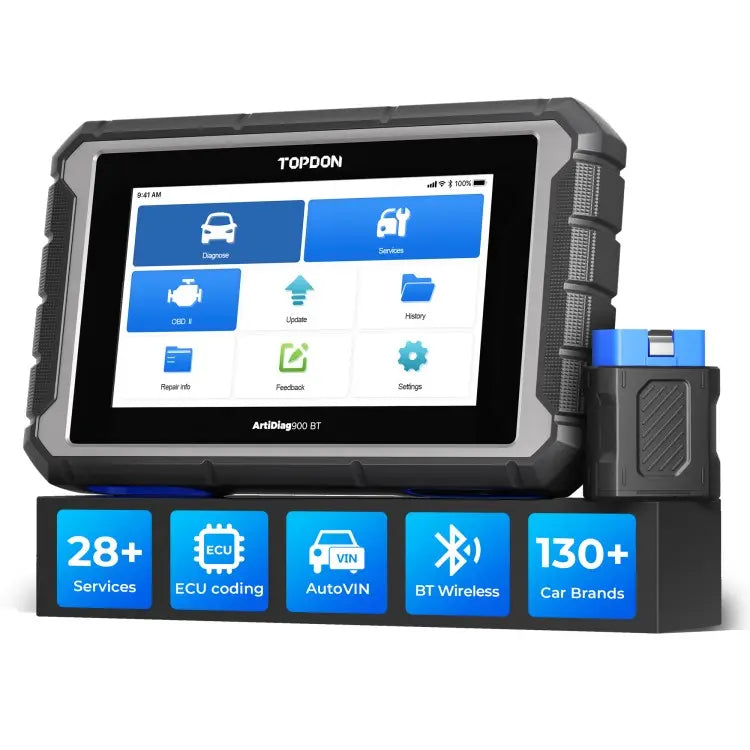

The TOPDON ArtiDiag900 BT is a wireless diagnostic tool for DIYers, professional mechanics and auto shops, offering professional diagnostics within reach. It covers over 130 brands with ECU coding, bi-directional control and 28 advanced service functions.
Maximum Productivity
28 advanced service functions help get a vehicle roadworthy, including oil resets, steering angle sensor (SAS) resets, brake resets, ABS bleeding and DPF functions. Brand-specific special functions are available through each system's Special Function Menu.
Advanced Coding
ECU coding unlocks hidden features and disables the ones you don't want, for example single-door unlocking, fuel amount displays and automatic engine start-stop. It also suits coding a replacement ECU, such as a light module or ABS module.
Bi-Directional Control
Run tests on individual actuators to isolate faults, covering lights, door locks, fuel injectors, fuel pumps, coolant pumps, windows, windscreen wipers, EVAP systems and more.
Wireless Diagnostics
Bluetooth gives a range of up to 10 metres (32.8 ft), so you can move around the vehicle without a cable.
Broad Vehicle Scanning
Coverage of over 130 brands lets you read module information, clear fault codes and read data streams for the engine, transmission, airbag, ABS, ESP, TPMS, immobilizer, gateway, steering, radio and air conditioning systems.
AutoVIN
Identifies the make, model and year automatically, on vehicles made after 2004.
One-Click Fault Clearing and Reports
The Health Report function detects and clears fault codes across all systems in one action, and the Report function saves and shares fault code reports.
FCA Gateway Access
Work on modern vehicles, including clearing DTCs, bi-directional tests and calibrations, on Chrysler, Dodge, Jeep and other major brands.
Data Streams
Show up to 4 data streams in one graphical view, to compare them side by side.
Vehicle Compatibility Lookup
Enter the device model, make, model, year and the function you want, to check compatibility before you start.
Performance and Battery
An upgraded 4-core 1.8 GHz CPU runs the interface, and the 6,300 mAh battery is rated for up to 11 hours with the screen on.
Updates
Two years of free software updates are included.
Who It Suits
DIYers, mechanics and small shops who want wireless diagnostics, coding and bi-directional tests on a 7 inch tablet.
Specifications
- Display: 7 inch LCD, 1024 x 600
- Processor: quad-core Cortex-A53 MT6761, 1.8 GHz
- Operating system: Android 8.1
- Memory: 2 GB RAM, 32 GB storage
- Battery: 6,300 mAh, 3.8 V
- Working temperature: 0°C to 50°C
- Dimensions: 238 x 145 x 43 mm
- Weight: 885 g
- Languages: 18, including English, French, German, Spanish, Portuguese, Russian, Japanese and Italian
- VCI: 9-18 V, current under 60 mA, 61 x 49 x 23 mm, with indicators for power, Bluetooth connection and VCI error
What's in the Box
- ArtiDiag900 BT tablet
- Diagnostic VCI dongle
- Type-C to USB cable
- 3-in-1 adapter
- User manual and quick start guide
- Carry case
