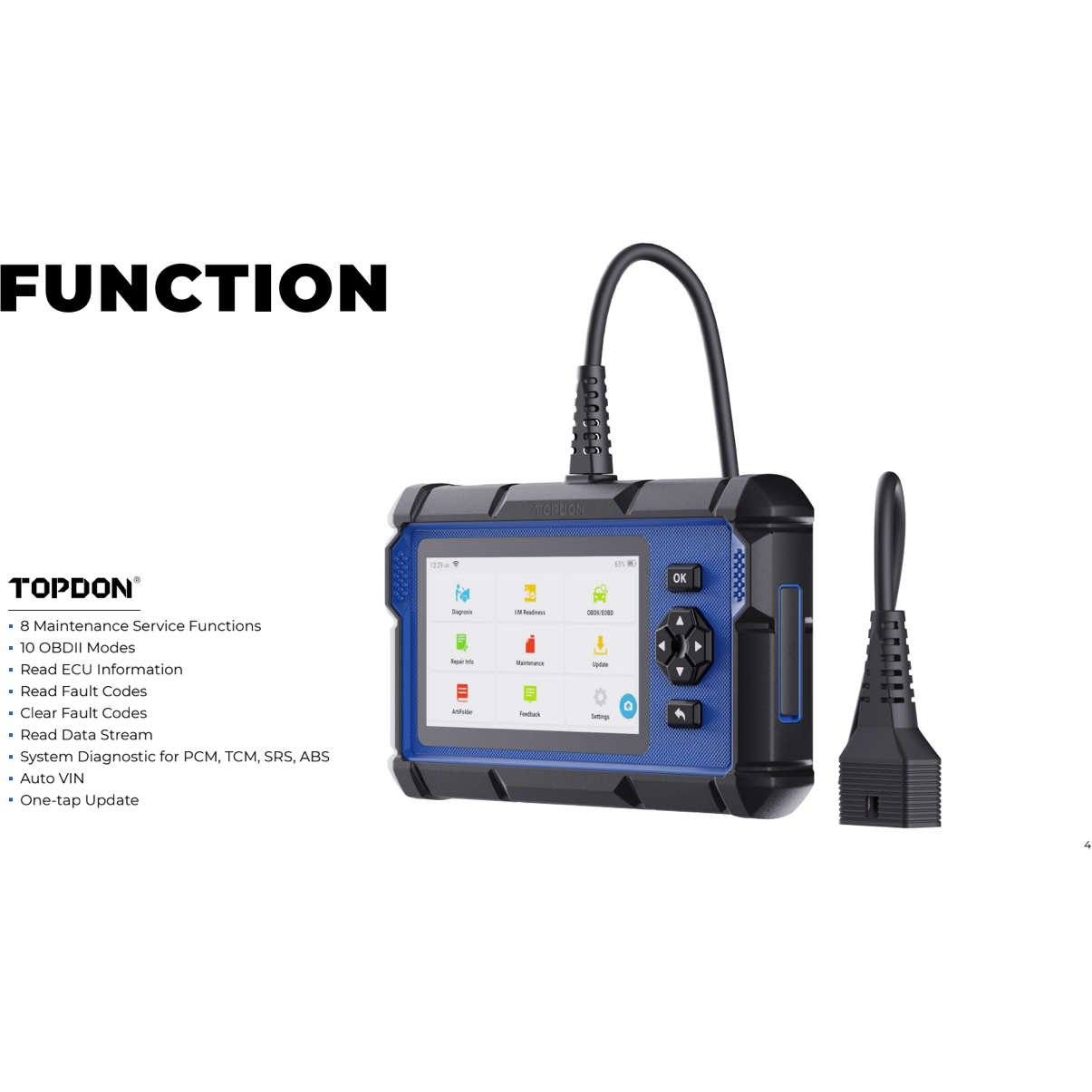

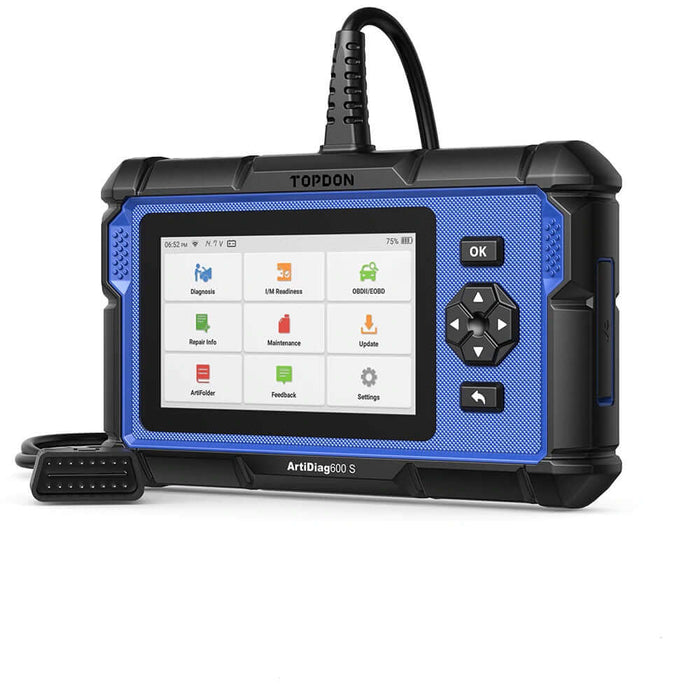

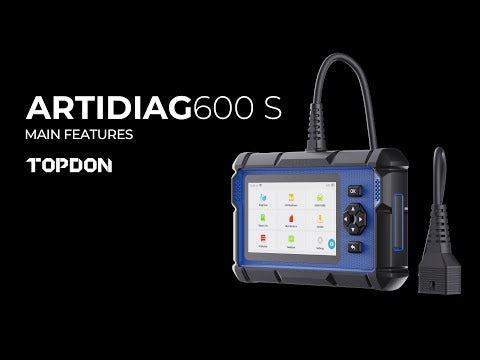

TOPDON ArtiDiag600 S Diagnostic Scan Tool
The TOPDON ArtiDiag600 S is a compact scanner with CAN-FD support that covers more than 80 automotive brands worldwide. It analyses four major systems and includes nine maintenance functions, for troubleshooting and everyday maintenance.
Diagnose Faster, Serve More Models
CAN-FD support allows faster data exchange between the scanner and the vehicle, widening compatibility to modern vehicles, specifically GM, Chrysler and Fiat models from 2020 onward.

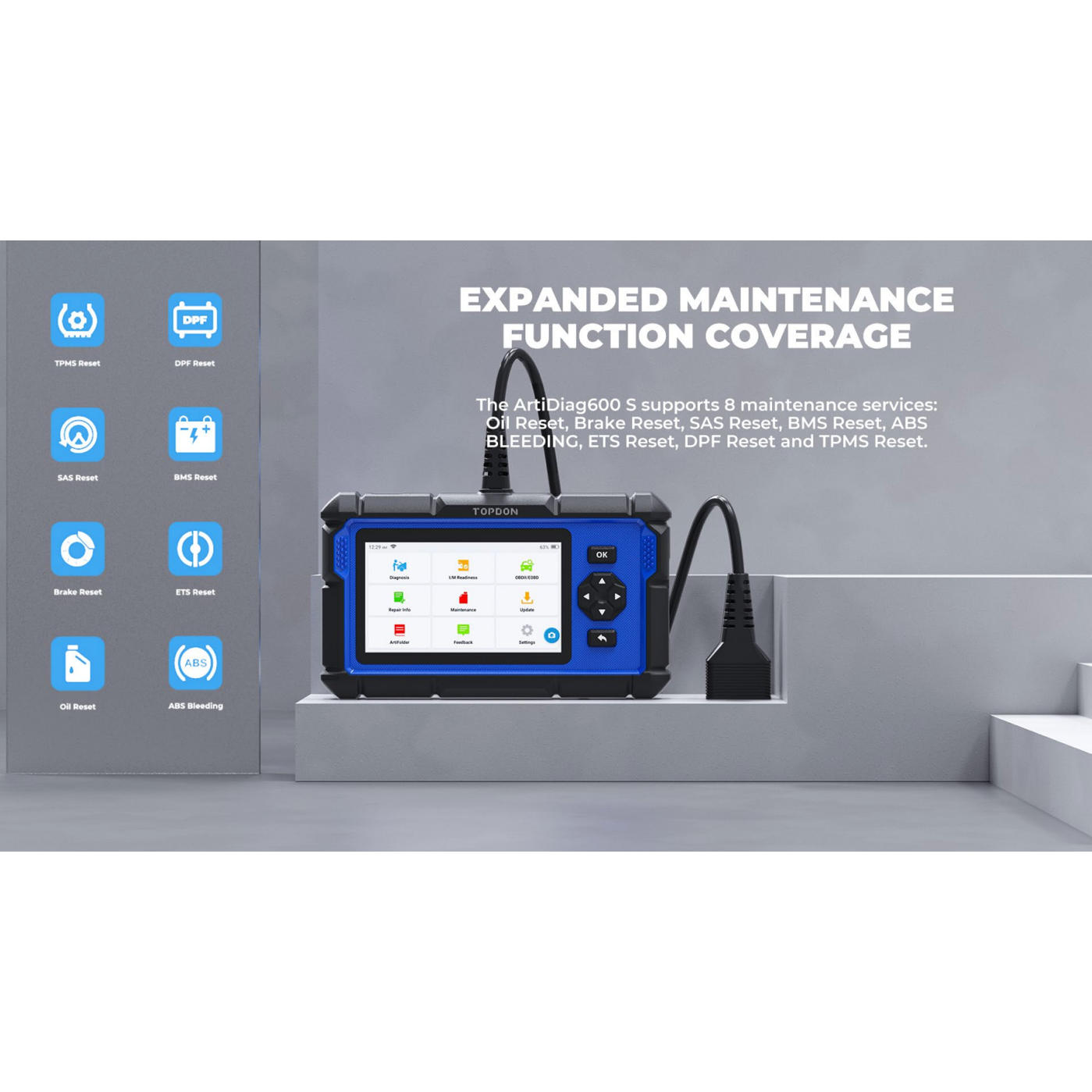

Nine Maintenance Functions
Oil reset, brake reset, SAS reset, BMS reset, ABS bleeding, injector coding, ETS reset, DPF reset and TPMS reset cover essential maintenance for daily car care.
Four Core Systems
Full diagnosis covers the engine, transmission, airbag and ABS, backed by a database of more than 80 brands.

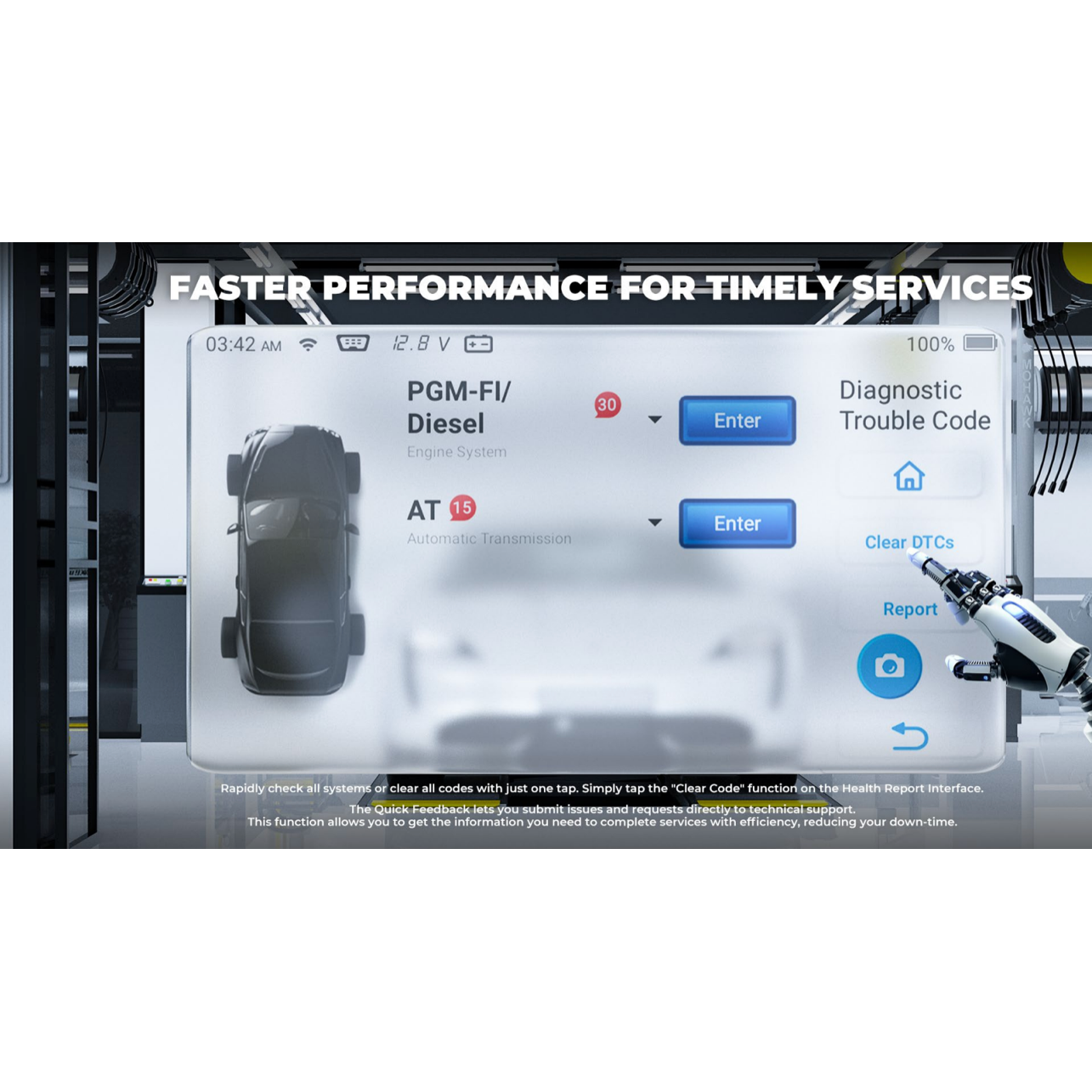

Get Back on the Road Sooner
A single tap on the Health Report interface runs a quick system check and the Clear Code function. The Quick Feedback option lets you report issues directly to technical support.

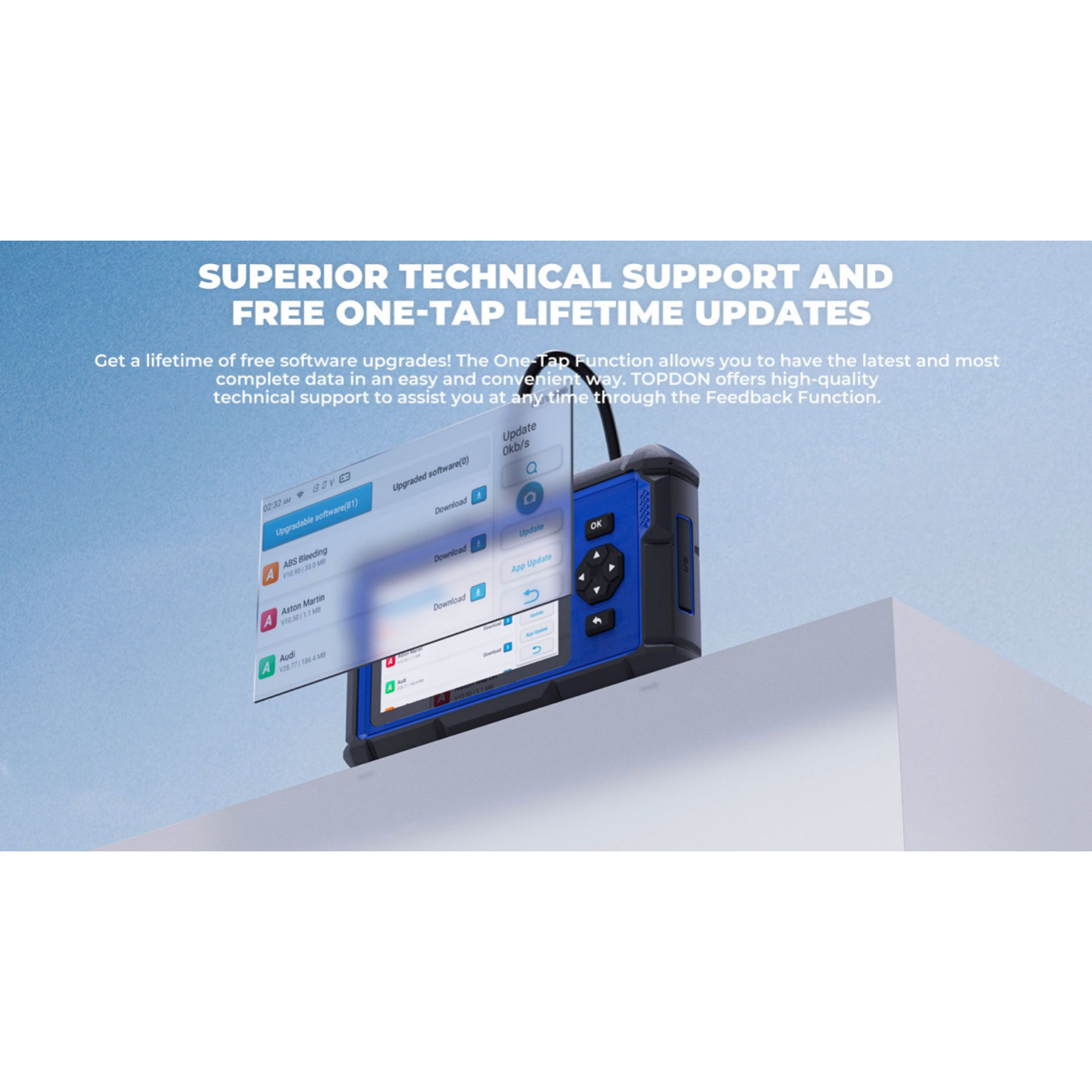

Lifetime Free Updates
Software updates are free for life and applied in one click over Wi-Fi.

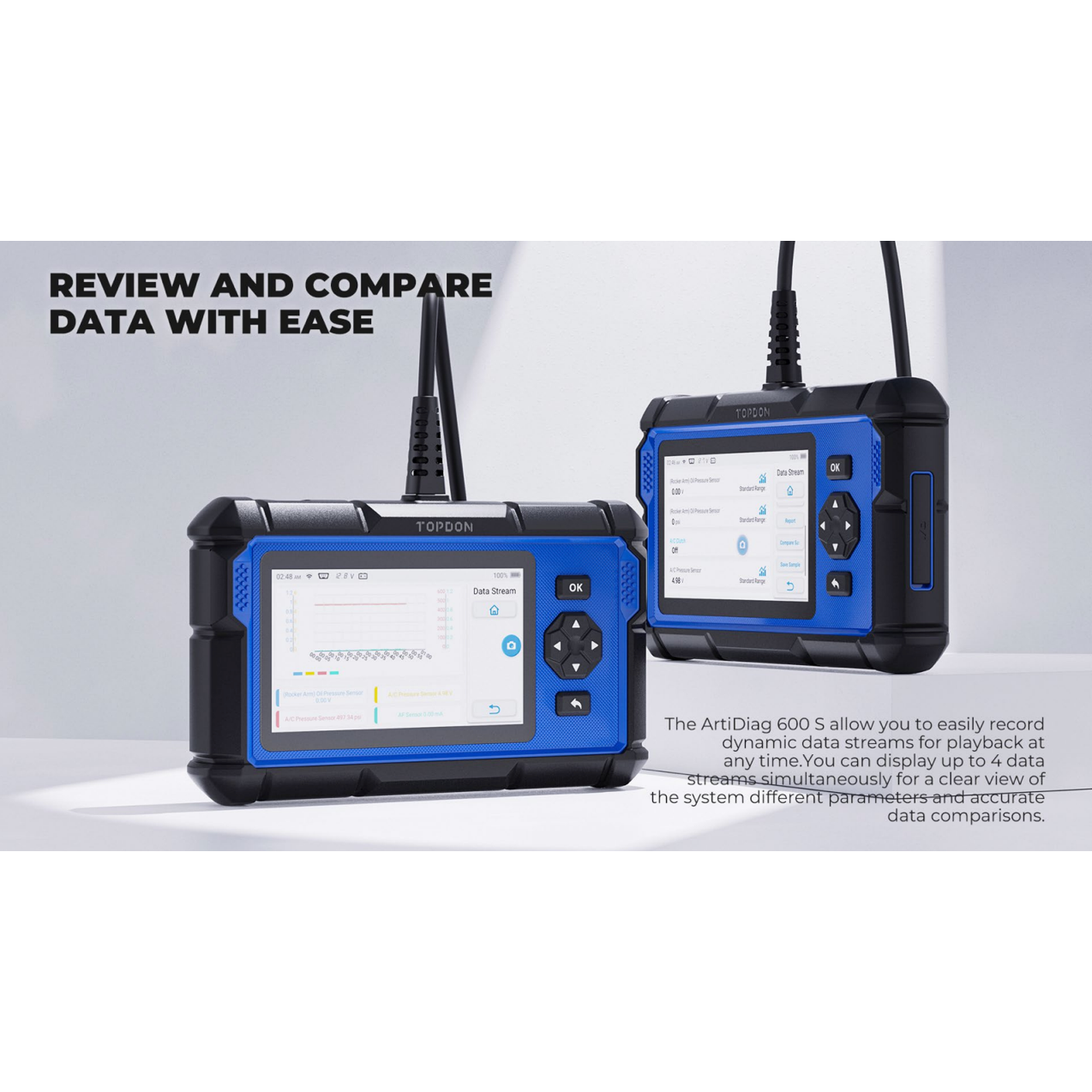

Live Data and Playback
Show four data streams at once to compare parameters, and record and play back data to track trends over time.
Identify and Report
AutoVIN identifies the vehicle so repairs can begin right away, and the scanner generates detailed diagnostic reports that can be shared electronically.
Durable and Independent
The large display is easy to read, and the unit is described as shock-resistant and waterproof for rugged environments. It works as a standalone tool, with no phone or computer needed to run diagnostics and reports.
Who It Suits
Home mechanics and small workshops who want core system diagnostics and nine resets at an entry price.
Specifications
- Display: 1280 x 720 touchscreen
- Processor: 4-core, 1.8 GHz, Android 11.0
- Memory: 2 GB RAM, 32 GB storage
- Battery: 3,350 mAh, 3.7 V
- Input voltage: 9-18 V
- Working temperature: -10°C to 50°C
- Dimensions: 225.15 x 135.15 x 39.7 mm
- Weight: 578 g
- Languages: 12, including English, French, German, Spanish, Portuguese, Russian, Japanese and Italian
What's in the Box
- ArtiDiag600 S scanner
- OBD-II diagnostic cable
- USB cable (Type-A to Type-C)
- Quick user guide
- Carrying case
