TOPDON Phoenix PX1000 ADAS Mobile Calibration Frame

TOPDON Phoenix PX1000 ADAS Mobile Calibration Frame

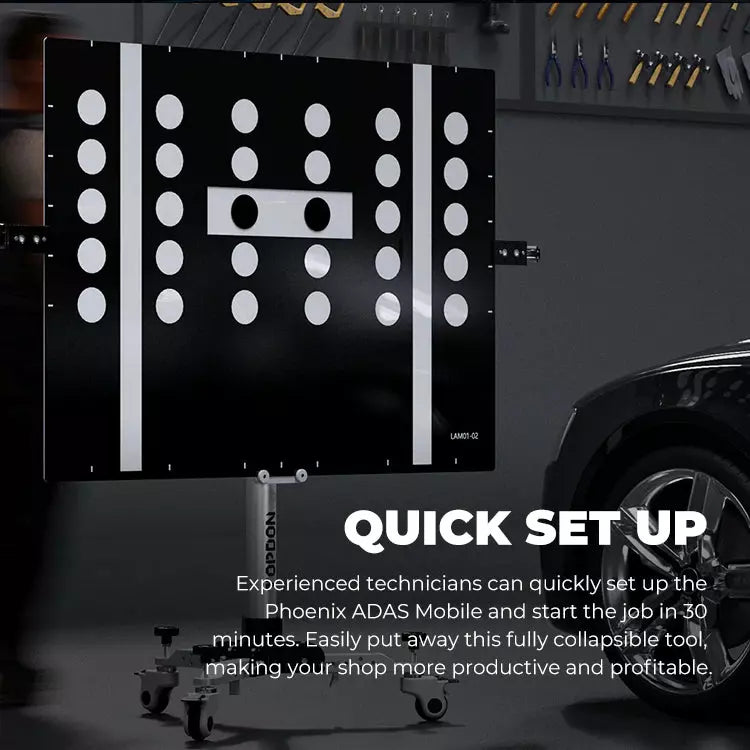

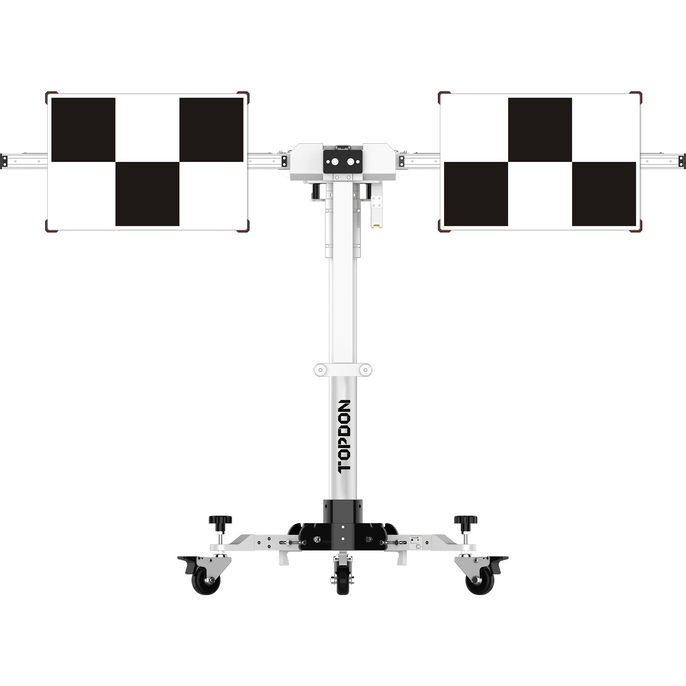

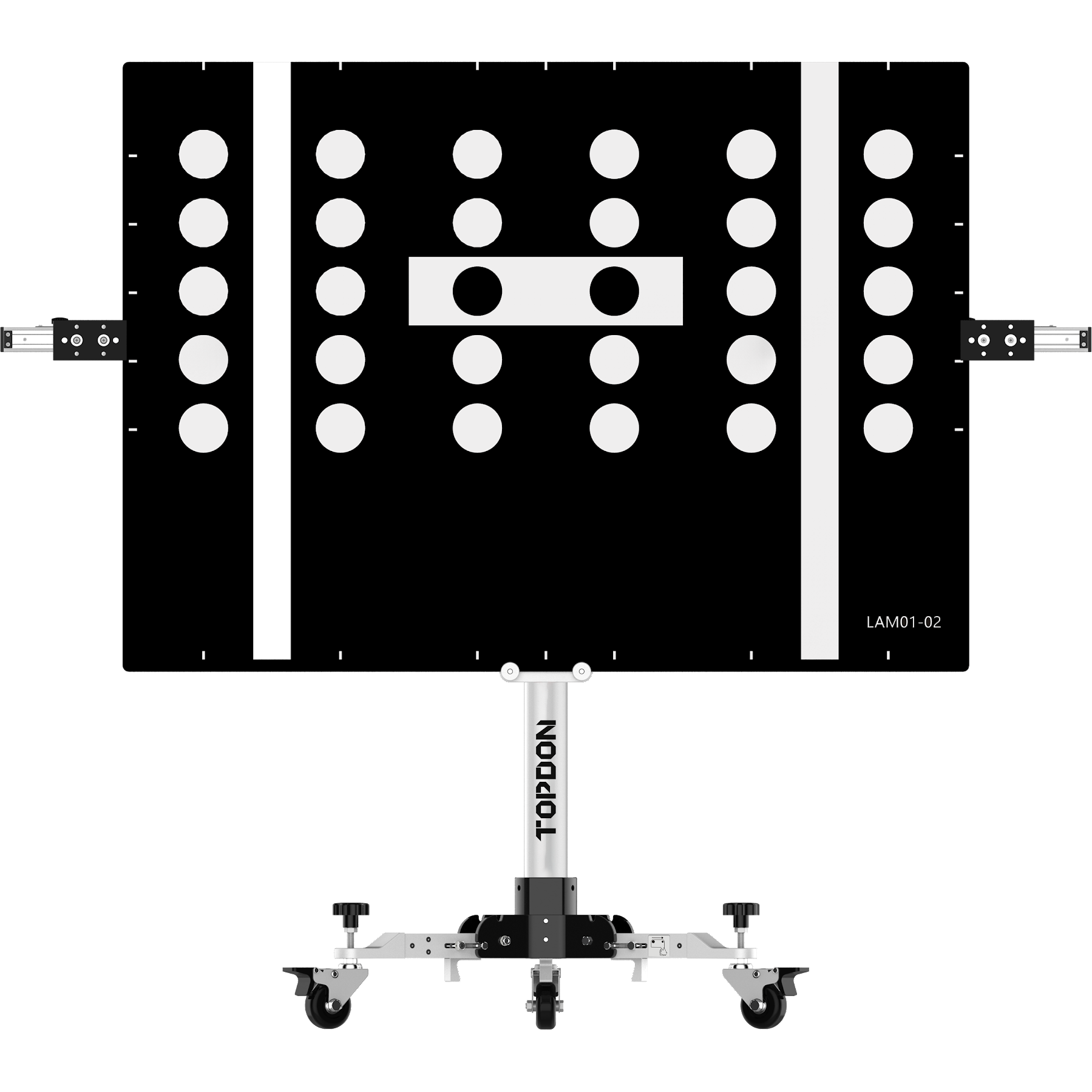

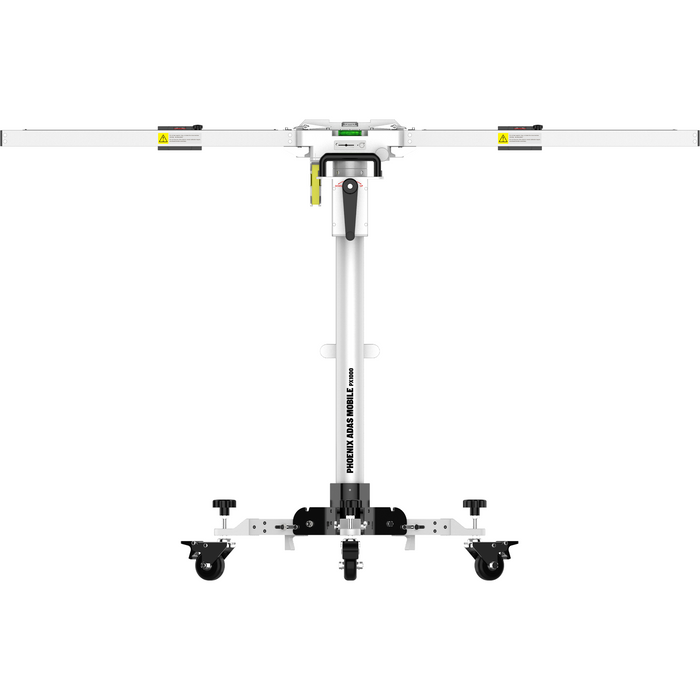

The TOPDON Phoenix PX1000 ADAS Mobile is a portable calibration frame for checking and aligning advanced driver assistance systems after collision repairs, sensor replacements and routine service. It works with TOPDON Phoenix series diagnostic scanners.

Key Features

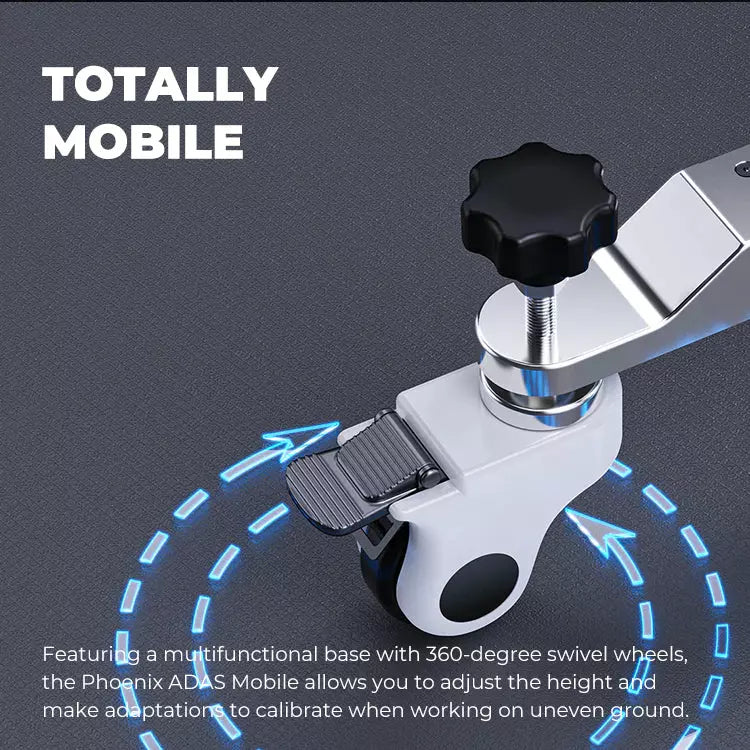

• Low base with 360° rotating wheels for positioning under the vehicle and moving in tight spaces

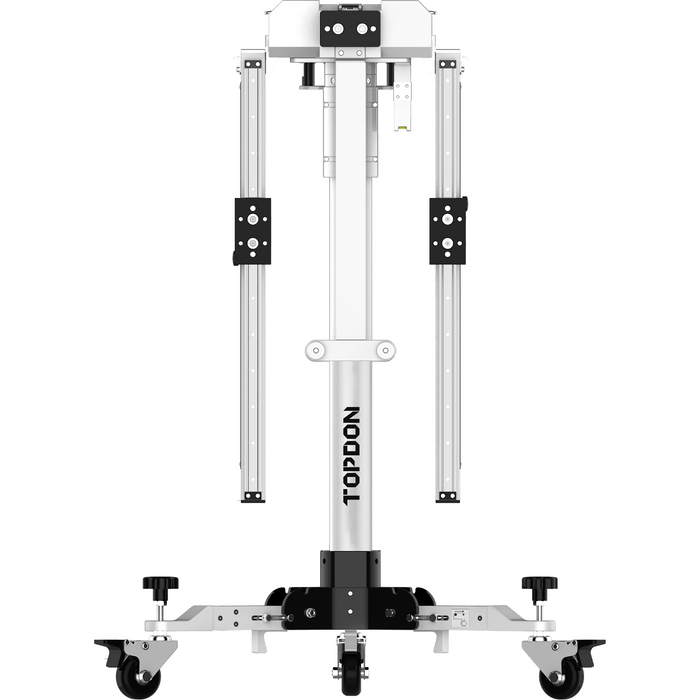

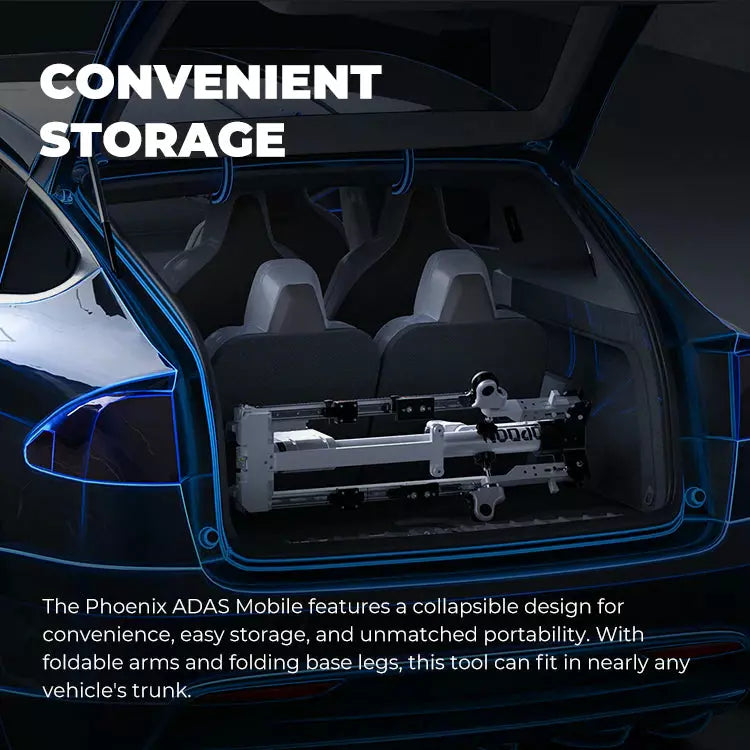

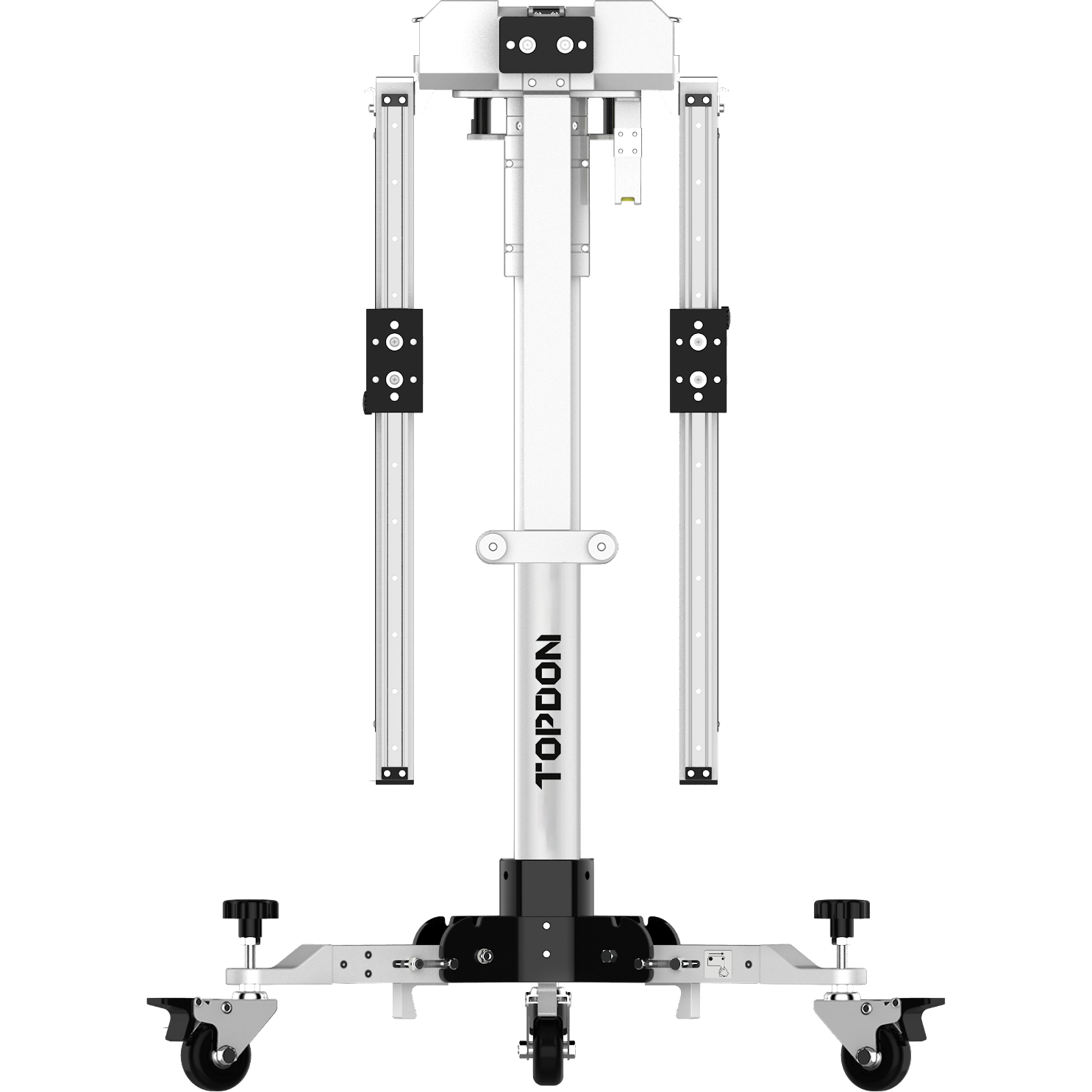

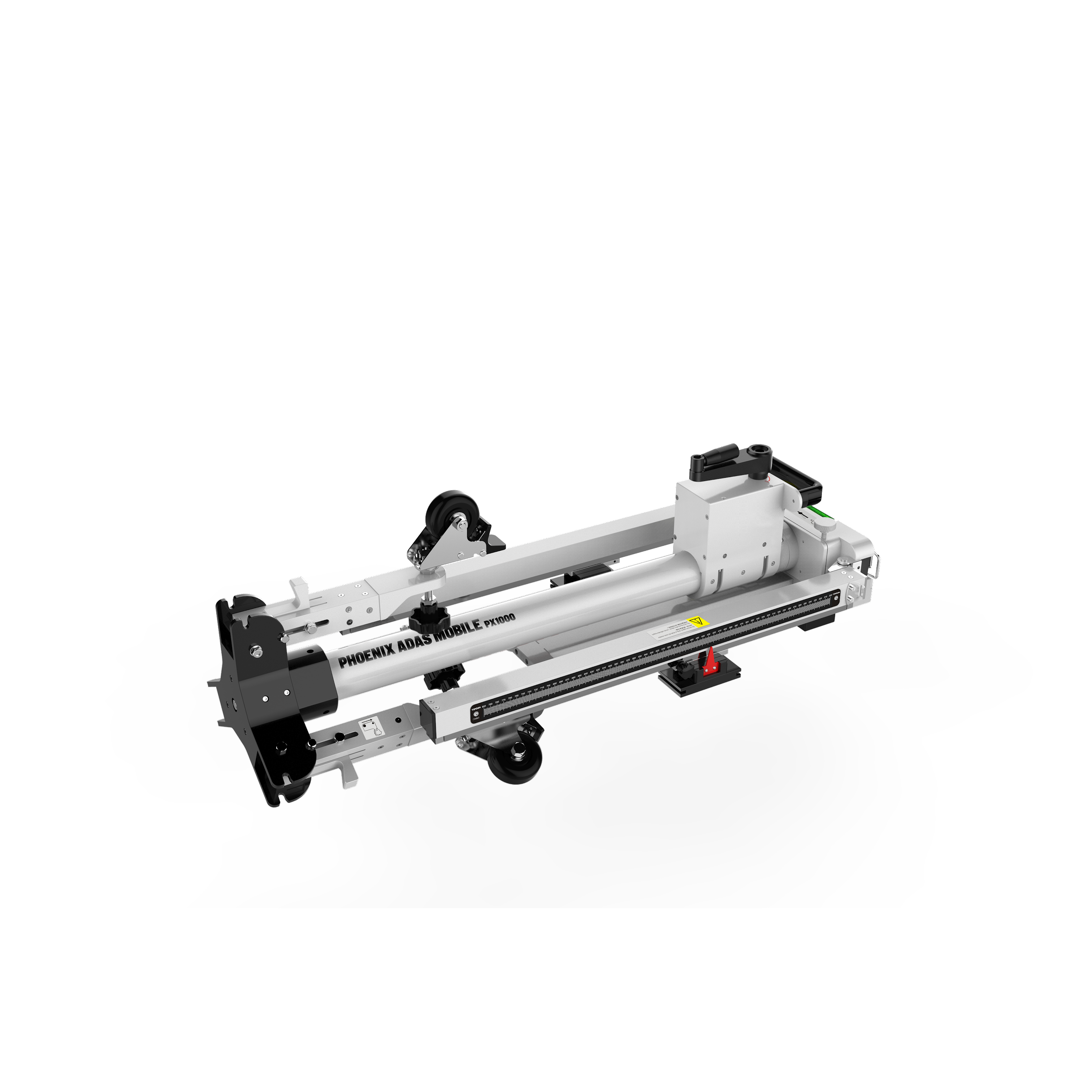

• Folds and detaches into three parts (arm, column and base) with a storage bag for transport

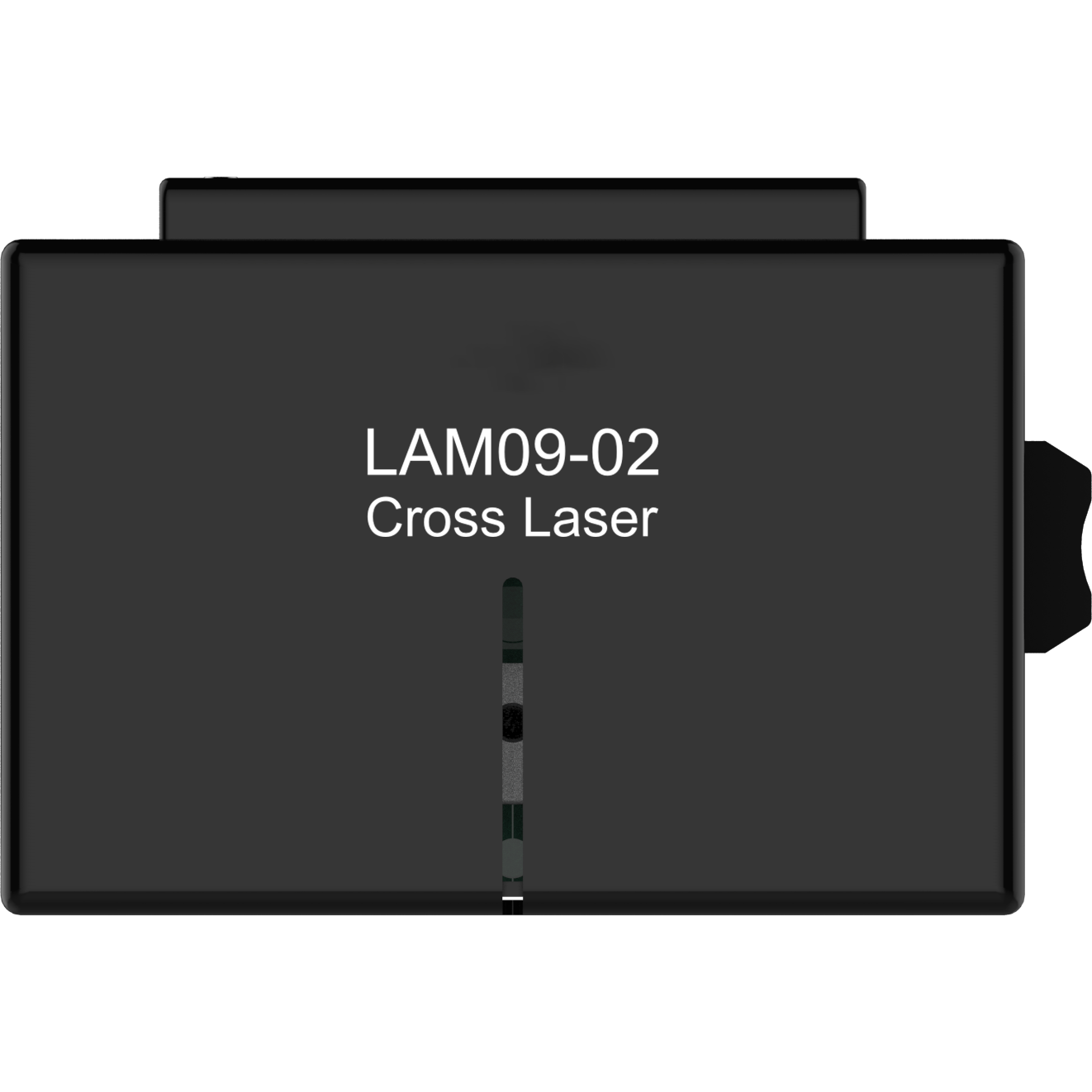

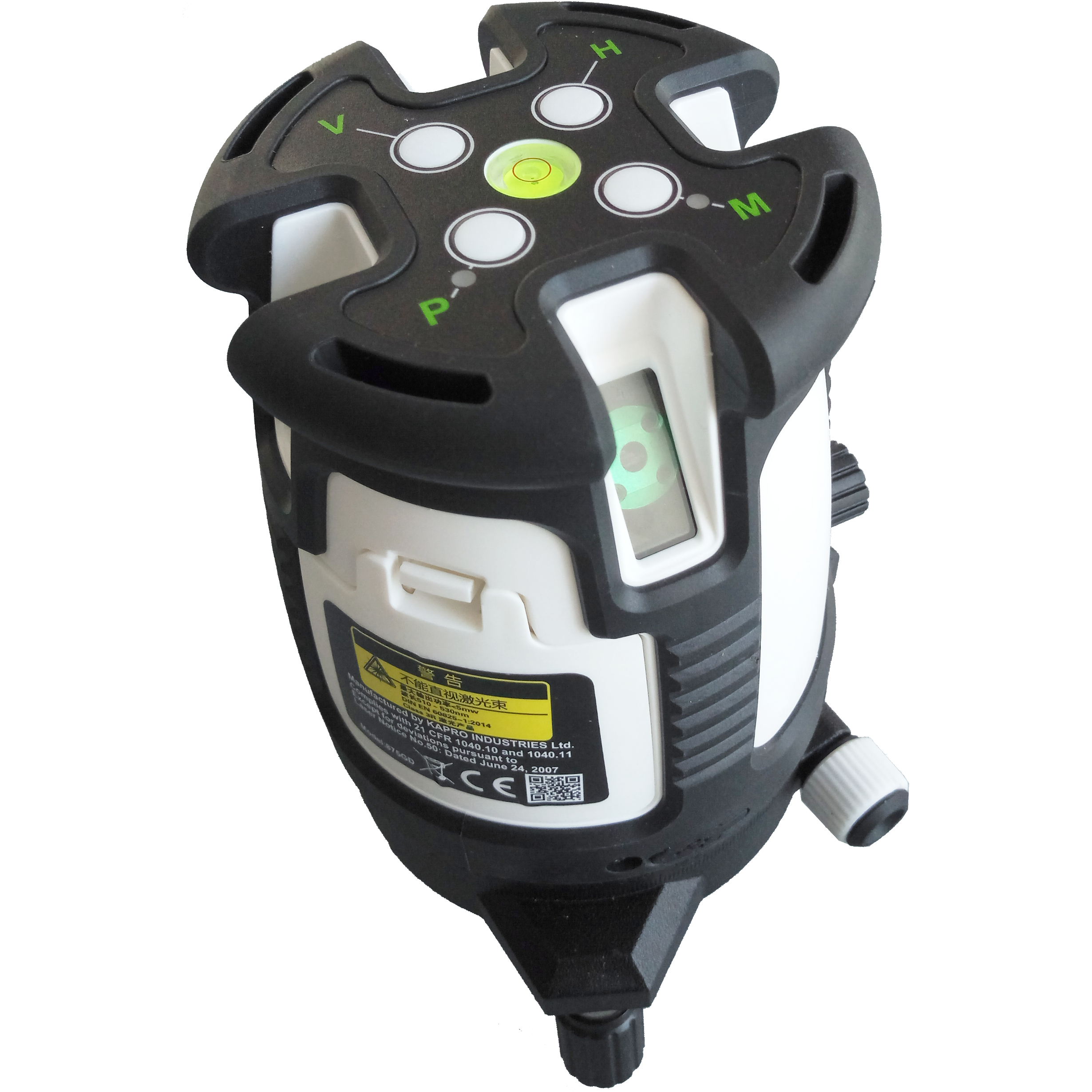

• Laser alignment using a 5-line laser for centreline location and a cross-line laser for frame placement
• Fine-tuning control with ±50 mm lateral adjustment and angle adjustment, without moving the whole frame
• Guided calibration with illustrations and real-time prompts when used with Phoenix scanners
• Calibrates lane departure warning, adaptive cruise control, blind spot detection, around view monitor, night vision and rear collision warning, for over 40 vehicle brands
• Ongoing updates will expand vehicle coverage

Who It Suits

Collision shops, body shops and workshops that offer ADAS calibration, including windscreen, bumper, alignment and suspension work.

Specifications

• Packaging: wooden case, 1415 x 1075 x 540 mm
• Weight: 136 kg

Please Note

• A compatible Phoenix series scanner is required and is not included.

What's in the Box

• ADAS Mobile main case
• Arm, base and accessories case

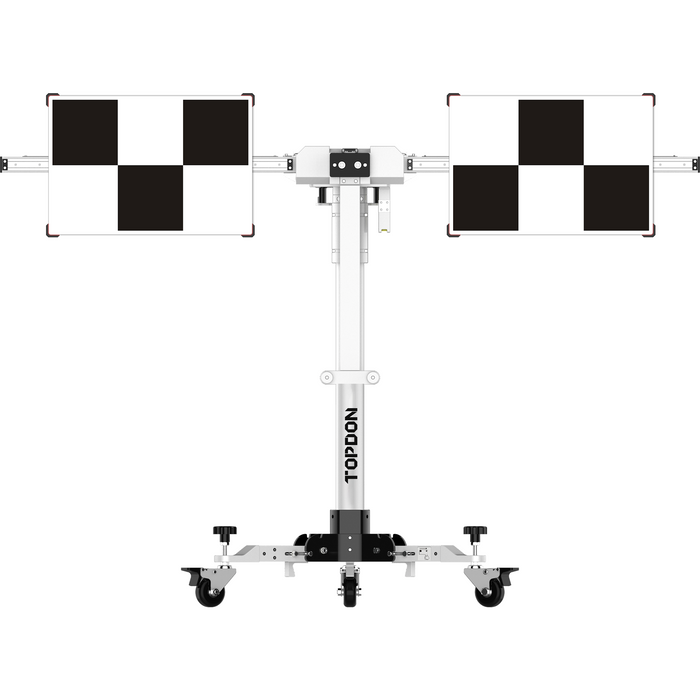

• Medium/small target and five-line laser devices case
• 4-in-1 large targets case
