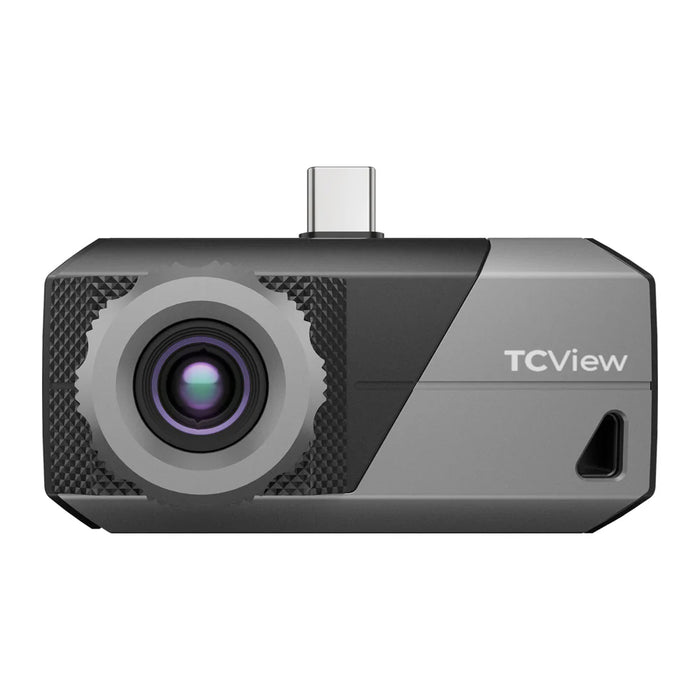

TOPDON TS001 Long-Focus Thermal Camera

The TOPDON TS001 is a thermal camera with an adjustable 9 mm lens, so you can inspect anything from a circuit board up close to targets a long way off. It plugs into an Android phone or tablet, or a Windows laptop.

Key Features

• Adjustable 9 mm lens covering 0.1 m to 500 m

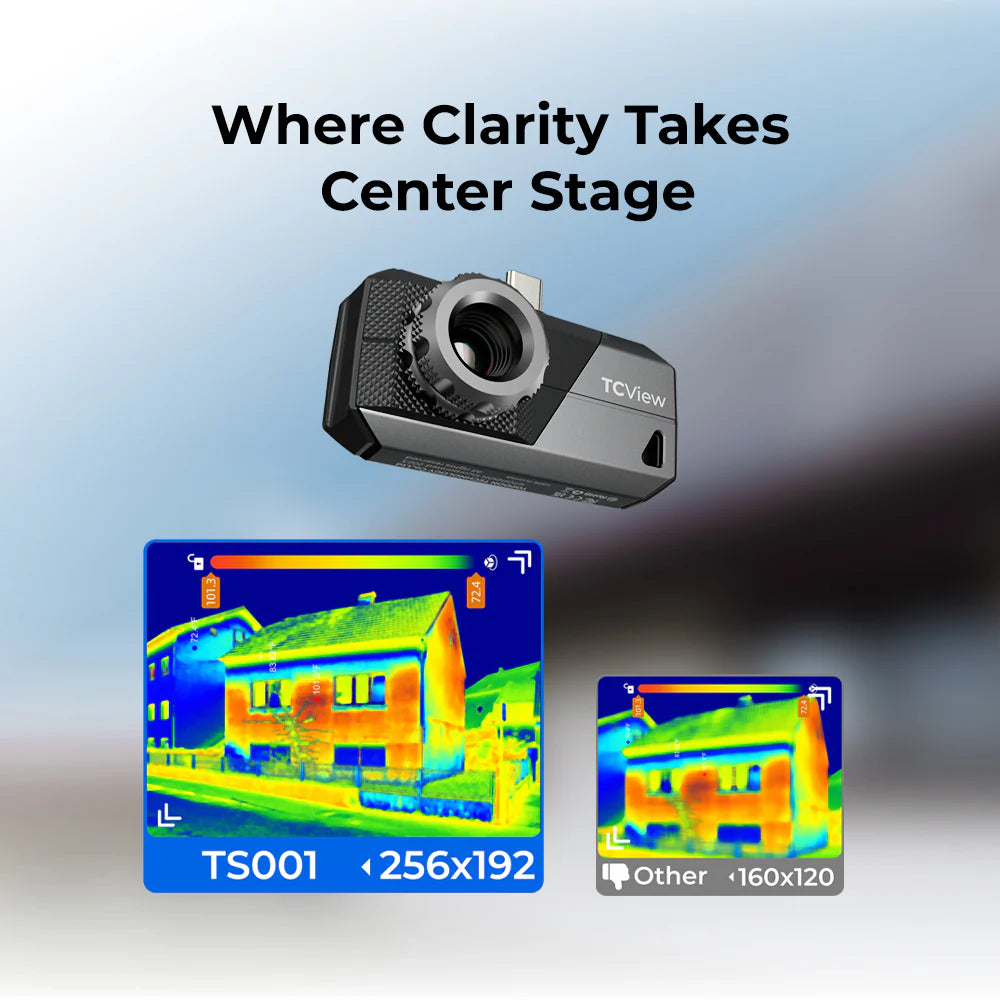

• 256 x 192 infrared resolution at a 25 Hz refresh rate

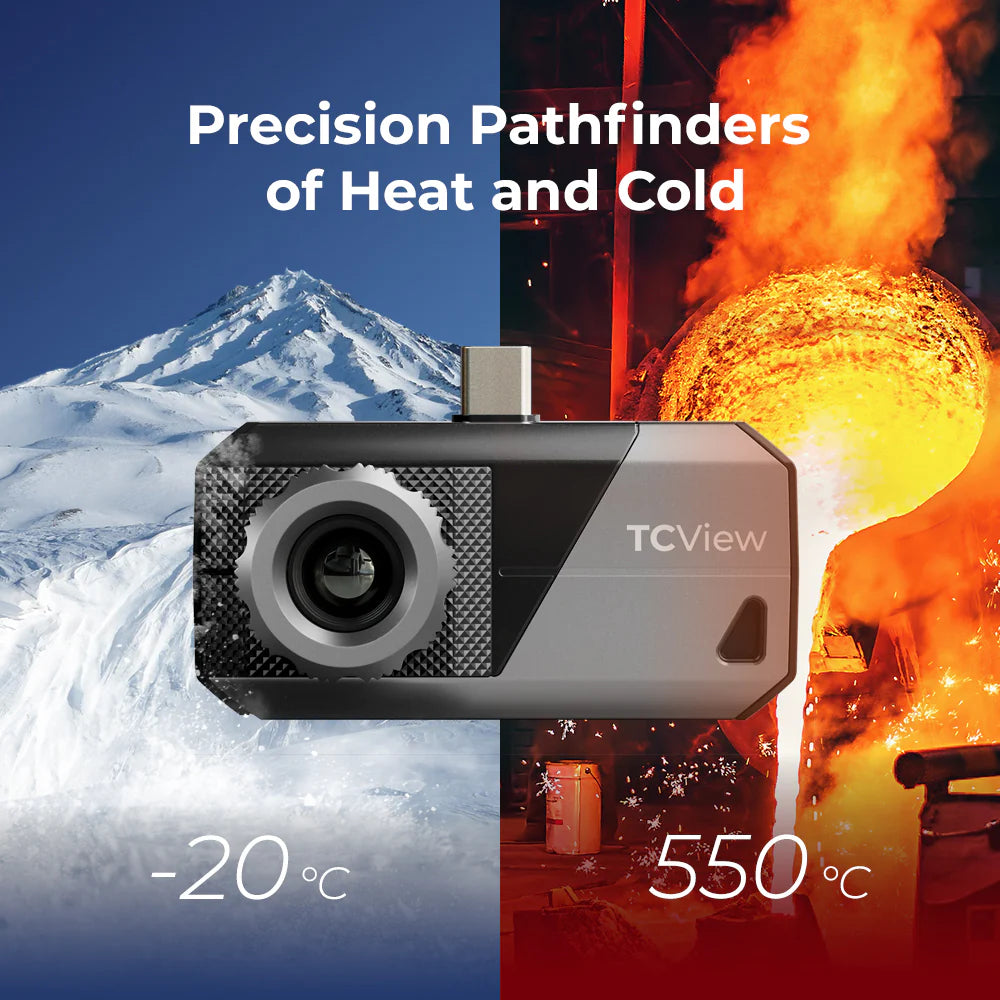

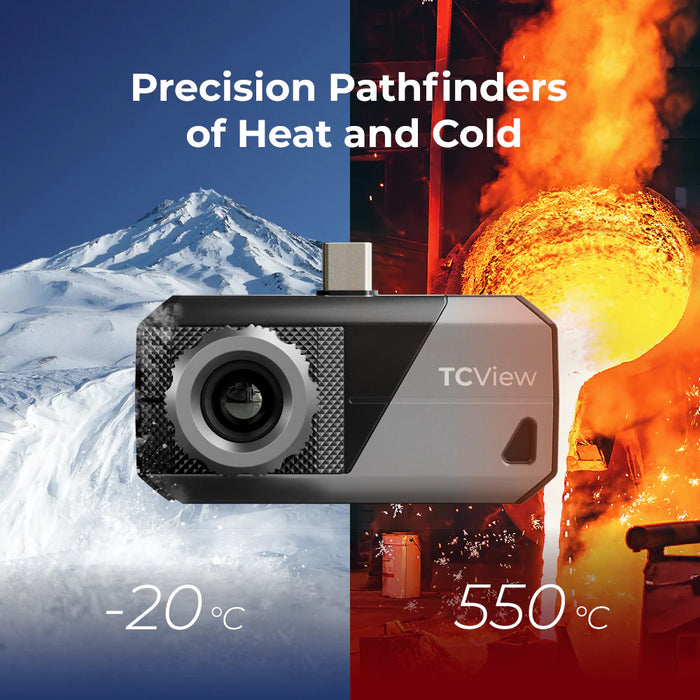

• Temperature range of -20°C to 550°C with 0.1°C temperature resolution
• Accuracy of ±3°C or ±3%
• Thermal sensitivity (NETD) under 40 mK
• Compact and light: 45 g, 70 x 28 x 44 mm

Modes and Image Tools

• Measurement mode and observation mode. Observation mode quickly locates points of interest and anomalies, and tracks moving objects
• High and low temperature mode to flag the hottest and coldest sources

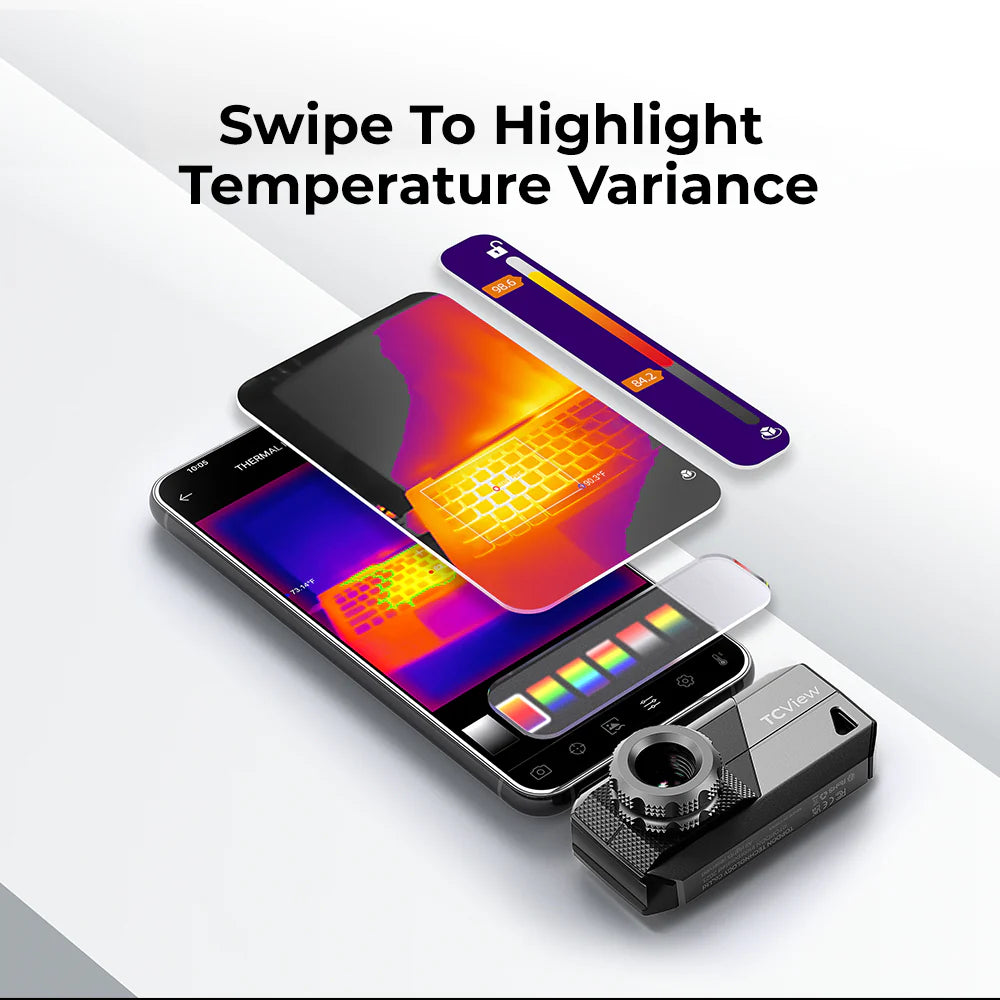

• Temperature highlighting: swipe the colour bar to set a temperature window. Readings outside it show in bold black and white, or in colours you choose
• 10 colour palettes, sharpness and contrast adjustment, picture-in-picture and other image enhancement functions

Applications

Building inspection, auto repair, PCB inspection, boiler monitoring, HVAC checks, outdoor cable inspection and animal observation.

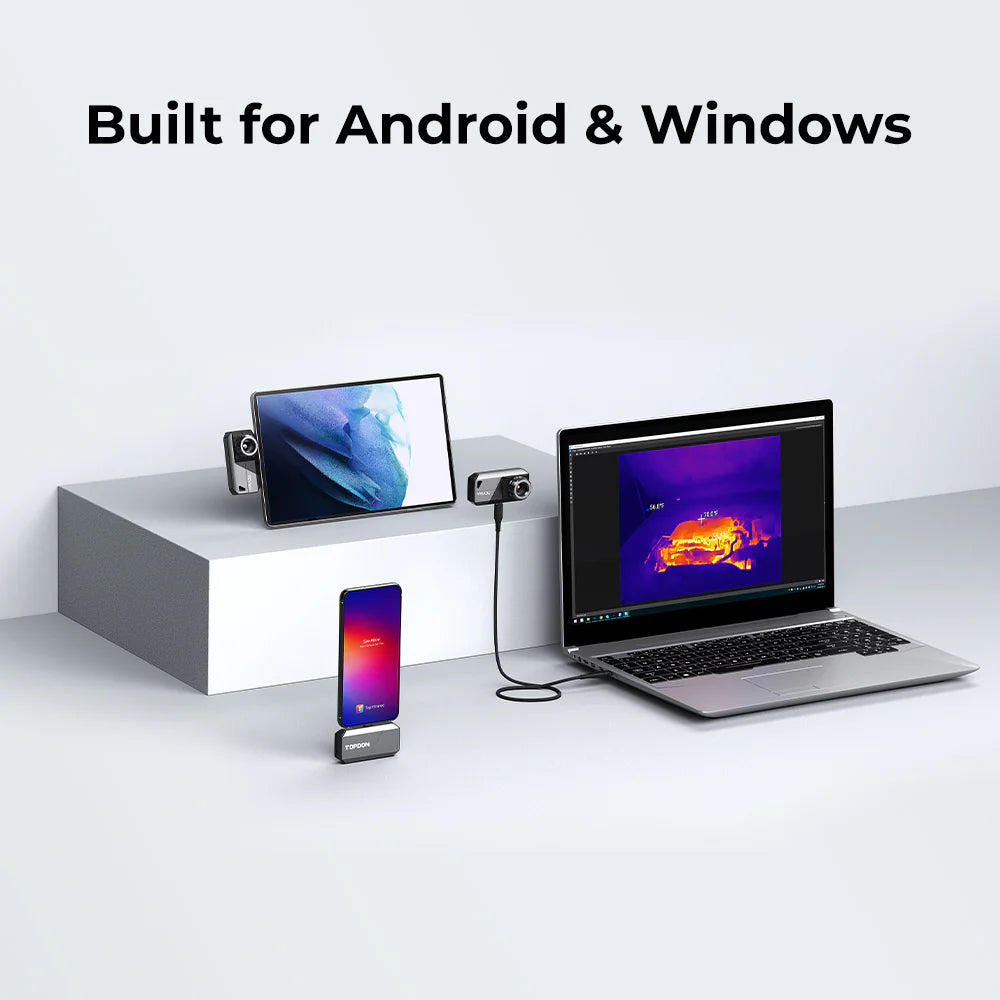

Compatibility

• Android phones and tablets
• Windows laptops

Specifications

• Infrared resolution: 256 x 192
• Focal length: 9 mm (adjustable focus)
• Frame rate: 25 Hz
• NETD: under 40 mK
• Temperature range: -20°C to 550°C
• Accuracy: ±3°C or ±3%
• Temperature resolution: 0.1°C
• Extension cable: 50 cm
• Dimensions: 70 x 28 x 44 mm
• Weight: 45 g

What's in the Box

• TS001 thermal camera
• USB data cable
• Lens cap
• Thermal camera holder
• Cleaning cloth
• Quick user guide
• Carrying case
