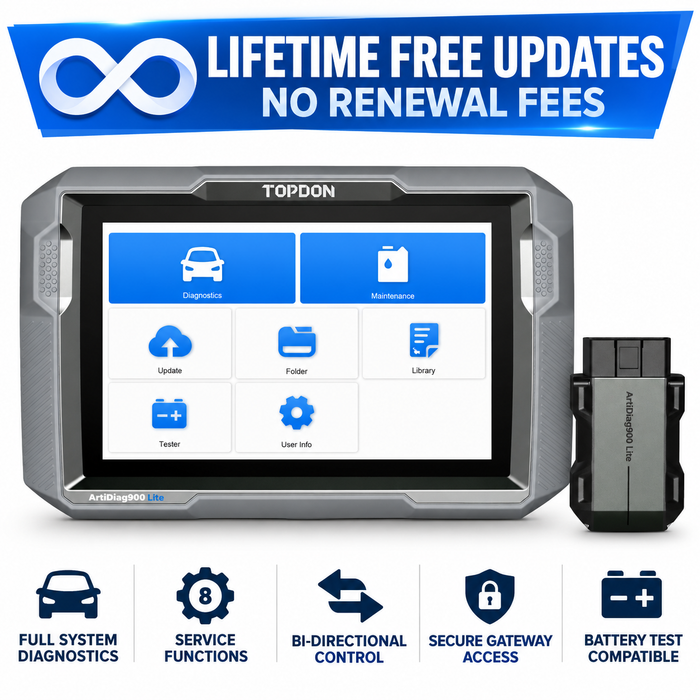

TOPDON ArtiDiag900 Lite – Professional Diagnostic Scanner
LIFETIME FREE SOFTWARE UPDATES – NO RENEWAL FEES
The TOPDON ArtiDiag900 Lite is a powerful wireless professional diagnostic scanner designed for automotive workshops, technicians and advanced users. Combining full-system diagnostics across 100+ vehicle brands with bi-directional active tests, 8 essential service functions and wireless Bluetooth diagnostics, it delivers professional-level capability in a compact 8-inch platform.
With access to major vehicle systems including Engine, Transmission, ABS, SRS/Airbag, TPMS, Immobiliser, Gateway, Steering, Radio and Air Conditioning, the ArtiDiag900 Lite provides the diagnostic coverage required for everyday workshop servicing and fault finding.
Lifetime FREE Software Updates
Buy once and keep it updated. The TOPDON ArtiDiag900 Lite now includes Lifetime FREE Software Updates with no ongoing software renewal fees.
Key Features
-
Full-System Diagnostics for 100+ Brands – Scan and diagnose major vehicle systems including Engine, Transmission, ABS, SRS/Airbag, ESP, TPMS, Immobiliser, Gateway, Steering, Radio and Air Conditioning.
-
Bi-Directional Control / Active Tests – Command supported vehicle components and actuators including fuel injectors, coolant pumps, windows, windscreen wipers and more to help accurately identify faults.
-
8 Essential Service & Reset Functions – Oil Reset, Throttle Adaptation, EPB Reset, Steering Angle Reset, DPF Regeneration, ABS Bleeding, BMS Reset and Airbag Reset.
-
Professional OBD2 Diagnostics – Lifetime access to all 10 OBD2 test modes including Read/Clear DTCs, Live Data, I/M Readiness, Freeze Frame, O2 Sensor Test, On-Board Monitor Test, EVAP Test, Vehicle Information and DTC Lookup.
-
Repair Data Library – Access useful diagnostic and repair information including DTC repair guidance, service bulletins, DLC location information and warning-light guidance.
-
Secure Gateway Access – Supports secure gateway access for compatible FCA, Renault, Nissan and other supported vehicles, allowing advanced diagnostics beyond basic code reading.
-
AutoVIN & AutoScan – Automatically identify supported vehicle information and quickly scan vehicle systems for diagnostic trouble codes.
-
Wireless Bluetooth VCI – The magnetic VCI attaches neatly to the rear of the tablet for convenient storage and provides wireless diagnostic freedom around the vehicle.
-
Optional Battery Testing – Compatible with the TOPDON BTMobile ProS battery analyser for wireless battery testing.
Powerful Workshop Hardware
The ArtiDiag900 Lite runs Android 11 and features an 8-inch 1280 × 800 display, Bluetooth 5.0, Wi-Fi, 2GB RAM, 32GB internal storage and a large 10,000mAh battery for extended workshop use.
USB Type-A, USB Type-C, RJ45, HDMI and DC charging connections provide excellent versatility, while TF card expansion supports up to 128GB of additional storage.
ArtiDiag900 Lite Specifications
- Operating System: Android 11
- Display: 8-inch, 1280 × 800
- Memory: 2GB RAM / 32GB ROM
- Battery: 10,000mAh
- Camera: 5MP
- Connectivity: Bluetooth 5.0, USB & Wi-Fi
- Ports: USB Type-A, USB Type-C, RJ45, HDMI & DC Charging
- Input Voltage: 12V DC
- Dimensions: 255 × 155 × 50mm
- Operating Temperature: 0°C to 50°C
What's Included
- 1 × TOPDON ArtiDiag900 Lite
- 1 × Wireless VCI
- 1 × Power Adapter
- 1 × OBD-II Extension Cable
- 1 × USB Type-A to Type-C Cable
- 1 × Quick User Guide
- 1 × User Manual
- 1 × Carrying Case
- 1 × Package Box
Warranty & Updates
Software Updates: Lifetime FREE Software Updates – No Renewal Fees
Warranty: 12 Months
Vehicle coverage, diagnostic functions, service functions and bi-directional controls vary by vehicle make, model, year and control system. Please contact TOPDON NZ if you would like compatibility confirmed for a specific vehicle or function before purchasing.
