AUTOOL PT610 Digital Petrol Compression Tester

AUTOOL PT610 Digital Petrol Compression Tester

The AUTOOL PT610 Intelligent Compression Tester measures cylinder compression digitally for engine diagnosis. A backlit display, stored readings and multiple pressure units make it easy to compare cylinders and judge mechanical condition during workshop testing.

Who It Suits

Workshops and technicians diagnosing petrol engine mechanical faults such as worn rings, valve sealing issues or head gasket problems.

Key Features

• Digital measurement system with clear pressure readings

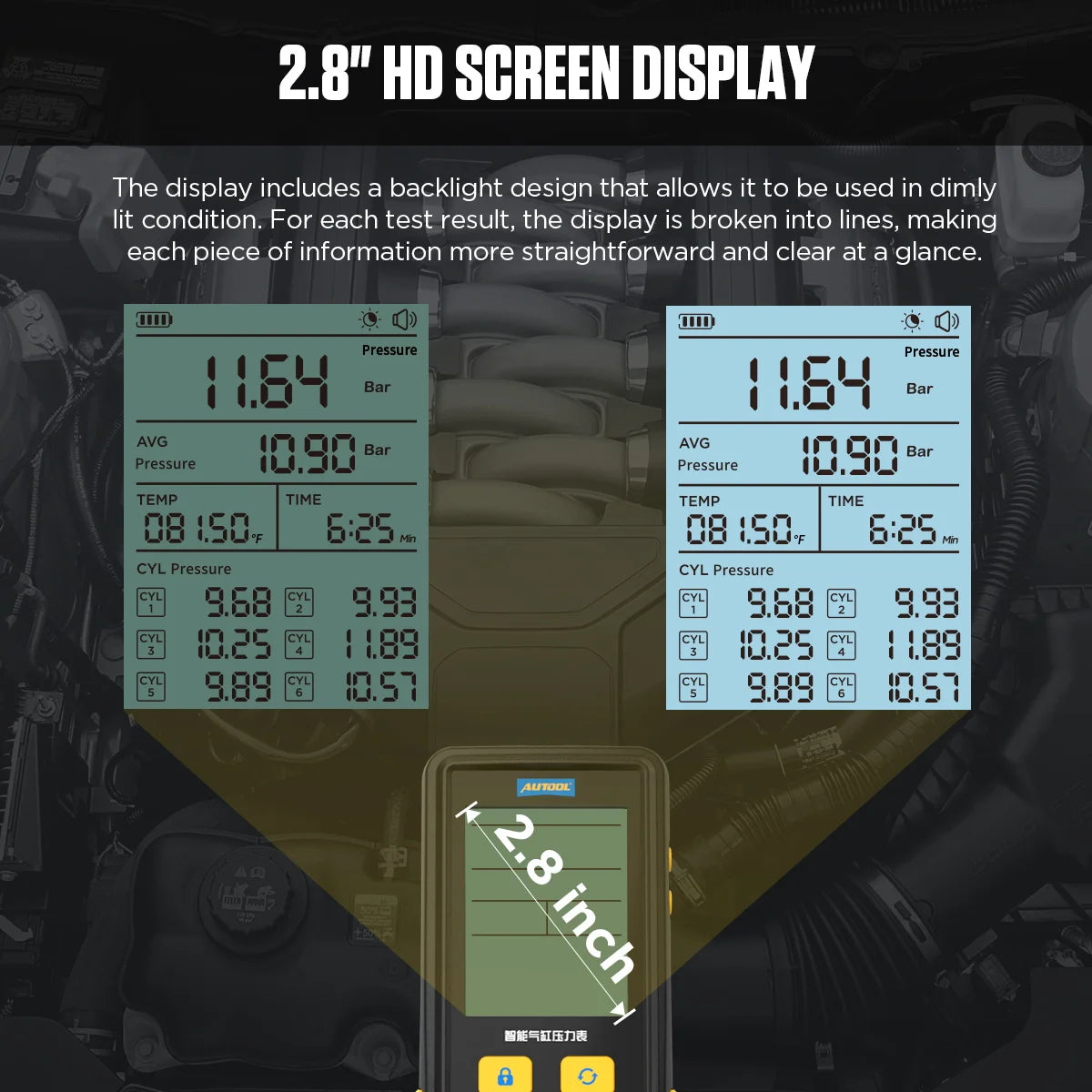

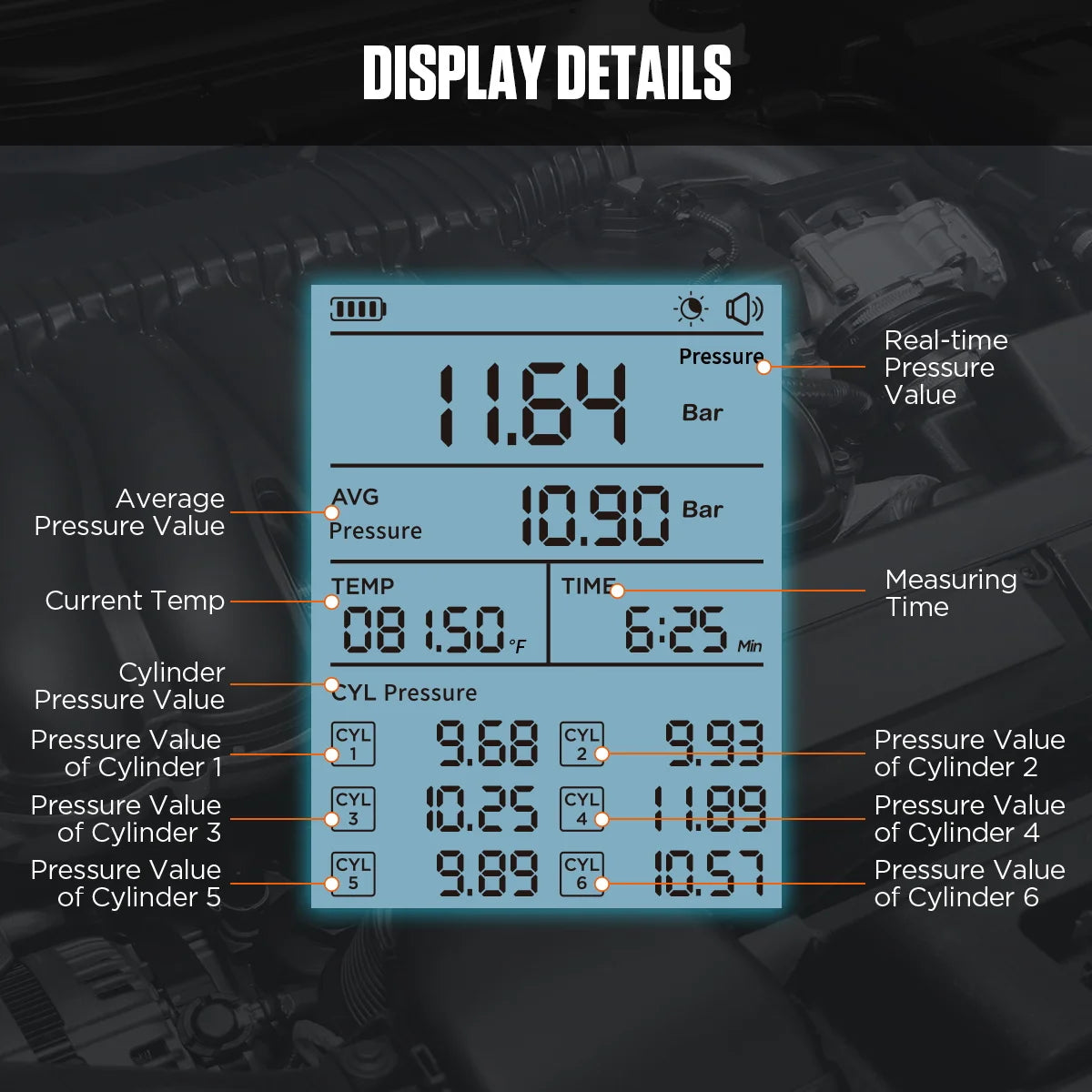

• 2.8-inch HD backlit display for workshop conditions
• Stores six pressure measurements for cylinder-to-cylinder comparison

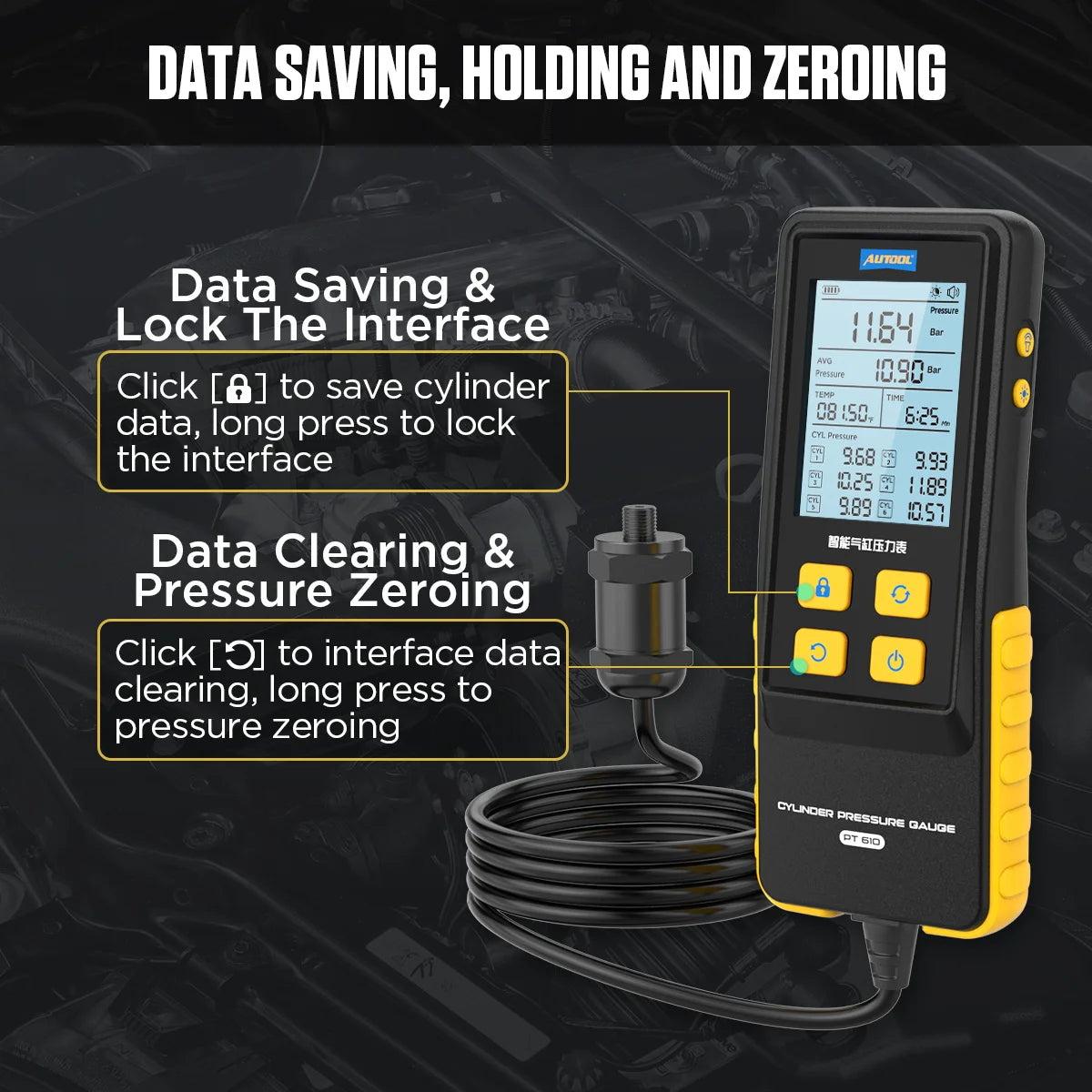

• Pressure locking – a one-way valve holds the maximum cylinder pressure reading, and one-key data lock prevents accidental changes

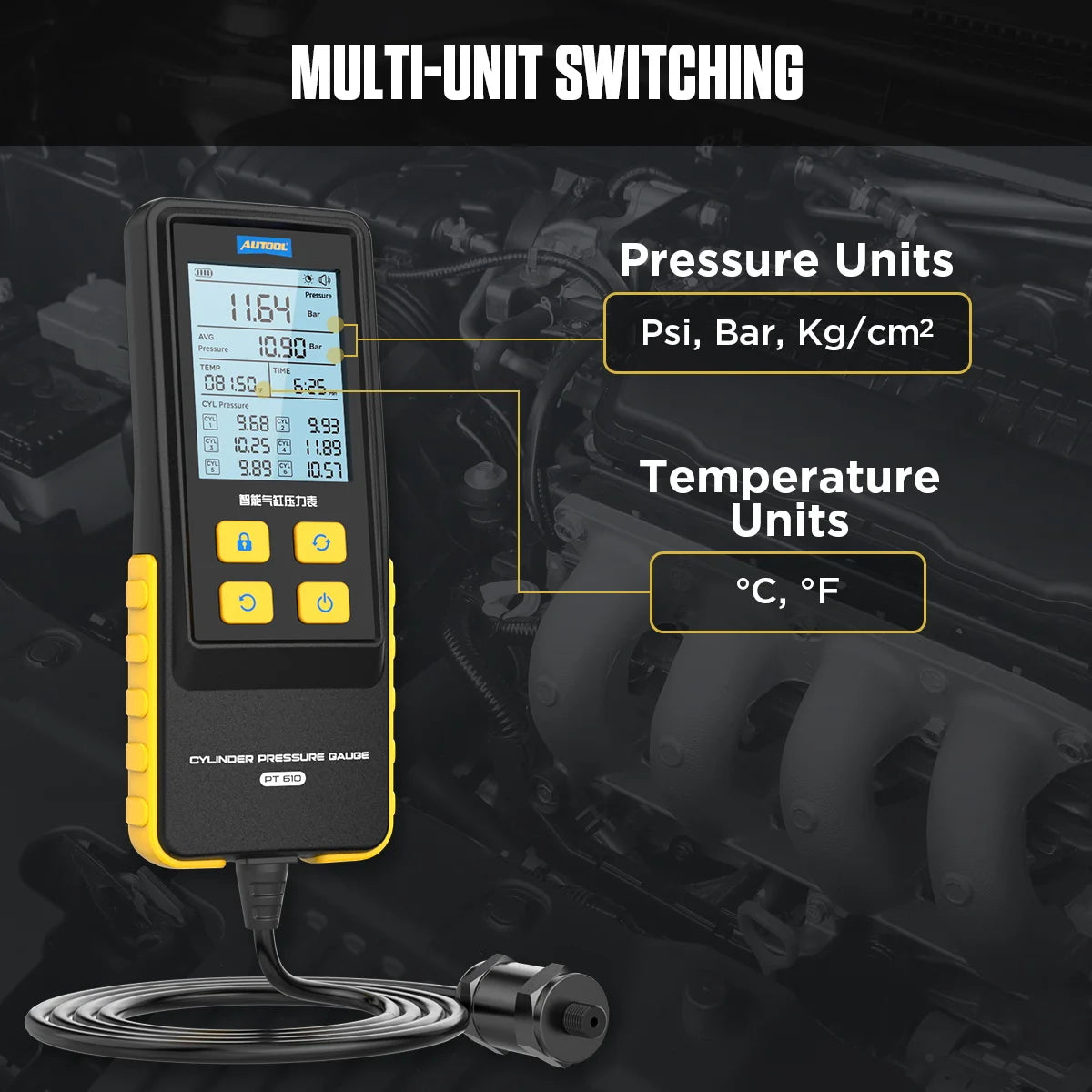

• Selectable units – bar, psi and kg/cm², plus °C / °F
• Corrosion-resistant brass construction

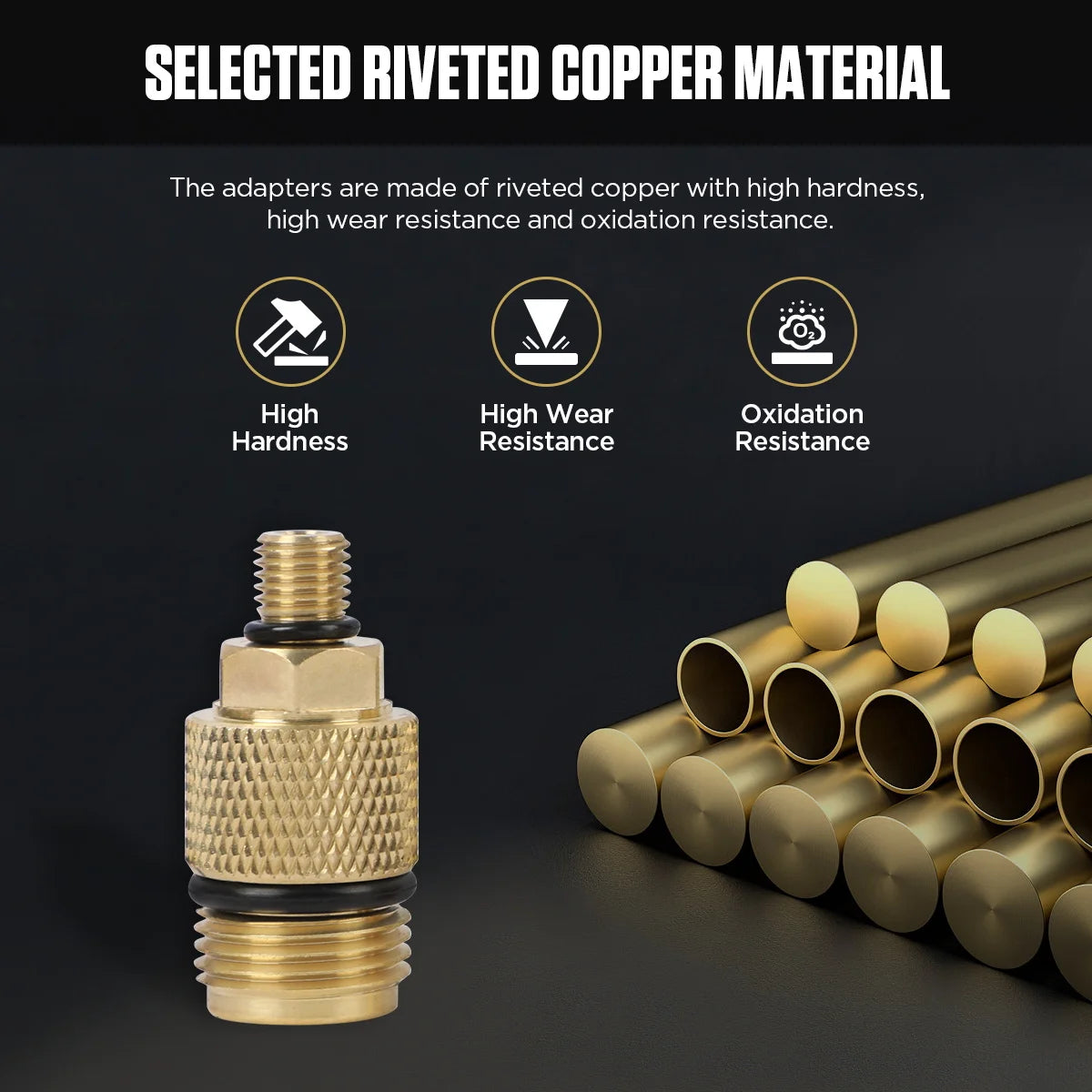

• Riveted copper connectors for durable engine connections
• Portable toolbox for organised storage

Technical Specifications

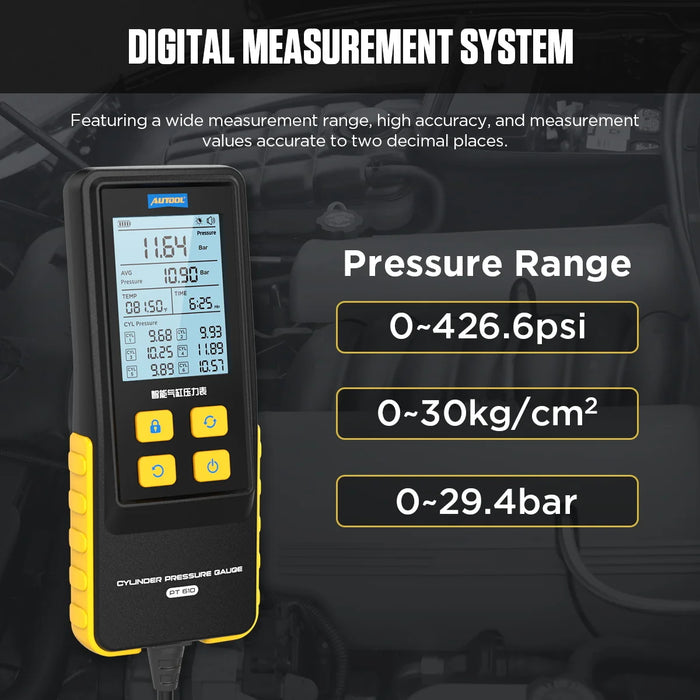

• Pressure range: 0–30 bar / 0–435.11 psi / 0–30.6 kg/cm²
• Temperature range: -55°C to 125°C
• Resolution: 0.01
• Operating voltage: 6V using four 1.5V batteries
• Main unit size: 29 x 72 x 175mm
• Packaging size: 260 x 102 x 203mm

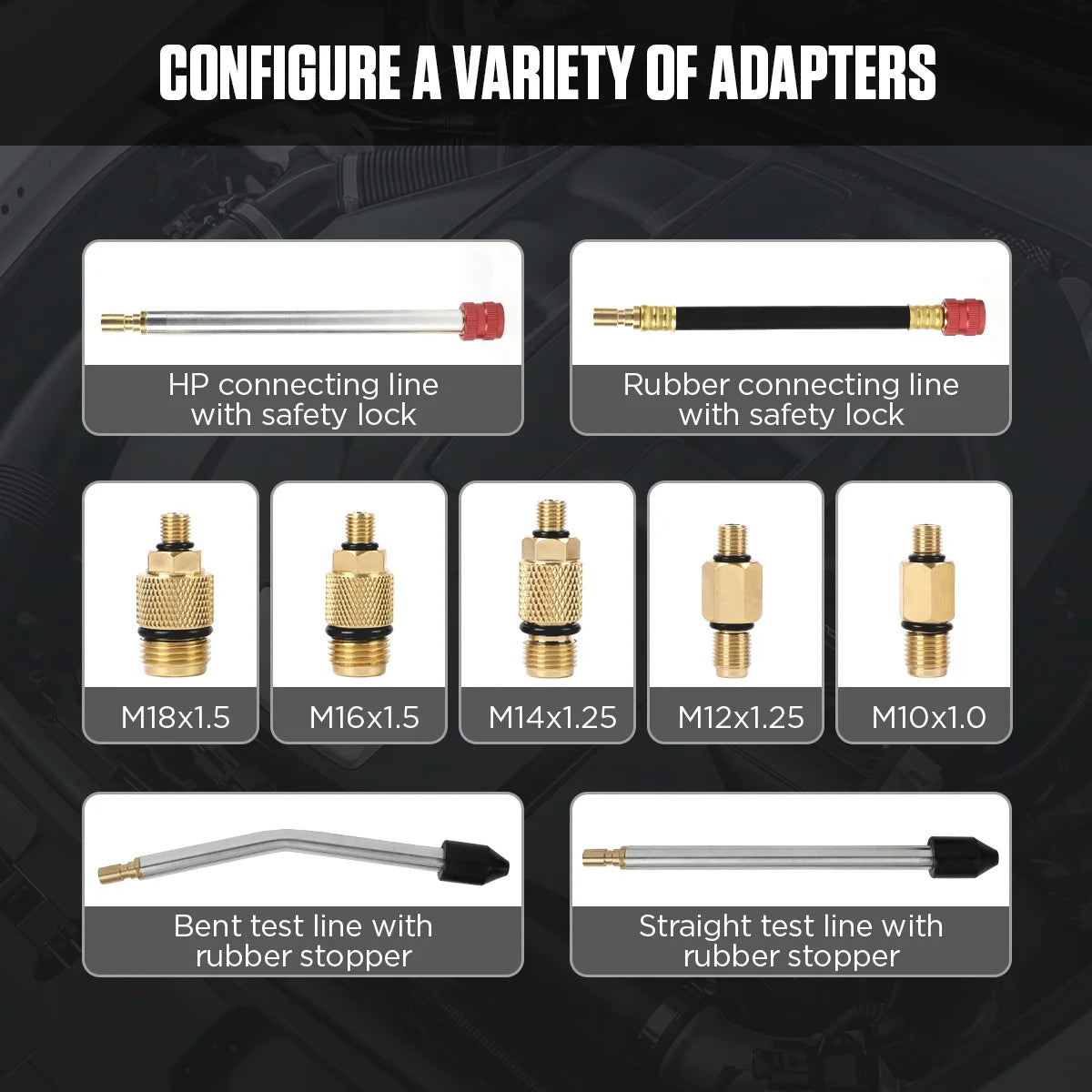

Package Contents

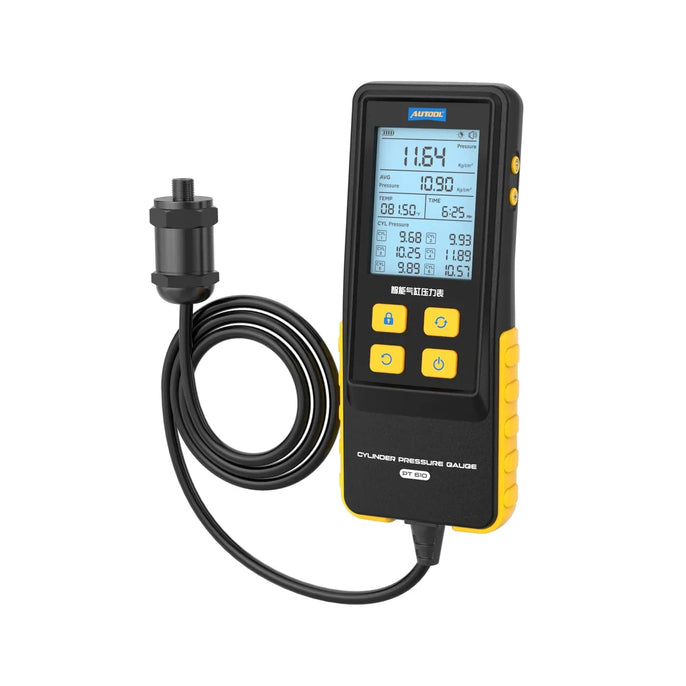

• AUTOOL PT610 cylinder pressure gauge
• HP connecting line with safety lock
• Rubber connecting line with safety lock
• Thread adapters: M18x1.5, M16x1.5, M14x1.25, M12x1.25, M10x1.0
• Bent test line with rubber stopper
• Straight test line with rubber stopper
• Manual
• Package box

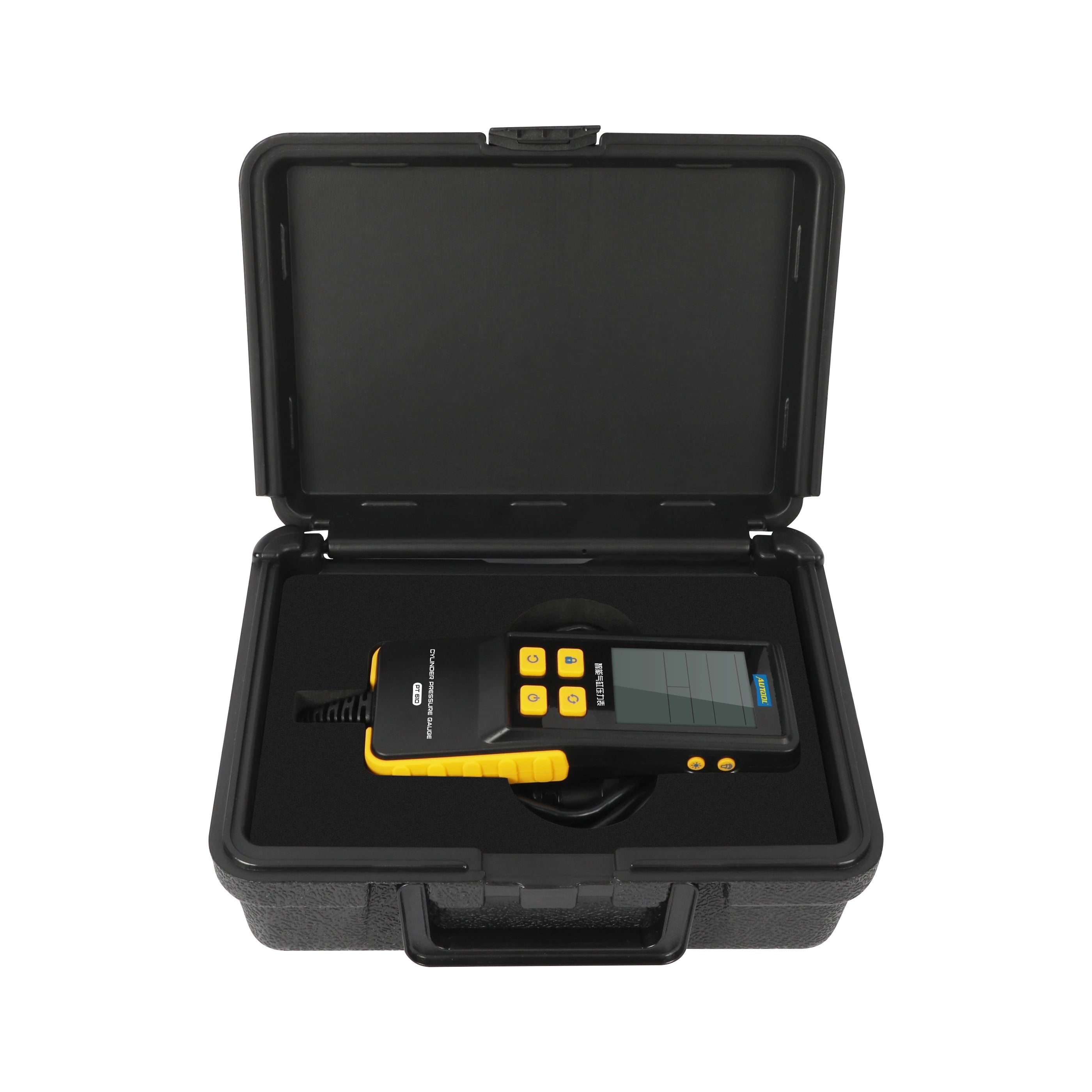

• Storage case
