AUTOOL DM303 Auto Diagnostic Digital Multimeter Oscilloscope Ammeter Analog Signal Test Ohmmeter Car Circuit Tester with K/CAN

AUTOOL DM303 Auto Diagnostic Digital Multimeter Oscilloscope Ammeter Analog Signal Test Ohmmeter Car Circuit Tester with K/CAN

Take the guesswork out of automotive electrical diagnosis.

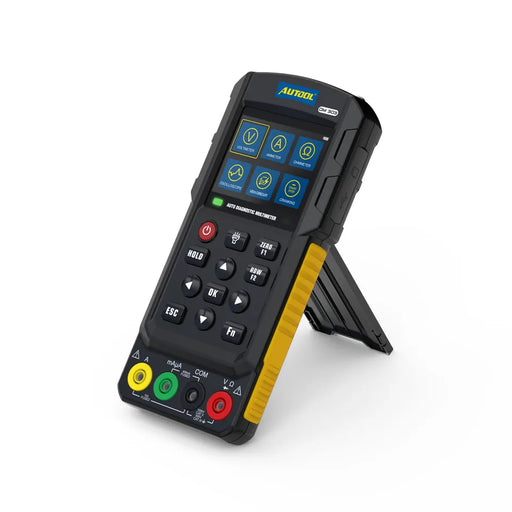

The AUTOOL DM303 Automotive Diagnostic Multimeter is the advanced version of AUTOOL's automotive multimeter platform, combining 13 testing functions with oscilloscope, component-drive and vehicle communication-line testing. It is suited to technicians who need to move beyond basic voltage and resistance checks into signal, injector, relay and CAN/K-LIN diagnosis.

Why This Tool Is Useful

Designed to give technicians clearer, repeatable test information during diagnosis instead of relying on guesswork or visual checks alone.

Key Features

• Resistance measurement.
• Oscilloscope mode.
• Automotive circuit testing.
• Automotive cranking testing.
• Fuel injector testing.
• Relay testing.
• Simulated signal testing.
• K/LIN line data reading.
• CAN line data reading.
• Fuel injector drive signal function supports injector-related diagnostic work.
• Built-in LED work light assists when testing in darker vehicle areas.
• Compact design is supplied with a tool case for organising the meter and its connection leads.
• Available testing modes: 13.

Specifications

• Voltage measurement.
• Current measurement.
• Ignition pulse signal testing.
• Frequency measurement.
• 2.8-inch high-definition colour display provides clear readings and waveform viewing.
• Automotive circuit drive current capability supports component and circuit testing.
• Intelligent overload and overheat protection cuts power in a short-circuit condition to help protect the instrument.
• Multiple power options support dry batteries, Type-C, battery clips and an optional lithium battery.
• DC voltage range: 0–1000V.
• AC voltage range: 0–700V.
• Current range: 0–20A and 0–200mA.
• Resistance range: 0–1MΩ.
• Frequency range: 1Hz–1MHz.
• Automotive circuit drive current: 0–5A.
• Fuel injector drive signal: 500–6000RPM.
• Display: 2.8-inch colour screen.
