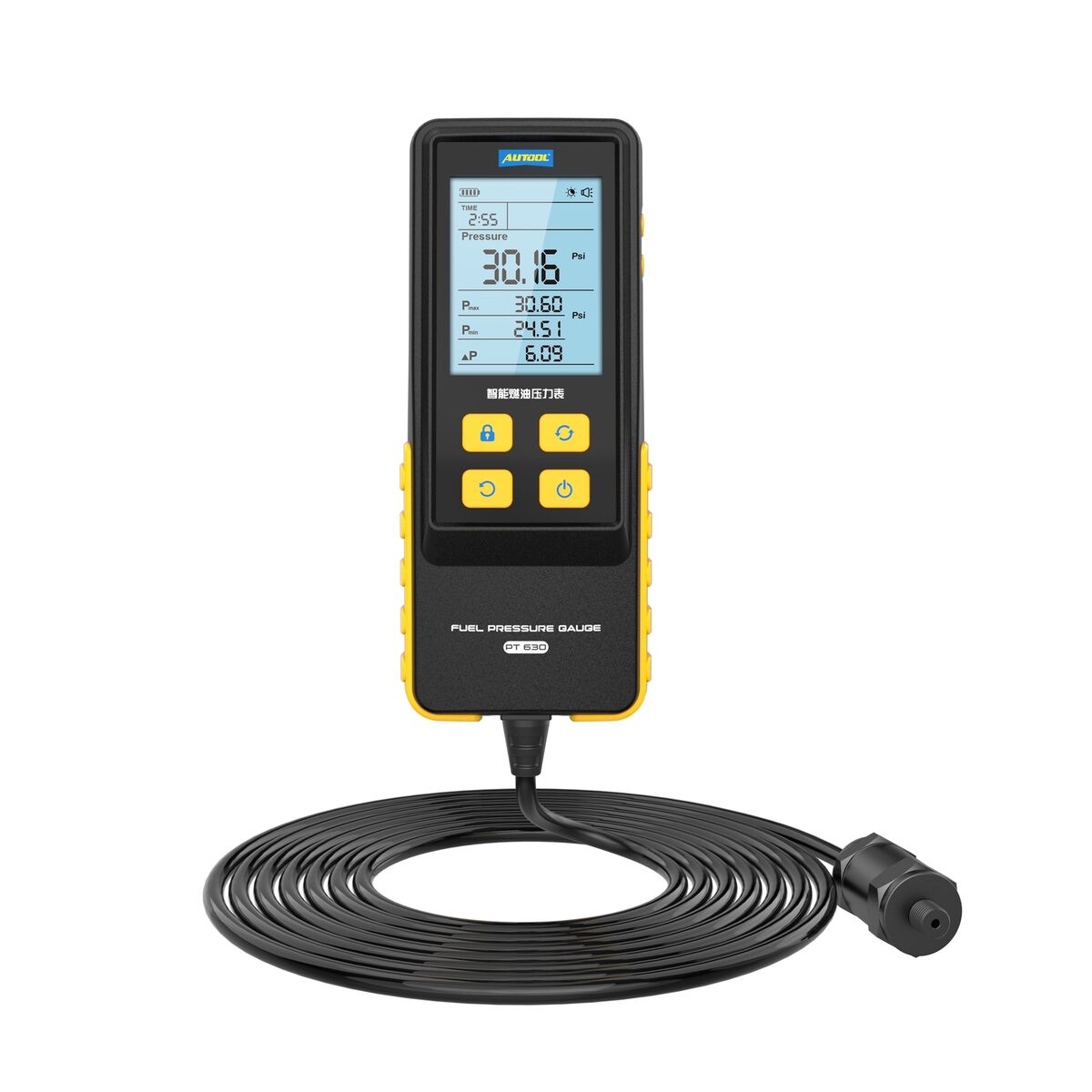

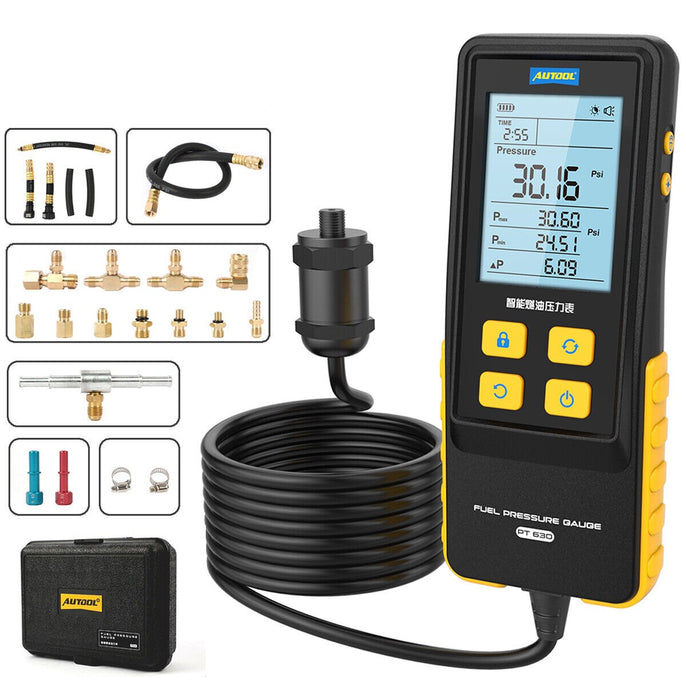

AUTOOL PT630 Automobile Fuel Pressure Gauge 0-426 PSI Digital Display

AUTOOL PT630 Automobile Fuel Pressure Gauge 0-426 PSI Digital Display

Get clear digital measurements for faster, more confident diagnosis.

The AUTOOL PT630 Intelligent Fuel Pressure Tester provides digital pressure measurement for automotive fuel-system diagnosis. It displays current, maximum and minimum pressure plus pressure difference, helping technicians assess fuel-delivery performance more clearly than with a basic analogue gauge.

Why This Tool Is Useful

Designed to give technicians clearer, repeatable test information during diagnosis instead of relying on guesswork or visual checks alone.

Key Features

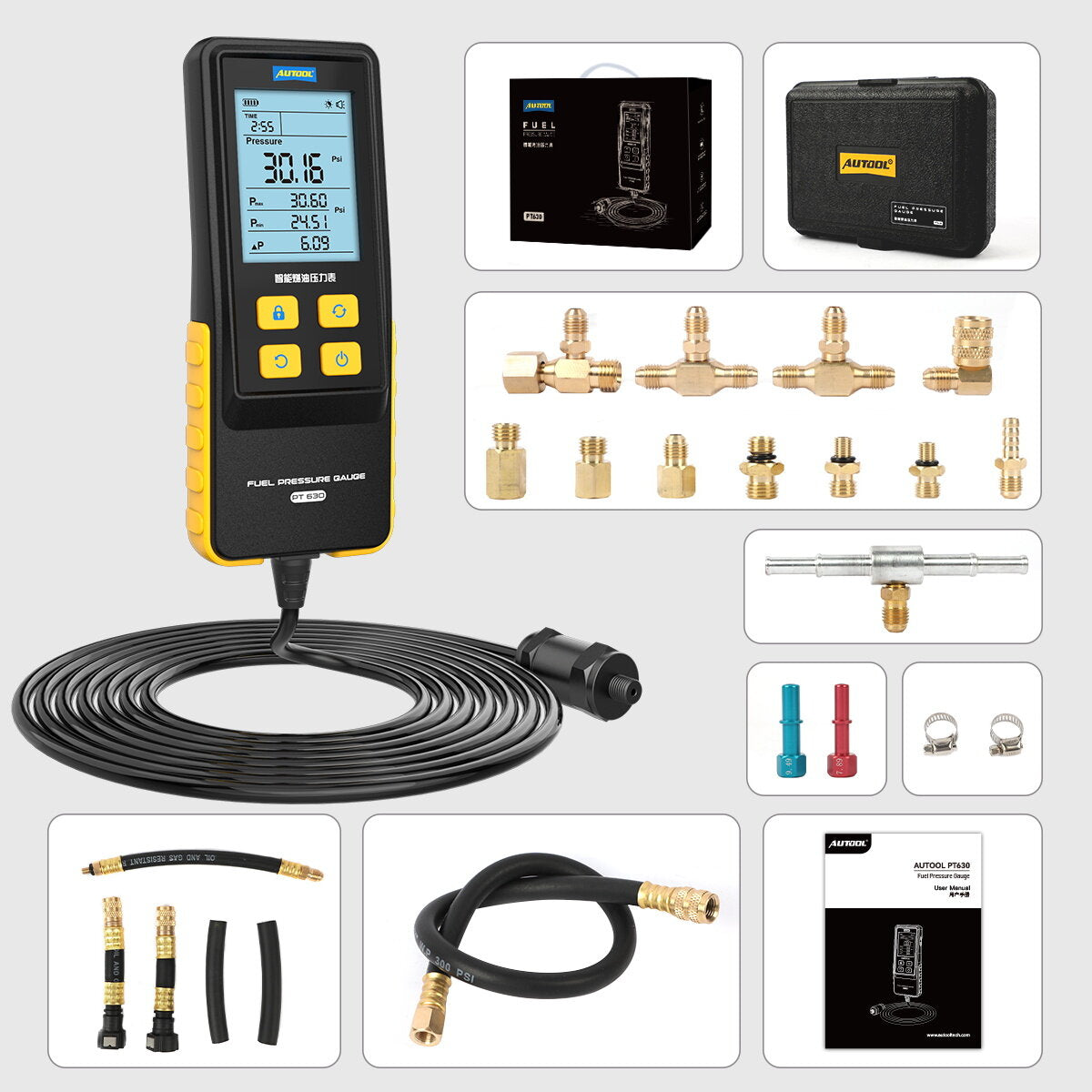

• Multiple riveted-copper adapters provide durable connection options for different applications.
• Supplied with a portable toolbox for storage and transport.

Specifications

• Digital measurement system provides accurate, easy-to-read fuel-pressure data.
• 2.8-inch HD backlit display improves visibility during workshop testing.
• Displays current pressure, maximum pressure, minimum pressure and pressure difference.
• Three selectable pressure units.
• Operating voltage: 6V using four 1.5V batteries.
• Pressure range: 0–30bar / 0–435.11psi / 0–30.6kg/cm².
• Resolution: 0.01.
• Main unit dimensions: 29 x 72 x 175mm.
• Packaging dimensions: 260 x 102 x 203mm.
