AUTOOL BT260 Automotive Circuit Tester Power Probe, 12v/24v

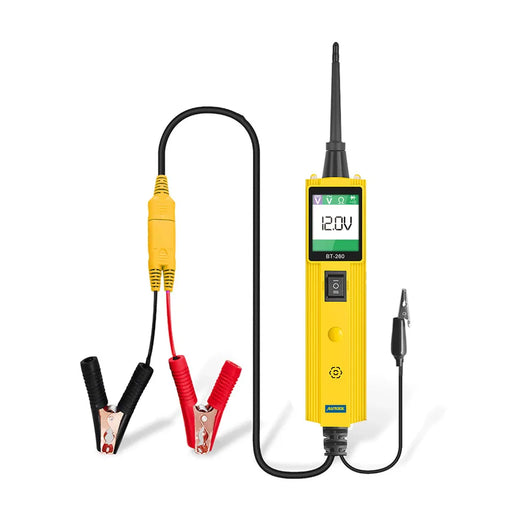

AUTOOL BT260 Automotive Circuit Tester Power Probe

The AUTOOL BT260 is a powered electrical diagnostic probe for 12V and 24V vehicle systems. It handles common voltage, resistance and diode tests while identifying circuit polarity, helping technicians trace short circuits and open circuits around the vehicle.

Who It Suits

Technicians, auto electricians and fleet or truck workshops who need a fast, powered way to check wiring and circuits on 12V and 24V systems.

Key Features

• Four testing functions – DC / AC voltage, DC / AC current, resistance and diode testing
• Red / green polarity indicators help identify positive, negative, short-circuit and open-circuit conditions
• Circuit data display – maximum voltage, minimum voltage, frequency and duty cycle
• Flashlight function for dark working areas
• Nine language settings – Chinese, English, Russian, German, Portuguese, French, Italian, Spanish and Polish
• 1.7-inch colour display (TFT) for clear test information
• 12-metre power lead reaches around the whole vehicle
• Overload and reverse polarity protection activate automatically if current exceeds 8A
• Comes with a tool case for storage
• Compact and light – 105g net weight

Technical Specifications

• Operating voltage: 12V / 24V
• Voltage test range: 0–65V
• Resistance test range: 0–200kΩ
• Display: 1.7-inch colour TFT screen
• Operating temperature: 0°C to 60°C
• Storage temperature: -40°C to 70°C
• Power lead length: 12m
• Net weight: 105g
• Main unit size: 42 x 32 x 253mm

Package Contents

• AUTOOL BT260 circuit tester
• Battery clamps
• Battery clamp adaptor
• Probe tip
• Extension cable
• User manual
