Autel MaxiSYS Elite II Pro – Advanced Diagnostics, ECU Coding & J2534 Programming
The Autel MaxiSYS Elite II Pro is a professional diagnostic system for busy automotive workshops requiring extensive vehicle diagnostics, advanced service functions, supported ECU coding and J2534 pass-thru programming. The rugged 9.7-inch tablet pairs with a MaxiFlash vehicle communication interface to help technicians investigate complex faults and carry out supported vehicle programming procedures.
Key Features & Workshop Benefits
-
OE-level diagnostic capability: Access supported vehicle electronic systems to read and clear fault codes, retrieve ECU information, monitor live data and investigate system faults.
-
Bi-directional active testing: Run supported actuator and component commands directly from the tablet to help verify operation and pinpoint faults.
-
Advanced ECU coding: Carry out supported control-unit coding, configuration and adaptation procedures when available for the vehicle.
-
J2534 pass-thru programming: Includes a MaxiFlash interface supporting SAE J2534-1 and J2534-2 pass-thru applications; manufacturer software, credentials and subscriptions may be required.
-
Guided troubleshooting: The supplier catalogue lists Technical Service Bulletin searches, Repair Assist and recommended solutions to support diagnostic decisions.
-
Broad vehicle coverage: Designed for more than 80 US, Asian and European vehicle makes according to the supplier catalogue, with functions varying by application.
-
Diagnostic data management: Organise vehicle information, customer records, saved diagnostic results and workshop notes on the tablet.
-
Connected support tools: Supports internet-based software updates, interactive data logging and remote technical support features where available.
-
Workshop-ready construction: Rugged tablet design with rubberised external protection for regular service-bay use.
Typical Workshop Applications
- Comprehensive diagnostic scans and fault-code investigation across supported vehicle control modules.
- Live-data monitoring, ECU identification and component actuation to help diagnose intermittent and system-specific faults.
- Supported maintenance resets, calibrations, adaptations and service procedures depending on vehicle coverage.
- ECU coding and module configuration for applicable makes and models.
- Manufacturer-supported ECU programming using the MaxiFlash J2534 interface and appropriate OEM software and access.
- Use of technical service bulletins, guided procedures and recommended solutions to support repair planning.
Technical Specifications
-
Operating system: Android 10.0.
-
Processor: Samsung Exynos 8895V octa-core.
-
Memory: 4GB RAM and 128GB internal storage.
-

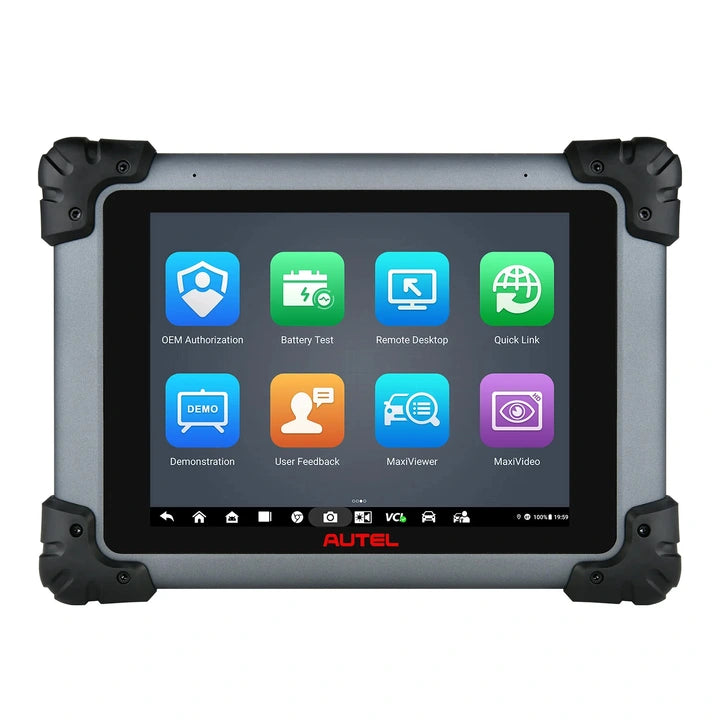

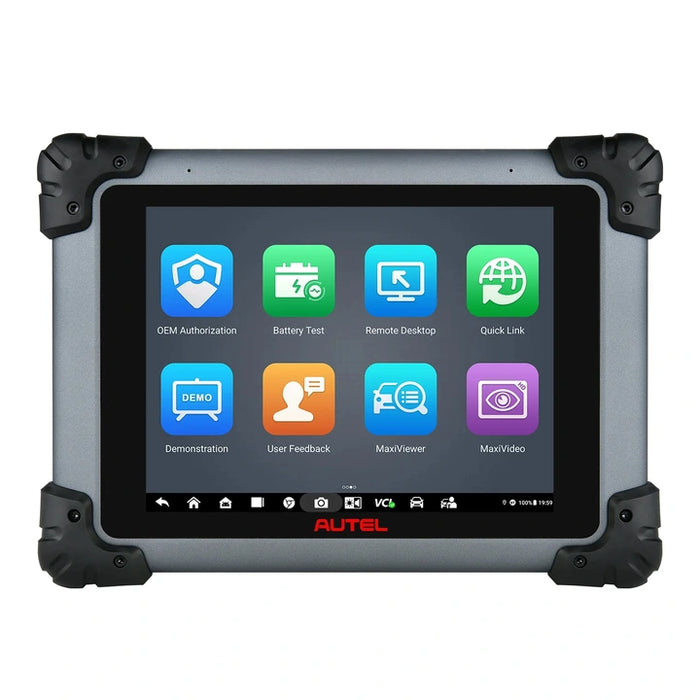

Display: 9.7-inch LED capacitive touchscreen, 1536 × 2048 resolution.
-

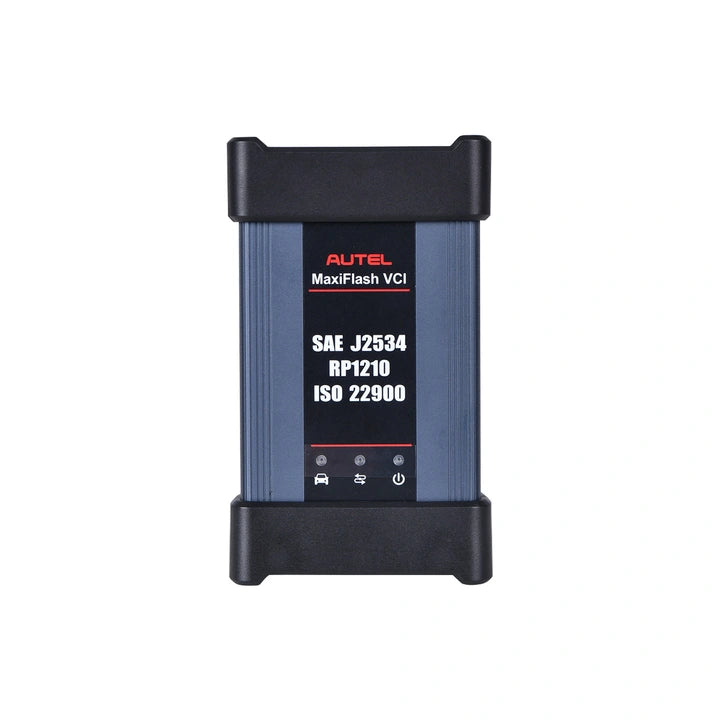

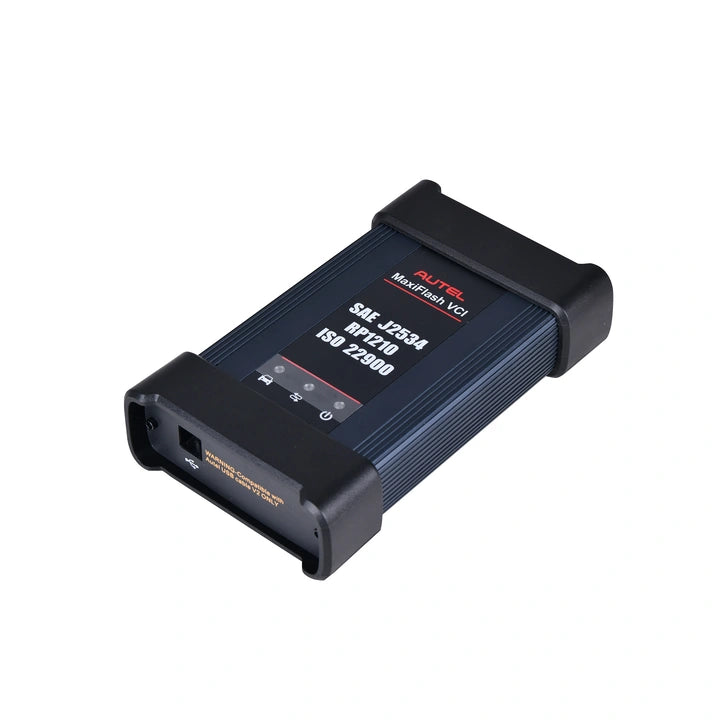

Vehicle interface: MaxiFlash J2534 pass-thru VCI.
-
Camera: 16MP rear camera with autofocus and flashlight.
-
Battery: 11,000mAh lithium battery.
-
Weight: Approximately 1.59kg.
-
Connectivity: Wireless vehicle communication and online updates; supplied cable accessories support compatible connections.

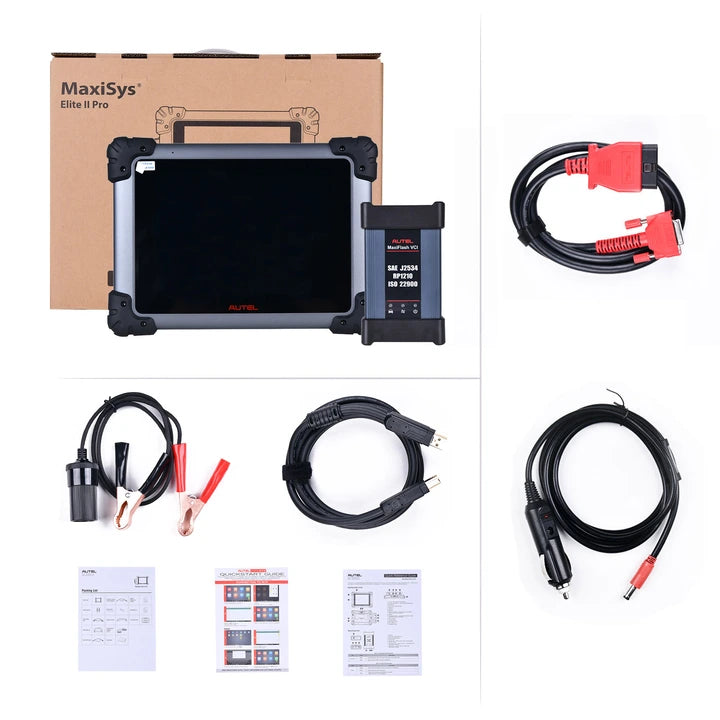

Package Contents
- MaxiSYS Elite II Pro diagnostic tablet and MaxiFlash J2534 vehicle interface.
- Main diagnostic cable, Mini USB cable and USB cable.
- 12V AC/DC power adapter, auxiliary power outlet adapter and connection accessories.
- Quick reference and quick-start documentation, soft cloth and protective carrying case.
NZ Warranty & Product Support
Discount Tools NZ provides New Zealand-based product advice, warranty assistance and help checking vehicle and programming compatibility. If you have a specific vehicle or ECU programming job in mind, contact us before ordering so we can help establish the required software and access.
Functions, service coverage and ECU programming vary by vehicle make, model, year, ECU and software version. Online programming can require manufacturer software, subscriptions, secure-gateway authorisation or additional accessories. Please check specific vehicle requirements before purchasing.
